Goldstar
Microwave/Hood Combo

Model # MV-1725B Official Goldstar microwave

Here are the diagrams and repair parts for Official Goldstar MV-1725B microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

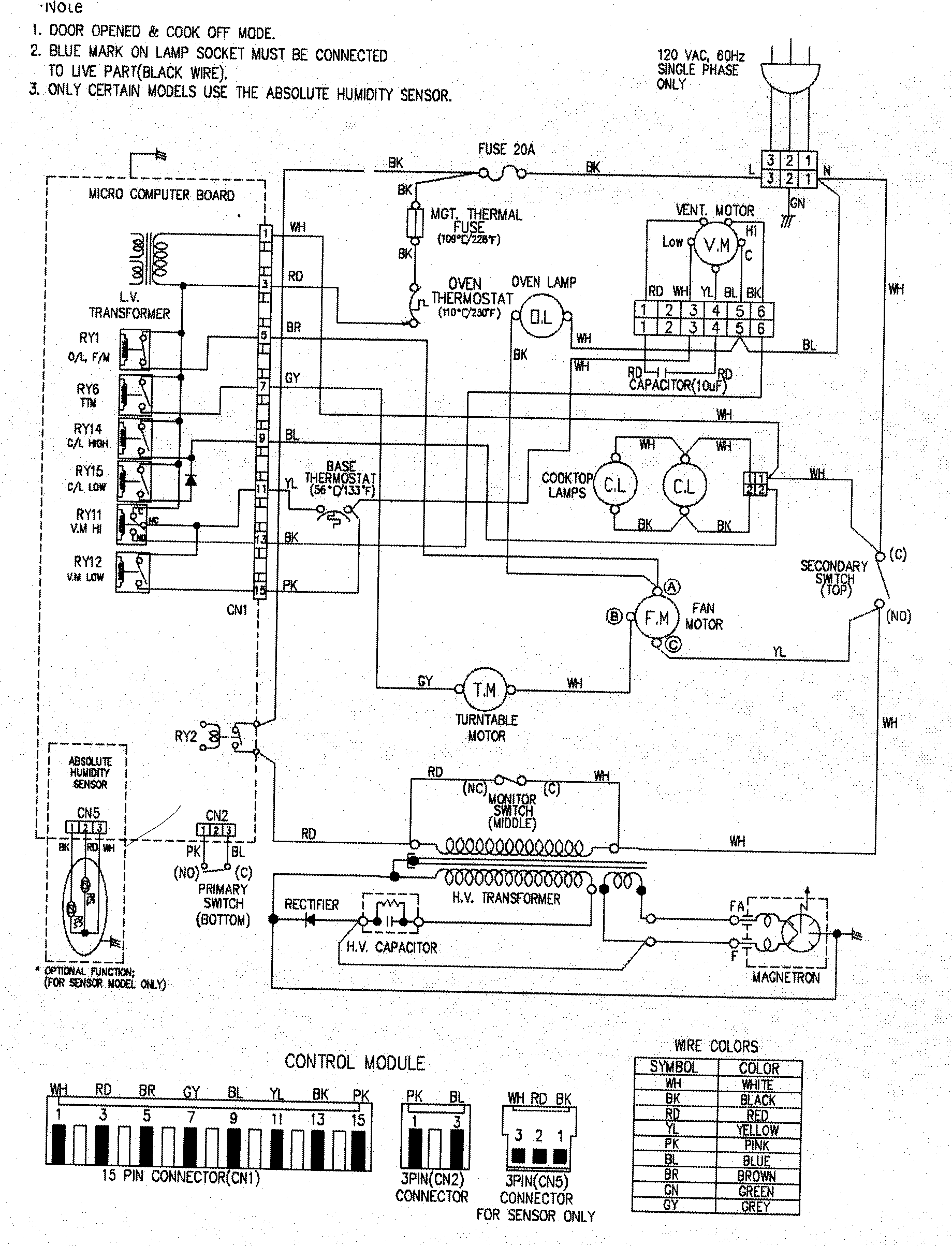

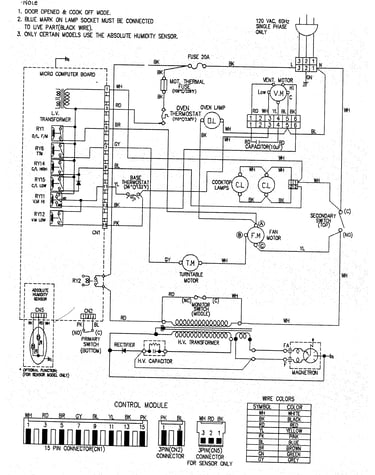

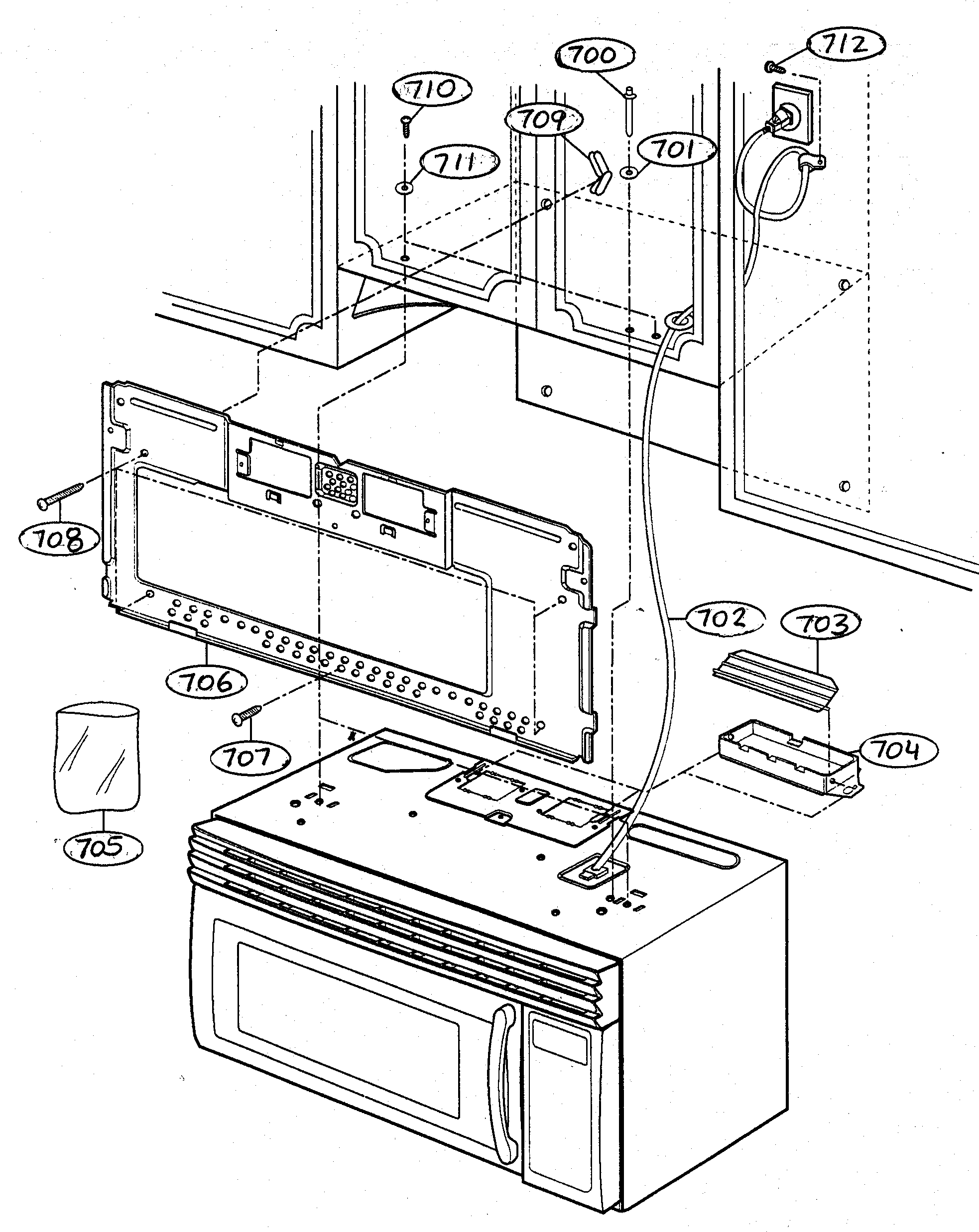

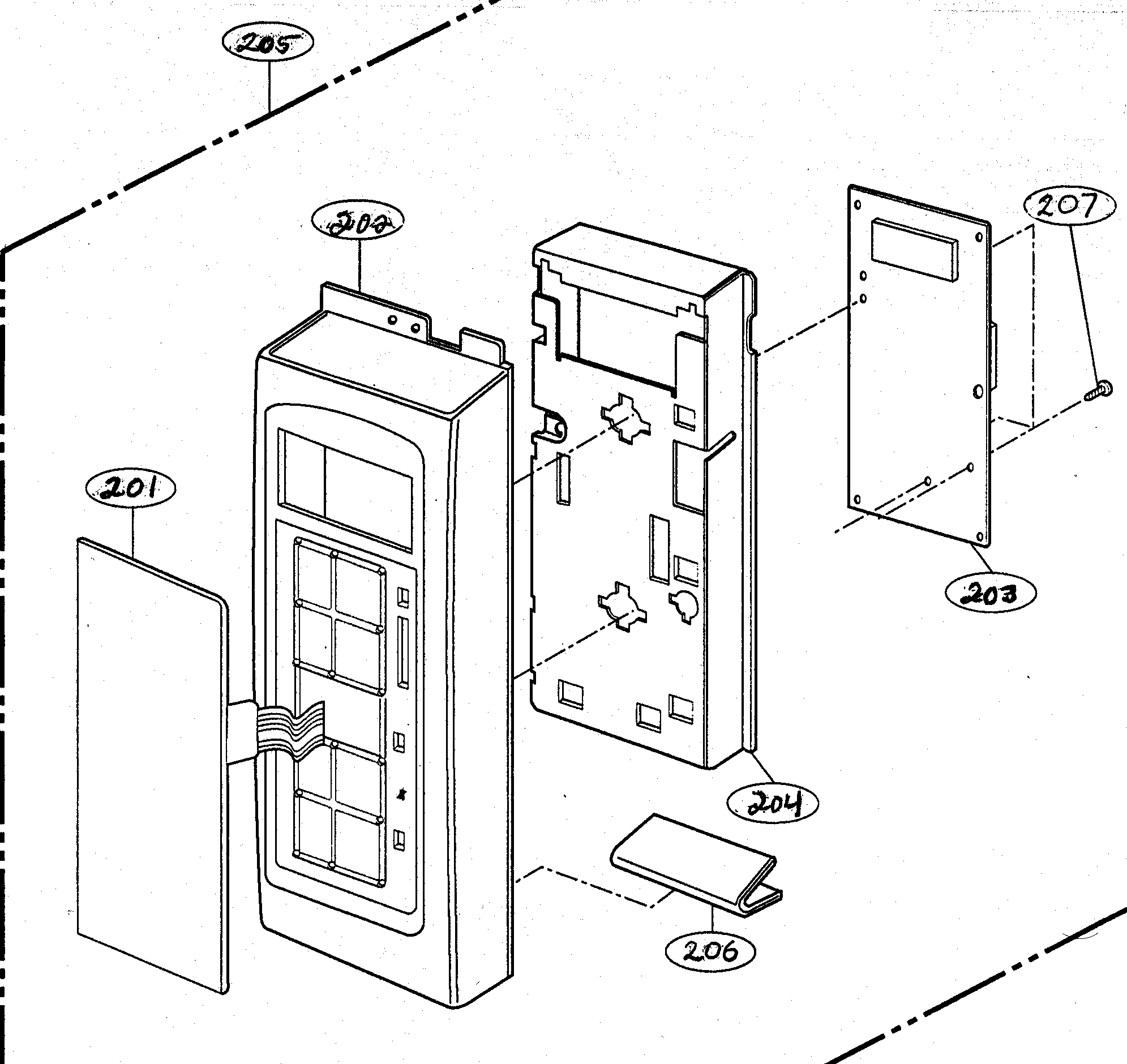

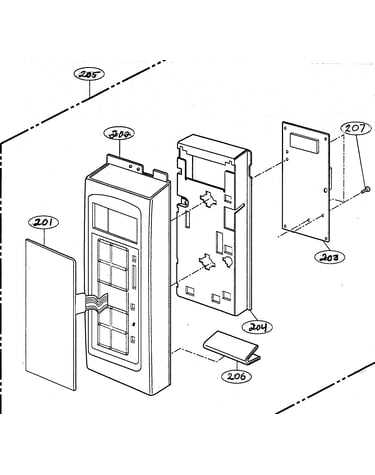

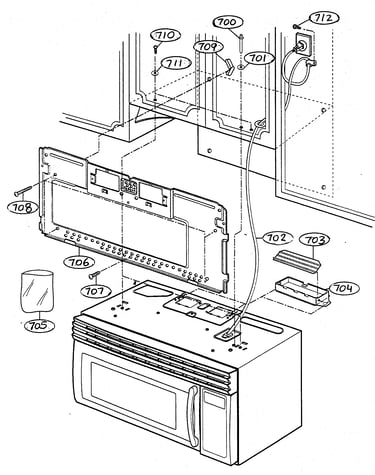

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |

Microwave Magnetron 6324W1A001A
#513

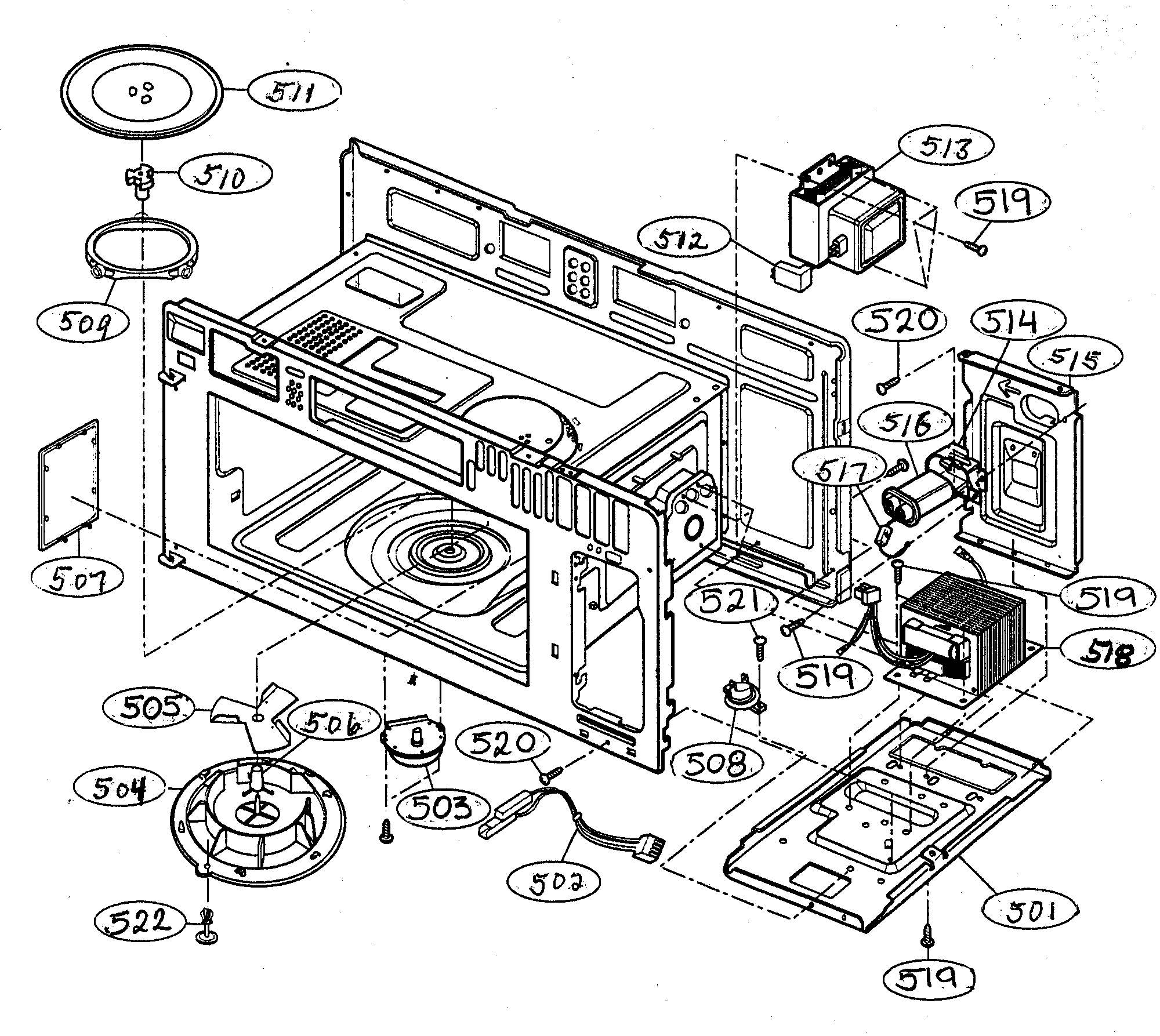

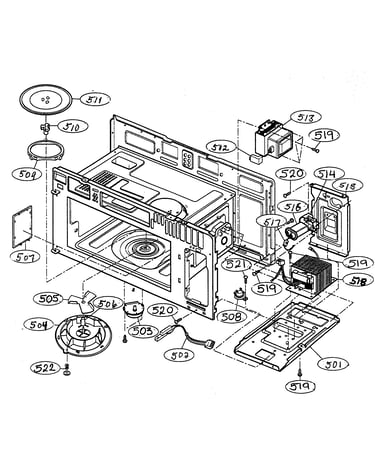

Interior parts 1 diagram

Microwave magnetron

Part #6324W1A001A

Replaced by #6324W1A001L

?
Manufacturer substitution
This part replaces 6324W1A001A. Substitute parts can look different from the original.
BEST SELLER
$91.94
5% OFF Phone Price : $96.94
In Stock
Oven Lamp 6912W3Q001A
#307

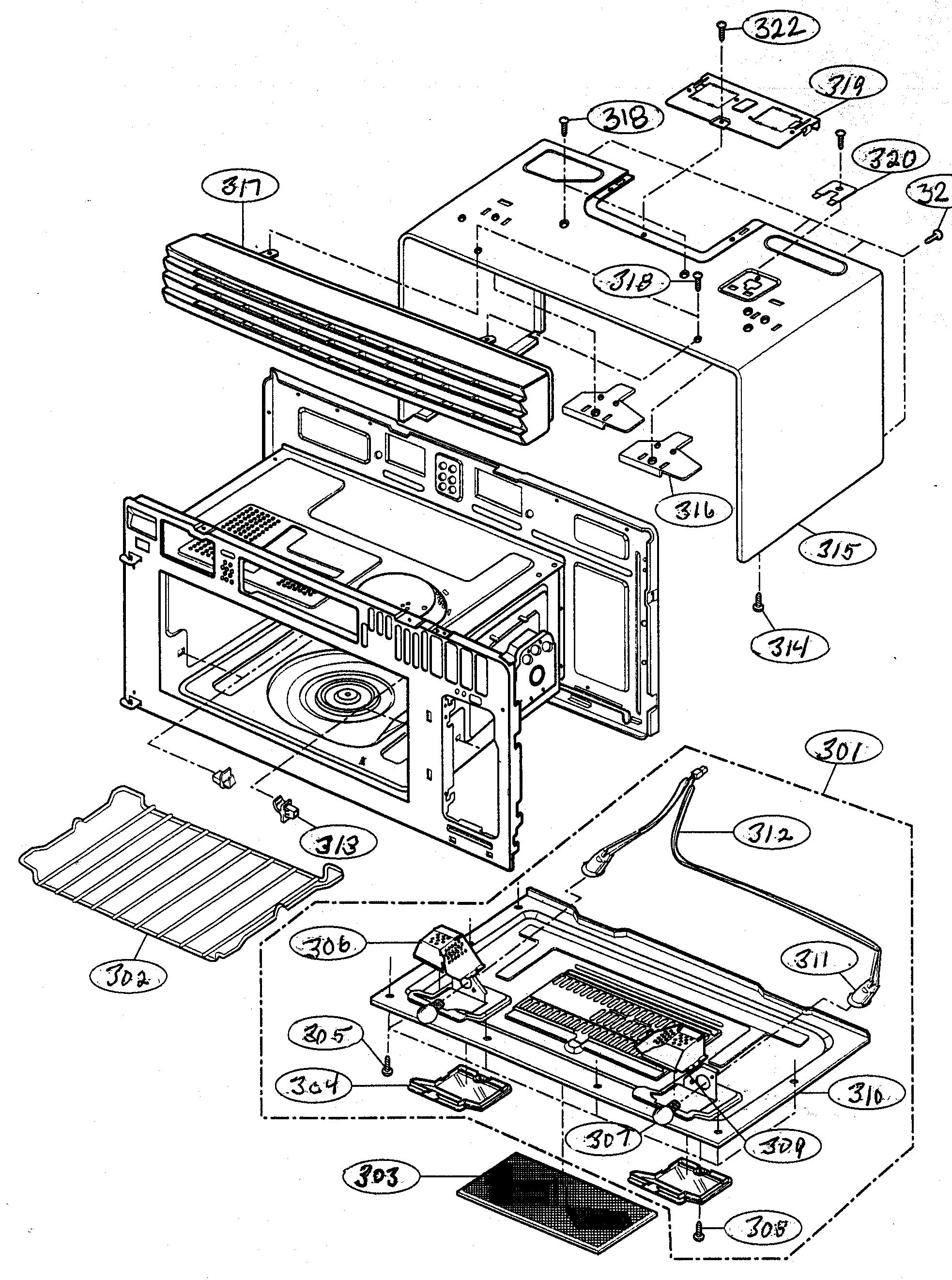

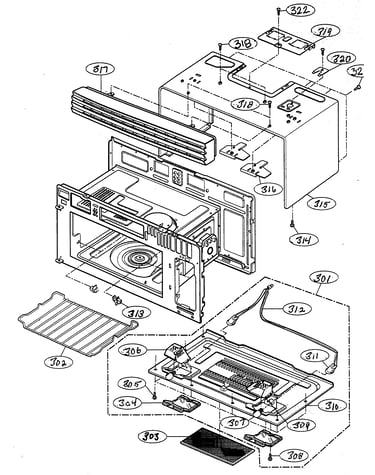

Oven cavity diagram

Oven lamp

Part #6912W3Q001A

Replaced by #6912W1Z004B

?
Manufacturer substitution
This part replaces 6912W3Q001A. Substitute parts can look different from the original.
BEST SELLER
$9.85
9% OFF Phone Price : $10.85
In Stock
Microwave High-voltage Capacitor 0CZZW1H002H
#516

Interior parts 1 diagram

Microwave high-voltage capacitor

Part #0CZZW1H002H

Replaced by #0CZZW1H004C

?
Manufacturer substitution
This part replaces 0CZZW1H002H. Substitute parts can look different from the original.
BEST SELLER
$27.47
15% OFF Phone Price : $32.47
In Stock
High-voltage Diode 6021W3B001K
#517

Interior parts 1 diagram

High-voltage diode

Part #6021W3B001K

Replaced by #6851W1A002E

?
Manufacturer substitution
This part replaces 6021W3B001K. Substitute parts can look different from the original.
BEST SELLER
$9.57
9% OFF Phone Price : $10.57
In Stock
Microwave Door Interlock Switch (replaces 6600w1k003d) 6600W1K001D
#402

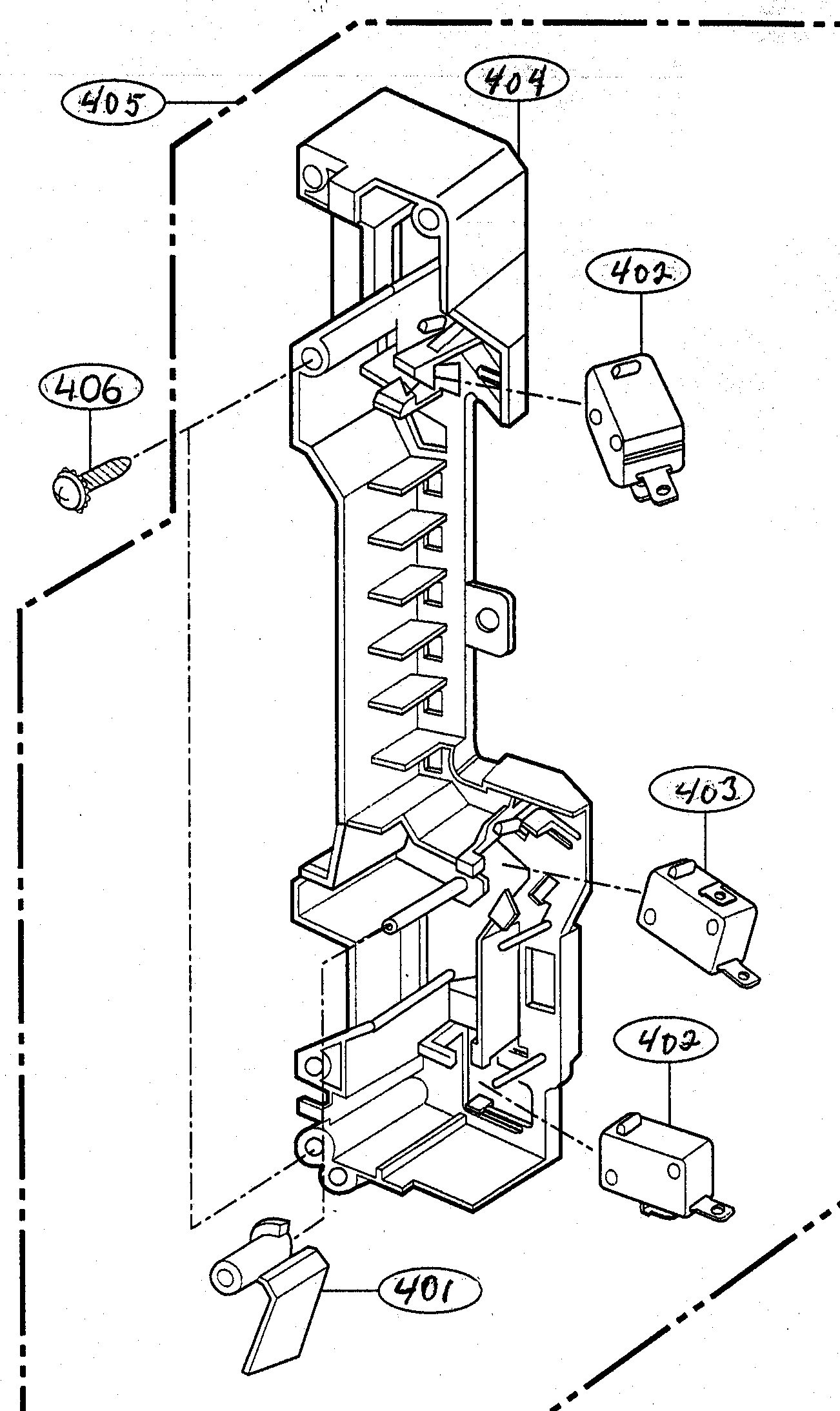

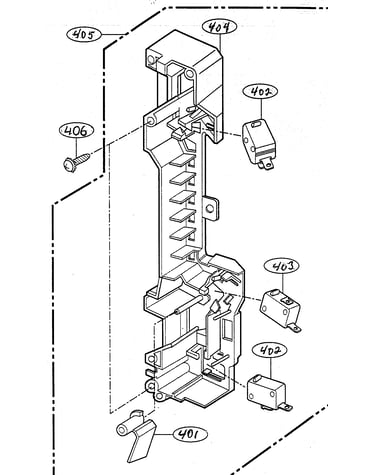

Latch board parts diagram

Microwave door interlock switch (replaces 6600w1k003d)

Part #6600W1K001D

BEST SELLER
$10.05
17% OFF Phone Price : $12.05
In Stock
Microwave Fuse 3B74133K
Microwave fuse

Part #3B74133K

BEST SELLER
$7.62
12% OFF Phone Price : $8.62
In Stock
Microwave Thermostat 6930WRT003C
#604

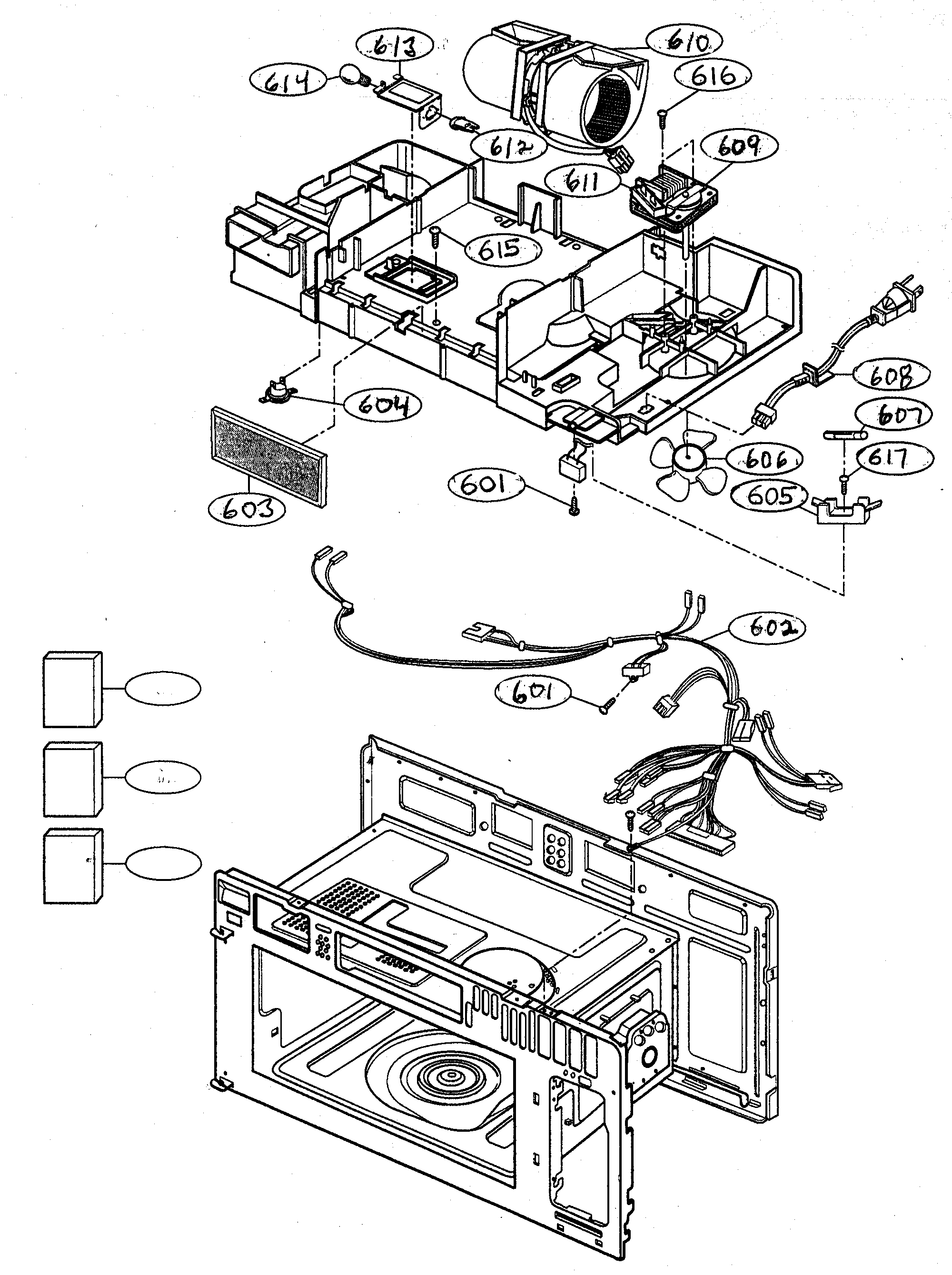

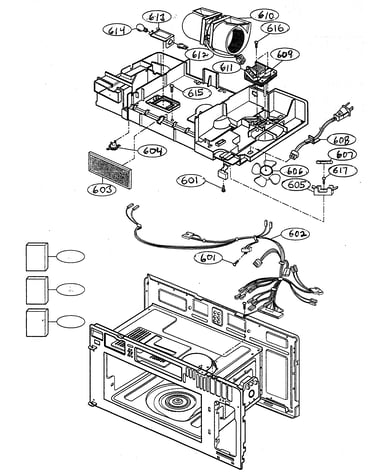

Interior parts 2 diagram

Microwave thermostat

Part #6930WRT003C

Replaced by #6930W1A003J

?
Manufacturer substitution
This part replaces 6930WRT003C. Substitute parts can look different from the original.
BEST SELLER
$10.03
17% OFF Phone Price : $12.03
In Stock
Microwave/hood Holder Locker Assembly 3501W1A019A
#405

Latch board parts diagram

Microwave/hood holder locker assembly

Part #3501W1A019A

Replaced by #AEJ75540901

?
Manufacturer substitution
This part replaces 3501W1A019A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.13
14% OFF Phone Price : $7.13
In Stock
Microwave Door Latch Spring 4970WRA001G
#108

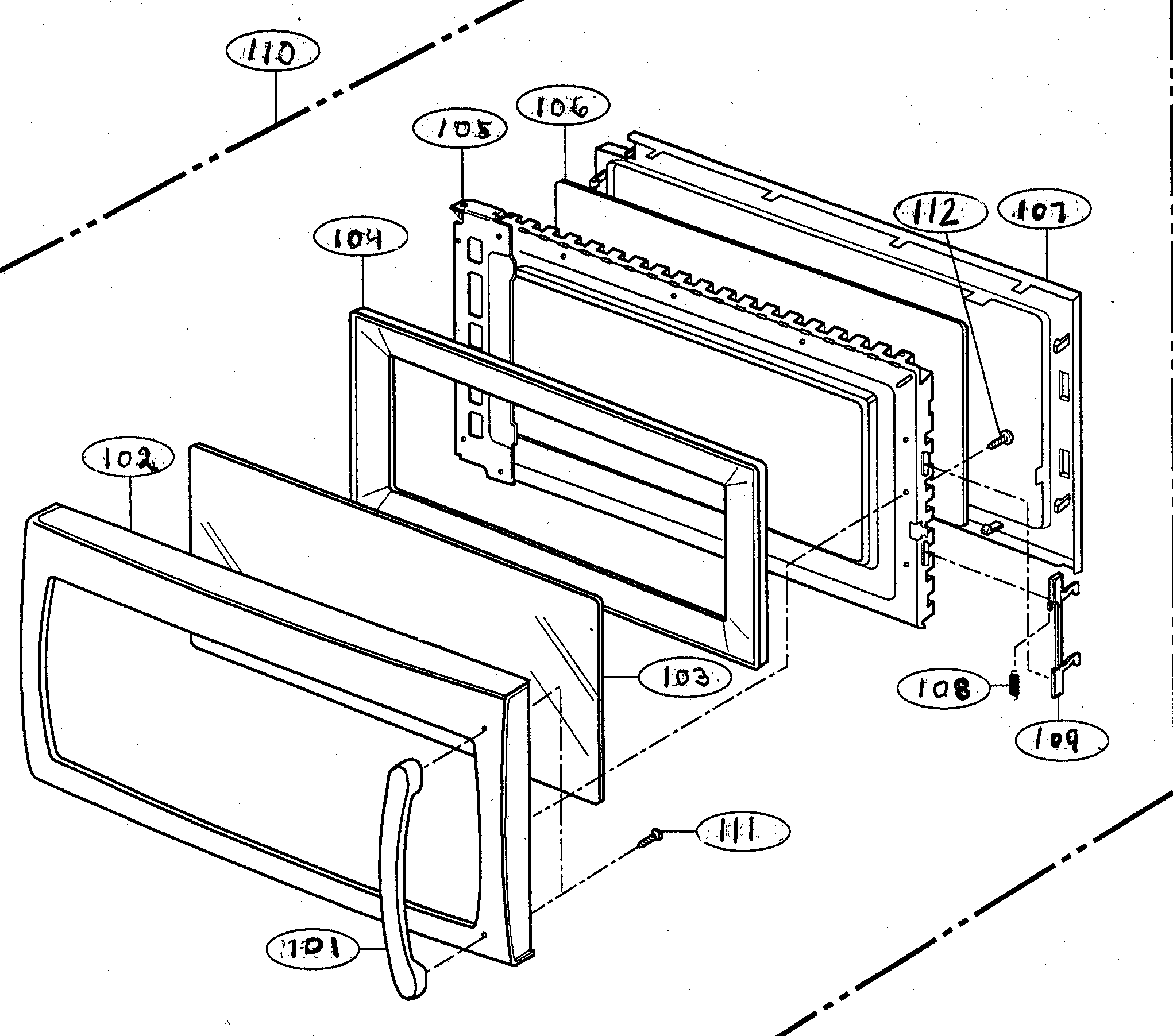

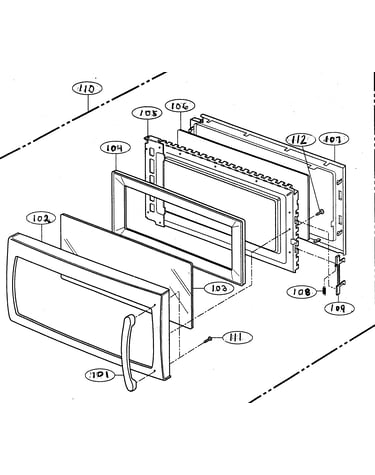

Door parts diagram

Microwave door latch spring

Part #4970WRA001G

BEST SELLER
This item is not returnable
$6.13
14% OFF Phone Price : $7.13
In Stock
Oven Lamp 3B70067A
#614

Interior parts 2 diagram

Oven lamp

Part #3B70067A

Replaced by #6912W1Z004A

?
Manufacturer substitution
This part replaces 3B70067A. Substitute parts can look different from the original.
This item is not returnable
$5.36
16% OFF Phone Price : $6.36
In Stock
