Model # OBS52NG Official Dacor grill

Here are the diagrams and repair parts for Official Dacor OBS52NG grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

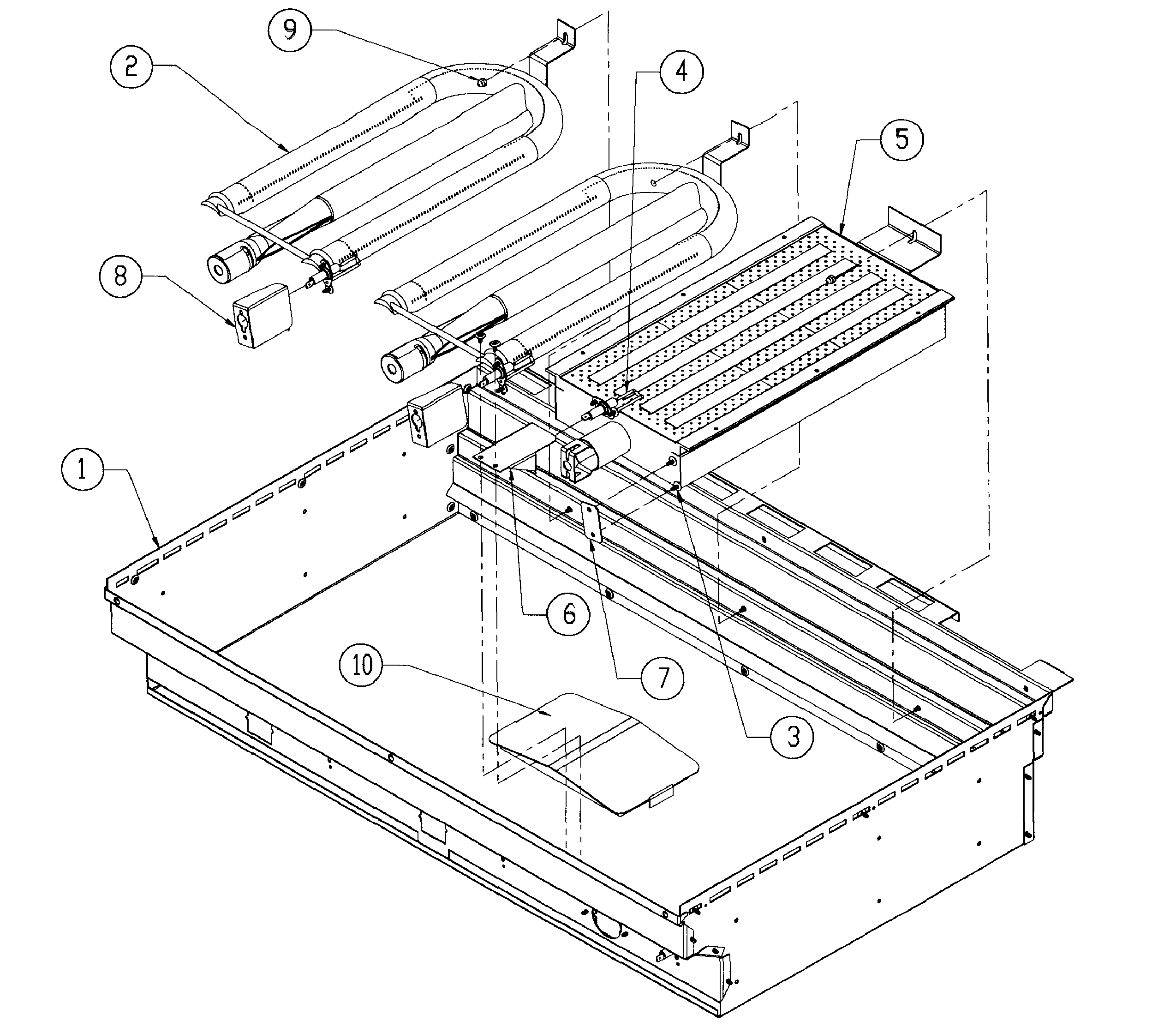

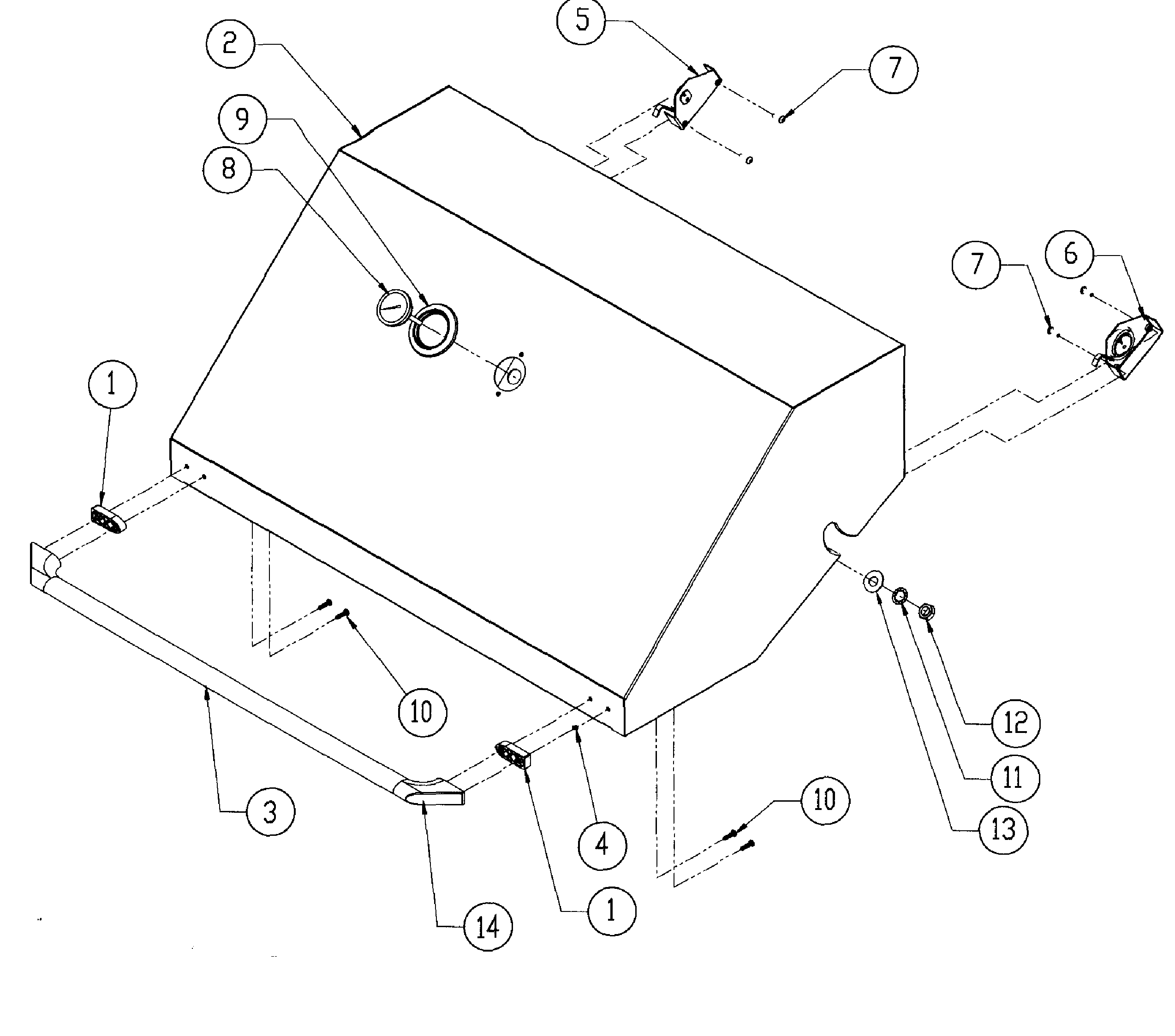

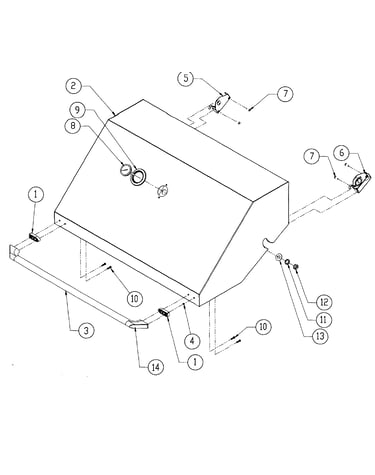

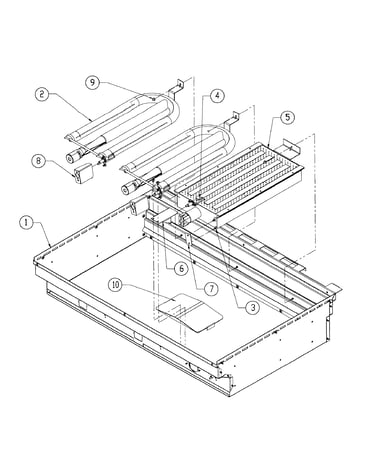

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |

Nut 83308
#17

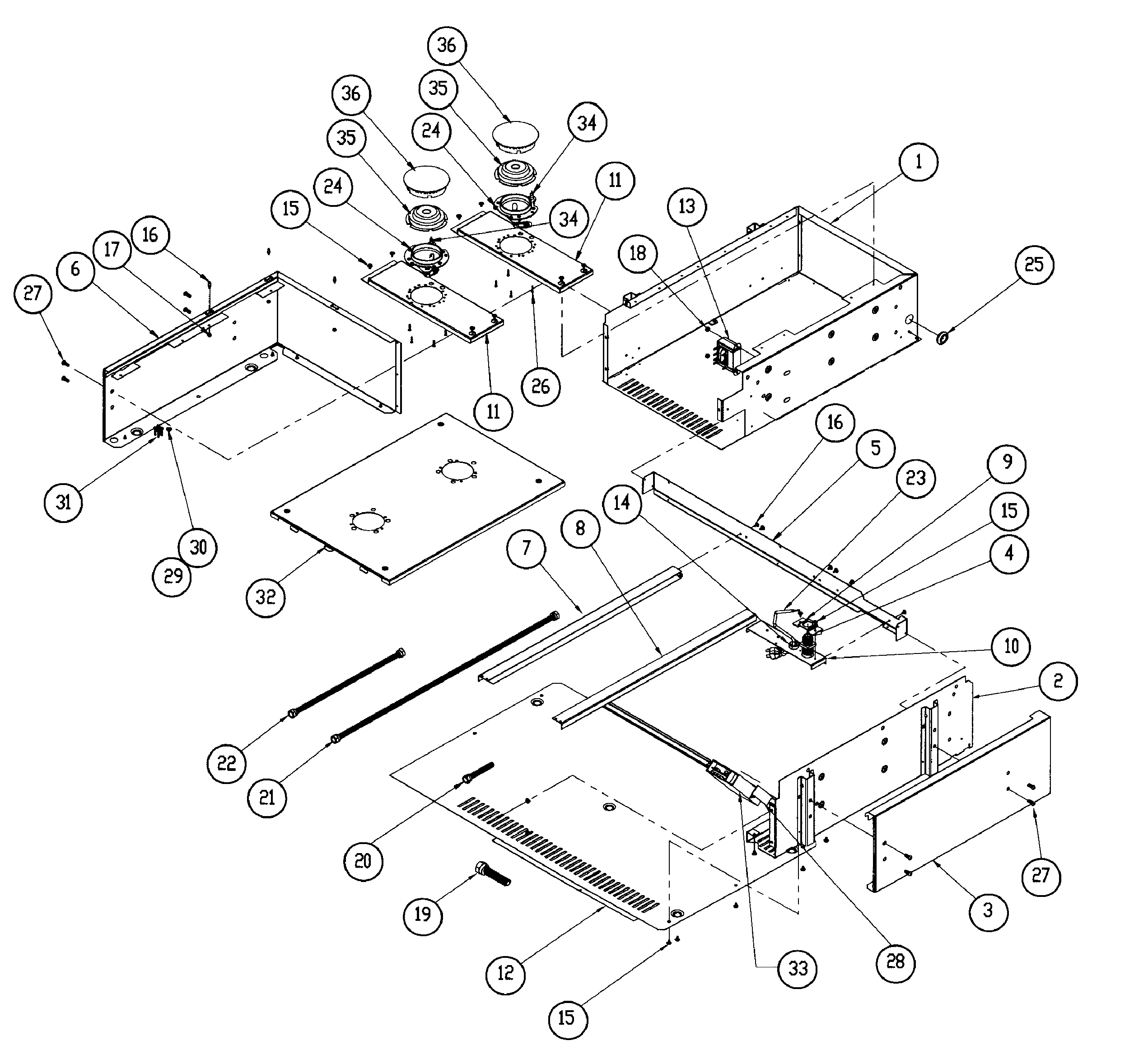

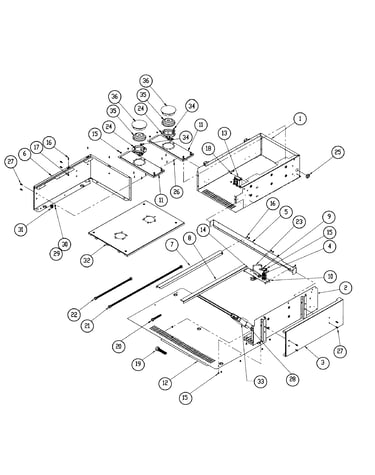

Chassis diagram

Nut

Part #83308

This item is not returnable
In Stock
Cooktop Spark Module 82318
#33

Chassis diagram

Cooktop spark module

Part #82318

Replaced by #86528

?
Manufacturer substitution
This part replaces 82318. Substitute parts can look different from the original.
In Stock
Valve Switch 76129
#13

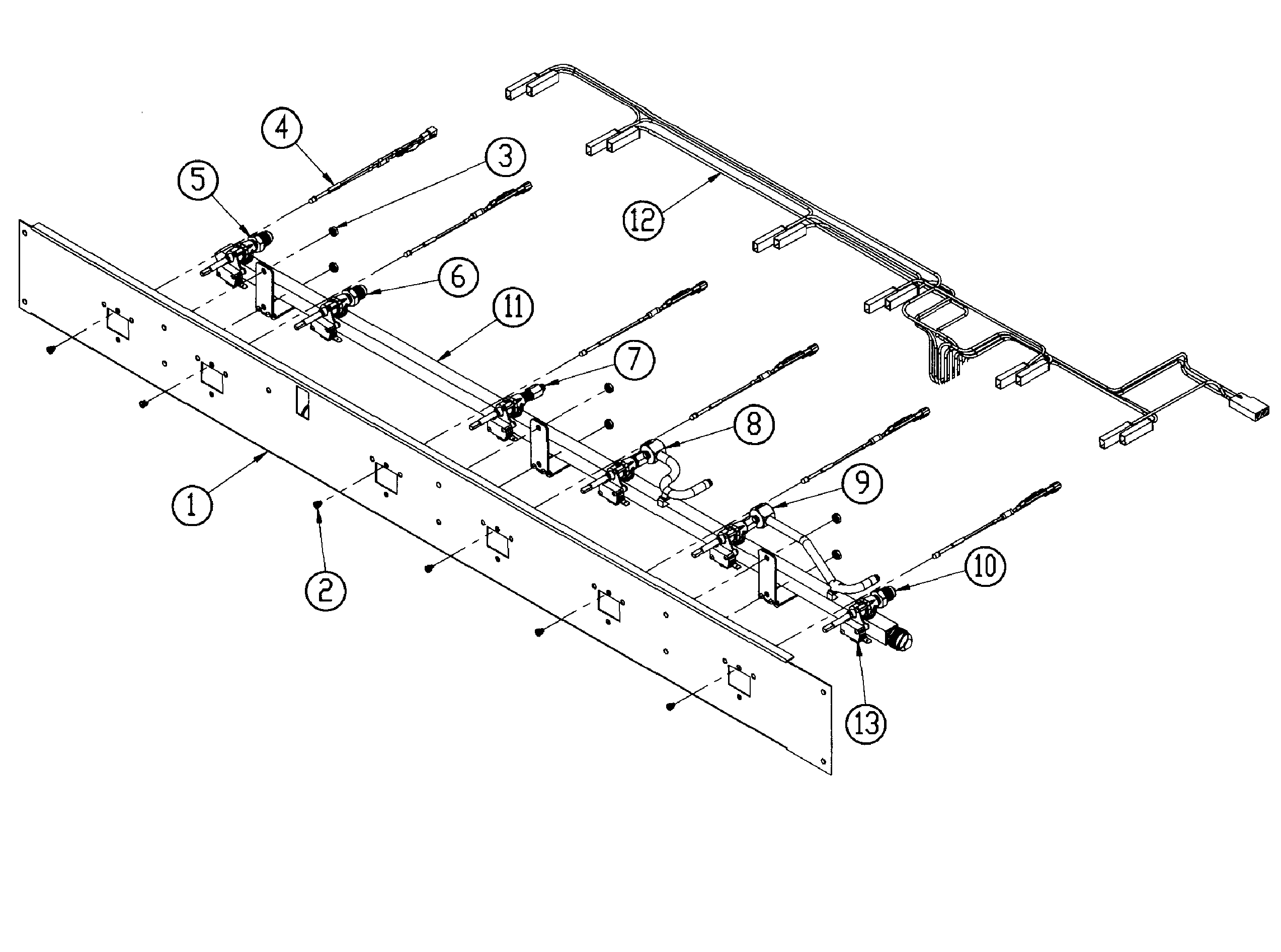

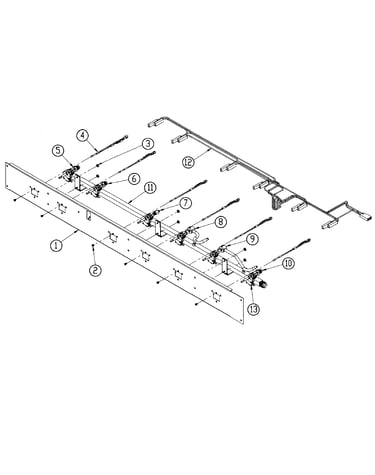

Manifold diagram

Valve switch

Part #76129

Replaced by #103789

?
Manufacturer substitution
This part replaces 76129. Substitute parts can look different from the original.
In Stock
Control Panel 700596E
#1A

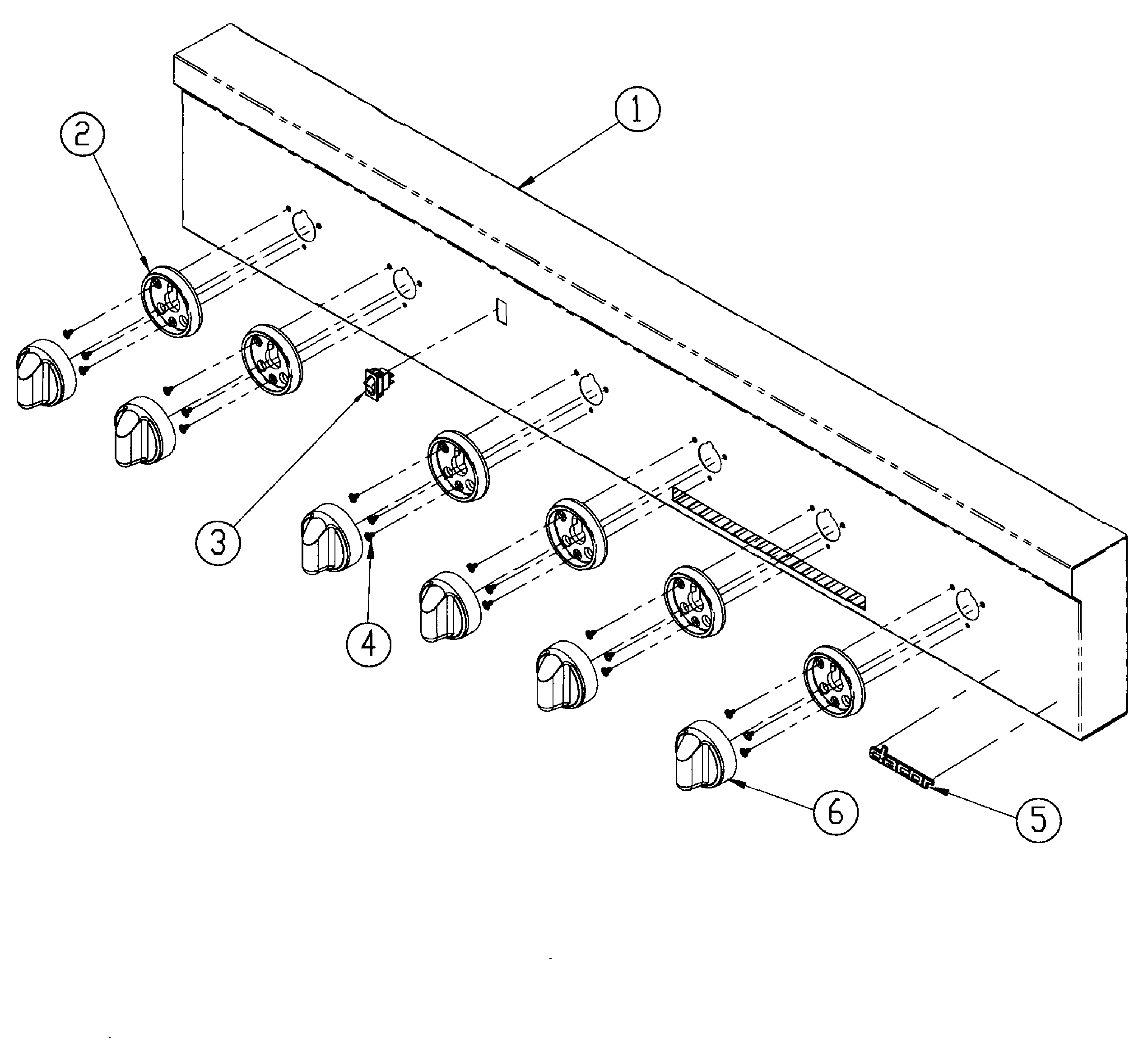

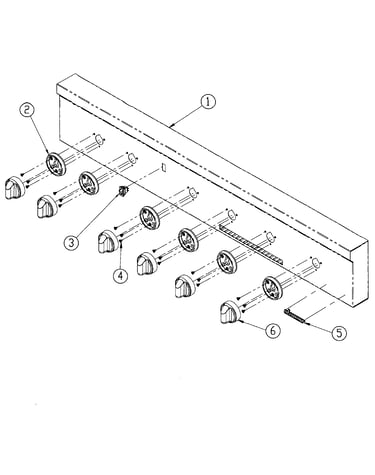

Control panel diagram

Control panel

Part #700596E

In Stock
Harness 102058
#12

Manifold diagram

Harness

Part #102058

In Stock
Spill Tray 700686
#32

Chassis diagram

Spill tray

Part #700686

In Stock
Standoff,r 102056
#11

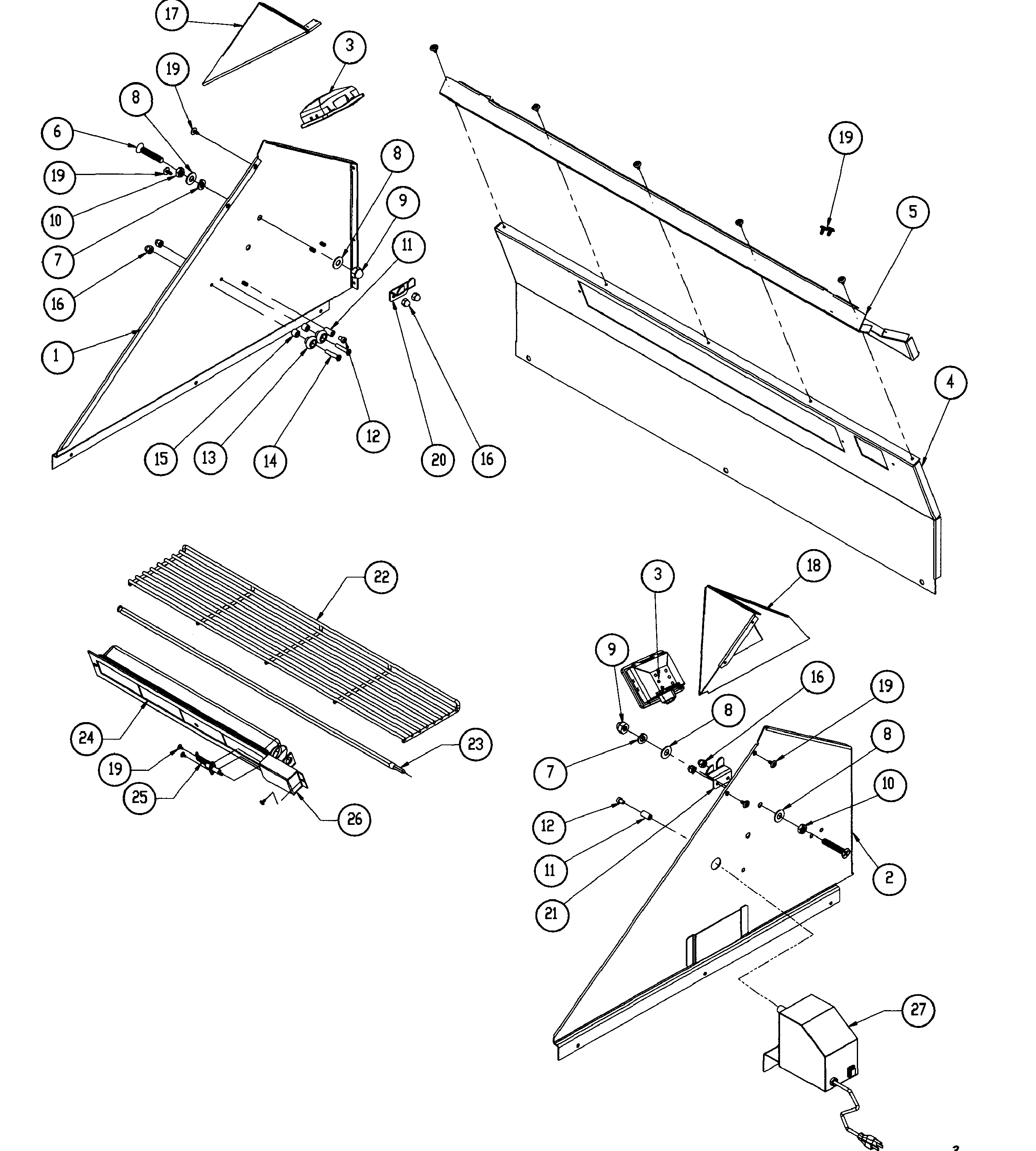

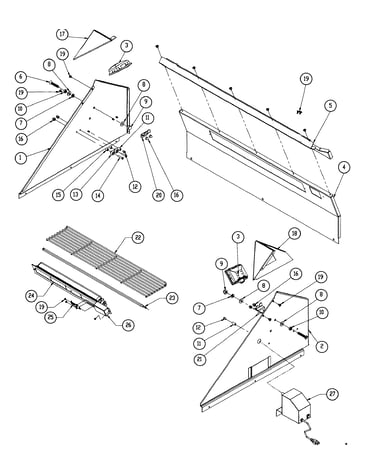

Upper firebox diagram

Standoff,r

Part #102056

In Stock
Bracket 102185-02
#21

Upper firebox diagram

Bracket

Part #102185-02

In Stock
Gas Grill Flame Tamer, Small 36661
#4

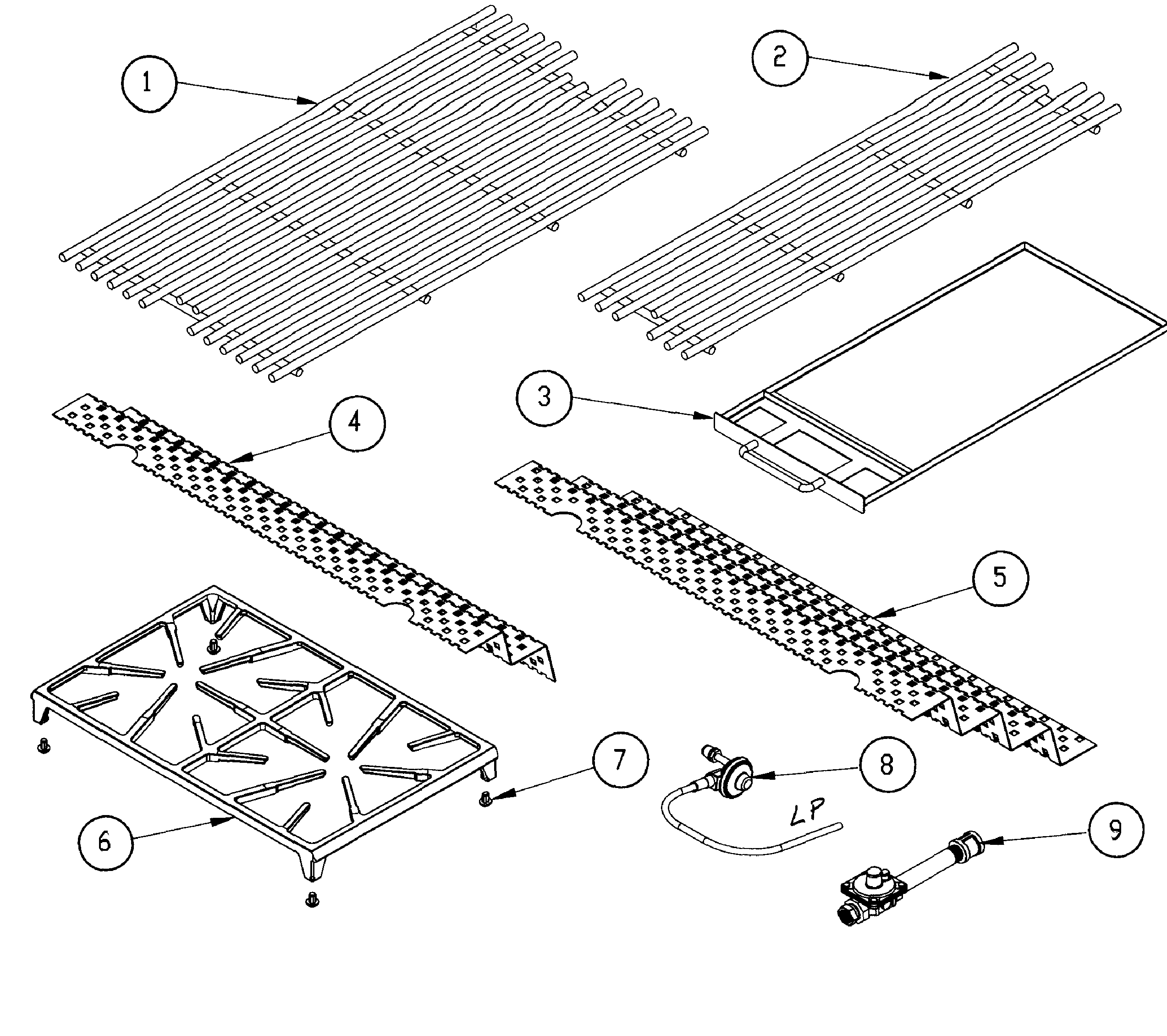

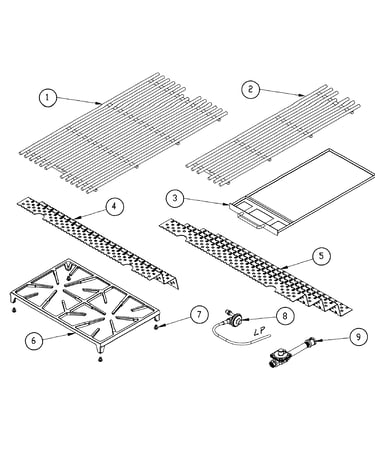

Accessories diagram

Gas grill flame tamer, small

Part #36661

In Stock
Spacer 102049
#15

Upper firebox diagram

Spacer

Part #102049

This item is not returnable
In Stock
