Model # 580321460 Official Craftsman 7000-watt portable alternator

Here are the diagrams and repair parts for Official Craftsman 580321460 7000-watt portable alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 91 parts |

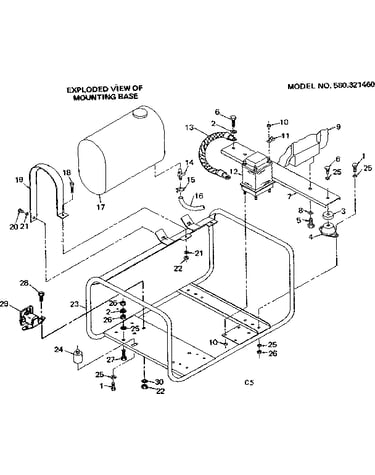

Mounting base diagram

Cap screw

Part #22142

The manufacturer no longer makes this part, and there's no substitute part

Lock washer

Part #22129

The manufacturer no longer makes this part, and there's no substitute part

#15

Mounting base diagram

Clamp

Part #27742

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Connector

Part #43438

Replaced by #43438GS

$37.31

In Stock

Qty

#10

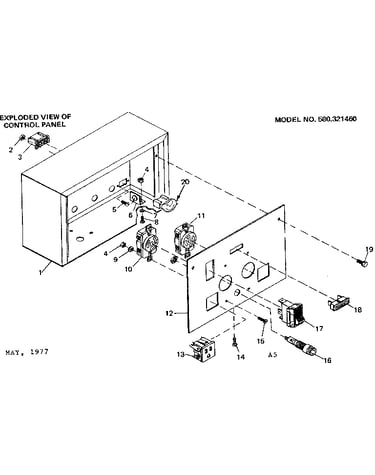

Control panel diagram

Outlet

Part #37807

Replaced by #705932

$53.53

In Stock

Qty

Control panel diagram

Housing

Part #22694

Replaced by #22694GS

$9.99 |

9% OFF Phone Price : $10.99

In Stock

Qty

#21

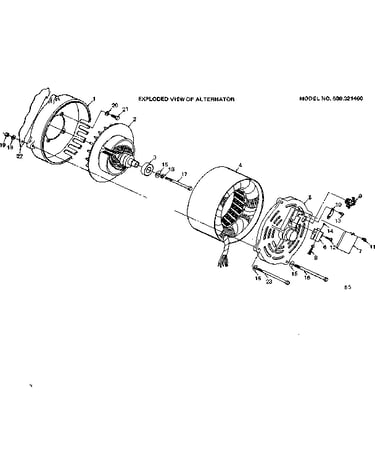

Alternator diagram

Cap screw

Part #23152

The manufacturer no longer makes this part, and there's no substitute part

#15

Alternator diagram

Washer

Part #22145

The manufacturer no longer makes this part, and there's no substitute part

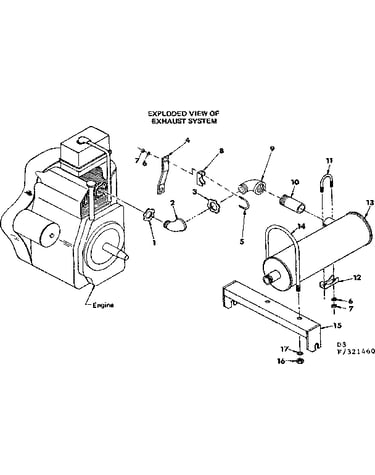

Exhaust system diagram

Lock nut

Part #26772

Replaced by #691808

This item is not returnable

$14.34

In Stock

Qty

#28

Mounting base diagram

Cap screw

Part #22287

The manufacturer no longer makes this part, and there's no substitute part
