Kenmore
Faucet Water Filter

Model # 625346600 Official Kenmore deluxe water filter

Here are the diagrams and repair parts for Official Kenmore 625346600 deluxe water filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Cartridge 42-3413
#13A

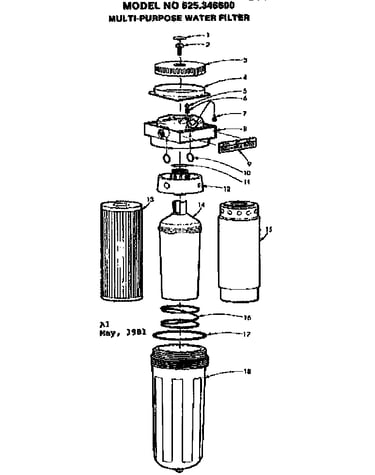

Unit parts diagram

Cartridge

Part #42-3413

Replaced by #3847807

?
Manufacturer substitution
This part replaces 42-3413. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$15.90 |
11% OFF Phone Price : $17.90
In Stock
Crown Nut 9028800
#5

Unit parts diagram

Crown nut

Part #9028800

This item is not returnable
$2.16
In Stock
Nameplate 1146710
#9

Unit parts diagram

Nameplate

Part #1146710

The manufacturer no longer makes this part, and there's no substitute part

Disc 1146820
#12

Unit parts diagram

Disc

Part #1146820

The manufacturer no longer makes this part, and there's no substitute part

O-ring Cap 900039
#11

Unit parts diagram

O-ring cap

Part #900039

The manufacturer no longer makes this part, and there's no substitute part

Cover Insert 1195200
#4

Unit parts diagram

Cover insert

Part #1195200

The manufacturer no longer makes this part, and there's no substitute part

Insert 507315
#1

Unit parts diagram

Insert

Part #507315

The manufacturer no longer makes this part, and there's no substitute part

Screw 9006012
#2

Unit parts diagram

Screw

Part #9006012

The manufacturer no longer makes this part, and there's no substitute part

O-ring (black) 9001005
#17

Unit parts diagram

O-ring (black)

Part #9001005

The manufacturer no longer makes this part, and there's no substitute part

Cap 1147110
#8

Unit parts diagram

Cap

Part #1147110

The manufacturer no longer makes this part, and there's no substitute part
