Frigidaire
Room Air Conditioner

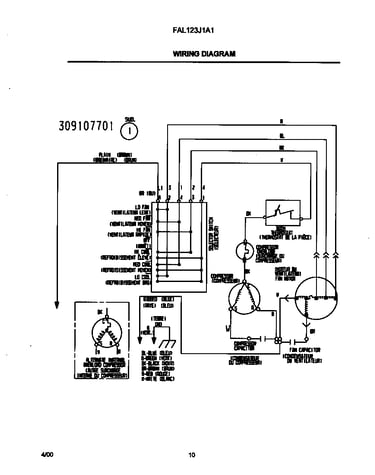

Model #FAL123J1A1 Frigidaire air conditioner

Here are the diagrams and repair parts for Frigidaire FAL123J1A1 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 76 parts

    Dial Plate

    #19

    Cabinet front and wrapper Diagram

    Dial plate

    Part #309344501
    $19.21

    In Stock

    Room Air Conditioner Screw

    #7

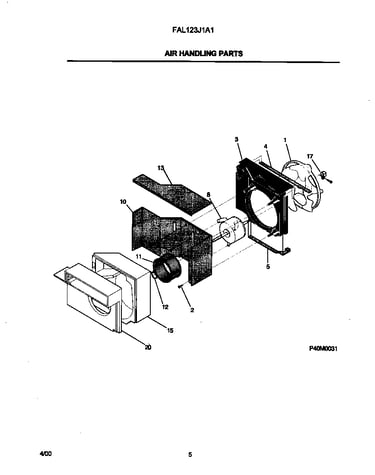

    Air handling parts Diagram

    Room air conditioner screw

    Part #5303015427
    This item is not returnable
    $4.10

    In Stock

    Room Air Conditioner Front Grille

    #38

    Cabinet front and wrapper Diagram

    $58.78 |
    15% OFF MSRP:$69.00

    In Stock

    Room Air Conditioner Compressor Overload Protector

    #8

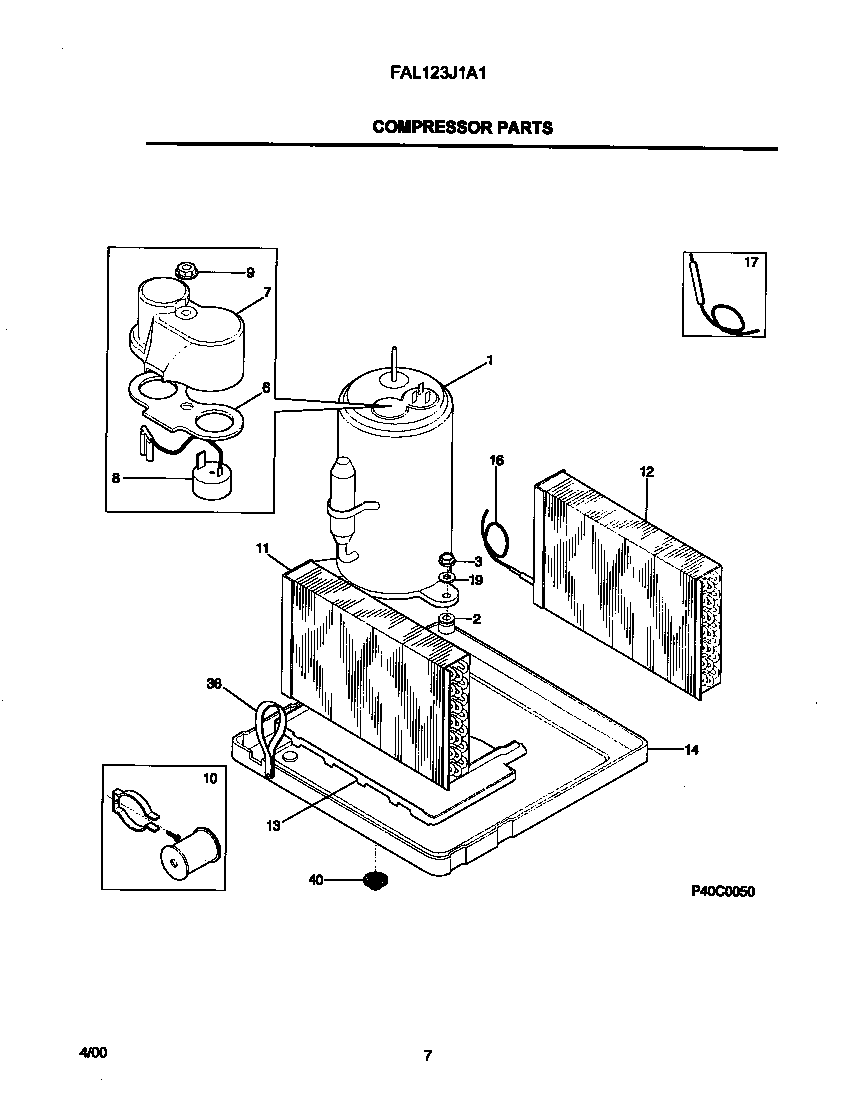

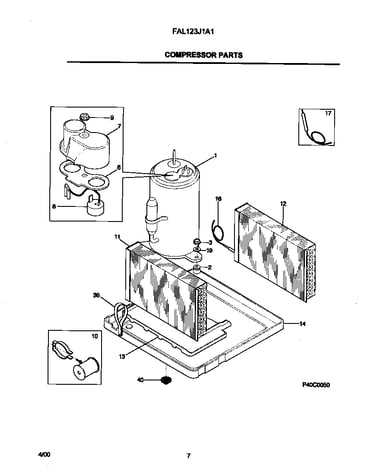

    Compressor parts Diagram

    $65.76

    In Stock

    Nut

    #12

    Window mounting parts Diagram

    Nut

    Part #5304401788
    ?
    Manufacturer substitution
    This part replaces 3017023. Substitute parts can look different from the original.
    This part replaces 3017023
    $7.82

    In Stock

    Room Air Conditioner Air Filter

    #12

    Cabinet front and wrapper Diagram

    Room air conditioner air filter

    Part #5304464983
    ?
    Manufacturer substitution
    This part replaces 309343502. Substitute parts can look different from the original.
    This part replaces 309343502
    This item is not returnable
    $3.08

    In Stock

    Power Cord

    #17

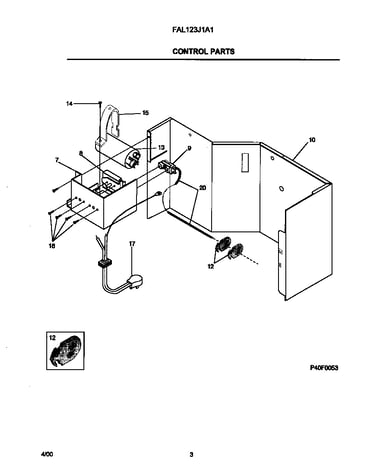

    Control parts Diagram

    Power cord

    Part #309343129
    ?
    Manufacturer substitution
    This part replaces 309343104. Substitute parts can look different from the original.
    This part replaces 309343104
    $113.26

    In Stock

    Room Air Conditioner Screw

    #2

    Air handling parts Diagram

    Room air conditioner screw

    Part #5304410881
    ?
    Manufacturer substitution
    This part replaces 3202975. Substitute parts can look different from the original.
    This part replaces 3202975
    This item is not returnable
    $4.77

    In Stock

    Screw-wrapper

    #14

    Control parts Diagram

    Screw-wrapper

    Part #5303293767
    ?
    Manufacturer substitution
    This part replaces 3015312. Substitute parts can look different from the original.
    This part replaces 3015312
    This item is not returnable
    $4.77

    In Stock

    Capacitor

    #13

    Control parts Diagram

    Capacitor

    Part #5303291523
    ?
    Manufacturer substitution
    This part replaces 5303318963. Substitute parts can look different from the original.
    This part replaces 5303318963
    $119.42

    In Stock
