Model # 143125041 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143125041 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

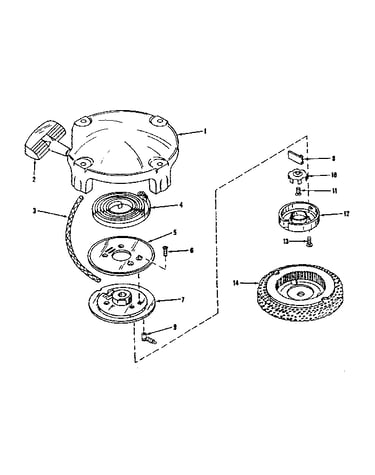

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 200 parts  |

Gasket 27110
#20

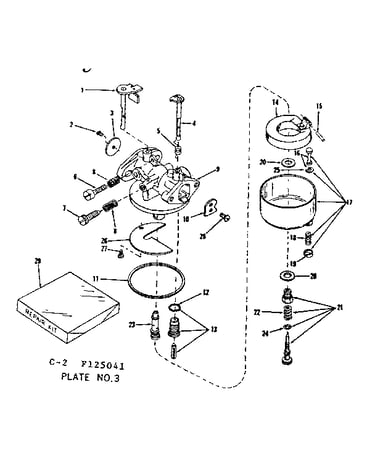

Carburetor diagram

Gasket

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

Plug Cover 27276
#139

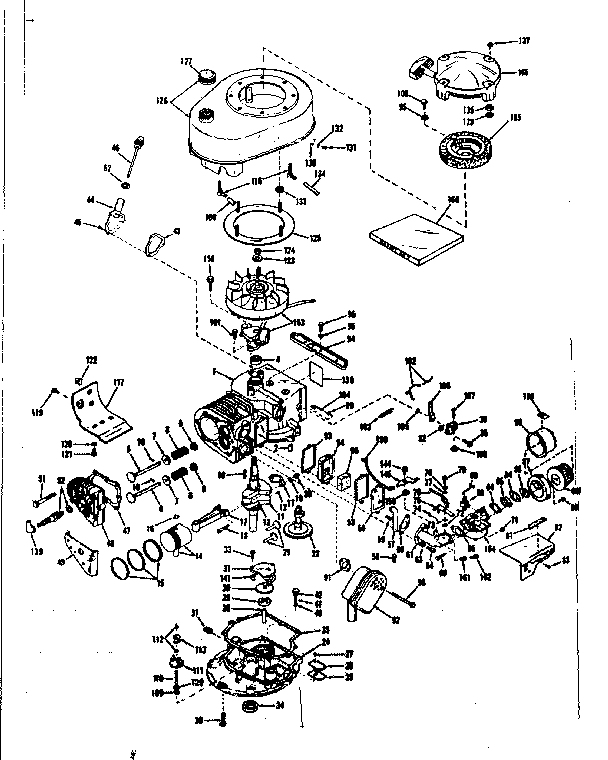

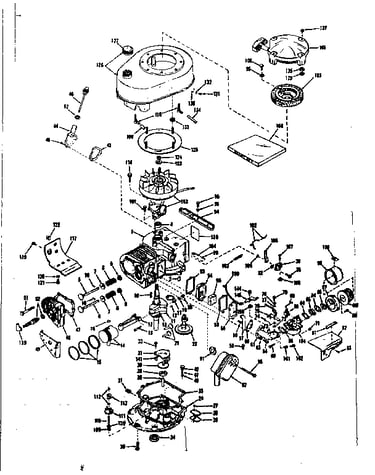

Basic engine diagram

Plug cover

Part #27276

The manufacturer no longer makes this part, and there's no substitute part

Governor Gear Assembly 30591
#111

Basic engine diagram

Governor gear assembly

Part #30591

The manufacturer no longer makes this part, and there's no substitute part

Tube 27627
#57

Basic engine diagram

Tube

Part #27627

The manufacturer no longer makes this part, and there's no substitute part

Spacer 28277
#99

Basic engine diagram

Spacer

Part #28277

The manufacturer no longer makes this part, and there's no substitute part

Coil/lead 30546
#13

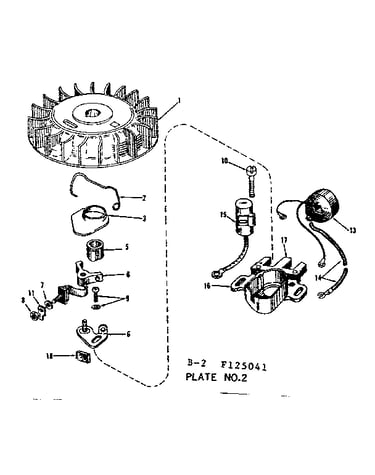

Magneto diagram

Coil/lead

Part #30546

The manufacturer no longer makes this part, and there's no substitute part

/gov Clamp 29916
#36

Basic engine diagram

/gov clamp

Part #29916

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Cap Screw, 1/4-28 X 7/8-in 6201
#69

Basic engine diagram

Hex head cap screw, 1/4-28 x 7/8-in

Part #6201

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27554
#25

Carburetor diagram

Gasket

Part #27554

The manufacturer no longer makes this part, and there's no substitute part

Gear 27884
#13

Basic engine diagram

Gear

Part #27884

The manufacturer no longer makes this part, and there's no substitute part
