Frigidaire
Room Air Conditioner

Model #FAS184J2A1 Frigidaire air conditioner

Here are the diagrams and repair parts for Frigidaire FAS184J2A1 air conditioner, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 72 parts

    Frame

    #43

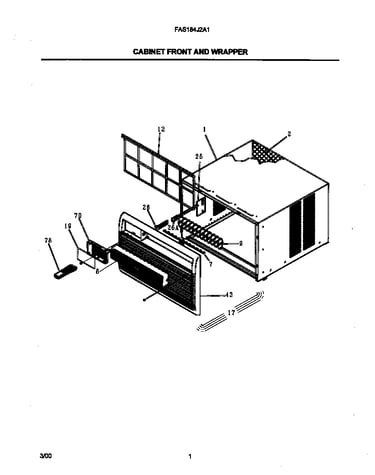

    Cabinet front and wrapper Diagram

    Frame

    Part #309630904
    $39.41

    In Stock

    Cover

    #7

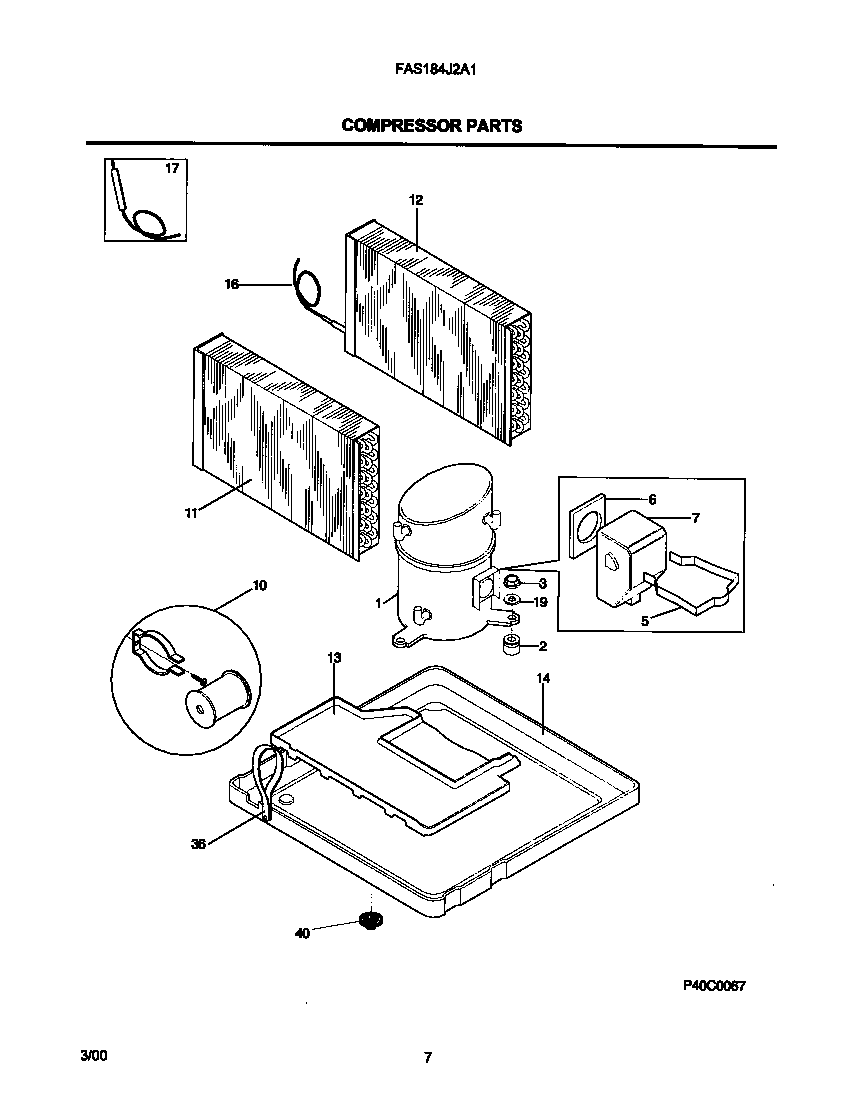

    Compressor parts Diagram

    Cover

    Part #5303002067
    $14.32

    In Stock

    Room Air Conditioner Screw

    #7

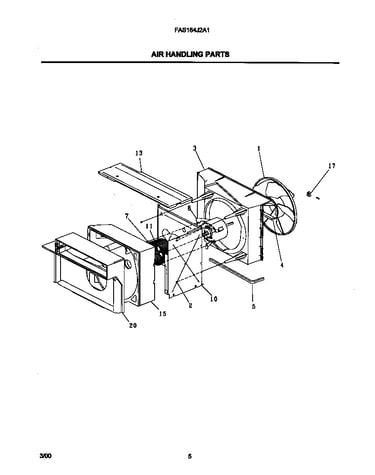

    Air handling parts Diagram

    Room air conditioner screw

    Part #5303015427
    This item is not returnable
    $4.10

    In Stock

    Screw-wrapper

    #29

    Cabinet front and wrapper Diagram

    Screw-wrapper

    Part #5303293767
    This item is not returnable
    $4.77

    In Stock

    Bracket Screw

    #74

    Control parts Diagram

    Bracket screw

    Part #5303301590
    This item is not returnable
    $4.63

    In Stock

    Condenser

    #12

    Compressor parts Diagram

    Condenser

    Part #5303306719
    $543.48

    In Stock

    Room Air Conditioner Remote Control

    #78B

    Cabinet front and wrapper Diagram

    $88.65

    In Stock

    Sleeve

    #13

    Air handling parts Diagram

    Sleeve

    Part #309630301
    $9.99

    In Stock

    Foam Strip

    #1

    Window mounting parts Diagram

    Foam strip

    Part #5304407729
    $18.20

    In Stock

    Pc Board-sup

    #75

    Control parts Diagram

    Pc board-sup

    Part #5304413781
    This item is not returnable
    $6.63

    In Stock
