Model #HDLCDVD325 Official Sansui lcd television with dvd

Here are the diagrams and repair parts for Sansui HDLCDVD325 lcd television with dvd, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 151 parts

Cover#109

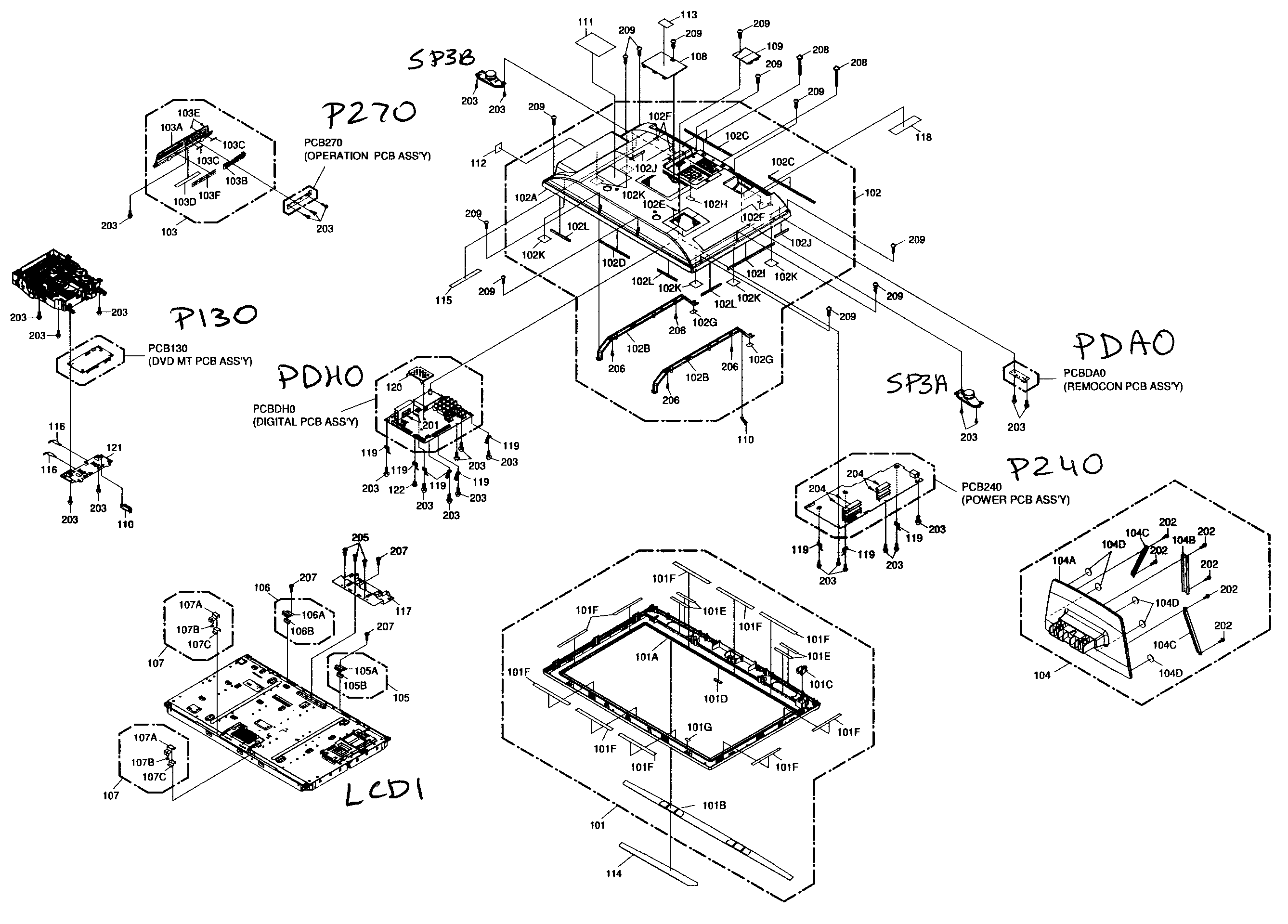

Cabinet parts Diagram

Cover

Part #702WPAB347

The manufacturer no longer makes this part, and there's no substitute part

Capacitor#NI

Cabinet parts Diagram

Capacitor

Part #E7EYF4102M

The manufacturer no longer makes this part, and there's no substitute part

Glass Led#101C

Cabinet parts Diagram

Glass led

Part #713WPA0422

The manufacturer no longer makes this part, and there's no substitute part

Cushion#104D

Cabinet parts Diagram

Cushion

Part #800WFA0121

The manufacturer no longer makes this part, and there's no substitute part

Gear Motor#602

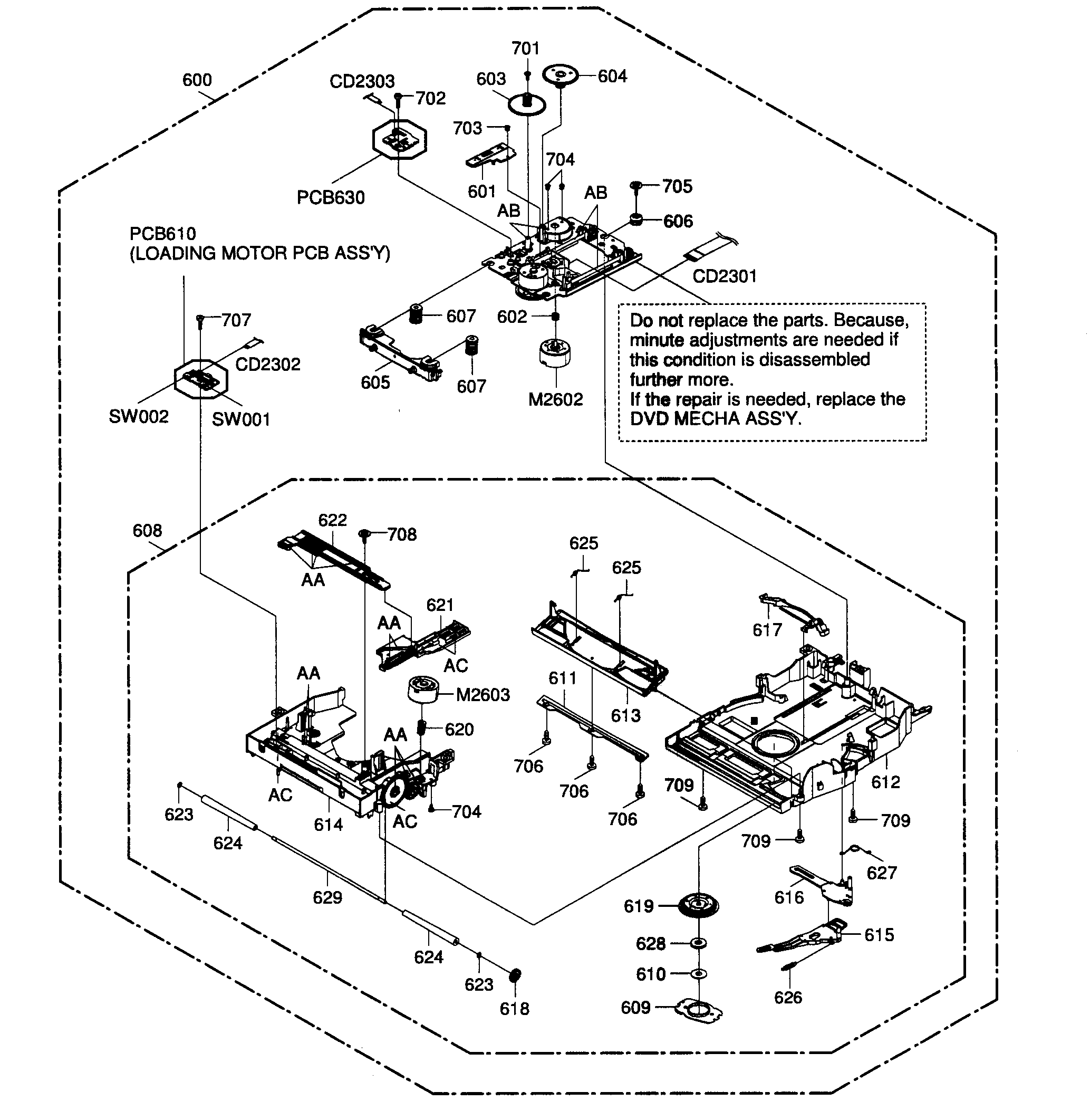

Dvd parts Diagram

Gear motor

Part #92P100088A

The manufacturer no longer makes this part, and there's no substitute part

Gear#604

Dvd parts Diagram

Gear

Part #92P100117A

The manufacturer no longer makes this part, and there's no substitute part

Resistor#NI

Cabinet parts Diagram

Resistor

Part #R002T4221J

The manufacturer no longer makes this part, and there's no substitute part

Resistor#NI

Cabinet parts Diagram

Resistor

Part #R3K78A102J

The manufacturer no longer makes this part, and there's no substitute part

Cord Jumper#CD2A

Dvd parts Diagram

Cord jumper

Part #12C14O1602

The manufacturer no longer makes this part, and there's no substitute part

Headphones#NI

Cabinet parts Diagram

Headphones

Part #060R131024

The manufacturer no longer makes this part, and there's no substitute part
