Model # DSLR-A330L Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSLR-A330L digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

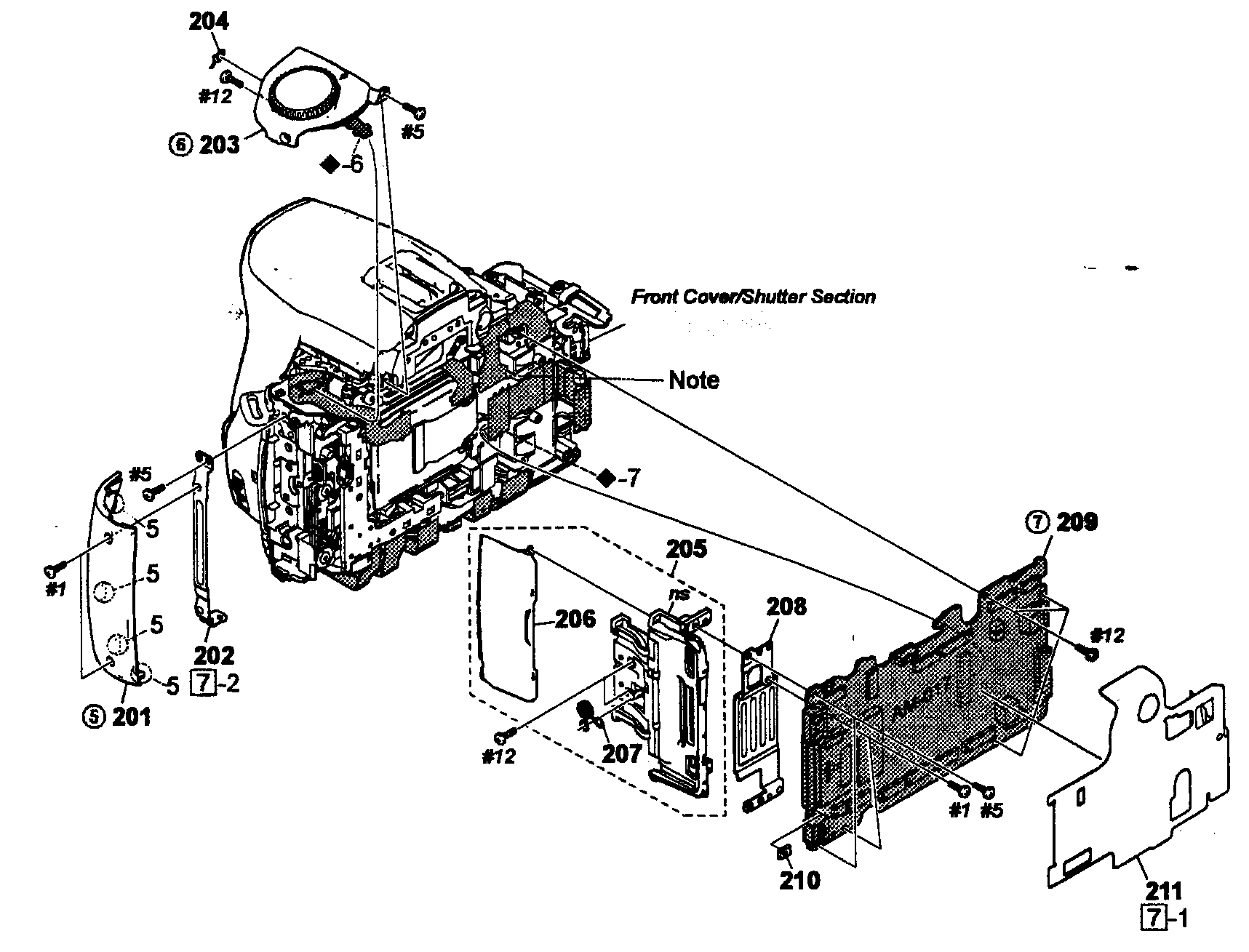

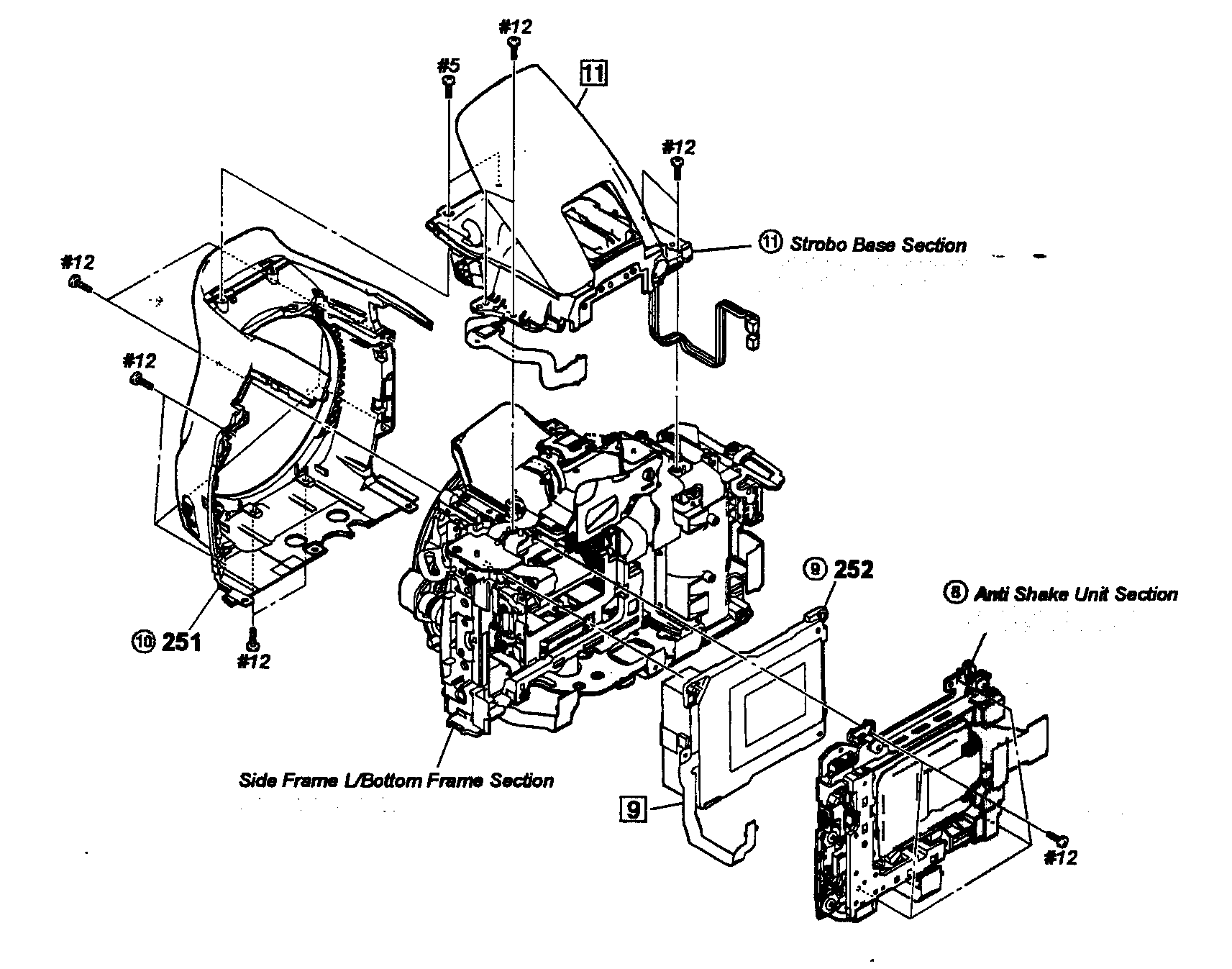

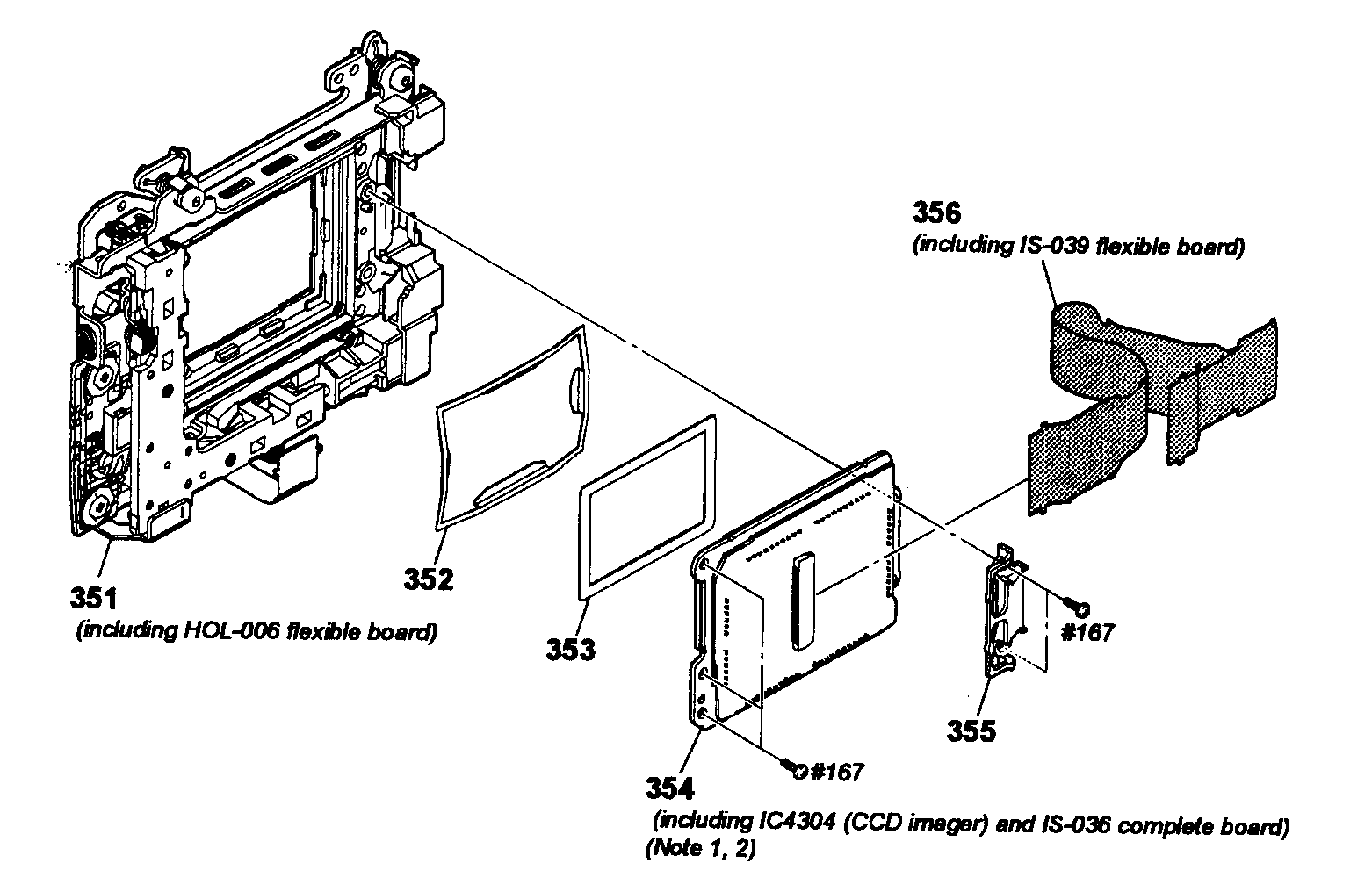

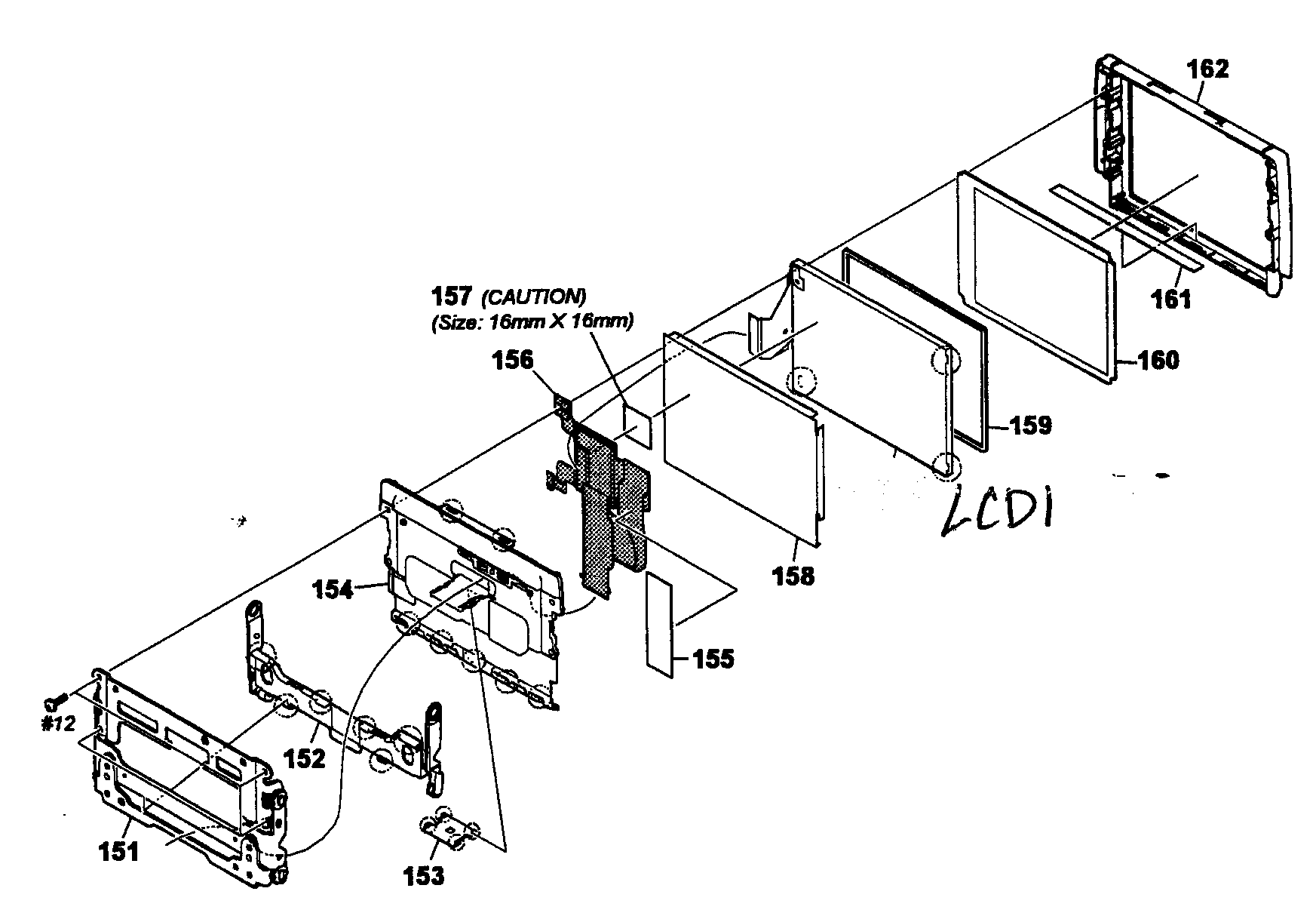

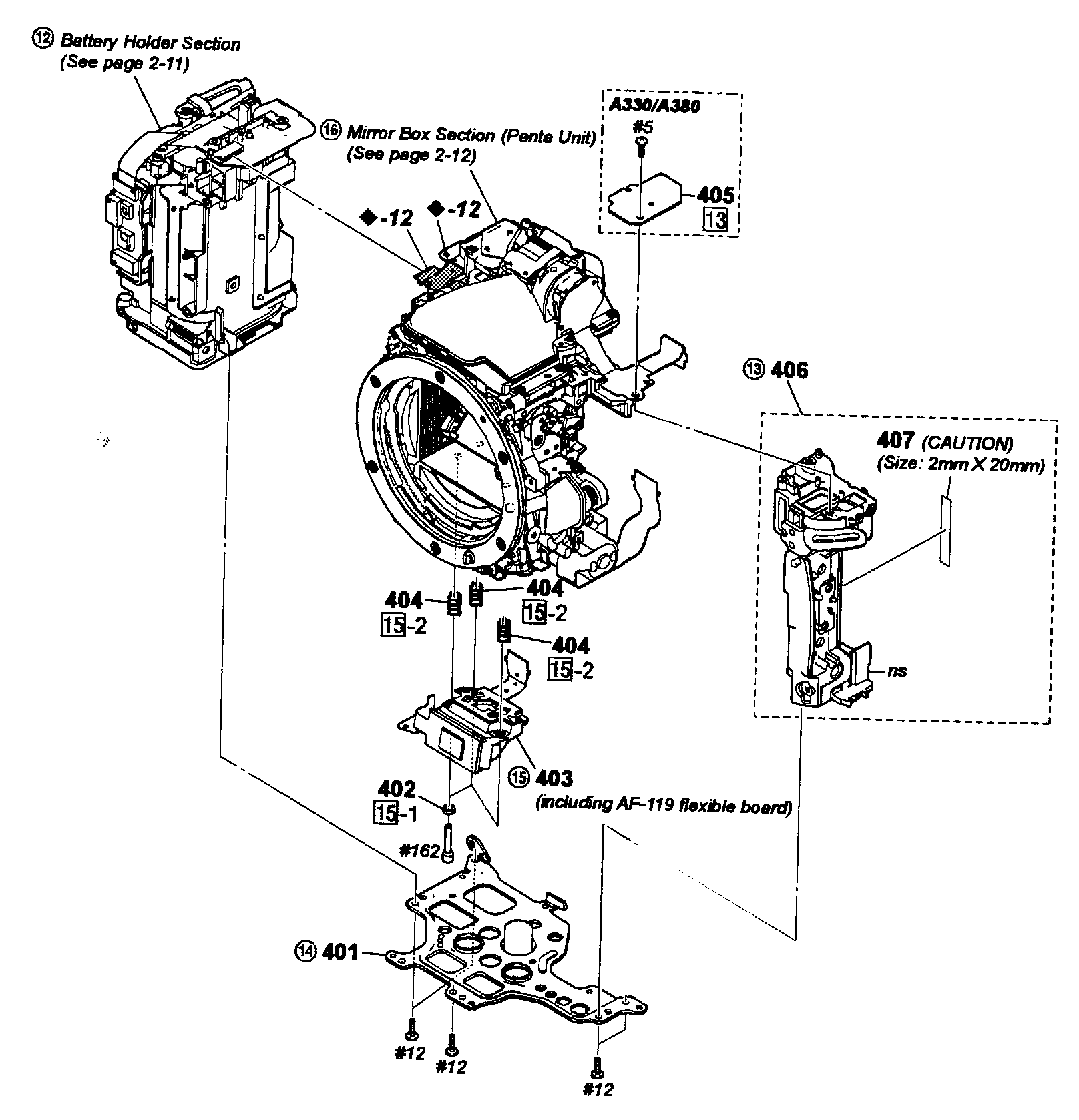

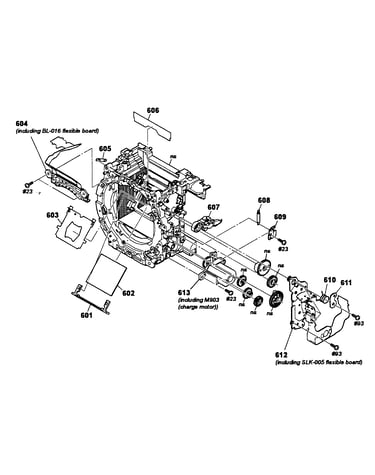

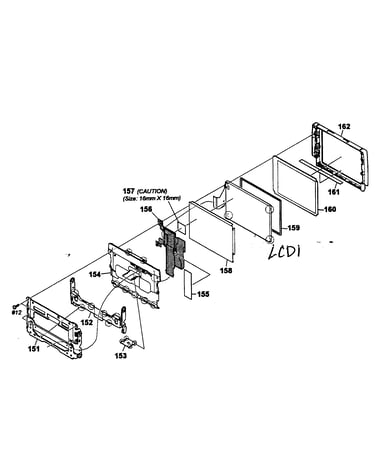

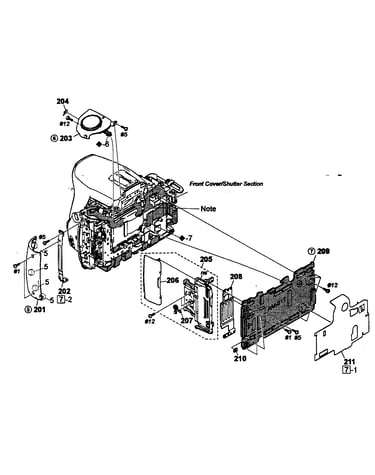

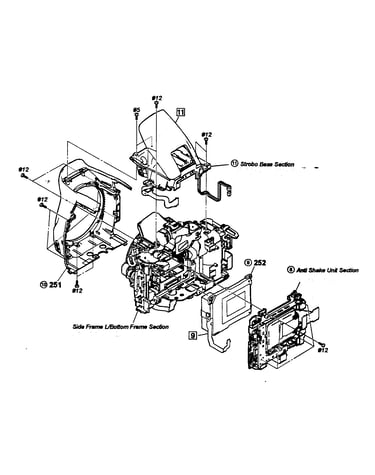

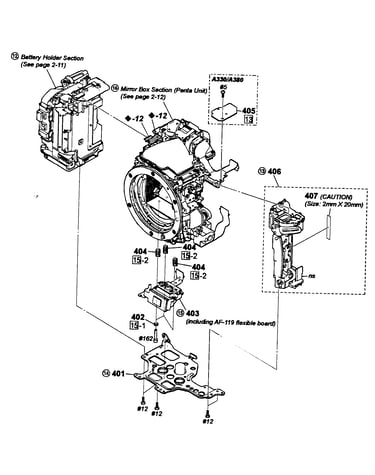

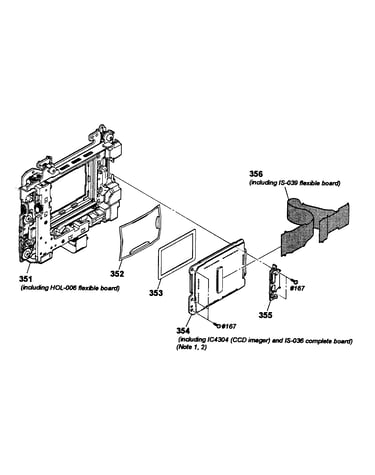

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 164 parts |

#S163

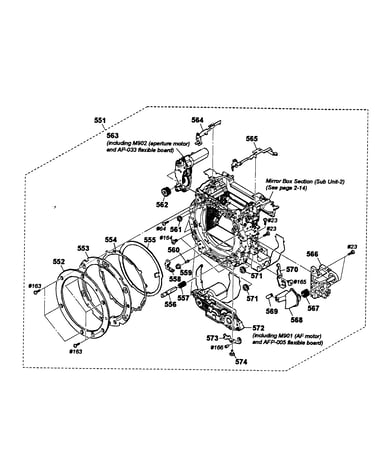

Mirror box 2 diagram

Screw(t2)

Part #269557511

This item is not returnable

$3.63

In Stock

Qty

#305

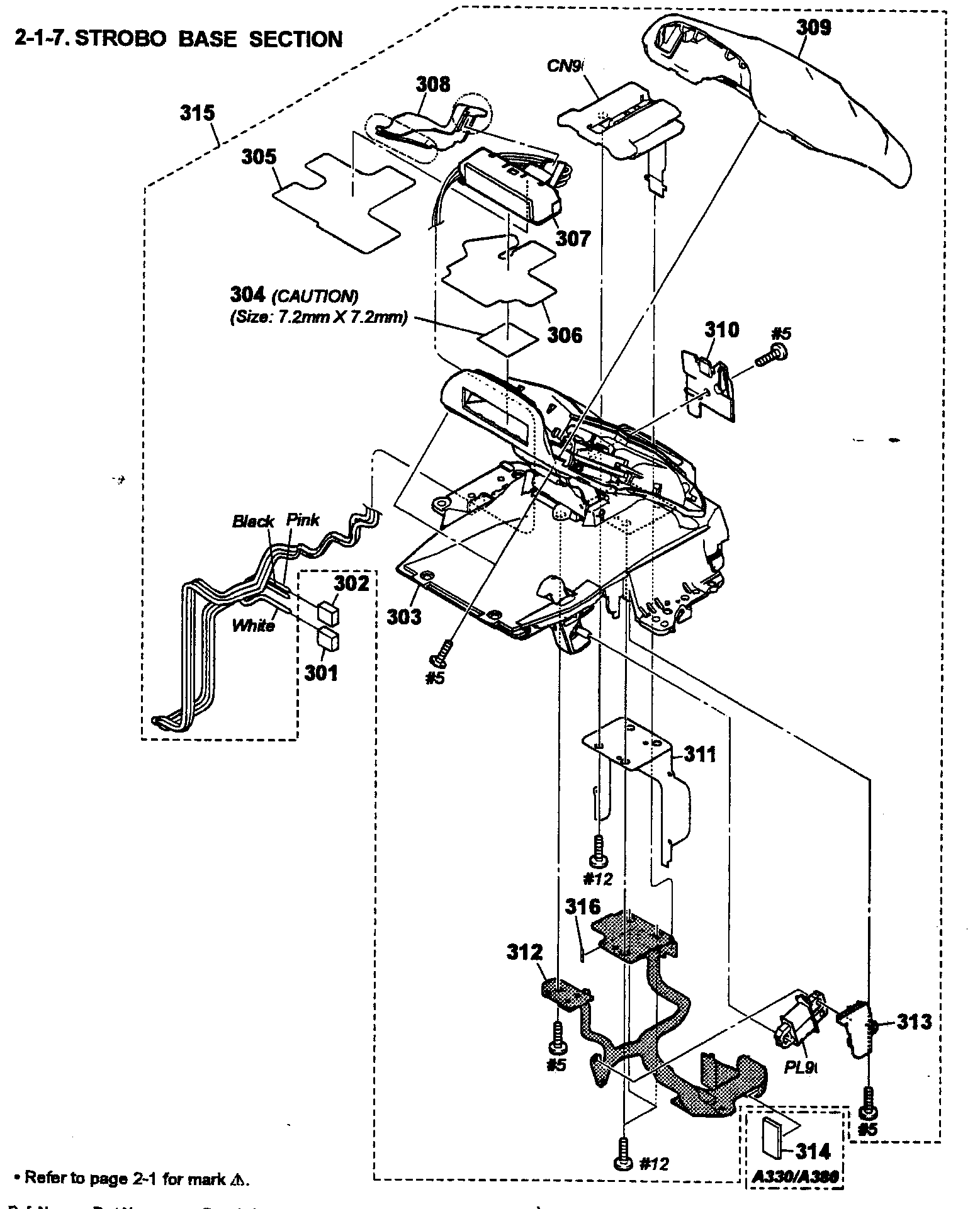

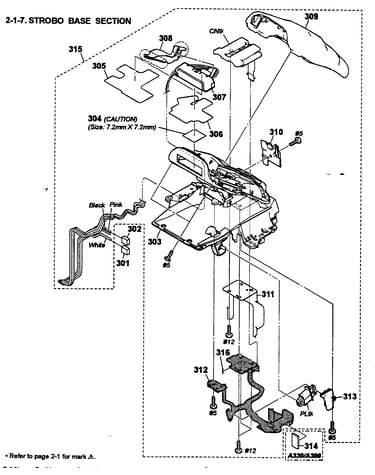

Strobo base diagram

Sheet(b)

Part #414391701

$8.56

In Stock

Qty

#452

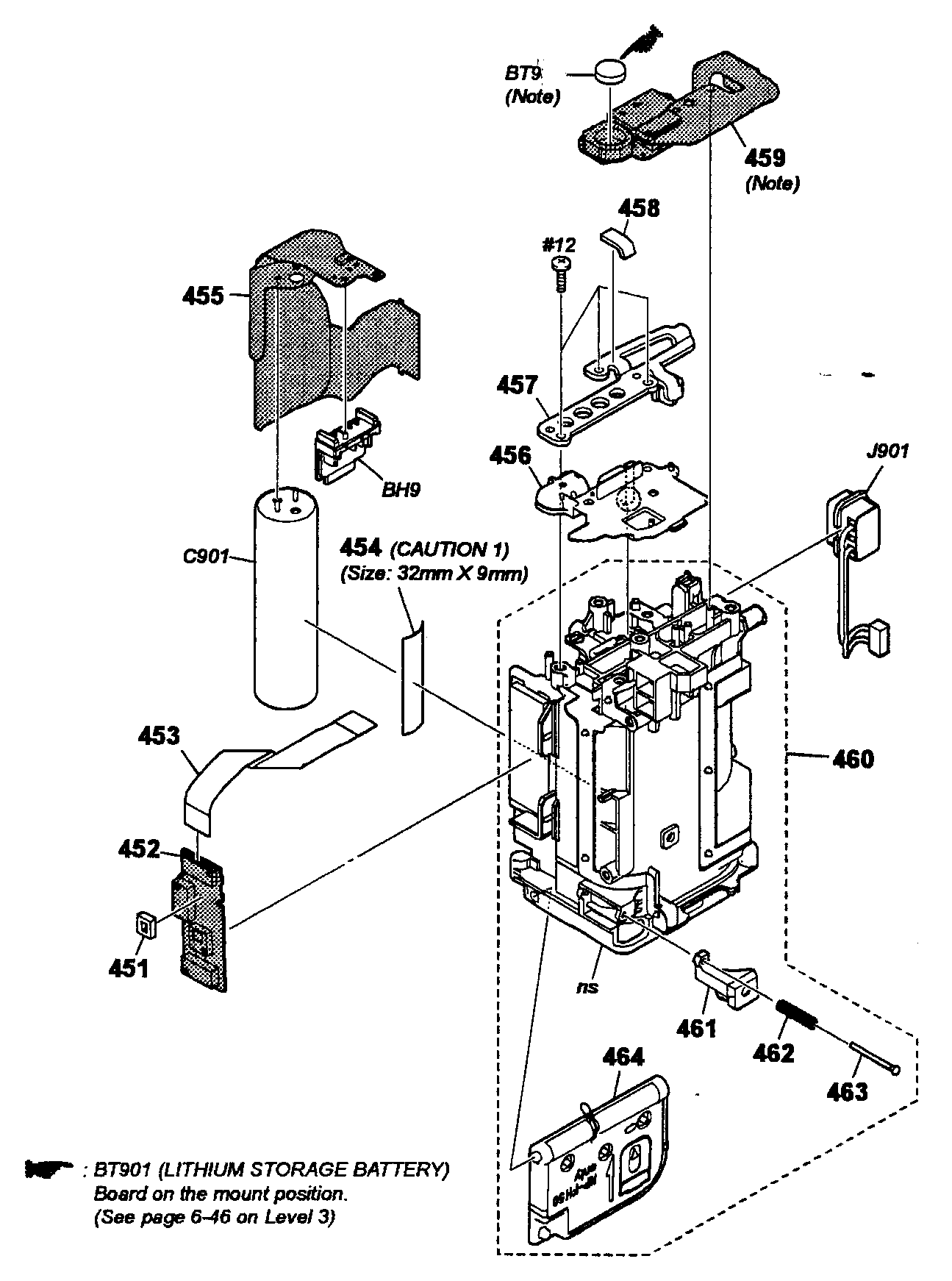

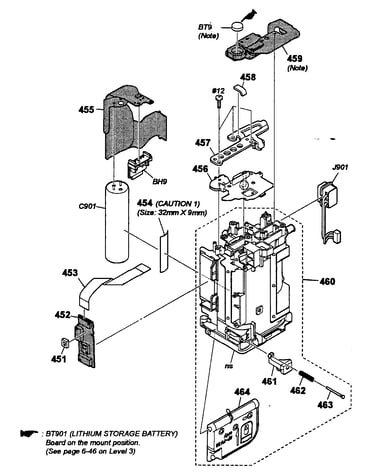

Battery assy diagram

Pcb,rg-054

Part #A1716484A

$61.14

In Stock

Qty

#502

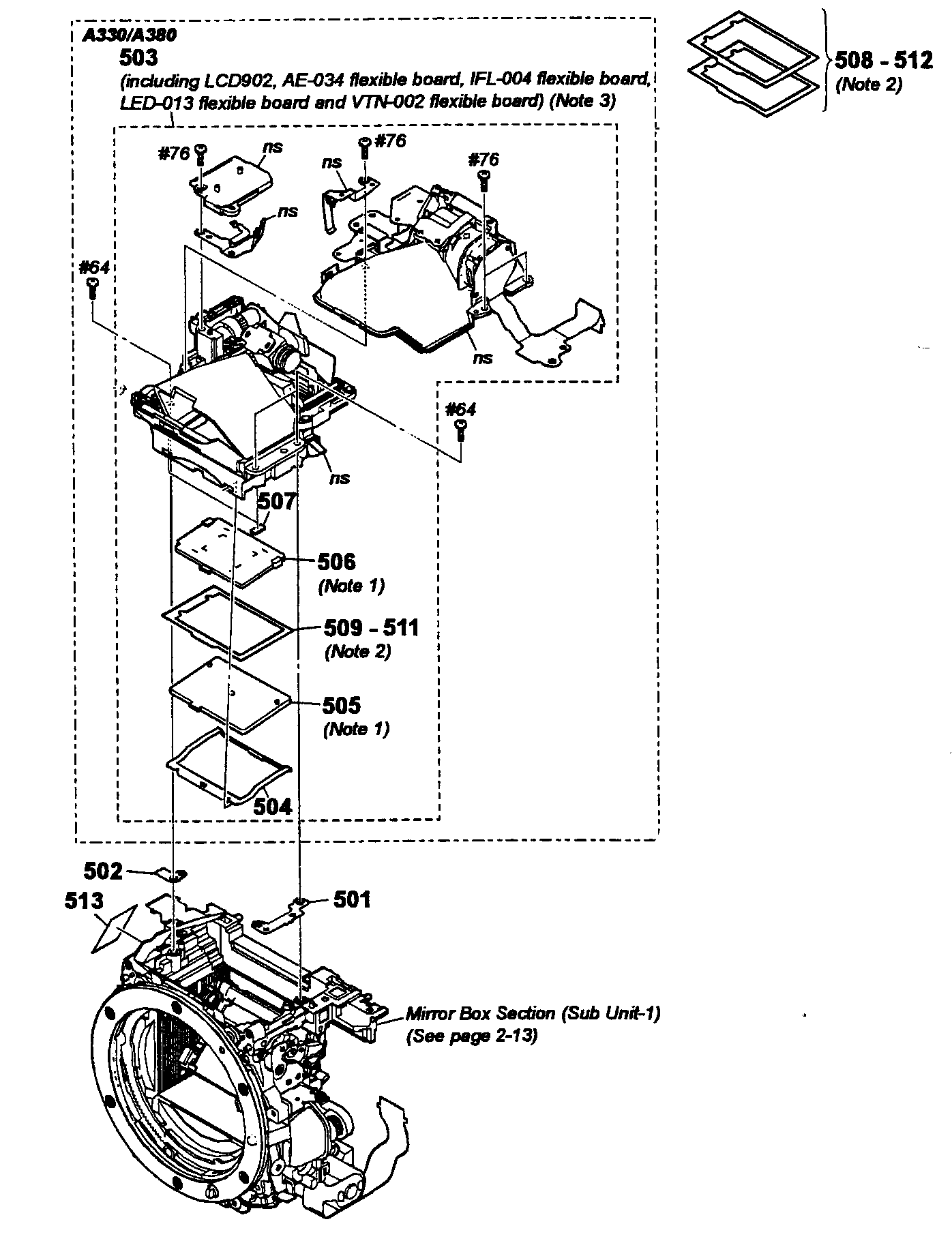

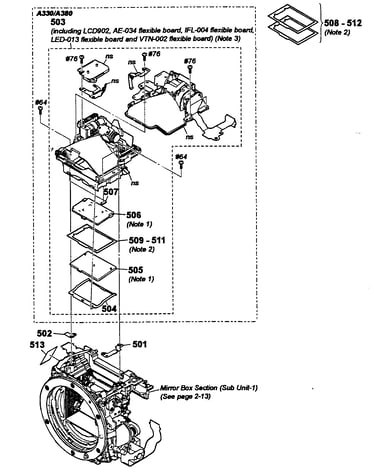

Mirror box 1 diagram

Spacer(l)

Part #414111131

This item is not returnable

$2.57

In Stock

Qty

#315A

Strobo base diagram

Base block

Part #A1717476A

$349.63

In Stock

Qty

#105

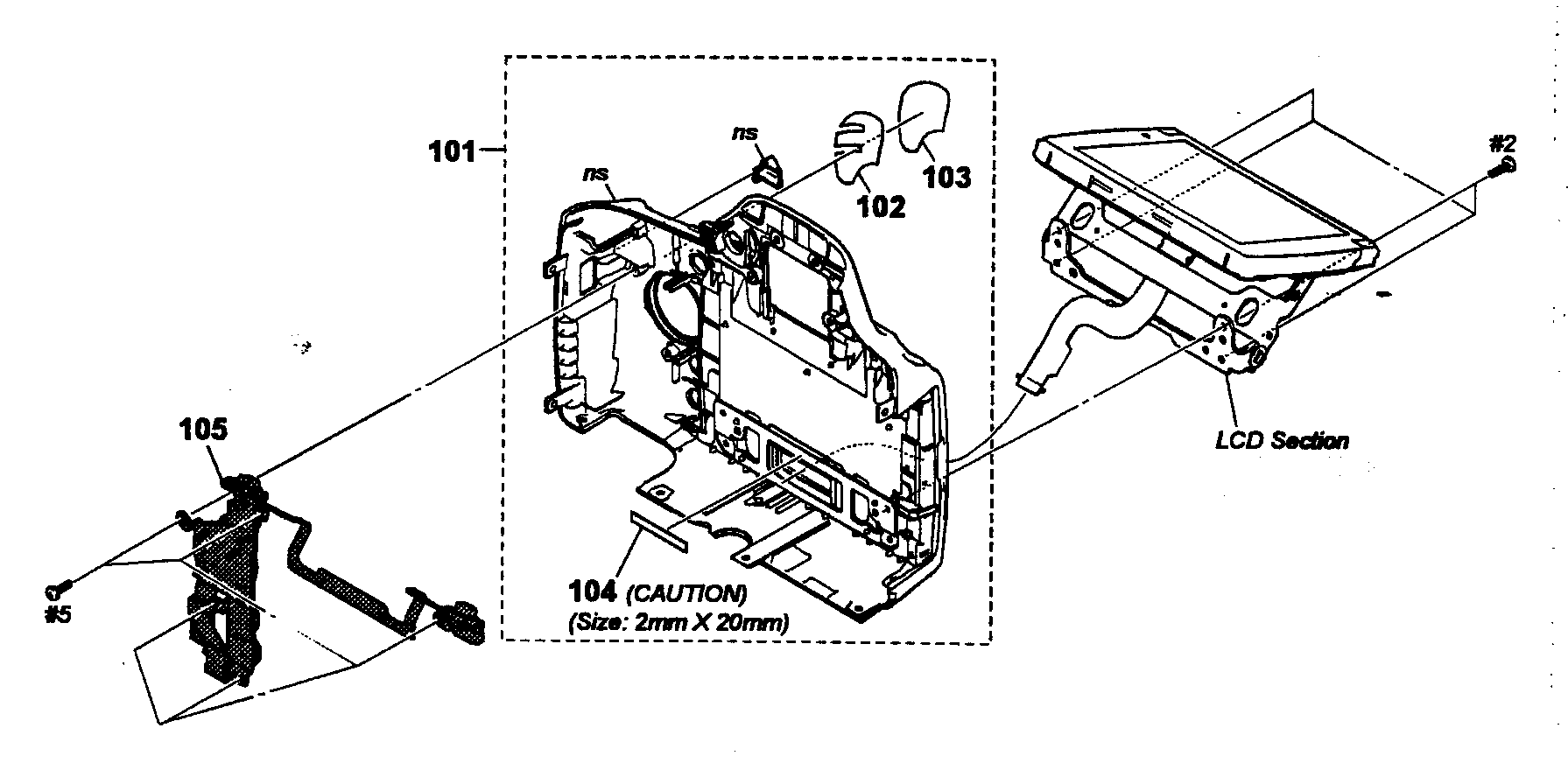

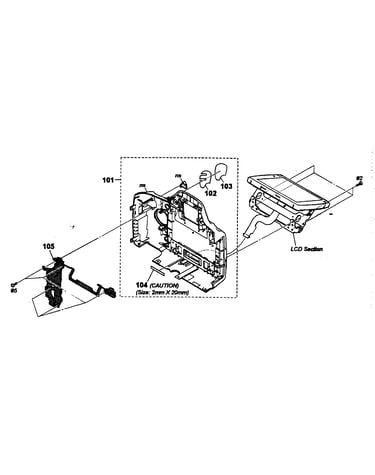

Rear cover diagram

Block switch

Part #148710611

$102.19

In Stock

Qty

#303

Strobo base diagram

Base assembly

Part #X23490541

$42.26

In Stock

Qty

#101

Rear cover diagram

Cover

Part #X23490811

$47.38

In Stock

Qty

#NI

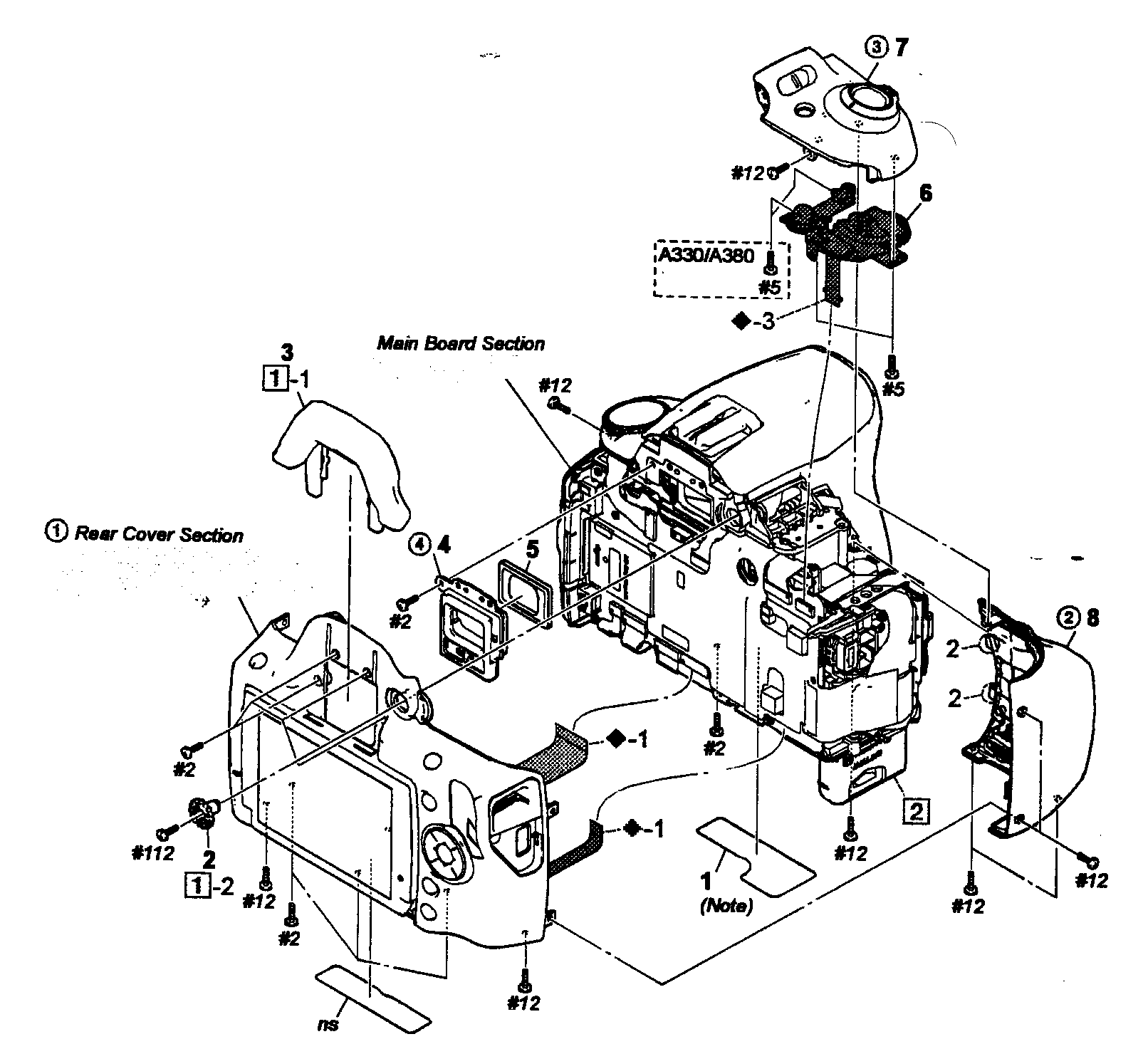

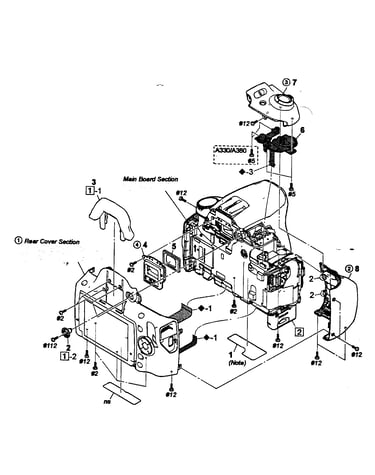

Overall assy diagram

Eyepiece capacitor

Part #327345801

This item is not returnable

$6.36

In Stock

Qty

#563

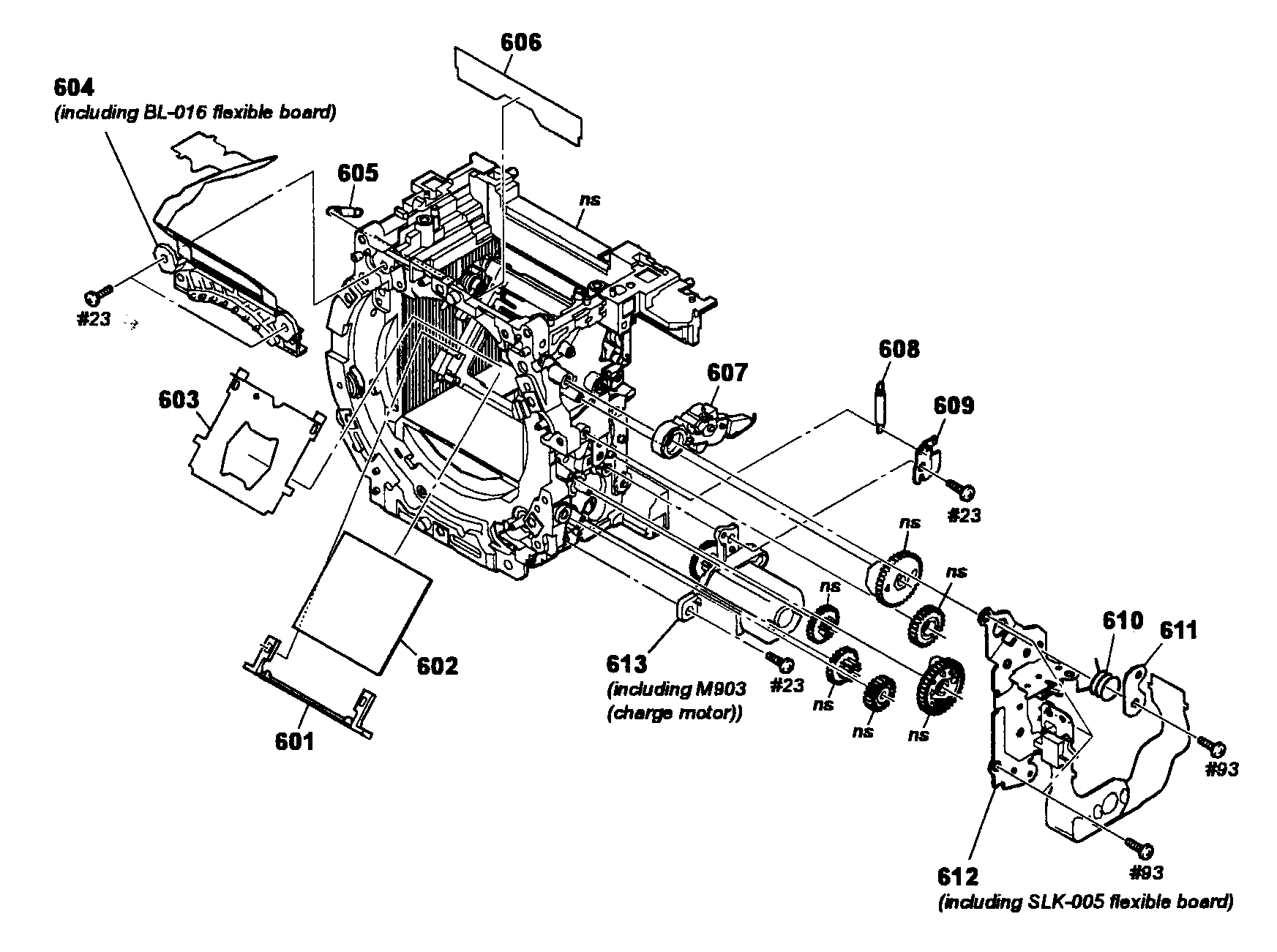

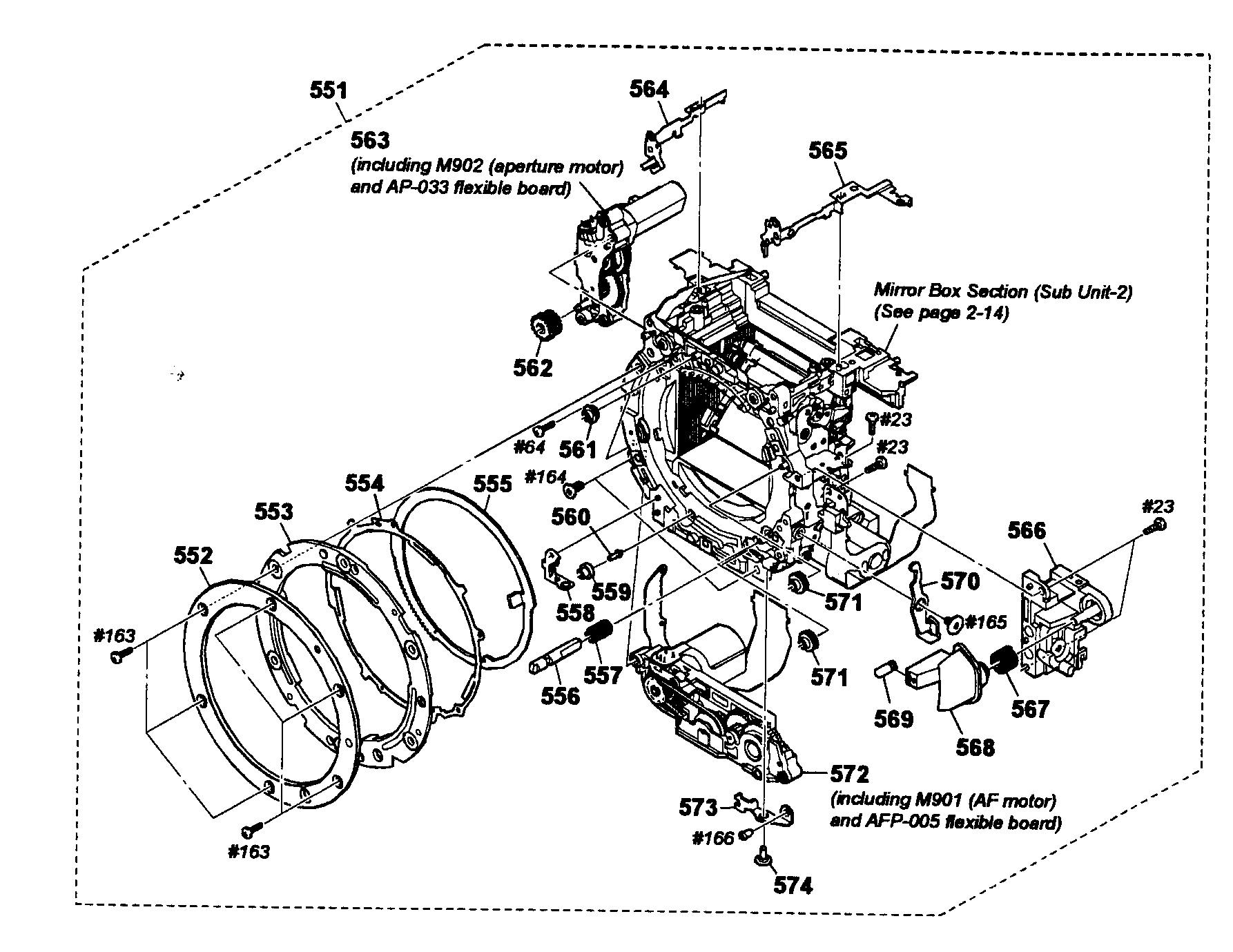

Mirror box 2 diagram

Aperture

Part #A1709450A

$69.78

In Stock

Qty
