Model #315105030 Craftsman 1/2" electric drill

Here are the diagrams and repair parts for Craftsman 315105030 1/2" electric drill, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 43 parts

    Screw

    #22

    Gear assembly Diagram

    Screw

    Part #613150003
    ?
    Manufacturer substitution
    This part replaces 613150-003. Substitute parts can look different from the original.
    This part replaces 613150-003
    $11.02

    In Stock

    Ball Bearing

    #14

    Gear assembly Diagram

    Ball bearing

    Part #STD315225
    ?
    Manufacturer substitution
    This part replaces 621007-001. Substitute parts can look different from the original.
    This part replaces 621007-001
    This item is not returnable
    $6.73

    In Stock

    Screw

    #2

    Gear assembly Diagram

    Screw

    Part #617205-001

    The manufacturer no longer makes this part, and there's no substitute part

    Ball Bearing

    #2

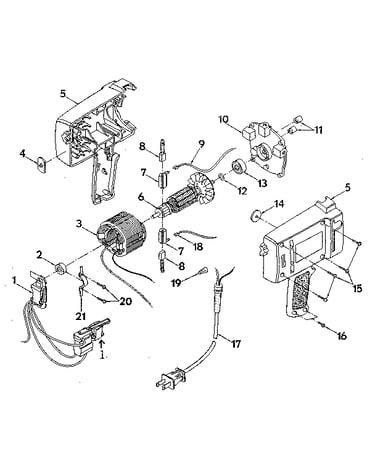

    Housing assembly Diagram

    Ball bearing

    Part #621221-001

    The manufacturer no longer makes this part, and there's no substitute part

    Ball Brg

    #13

    Housing assembly Diagram

    Ball brg

    Part #999965-001

    The manufacturer no longer makes this part, and there's no substitute part

    Stator Pad

    #14

    Housing assembly Diagram

    Stator pad

    Part #623552-001

    The manufacturer no longer makes this part, and there's no substitute part

    Screw with Washer

    #13

    Gear assembly Diagram

    Screw with washer

    Part #940038-805

    The manufacturer no longer makes this part, and there's no substitute part

    Field

    #3

    Housing assembly Diagram

    Field

    Part #998677-001

    The manufacturer no longer makes this part, and there's no substitute part

    Data Plate

    #7

    Gear assembly Diagram

    Data plate

    Part #998690-001

    The manufacturer no longer makes this part, and there's no substitute part

    Lead W/term

    #18

    Housing assembly Diagram

    Lead w/term

    Part #998724-004

    The manufacturer no longer makes this part, and there's no substitute part
