Kenmore
Room Air Conditioner

Model # 58073144300 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 58073144300 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Room Air Conditioner Evaporator Fan Blade 5900A20009A
#3-C

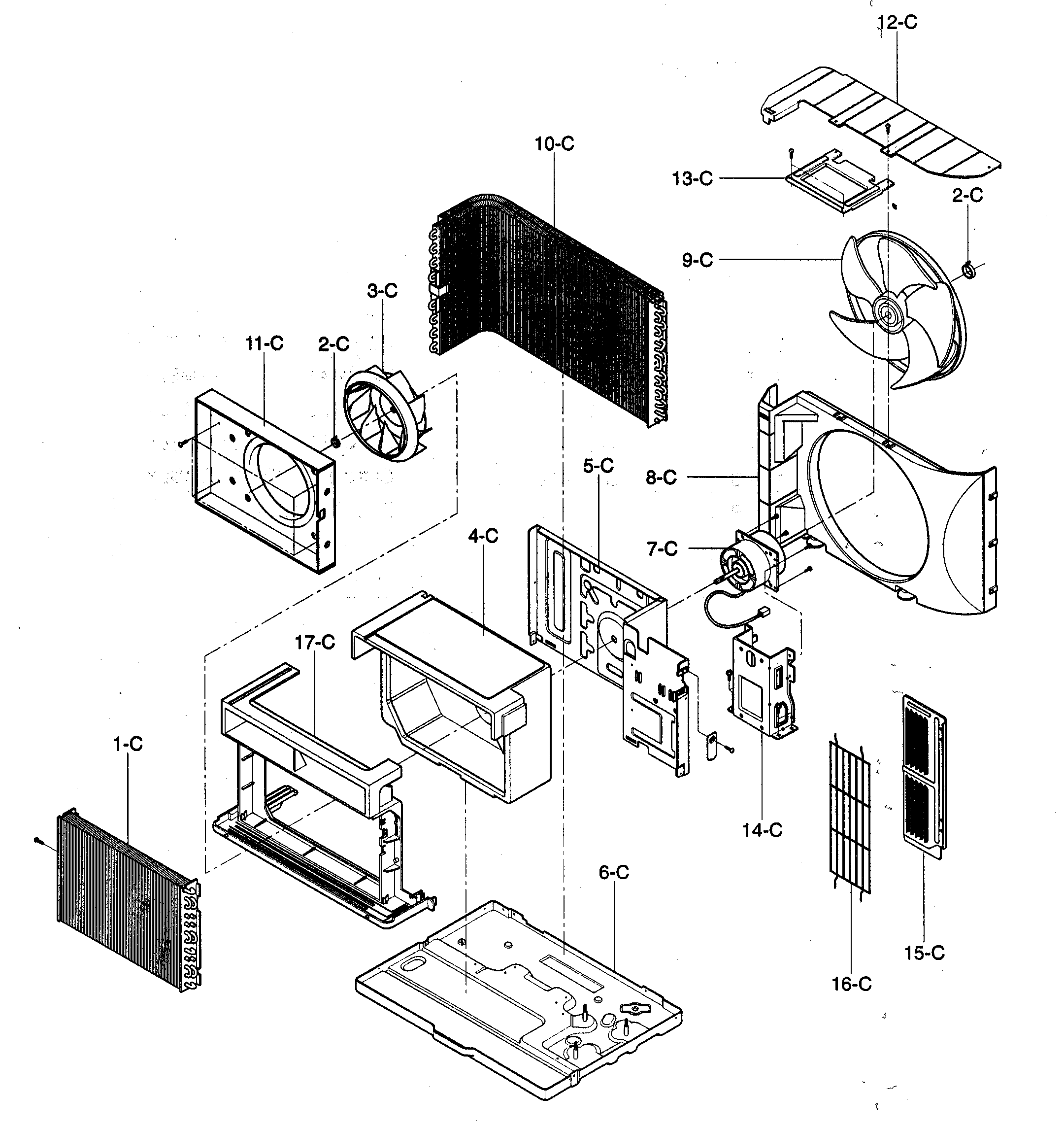

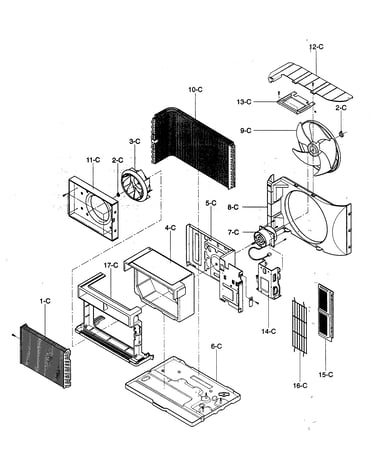

Air handling/cycle parts diagram

Room air conditioner evaporator fan blade

Part #5900A20009A

Replaced by #5900A20009E

?
Manufacturer substitution
This part replaces 5900A20009A. Substitute parts can look different from the original.
$29.57 |
14% OFF Phone Price : $34.57
In Stock
Room Air Conditioner Compressor Grommet 4H00982E
#9-D

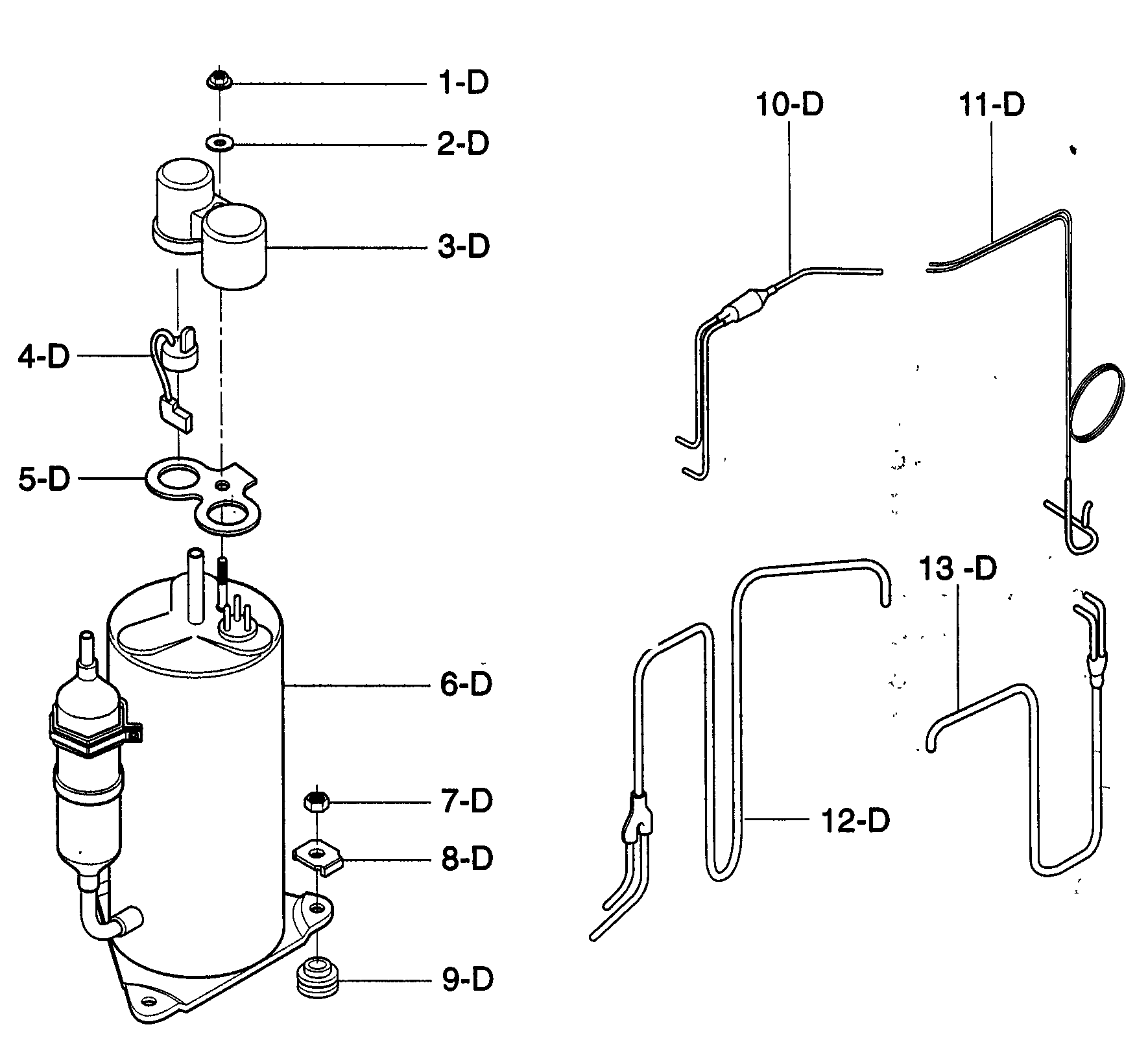

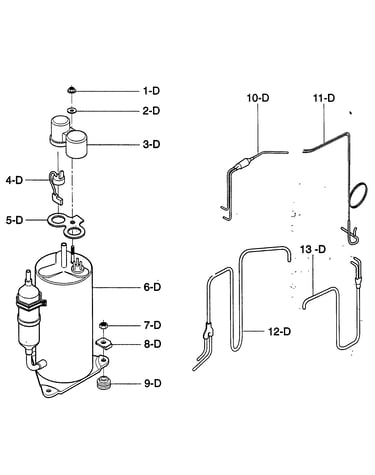

Compressor parts diagram

Room air conditioner compressor grommet

Part #4H00982E

This item is not returnable
$3.46 |
22% OFF Phone Price : $4.46
In Stock
Capacitor 6120AR2194B
#6-B

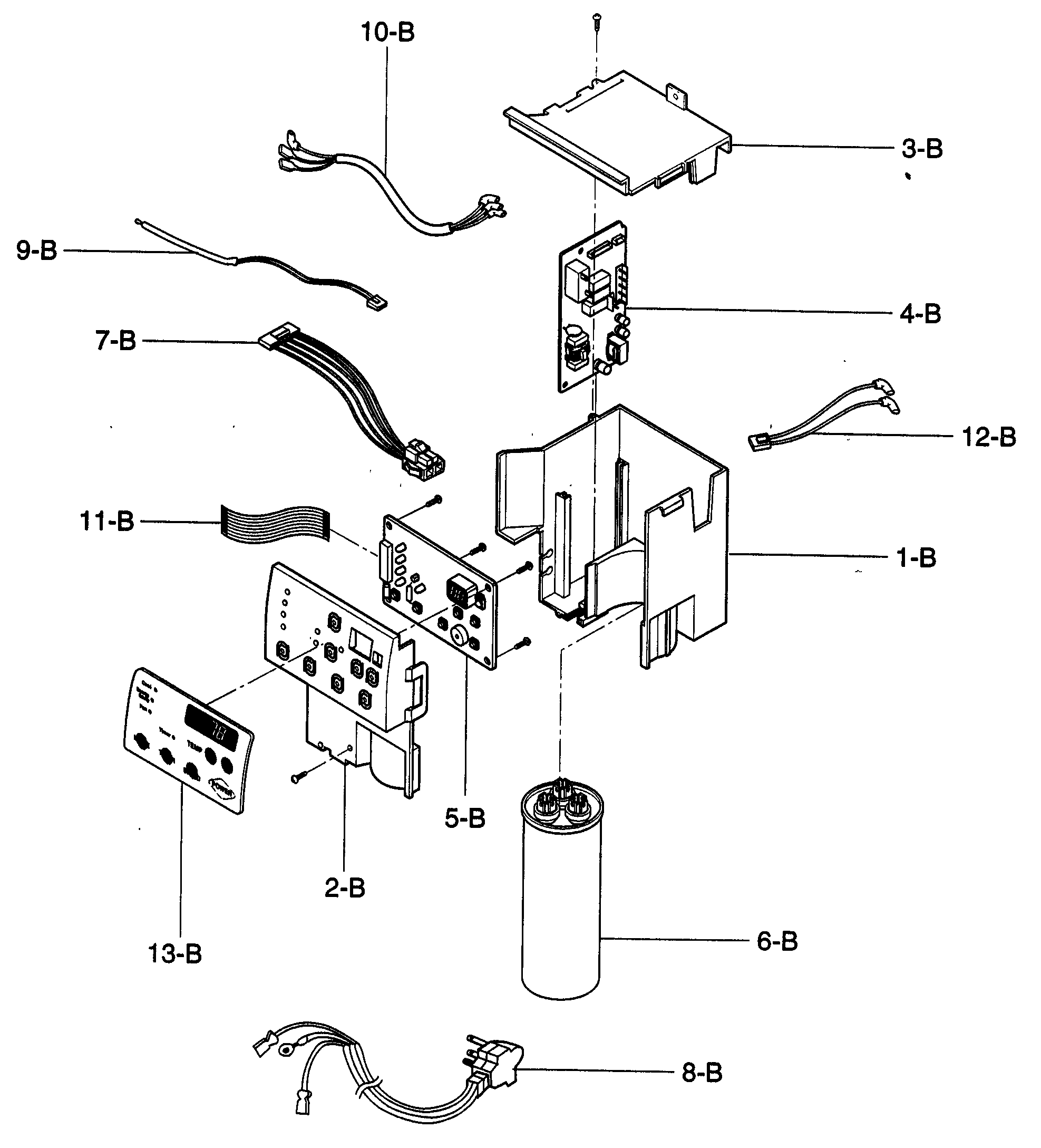

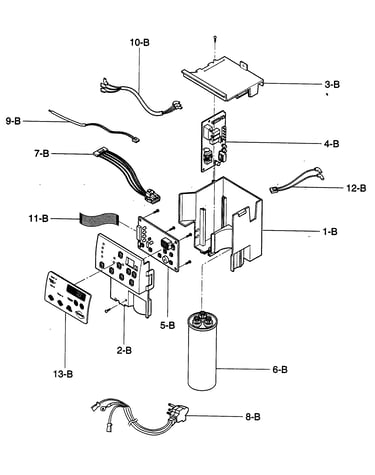

Control box assy diagram

Capacitor

Part #6120AR2194B

Replaced by #EAE51432202

?
Manufacturer substitution
This part replaces 6120AR2194B. Substitute parts can look different from the original.
$33.61 |
13% OFF Phone Price : $38.61
In Stock
Cabinet 3090A20003B
#1-A

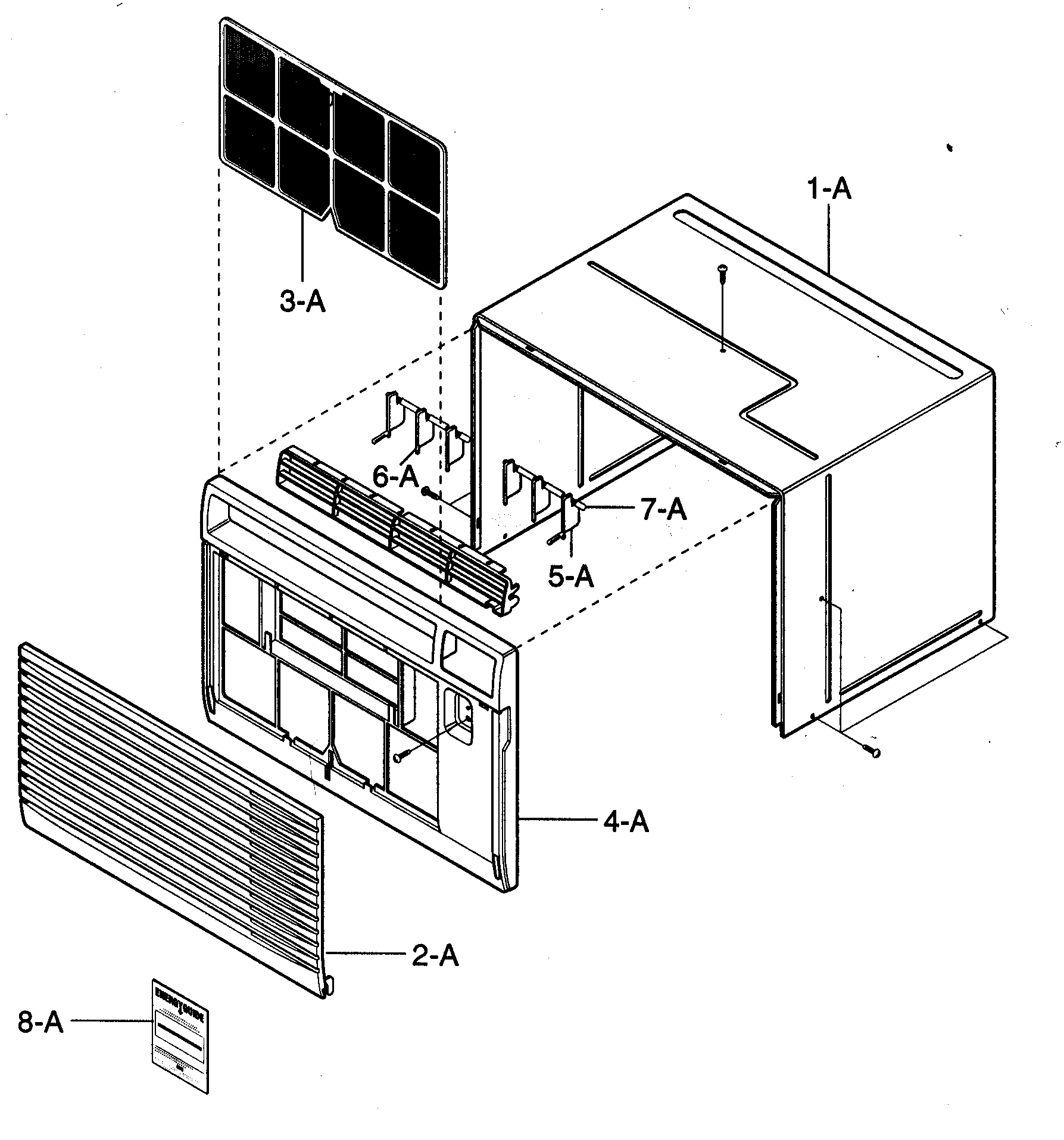

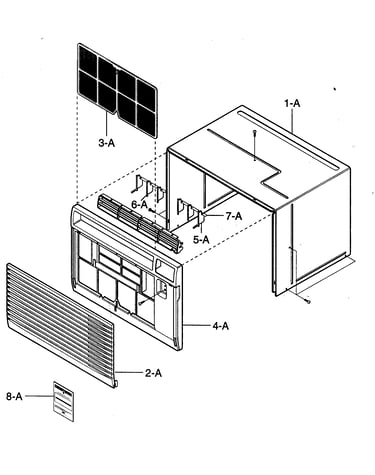

Cabinet front grille assy diagram

Cabinet

Part #3090A20003B

$88.36
In Stock
Mech Sheet 3858A20001A
#4-E

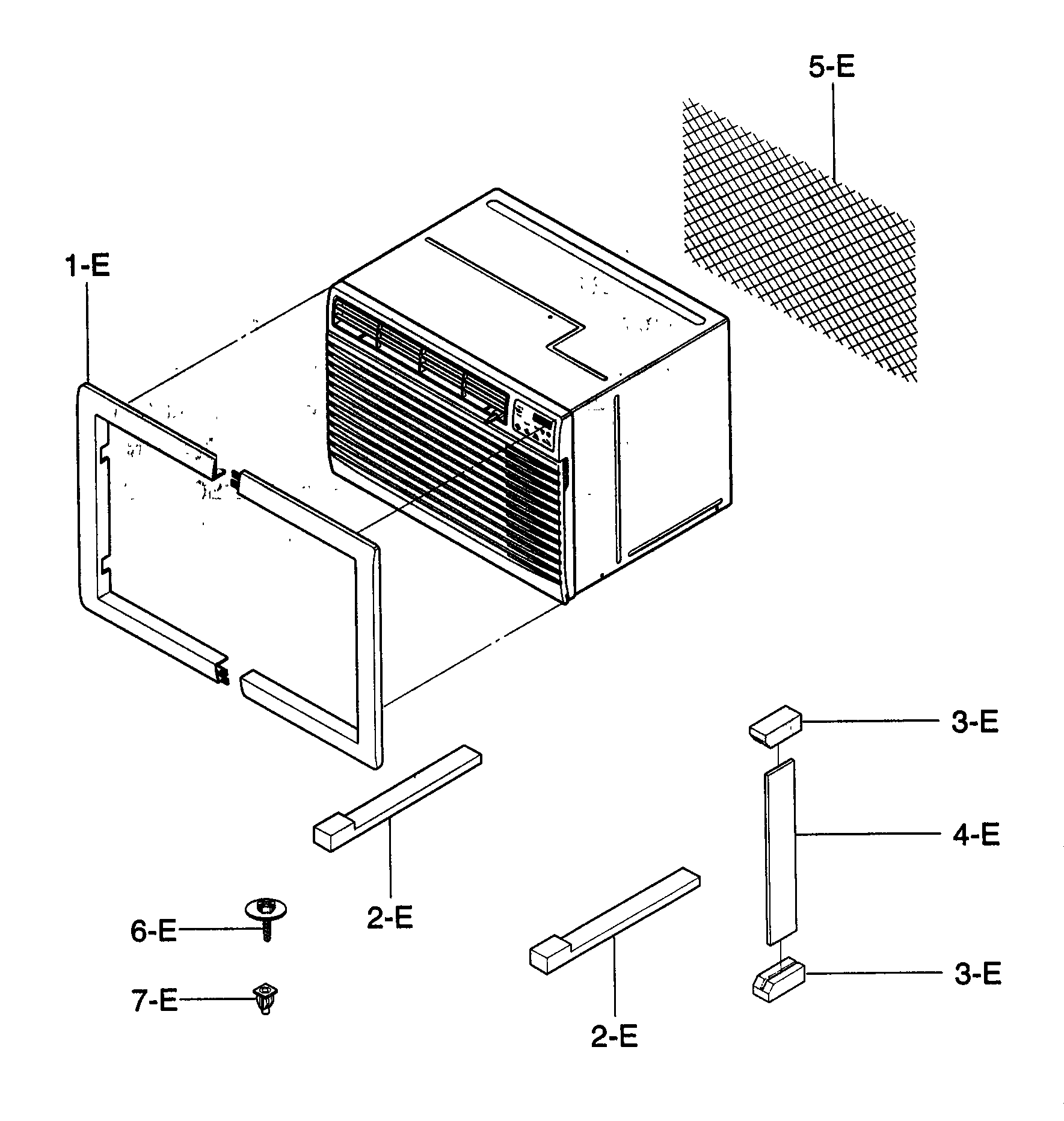

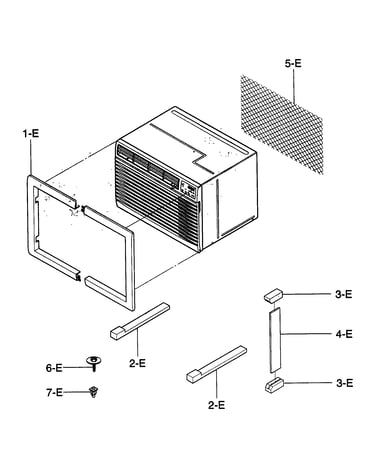

Installation kit assy diagram

Mech sheet

Part #3858A20001A

This item is not returnable
$4.84
In Stock
Orifice 4948A10006A
#11-C

Air handling/cycle parts diagram

Orifice

Part #4948A10006A

$24.09
In Stock
Room Air Conditioner Front Trim 4918A20001A
#1-E

Installation kit assy diagram

Room air conditioner front trim

Part #4918A20001A

This item is not returnable
$24.09
In Stock
Connector 6631A30012E
#7-B

Control box assy diagram

Connector

Part #6631A30012E

$18.83
In Stock
Screw 4001AR4160A
#6-E

Installation kit assy diagram

Screw

Part #4001AR4160A

This item is not returnable
$4.51
In Stock
Motor Mount 4960A20008A
#14-C

Air handling/cycle parts diagram

Motor mount

Part #4960A20008A

$24.09
In Stock
