Kenmore
Upright Vacuum

Model # 11632900 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 11632900 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 108 parts  |

Catch 723548
#29

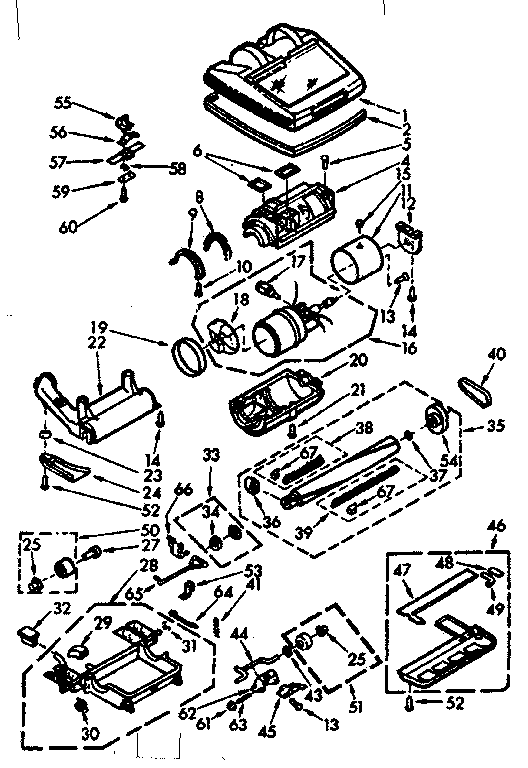

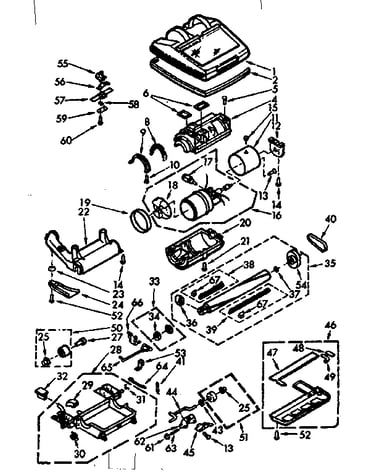

Nozzle and motor assembly diagram

Catch

Part #723548

The manufacturer no longer makes this part, and there's no substitute part

Cover 723850
#26A

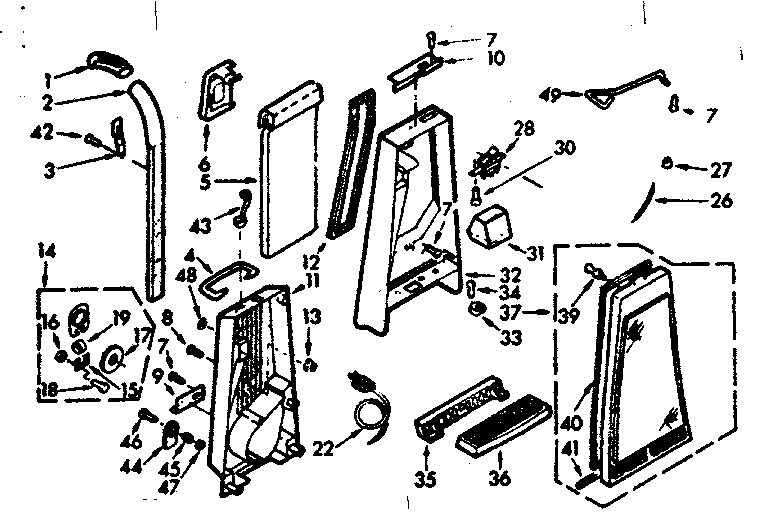

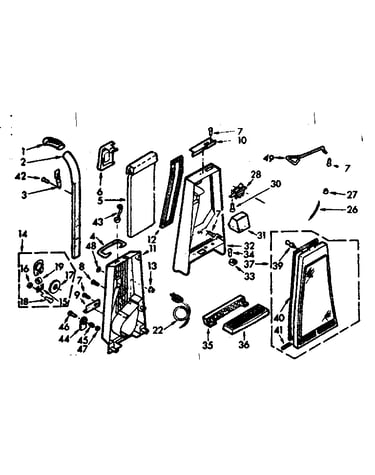

Handle and bag housing diagram

Cover

Part #723850

The manufacturer no longer makes this part, and there's no substitute part

Guard 722836
#54

Nozzle and motor assembly diagram

Guard

Part #722836

The manufacturer no longer makes this part, and there's no substitute part

Coverplate 724019
#46

Nozzle and motor assembly diagram

Coverplate

Part #724019

The manufacturer no longer makes this part, and there's no substitute part

Bracket 724042
#15

Handle and bag housing diagram

Bracket

Part #724042

The manufacturer no longer makes this part, and there's no substitute part

Parts List 724232

#NI

All parts diagram

Parts list

Part #724232

The manufacturer no longer makes this part, and there's no substitute part

Axle 724214
#63

Nozzle and motor assembly diagram

Axle

Part #724214

The manufacturer no longer makes this part, and there's no substitute part

Axle 724207
#44

Nozzle and motor assembly diagram

Axle

Part #724207

The manufacturer no longer makes this part, and there's no substitute part

Cap Kit 569739
#14

Handle and bag housing diagram

Cap kit

Part #569739

The manufacturer no longer makes this part, and there's no substitute part

Screw 680588
#30

Handle and bag housing diagram

Screw

Part #680588

The manufacturer no longer makes this part, and there's no substitute part
