Amana ERHQ48-001A/P55201-95C remote condensing section - ercq series Parts

Name: Amana ERHQ48-001A/P55201-95C Parts | Diagrams | Sears PartsDirect
Brand: Amana
SKU: ERHQ48-001A/P55201-95C
Availability: InStock

Here are the diagrams and repair parts for Amana ERHQ48-001A/P55201-95C remote condensing section - ercq series, as well as links to manuals and error code tables, if available.

By Schematic

By Part

SELECT DIAGRAM

Browse Parts for ERHQ48-001A/P55201-95C Remote Condensing Section - ERCQ Series

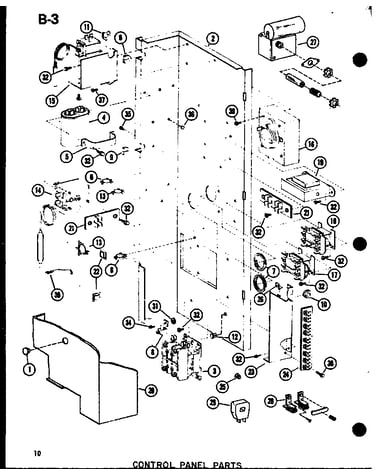

Control panel parts (erhq48-001a/p55201-95c) (erhq48-003a/p55201-96c) (erhq60-001a/p55201-97c) (erhq60-003a/p55201-98c) diagram
Defrost Timer, 208/240 V.
Part #C6192201
The manufacturer no longer makes this part, and there's no substitute part
Control panel parts (erhq48-001a/p55201-95c) (erhq48-003a/p55201-96c) (erhq60-001a/p55201-97c) (erhq60-003a/p55201-98c) diagram
Contactor
Part #C6170003
The manufacturer no longer makes this part, and there's no substitute part

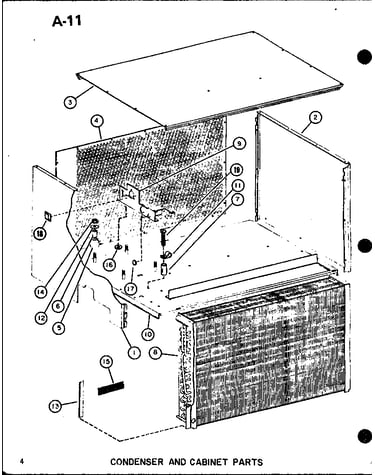

Condenser and cabinet parts (erhq48-001a/p55201-95c) (erhq48-003a/p55201-96c) (erhq60-001a/p55201-97c) (erhq60-003a/p55201-98c) diagram
Screw, 5/16"-18 X 3/4", Motor Mounting
Part #M0270510
The manufacturer no longer makes this part, and there's no substitute part
Control panel parts (erhq48-001a/p55201-95c) (erhq48-003a/p55201-96c) (erhq60-001a/p55201-97c) (erhq60-003a/p55201-98c) diagram
Clip
Part #M0118702
The manufacturer no longer makes this part, and there's no substitute part

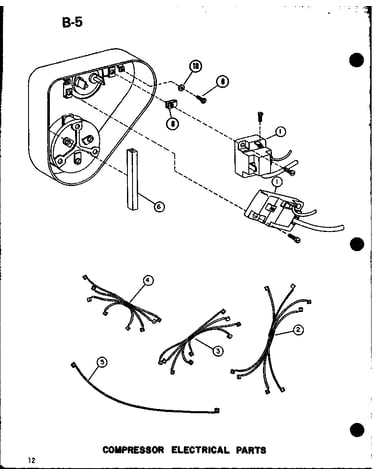

Compressor electrical parts (erhq48-001a/p55201-95c) (erhq48-003a/p55201-96c) (erhq60-001a/p55201-97c) (erhq60-003a/p55201-98c) diagram
Overlaod, Compressor
Part #D4991503
The manufacturer no longer makes this part, and there's no substitute part

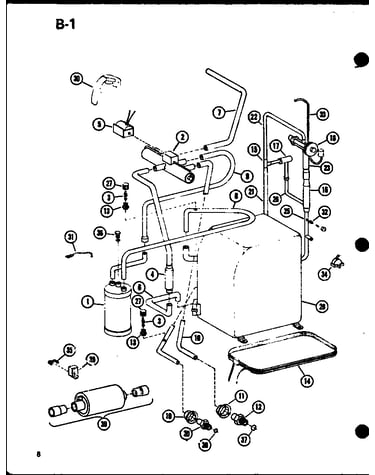

(erhq48-001a/p55201-95c) (erhq48-003a/p55201-96c) (erhq60-001a/p55201-97c) (erhq60-003a/p55201-98c) diagram
Assembly, Terminal Cover
Part #C6178201
The manufacturer no longer makes this part, and there's no substitute part
(erhq48-001a/p55201-95c) (erhq48-003a/p55201-96c) (erhq60-001a/p55201-97c) (erhq60-003a/p55201-98c) diagram
"o" Ring
Part #B1159401
The manufacturer no longer makes this part, and there's no substitute part

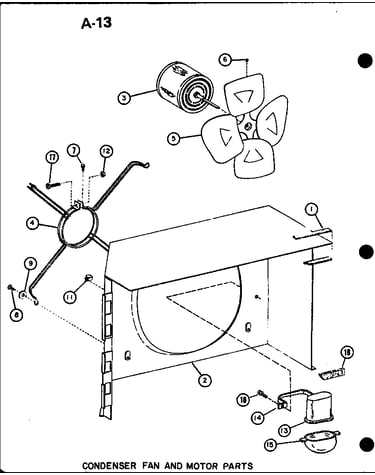

Condenser fan and motor parts (erhq48-001a/p55201-95c) (erhq48-003a/p55201-96c) (erhq60-001a/p55201-97c) (erhq60-003a/p55201-98c) diagram
Boot Capacitor
Part #A3375801
The manufacturer no longer makes this part, and there's no substitute part
Compressor electrical parts (erhq48-001a/p55201-95c) (erhq48-003a/p55201-96c) (erhq60-001a/p55201-97c) (erhq60-003a/p55201-98c) diagram
Jumper Wire
Part #D5529729
The manufacturer no longer makes this part, and there's no substitute part
Condenser and cabinet parts (erhq48-001a/p55201-95c) (erhq48-003a/p55201-96c) (erhq60-001a/p55201-97c) (erhq60-003a/p55201-98c) diagram
End - Outer Case
Part #C5827901
The manufacturer no longer makes this part, and there's no substitute part
