Kenmore 8677364102 gas-fired direct vent counterflow wall furnace

Kenmore 8677364102 gas-fired direct vent counterflow wall furnace Parts

Here are the diagrams and repair parts for Kenmore 8677364102 gas-fired direct vent counterflow wall furnace, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 8677364102 Gas-Fired Direct Vent Counterflow Wall Furnace

  • Water Heater Thermocouple for Kenmore 8677364102 - Part H06E-36

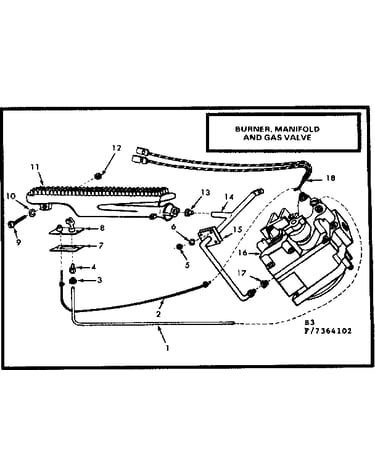

    Gas burners and manifold diagram

    Thermocouple

    Part #503750

    Replaced by #H06E-36

    Info Icon
    Manufacturer substitution
    This part replaces 503750. Substitute parts can look different from the original.
    In Stock
    $17.41
    10% OFF Phone Price : $19.41Info Icon
    Minus Item
    Qty
    Plus Item
  • Thermostat for Kenmore 8677364102 - Part 504871

    #NI

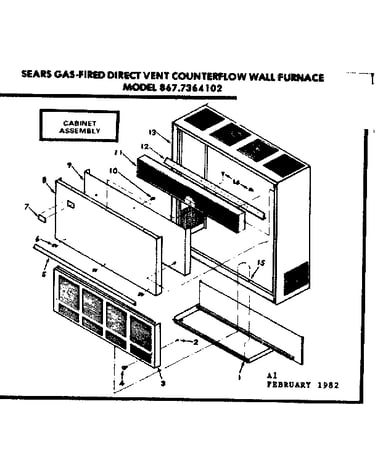

    All parts diagram

    Thermostat

    Part #504871

    The manufacturer no longer makes this part, and there's no substitute part

  • Universal Ga for Kenmore 8677364102 - Part TJ36C03-333

    Gas burners and manifold diagram

    Valve

    Part #507649

    Replaced by #TJ36C03-333

    Info Icon
    Manufacturer substitution
    This part replaces 507649. Substitute parts can look different from the original.
    In Stock
    $263.65
    Minus Item
    Qty
    Plus Item
  • Transformer for Kenmore 8677364102 - Part 92891

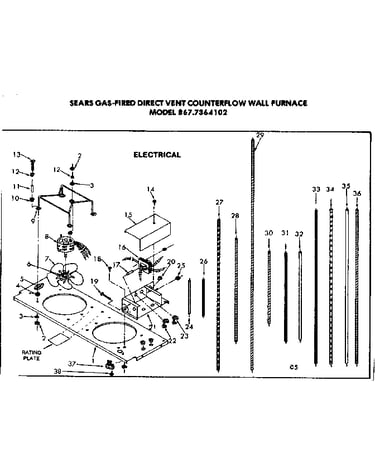

    Electrical diagram

    Transformer

    Part #92891

    The manufacturer no longer makes this part, and there's no substitute part

  • Water Heater Pilot Tube Assembly for Kenmore 8677364102 - Part 100108370

    Gas burners and manifold diagram

    Ferrule Nut

    Part #29441

    Replaced by #100108370

    Info Icon
    Manufacturer substitution
    This part replaces 29441. Substitute parts can look different from the original.
    In Stock
    $64.56
    Minus Item
    Qty
    Plus Item
  • Water Heater Pilot Tube Assembly for Kenmore 8677364102 - Part 100108370

    Gas burners and manifold diagram

    Tubing Pilot

    Part #STD317252

    Replaced by #100108370

    Info Icon
    Manufacturer substitution
    This part replaces STD317252. Substitute parts can look different from the original.
    In Stock
    $64.56
    Minus Item
    Qty
    Plus Item
  • Pilot Burner for Kenmore 8677364102 - Part 503051

    Gas burners and manifold diagram

    Pilot Burner

    Part #503051

    The manufacturer no longer makes this part, and there's no substitute part

  • Guarantee for Kenmore 8677364102 - Part F642-6276A

    #NI

    All parts diagram

    Guarantee

    Part #F642-6276A

    The manufacturer no longer makes this part, and there's no substitute part

  • Gusset for Kenmore 8677364102 - Part 506031

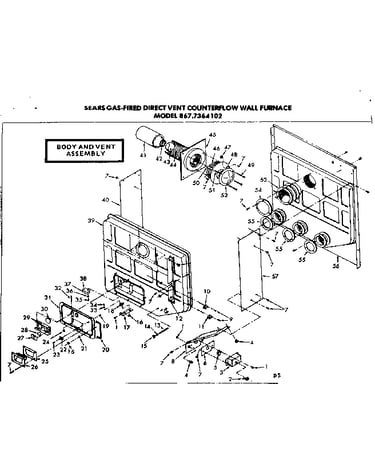

    Body and vent diagram

    Gusset

    Part #506031

    The manufacturer no longer makes this part, and there's no substitute part

  • Fuse for Kenmore 8677364102 - Part 609621

    Electrical diagram

    Fuse

    Part #609621

    The manufacturer no longer makes this part, and there's no substitute part
