Craftsman
Power Screwdriver

Model # 135112110 Official Craftsman cordless screwdriver

Here are the diagrams and repair parts for Official Craftsman 135112110 cordless screwdriver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

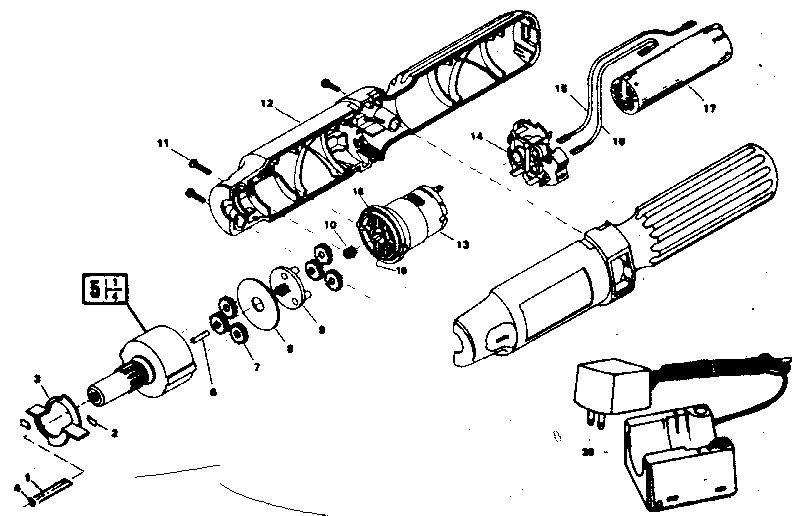

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |

Scw Mtr Mntg 350012
#19

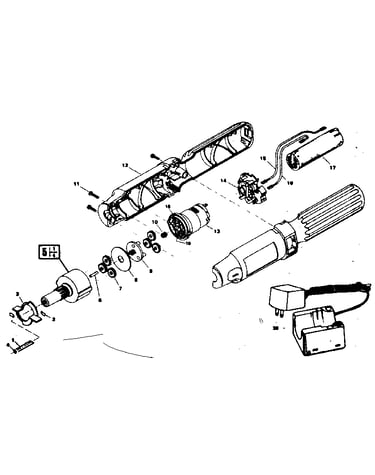

Unit parts diagram

Scw mtr mntg

Part #350012

The manufacturer no longer makes this part, and there's no substitute part

Pinion Gear 347917
#10

Unit parts diagram

Pinion gear

Part #347917

The manufacturer no longer makes this part, and there's no substitute part

Ger Cr/colet 350009
#5

Unit parts diagram

Ger cr/colet

Part #350009

The manufacturer no longer makes this part, and there's no substitute part

Plnt Gear 347918
#7

Unit parts diagram

Plnt gear

Part #347918

The manufacturer no longer makes this part, and there's no substitute part

Mtr Mntng Pt 347911
#18

Unit parts diagram

Mtr mntng pt

Part #347911

The manufacturer no longer makes this part, and there's no substitute part

Stge Carir 348067
#9

Unit parts diagram

Stge carir

Part #348067

The manufacturer no longer makes this part, and there's no substitute part

Wire Assembly 347439
#16

Unit parts diagram

Wire assembly

Part #347439

The manufacturer no longer makes this part, and there's no substitute part

Double Bit 328385

#NI

All parts diagram

Double bit

Part #328385

The manufacturer no longer makes this part, and there's no substitute part

Housing Set 348368
#12

Unit parts diagram

Housing set

Part #348368

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 347931
#8

Unit parts diagram

Flat washer

Part #347931

The manufacturer no longer makes this part, and there's no substitute part
