Whirlpool ACU102PK0 air conditioner Parts
Here are the diagrams and repair parts for Whirlpool ACU102PK0 air conditioner, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
SELECT DIAGRAM
Browse Parts forACU102PK0 Air Conditioner

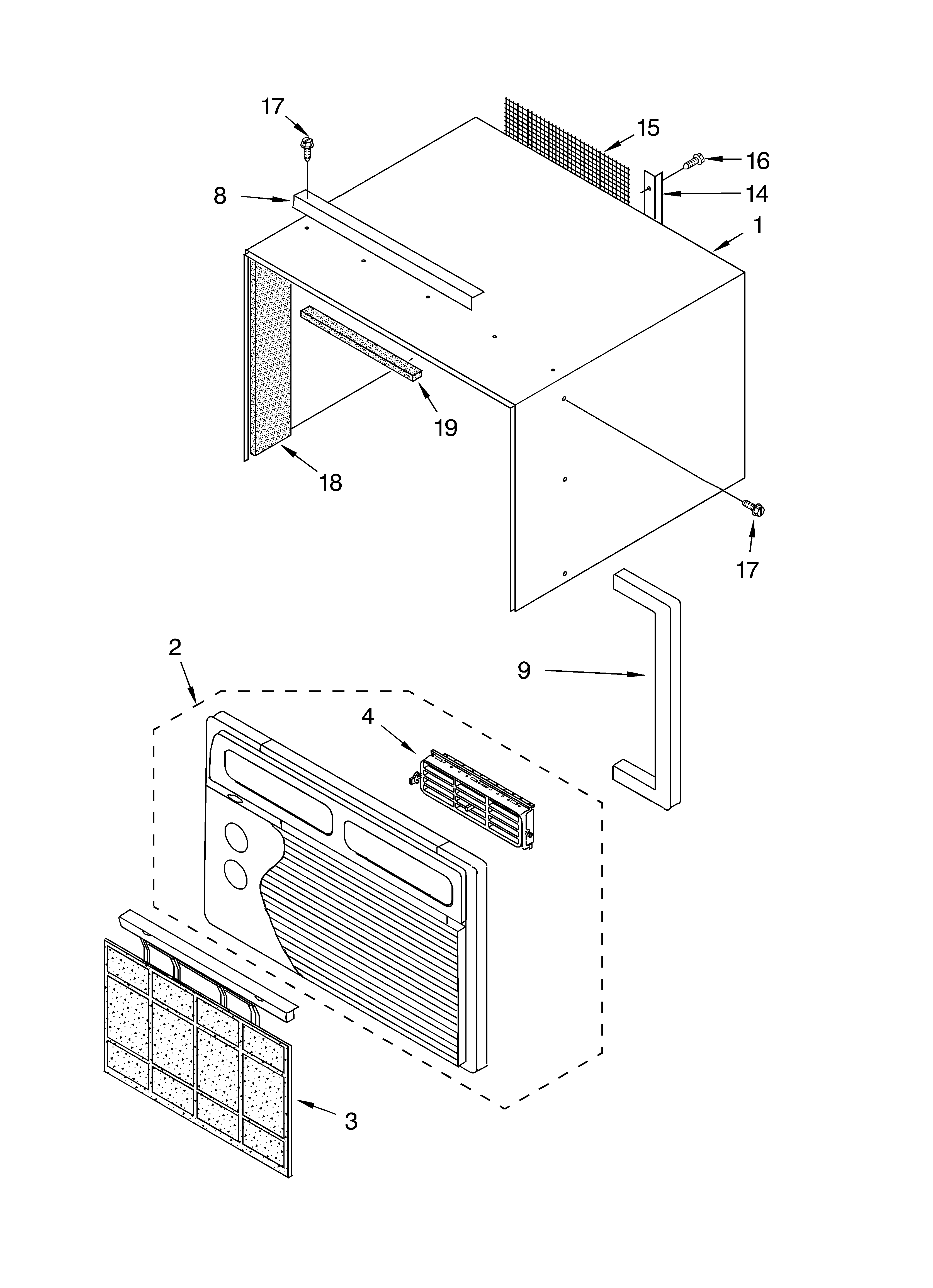

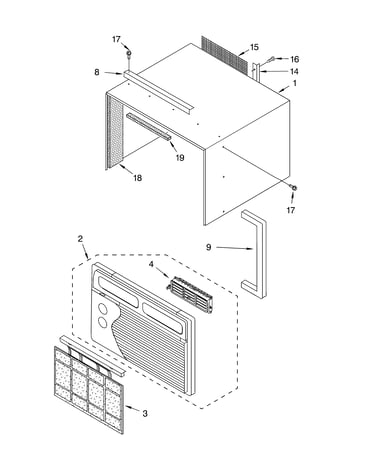

Cabinet parts diagram
Front
In Stock$405.69
Qty

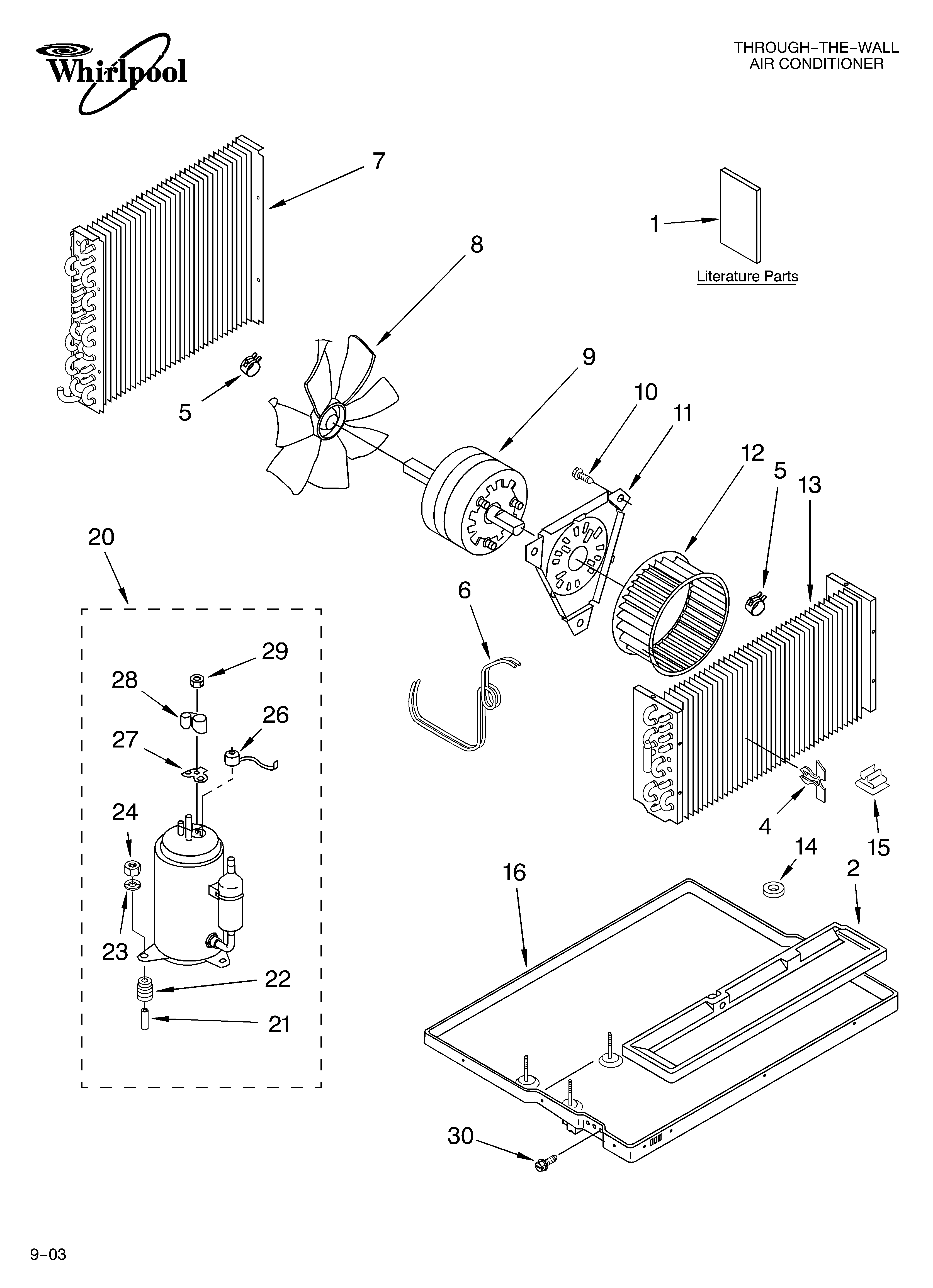

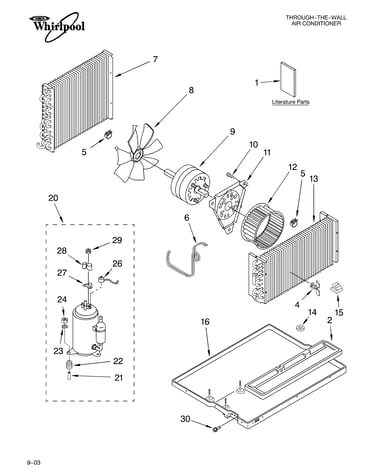

Unit parts diagram
Washer
Part #789761Replaced by #W11236646
Manufacturer substitutionThis part replaces 789761. Substitute parts can look different from the original.This item is not returnableIn Stock$19.299% OFF Phone Price : $21.29

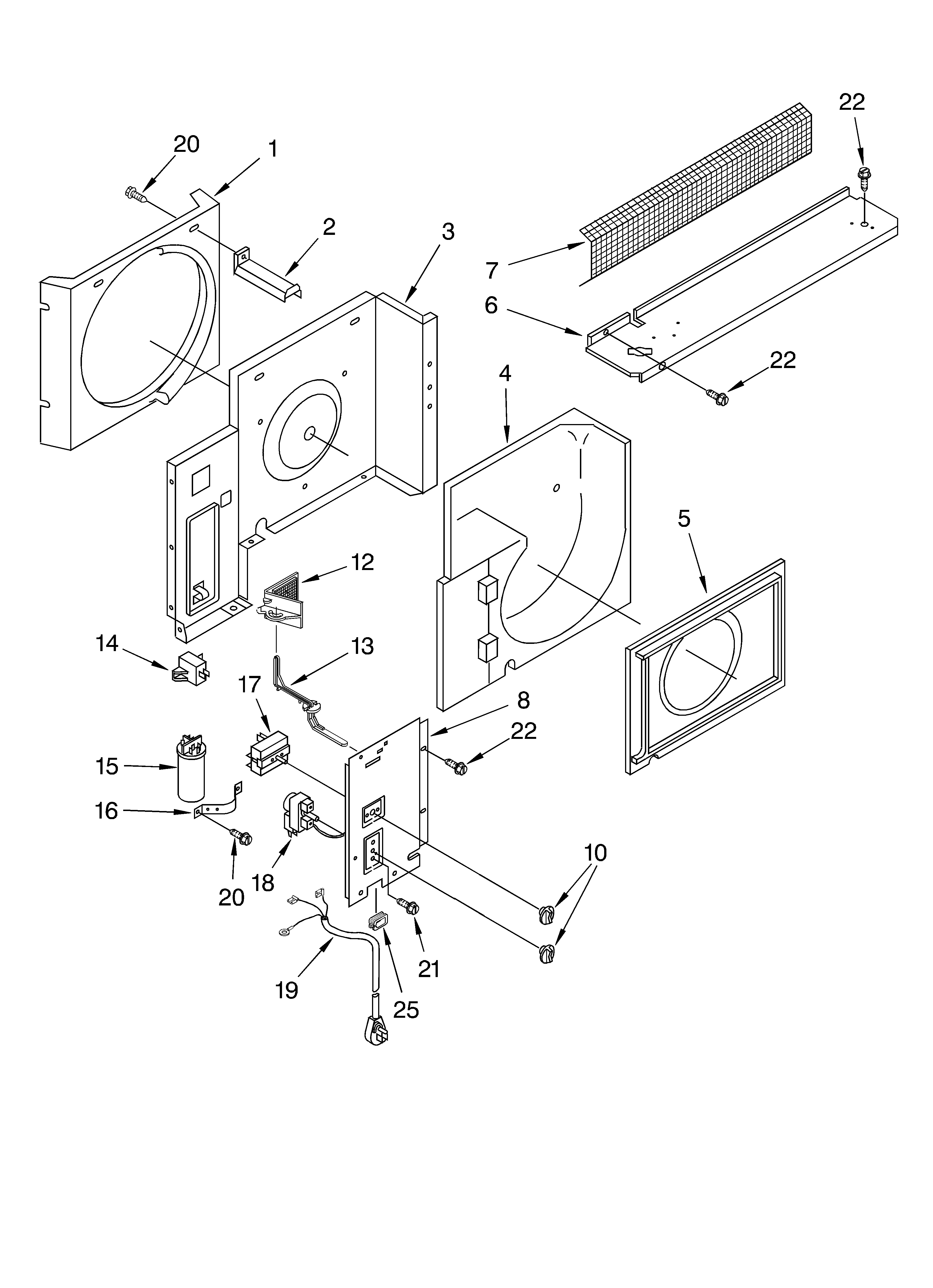

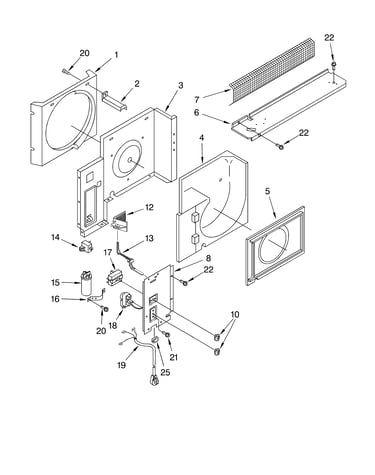

QtyAirflow and control parts diagram
Capacitor Bracket
Part #789749
The manufacturer no longer makes this part, and there's no substitute part
& 876893 Capacitor
Part #N/P
The manufacturer no longer makes this part, and there's no substitute part
Airflow and control parts diagram
Thermostat
Part #789958
The manufacturer no longer makes this part, and there's no substitute part
Airflow and control parts diagram
Screw #8 X 1/2
Part #4363526
The manufacturer no longer makes this part, and there's no substitute part
Unit parts diagram
Nut
Part #789661
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Screw
Part #4380603
The manufacturer no longer makes this part, and there's no substitute part
Airflow and control parts diagram
Exhaust Door
Part #789991
The manufacturer no longer makes this part, and there's no substitute part
Airflow and control parts diagram
Run Capacitor
Part #789905
The manufacturer no longer makes this part, and there's no substitute part
