Model # 867815823 Official Kenmore air handling blower module

Here are the diagrams and repair parts for Official Kenmore 867815823 air handling blower module, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

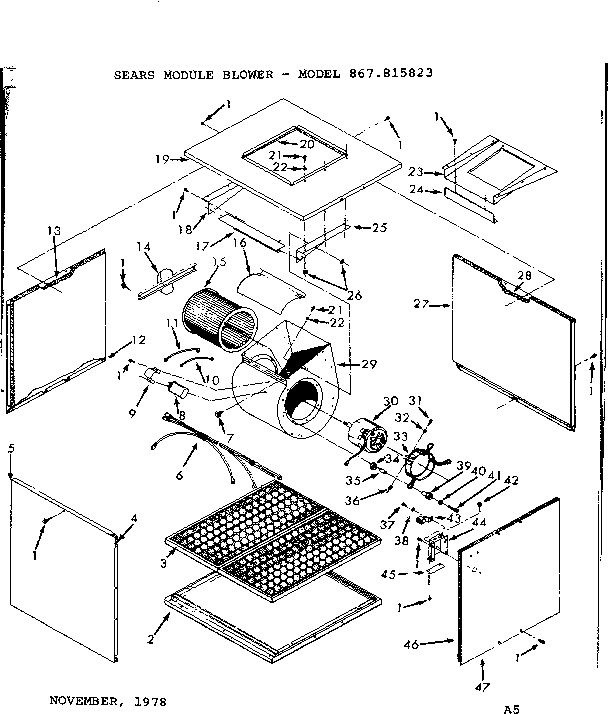

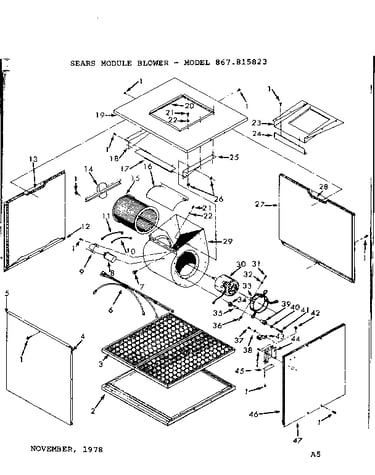

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Capacitor 706726
#8

Unit parts diagram

Capacitor

Part #706726

Replaced by #12907

?
Manufacturer substitution
This part replaces 706726. Substitute parts can look different from the original.
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
Furnace Blower Fan Wheel 600586
#15

Unit parts diagram

Furnace blower fan wheel

Part #600586

$127.13 |
7% OFF Phone Price : $137.13
In Stock
Lock Washer, 5/16-in, 8-pack STD551131
#32

Unit parts diagram

Lock washer, 5/16-in, 8-pack

Part #STD551131

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer STD551025
#40

Unit parts diagram

Flat washer

Part #STD551025

The manufacturer no longer makes this part, and there's no substitute part

Screw STD611005
#1

Unit parts diagram

Screw

Part #STD611005

The manufacturer no longer makes this part, and there's no substitute part

Air Filter 64502
#3B

Unit parts diagram

Air filter

Part #64502

The manufacturer no longer makes this part, and there's no substitute part

Relay 42-9211

#NI

All parts diagram

Relay

Part #42-9211

The manufacturer no longer makes this part, and there's no substitute part

Screw STD511005
#21

Unit parts diagram

Screw

Part #STD511005

The manufacturer no longer makes this part, and there's no substitute part

Support 600270
#33

Unit parts diagram

Support

Part #600270

The manufacturer no longer makes this part, and there's no substitute part

Baffle 708235
#14

Unit parts diagram

Baffle

Part #708235

The manufacturer no longer makes this part, and there's no substitute part
