Ryobi
Drill/Driver

Model # CTH1202K Official Ryobi 12-v vsr cordless drill kit

Here are the diagrams and repair parts for Official Ryobi CTH1202K 12-v vsr cordless drill kit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Holder 1150003
#6

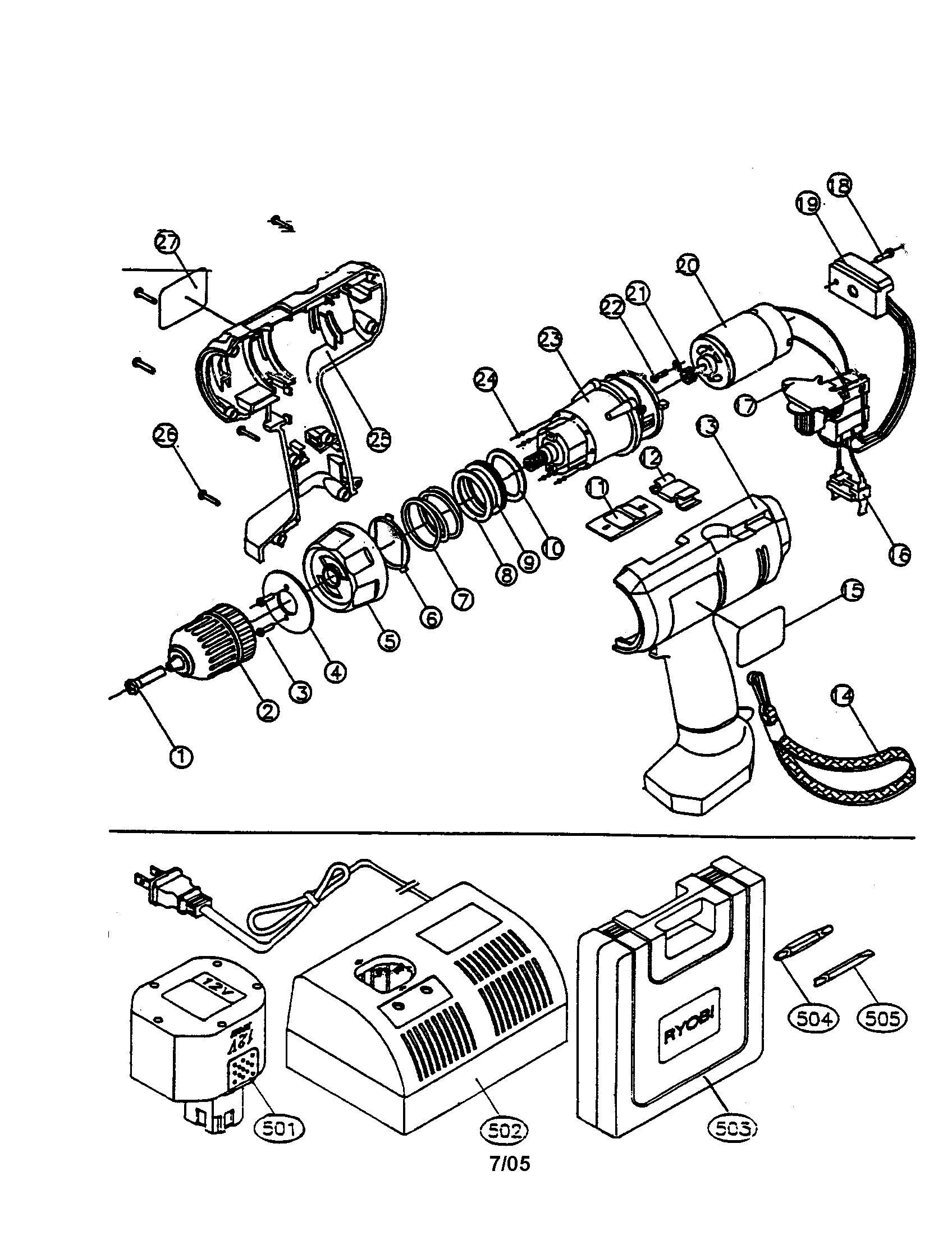

12 v vsr cordless drill kit diagram

Holder

Part #1150003

The manufacturer no longer makes this part, and there's no substitute part

Spring 1180001
#7

12 v vsr cordless drill kit diagram

Spring

Part #1180001

The manufacturer no longer makes this part, and there's no substitute part

Ring 1900001
#10

12 v vsr cordless drill kit diagram

Ring

Part #1900001

The manufacturer no longer makes this part, and there's no substitute part

Label 1920103
#15

12 v vsr cordless drill kit diagram

Label

Part #1920103

The manufacturer no longer makes this part, and there's no substitute part

Label 1920105
#27

12 v vsr cordless drill kit diagram

Label

Part #1920105

The manufacturer no longer makes this part, and there's no substitute part

Screw 1130050
#18

12 v vsr cordless drill kit diagram

Screw

Part #1130050

The manufacturer no longer makes this part, and there's no substitute part

Chuck Screw 6130388
#1

12 v vsr cordless drill kit diagram

Chuck screw

Part #6130388

The manufacturer no longer makes this part, and there's no substitute part

Washer 9550300
#21

12 v vsr cordless drill kit diagram

Washer

Part #9550300

The manufacturer no longer makes this part, and there's no substitute part

Screw 1130304
#26

12 v vsr cordless drill kit diagram

Screw

Part #1130304

The manufacturer no longer makes this part, and there's no substitute part

Lever 1830053
#11

12 v vsr cordless drill kit diagram

Lever

Part #1830053

The manufacturer no longer makes this part, and there's no substitute part

Parts & More
