Panasonic
Compact VHS-C Camcorder

Model # PV-L590 Official Panasonic camcorder

Here are the diagrams and repair parts for Official Panasonic PV-L590 camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Motor VEMW0085
#221

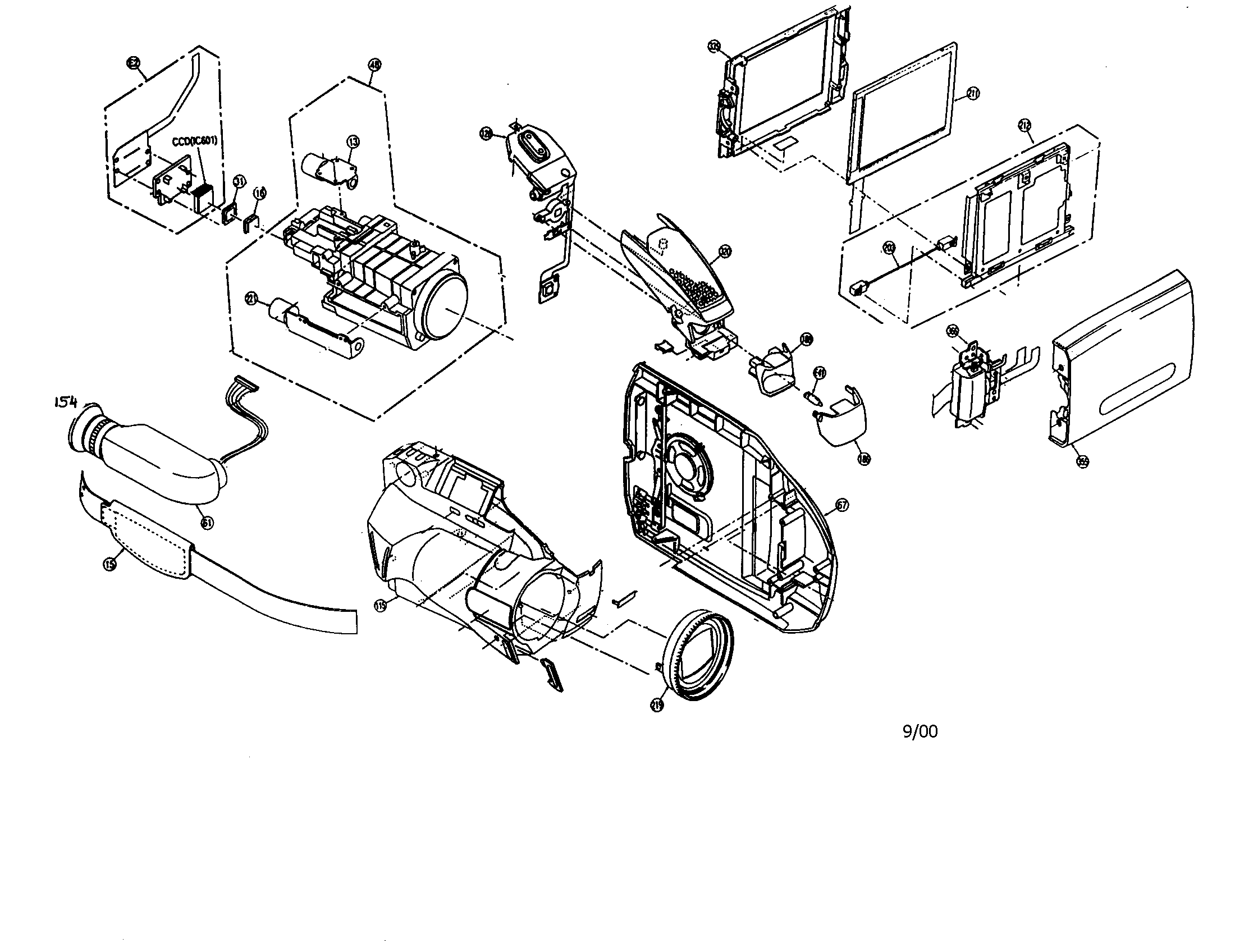

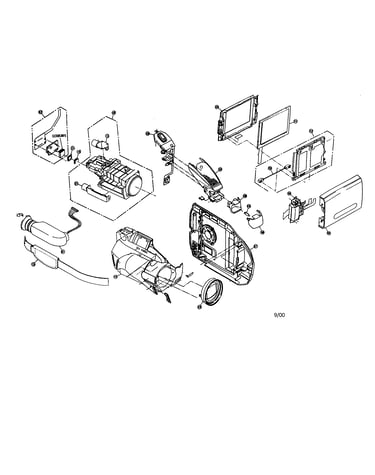

Camcorder vhs-c diagram

Motor

Part #VEMW0085

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly VEQW0300
#E2

Camcorder vhs-c diagram

Pcb assembly

Part #VEQW0300

$107.49
In Stock
Owner's Manual IB-PVL590

#NI

All parts diagram

Owner's manual

Part #IB-PVL590

$11.21
In Stock
Service Manual SM-PVL559

#NI

All parts diagram

Service manual

Part #SM-PVL559

$32.49
In Stock
Battry 2hr PV-BP17

#NI

All parts diagram

Battry 2hr

Part #PV-BP17

The manufacturer no longer makes this part, and there's no substitute part

Cable VJAW0039

#NI

All parts diagram

Cable

Part #VJAW0039

The manufacturer no longer makes this part, and there's no substitute part

Belt VDVW0003

#NI

All parts diagram

Belt

Part #VDVW0003

The manufacturer no longer makes this part, and there's no substitute part

Lcd Case A Unit VYKW3150
#355

Camcorder vhs-c diagram

Lcd case a unit

Part #VYKW3150

The manufacturer no longer makes this part, and there's no substitute part

Cassette Cover Unit VYKW3301C
#67

Camcorder vhs-c diagram

Cassette cover unit

Part #VYKW3301C

The manufacturer no longer makes this part, and there's no substitute part

Adapter VYMW0009

#NI

All parts diagram

Adapter

Part #VYMW0009

The manufacturer no longer makes this part, and there's no substitute part
