Model # OB52LP Official Dacor grill

Here are the diagrams and repair parts for Official Dacor OB52LP grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

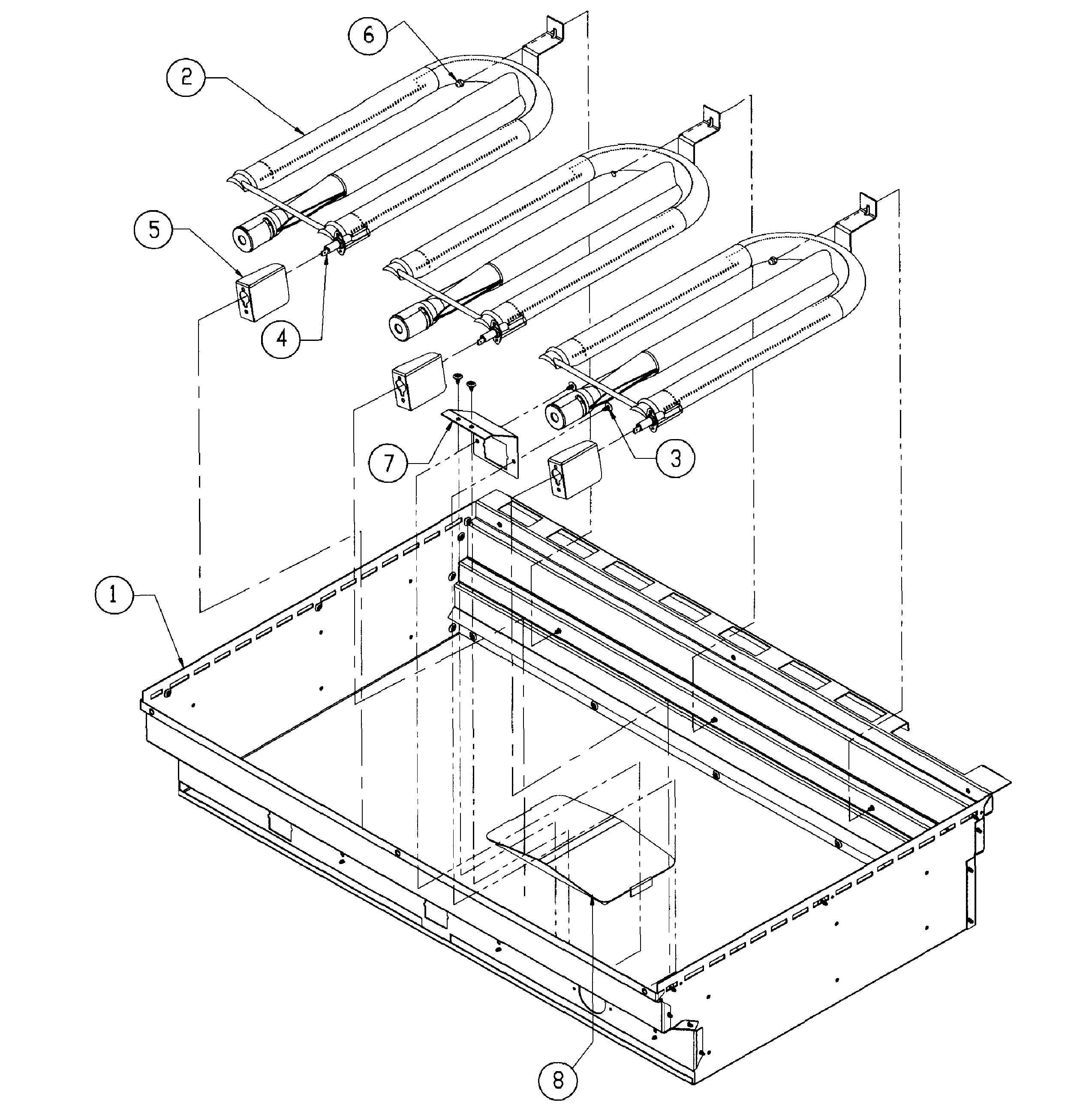

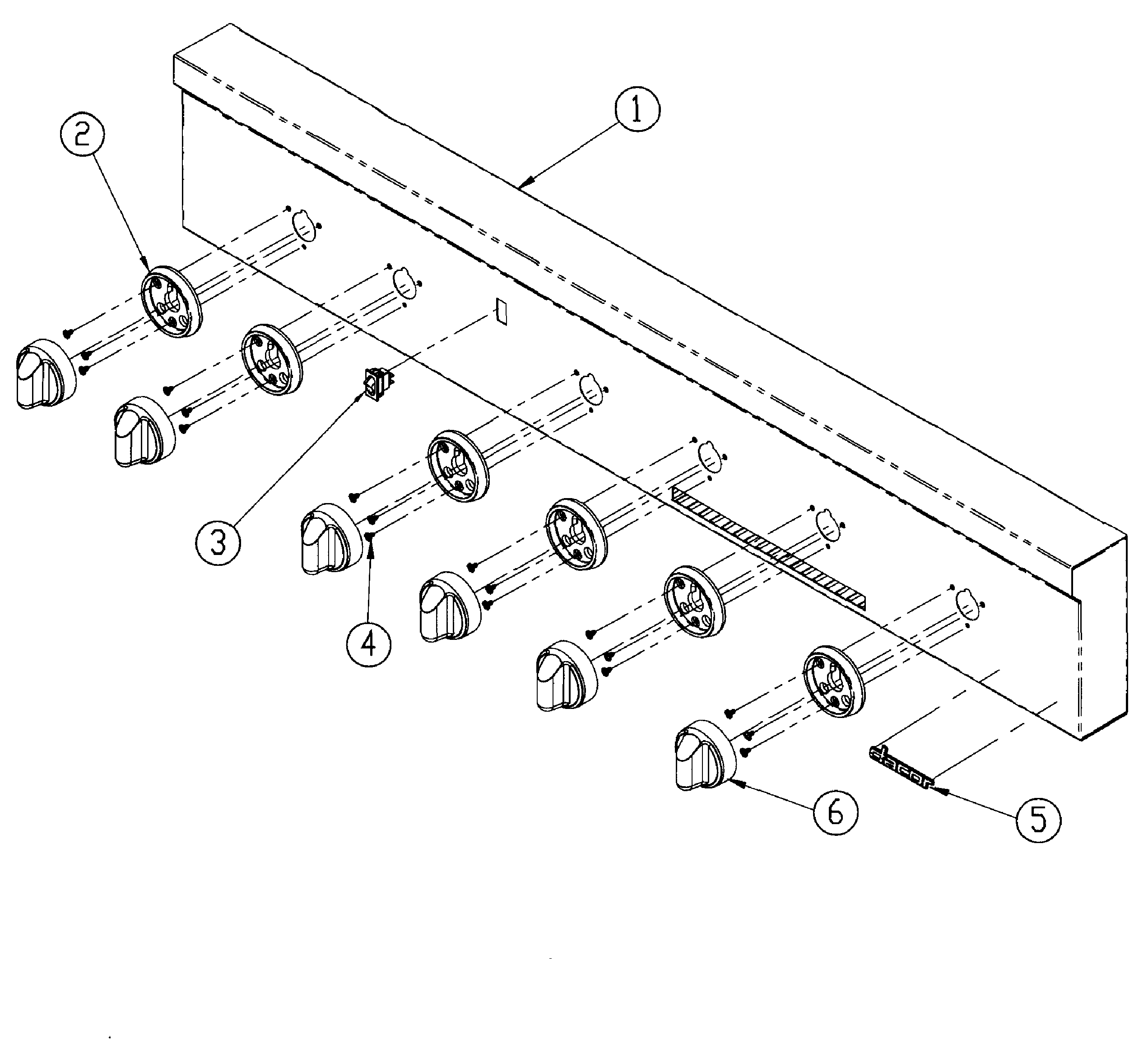

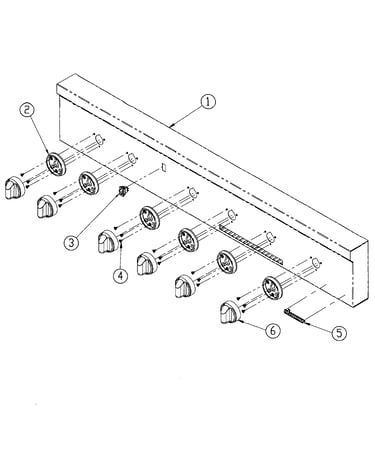

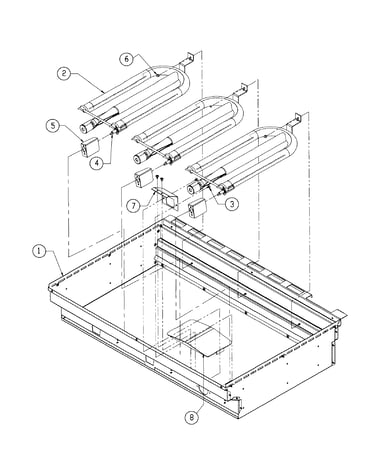

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |

Appliance Screw, #8 X 3/8-in 83263
Appliance screw, #8 x 3/8-in

Part #83263

This item is not returnable
In Stock
Gas Grill Flame Tamer, Small 36661
#4

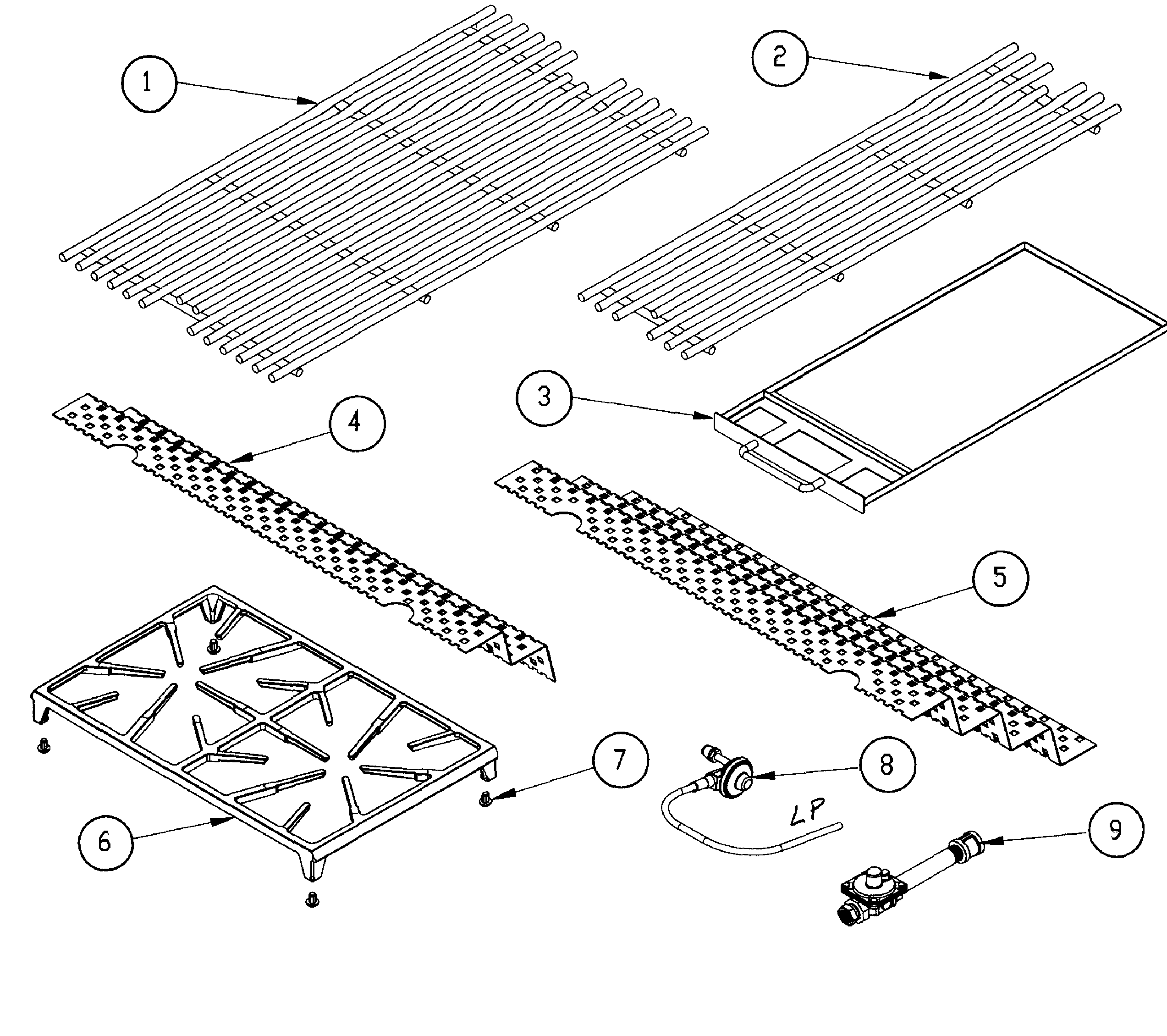

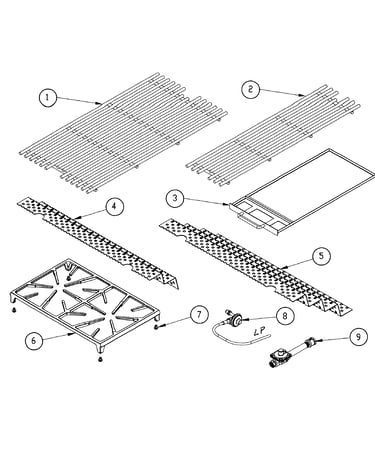

Accessories diagram

Gas grill flame tamer, small

Part #36661

In Stock
Gas Grill Flame Tamer 36628
#5

Accessories diagram

Gas grill flame tamer

Part #36628

In Stock
Screw 83571
#29

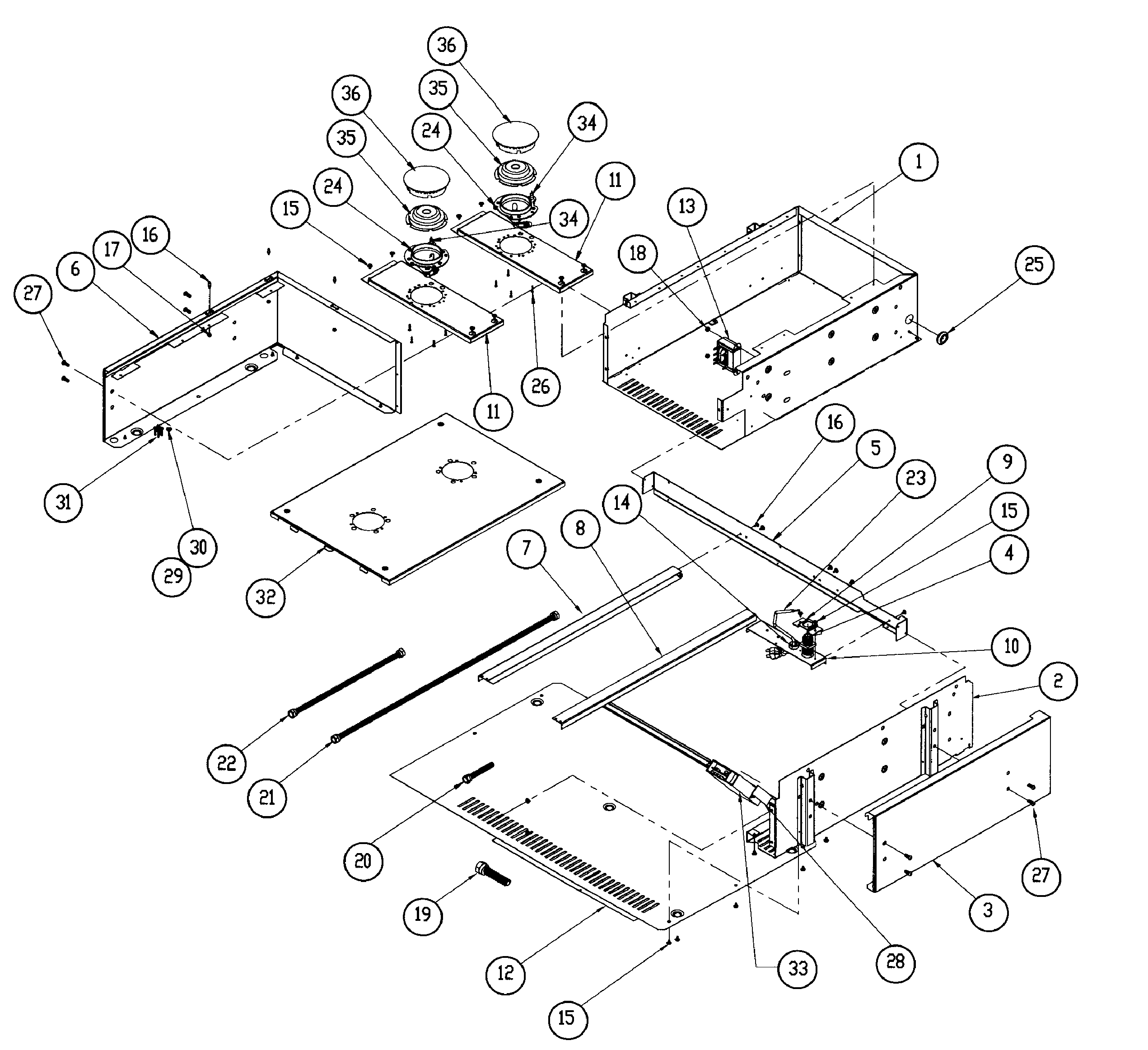

Chassis diagram

Screw

Part #83571

Replaced by #83263

?
Manufacturer substitution
This part replaces 83571. Substitute parts can look different from the original.
This item is not returnable
In Stock
Range Indicator Light 100121
#4

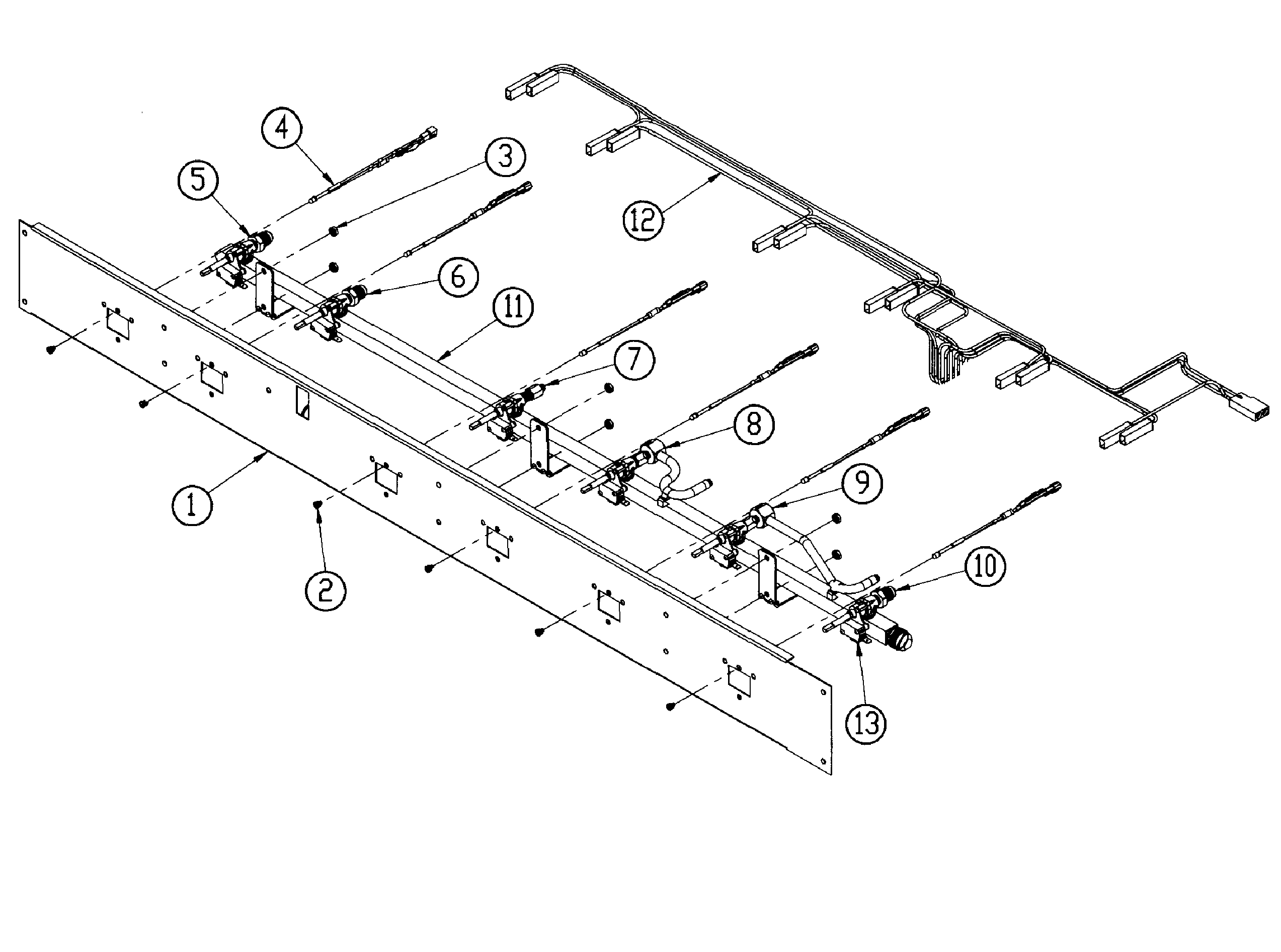

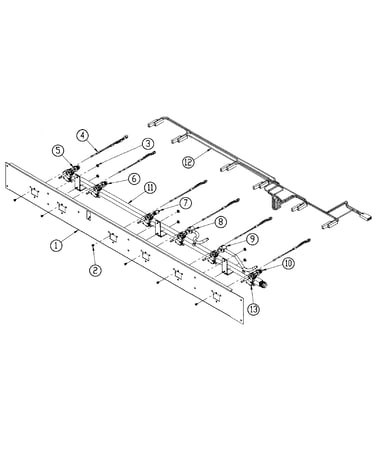

Manifold diagram

Range indicator light

Part #100121

In Stock
Washer 102053
#7

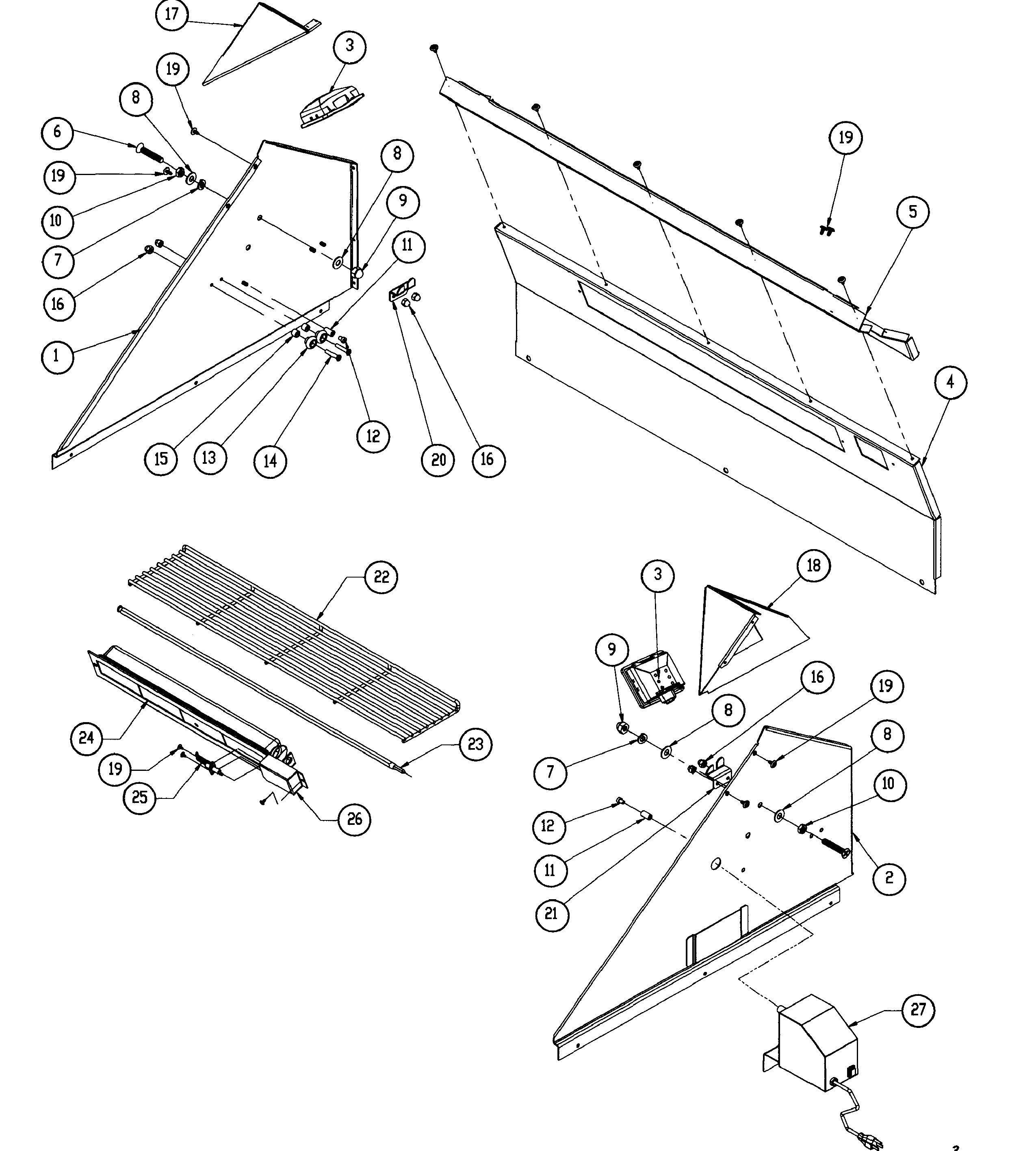

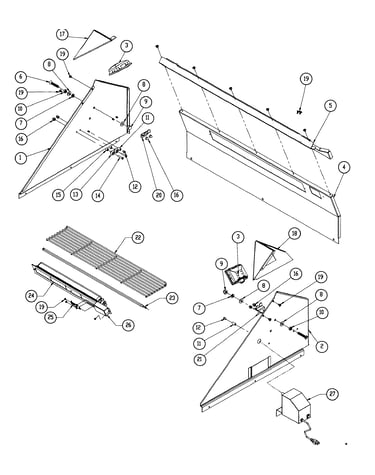

Upper firebox diagram

Washer

Part #102053

This item is not returnable
In Stock
Connector 100760
#4

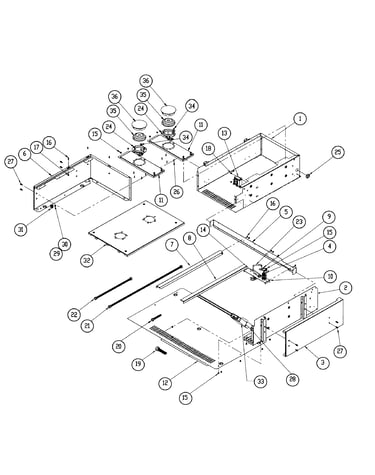

Chassis diagram

Connector

Part #100760

In Stock
Burner Base 72649LPSL
#24

Chassis diagram

Burner base

Part #72649LPSL

In Stock
Gas Tube 102286
#21

Chassis diagram

Gas tube

Part #102286

In Stock
Range Oven Door Handle Assembly (chrome) 700085
#3A

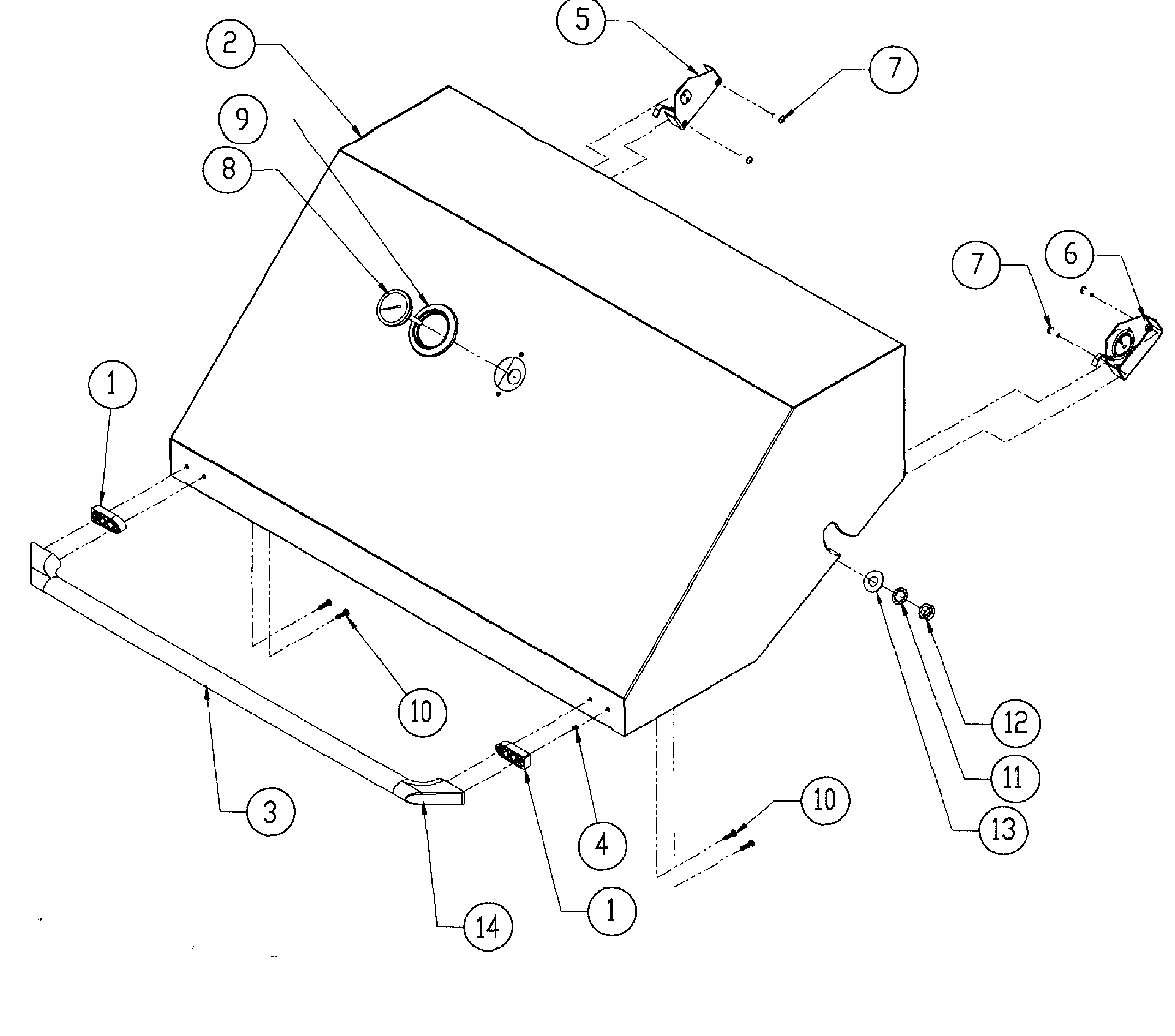

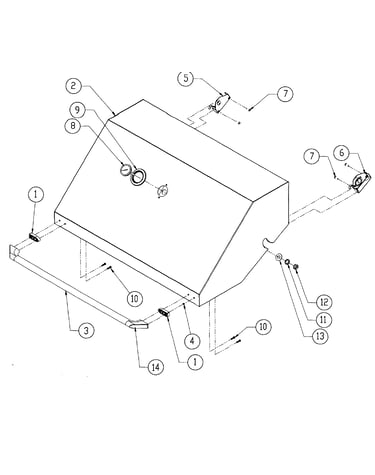

Conopy diagram

Range oven door handle assembly (chrome)

Part #700085

In Stock
