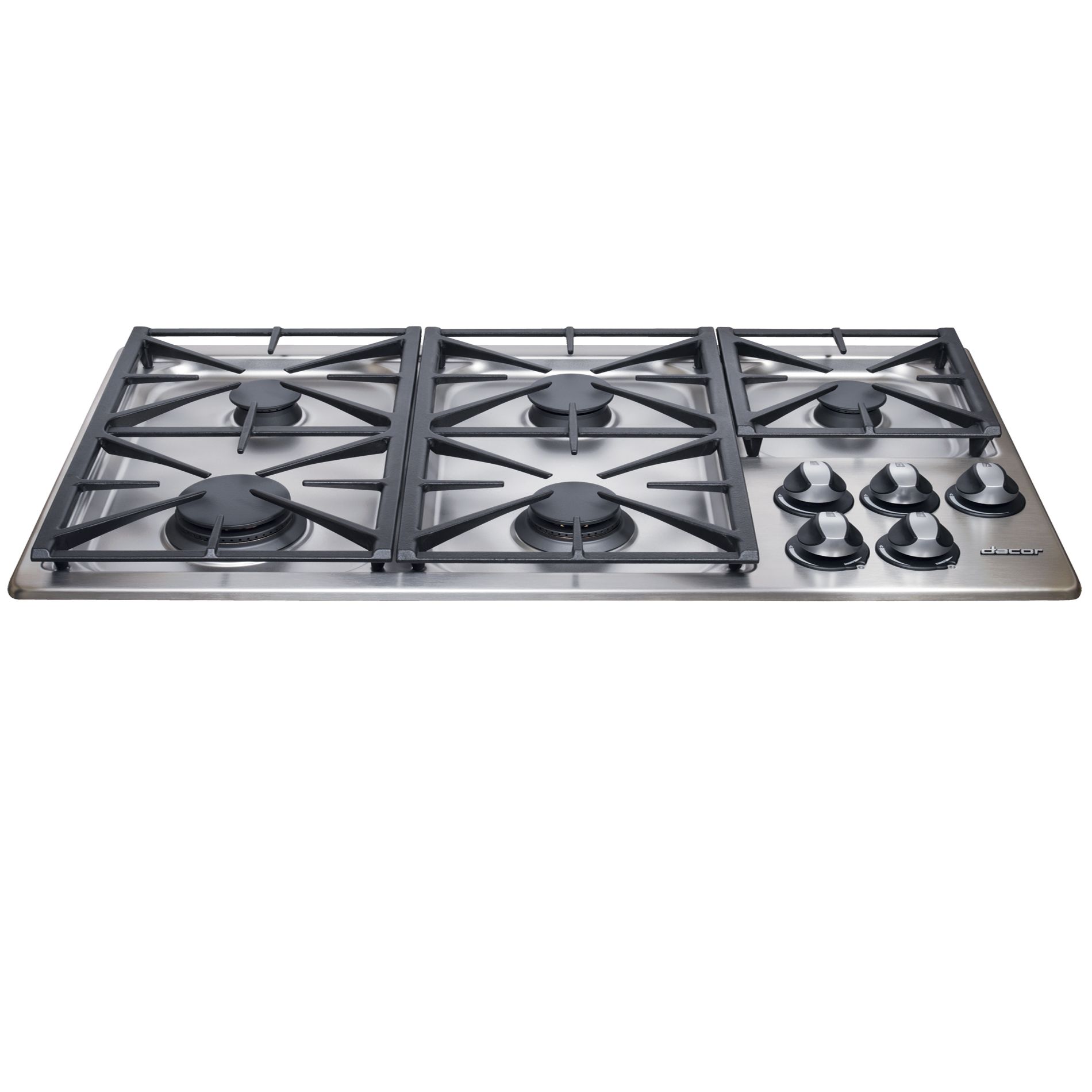

Dacor RGC365SNG cooktop Parts
Here are the diagrams and repair parts for Dacor RGC365SNG cooktop, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for RGC365SNG Cooktops

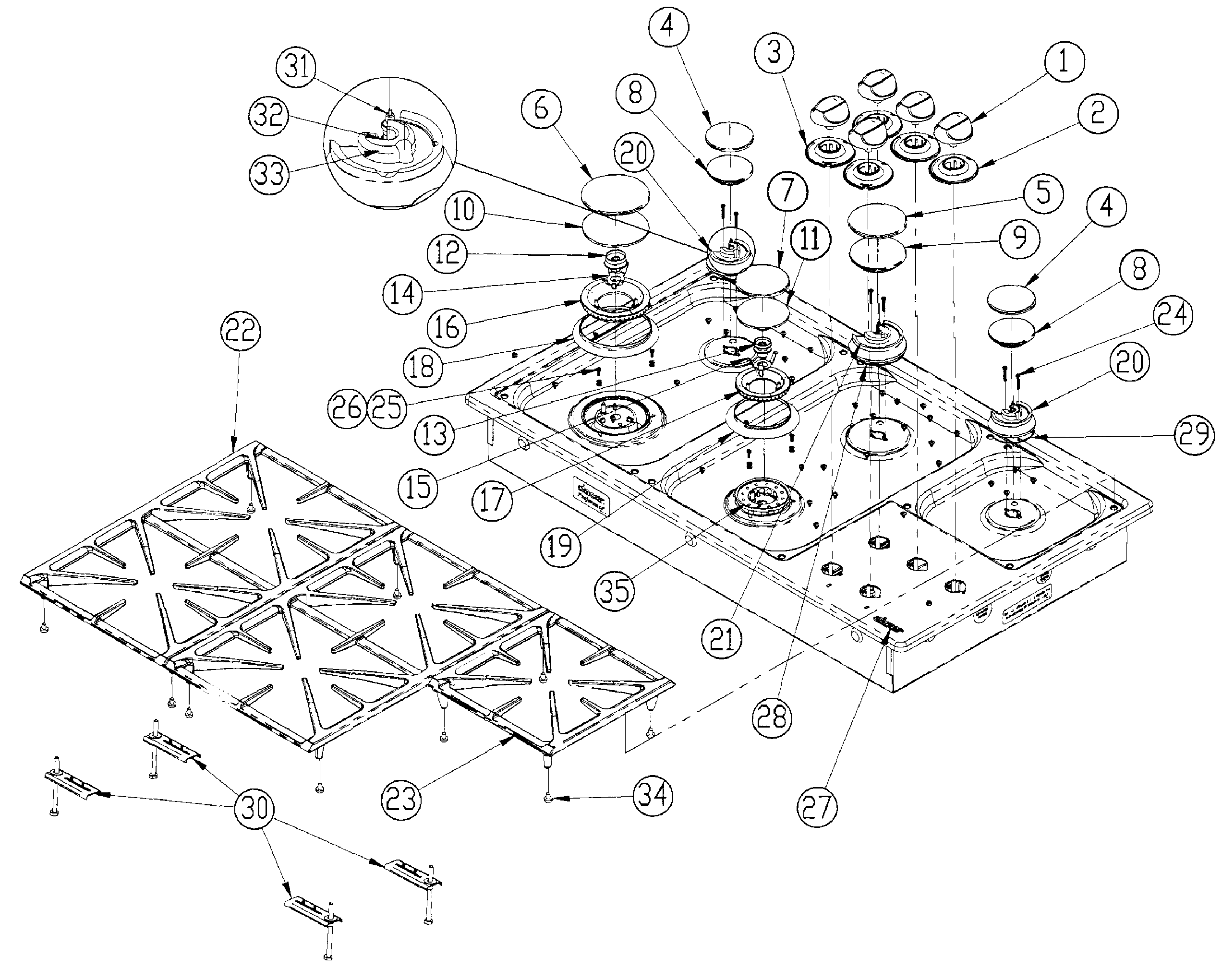

Top frame diagram
Dacor Washer
Part #83719Replaced by #DE81-07695A
Manufacturer substitutionThis part replaces 83719. Substitute parts can look different from the original.In Stock$25.95
Qty
Top frame diagram
Dacor Cooktop Bracket
Part #12269
The manufacturer no longer makes this part, and there's no substitute part

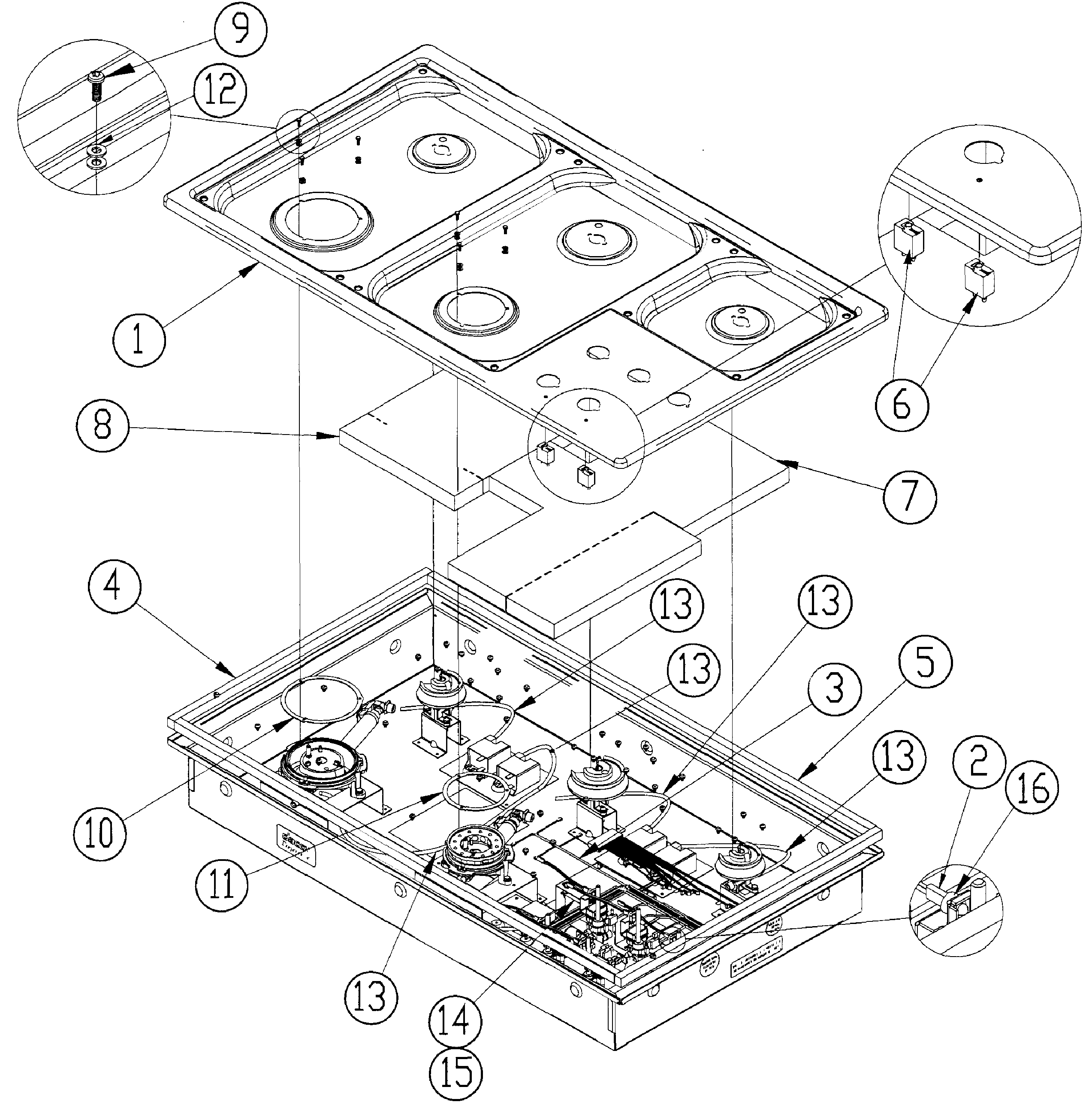

Upper assy diagram
Dacor Frame
Part #46323S/LReplaced by #DE81-04783A

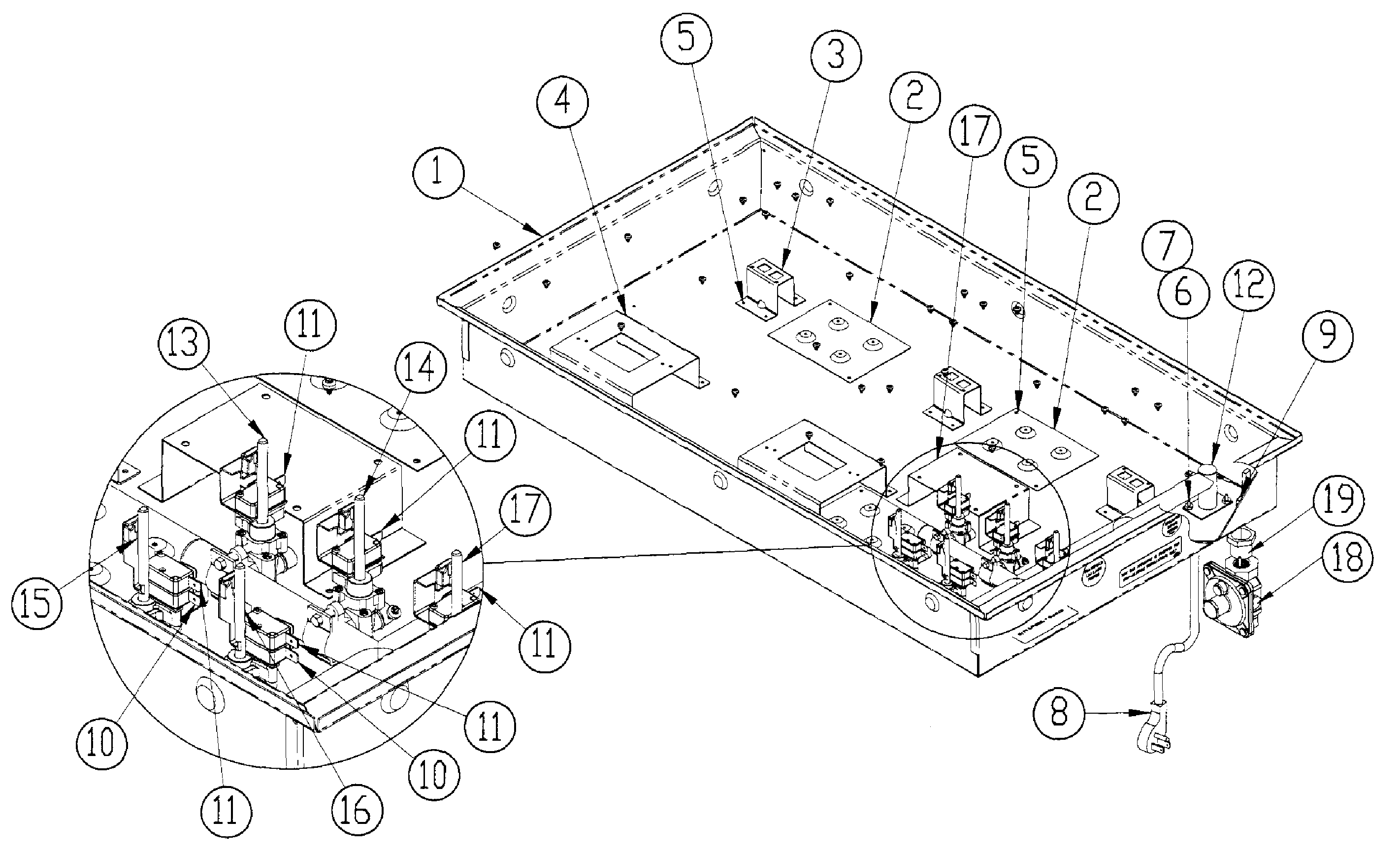

Manufacturer substitutionThis part replaces 46323S/L. Substitute parts can look different from the original.In Stock$676.32QtyChassis diagram
Dacor Strain Release
Part #83141Replaced by #DE81-05389A
Manufacturer substitutionThis part replaces 83141. Substitute parts can look different from the original.In Stock$29.04QtyTop frame diagram
Dacor Retainer Clip
Part #103748Replaced by #DE81-03475A
Manufacturer substitutionThis part replaces 103748. Substitute parts can look different from the original.In Stock$65.00QtyTop frame diagram
Dacor Cooktop Burner Cap, Right Front
Part #92460Replaced by #DE81-06740A

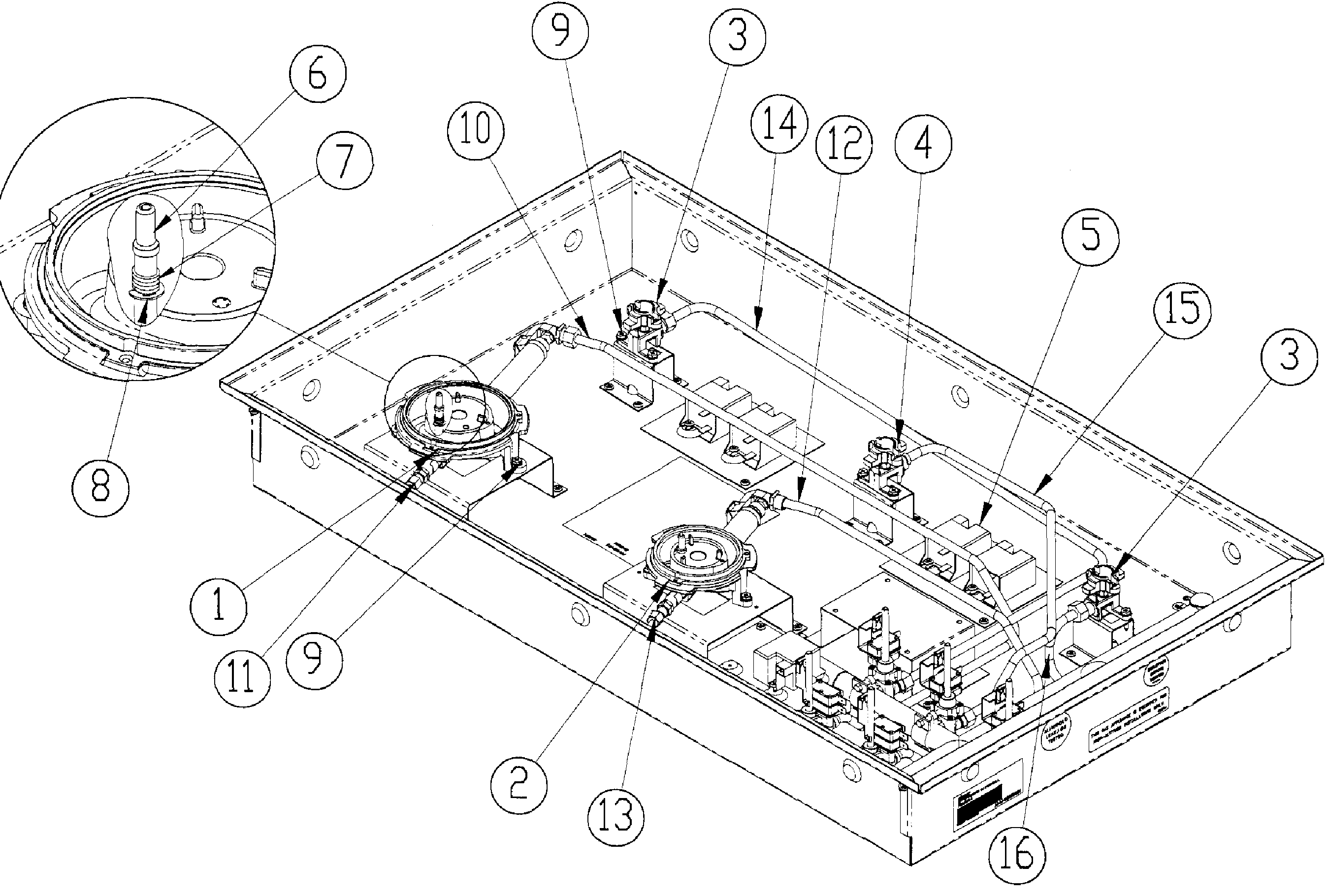

Manufacturer substitutionThis part replaces 92460. Substitute parts can look different from the original.In Stock$60.49QtySpark module diagram
Dacor Screw
Part #83700Replaced by #DE81-02209A
Manufacturer substitutionThis part replaces 83700. Substitute parts can look different from the original.This item is not returnableIn Stock$2.16QtyTop frame diagram
Dacor Logo
Part #72945CHReplaced by #DE81-03566A
Manufacturer substitutionThis part replaces 72945CH. Substitute parts can look different from the original.In Stock$132.02QtyDacor Torx Screw
Part #83707
The manufacturer no longer makes this part, and there's no substitute part
Top frame diagram
Dacor Cooktop Burner Head
Part #103738Replaced by #DE81-06688A
Manufacturer substitutionThis part replaces 103738. Substitute parts can look different from the original.In Stock$317.35Qty
Most common symptoms to help you fix your cooktops
Choose a symptom to see related cooktop repairs.
Main causes: lack of electrical power, gas supply failure, bad pressure regulator, control system failure…
Repair guides for gas cooktops
How to replace a spark module on a gas cooktop
No flame on your gas cooktop? Installing a new spark module could be the fix you need.…
Repair time and Difficulty
30 minutes or less
How to replace a spark igniter switch on a gas cooktop
Follow these step-by-step instructions to fix the surface burner ignition system on your gas cooktop by replacing the sp…
Repair time and Difficulty
45 minutes or less
