Model # FAC083W7A3 Official Frigidaire air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAC083W7A3 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

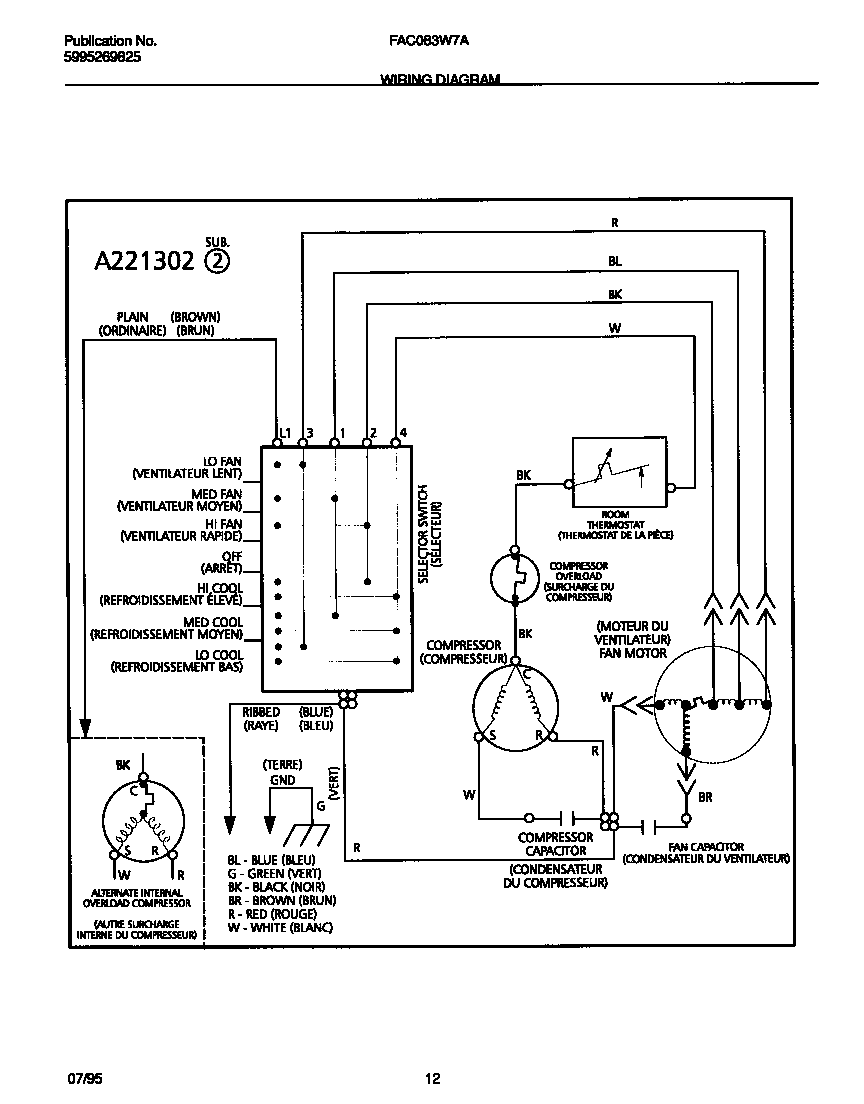

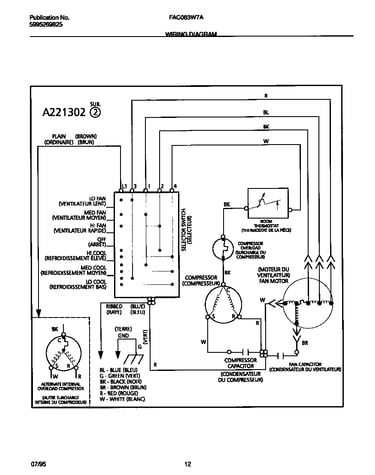

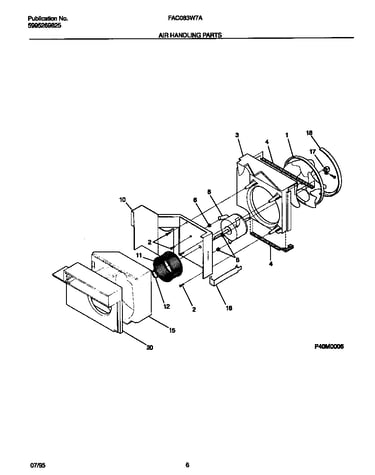

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Cover Capacitor 5303302855
#19

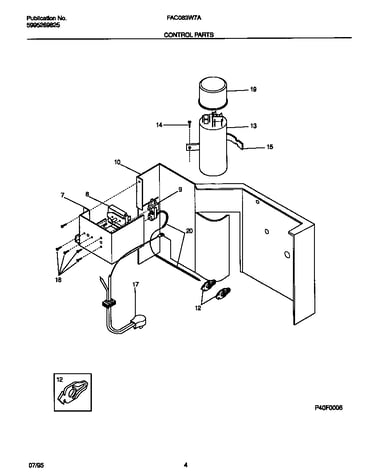

Control parts diagram

Cover capacitor

Part #5303302855

$20.78
In Stock
Bulkhead 309602401
Bulkhead

Part #309602401

$14.49
In Stock
Wrapper 5303302856
#1

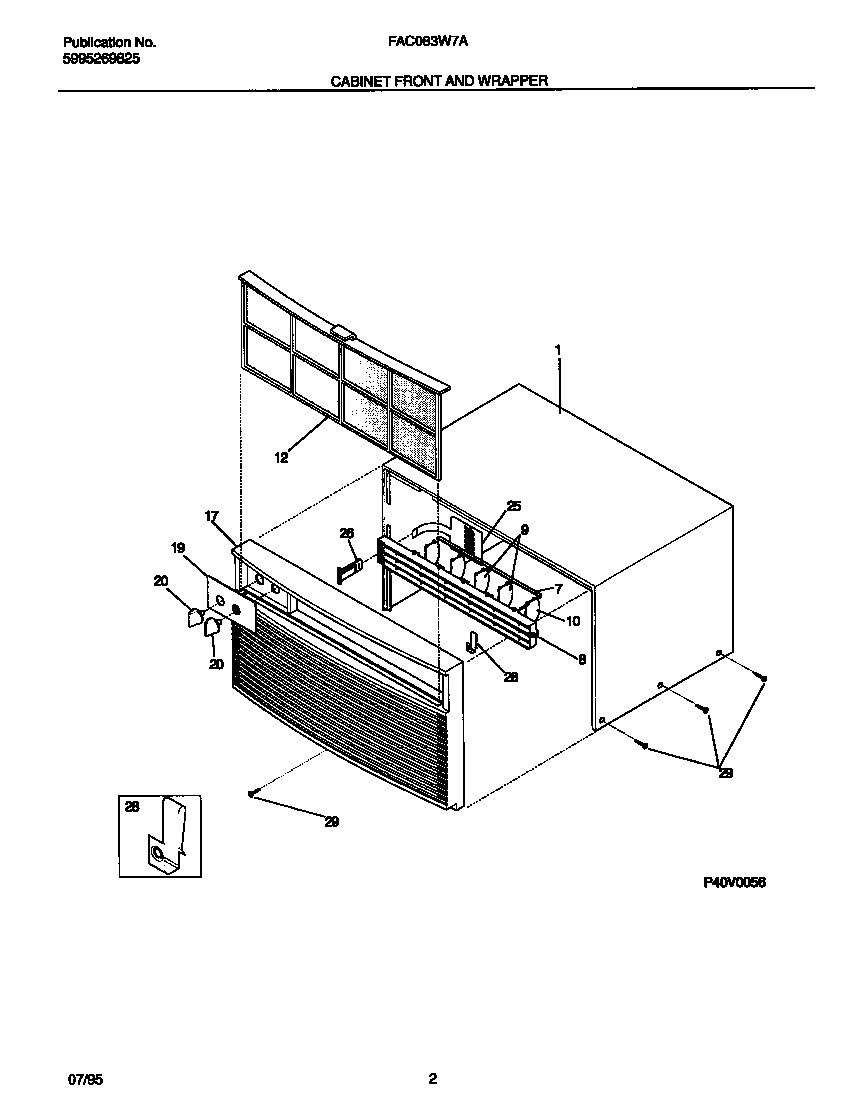

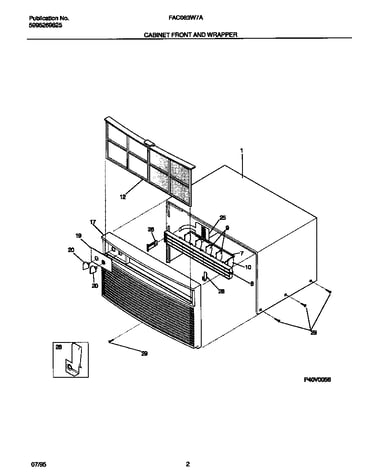

Cabinet front & wrapper diagram

Wrapper

Part #5303302856

$60.99
In Stock
Room Air Conditioner Filter Dryer 5300265301
#17

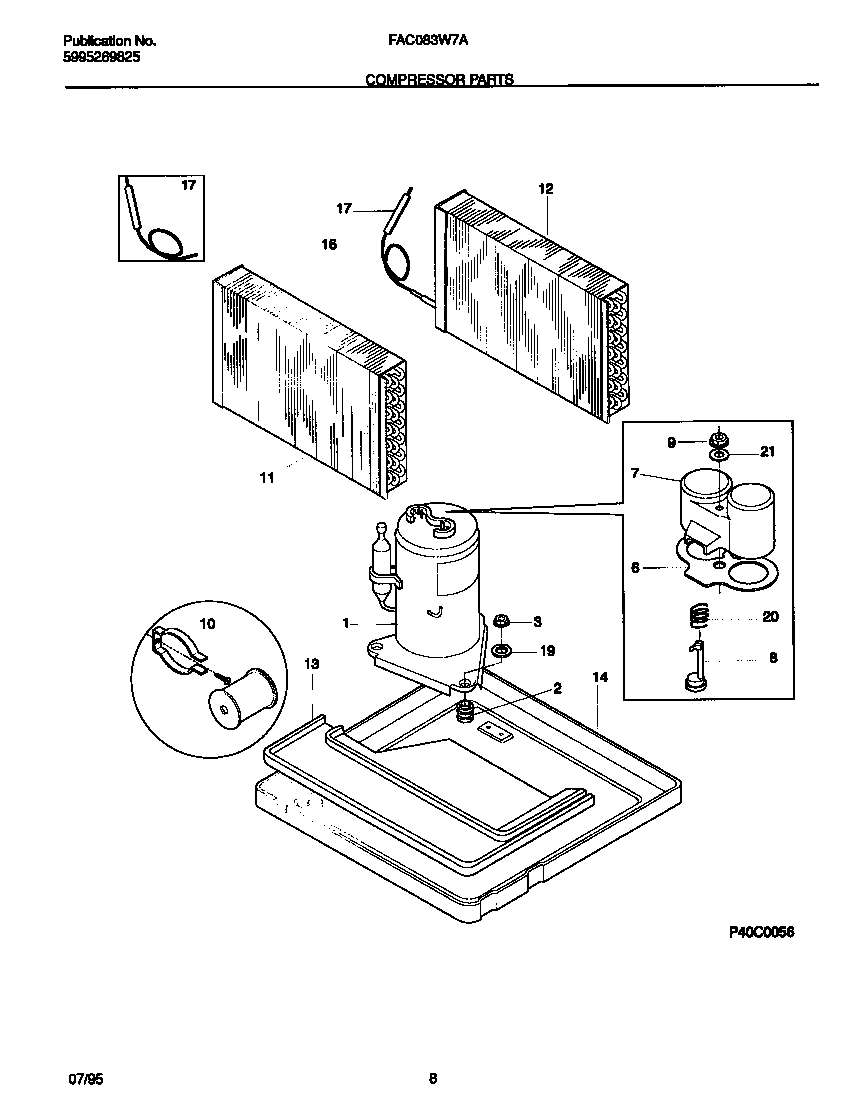

Compressor parts diagram

Room air conditioner filter dryer

Part #5300265301

$110.08
In Stock
Gasket 3002603
#1

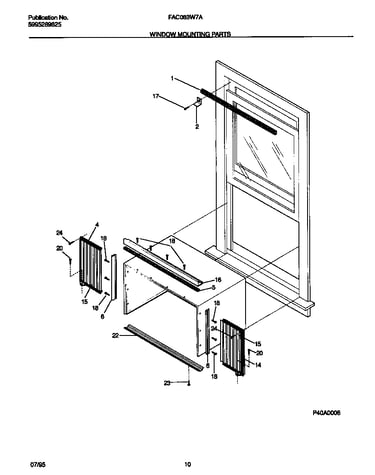

Window mounting parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$25.17
In Stock
Screw 5303303691
Screw

Part #5303303691

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303303691. Substitute parts can look different from the original.
$14.69
In Stock
Louver 309603901
#8

Cabinet front & wrapper diagram

Louver

Part #309603901

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Accordion Rail 5303303795
#6

Window mounting parts diagram

Room air conditioner accordion rail

Part #5303303795

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Compressor Grommet 5303283877
#2

Compressor parts diagram

Room air conditioner compressor grommet

Part #5303283877

The manufacturer no longer makes this part, and there's no substitute part

Clip-control Bulb 309101202
#12

Control parts diagram

Clip-control bulb

Part #309101202

The manufacturer no longer makes this part, and there's no substitute part
