Craftsman
Walk-Behind Mower

Model # 131978800 Official Craftsman 22" power-propelled lawn mower with solid state ignition

Here are the diagrams and repair parts for Official Craftsman 131978800 22" power-propelled lawn mower with solid state ignition, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

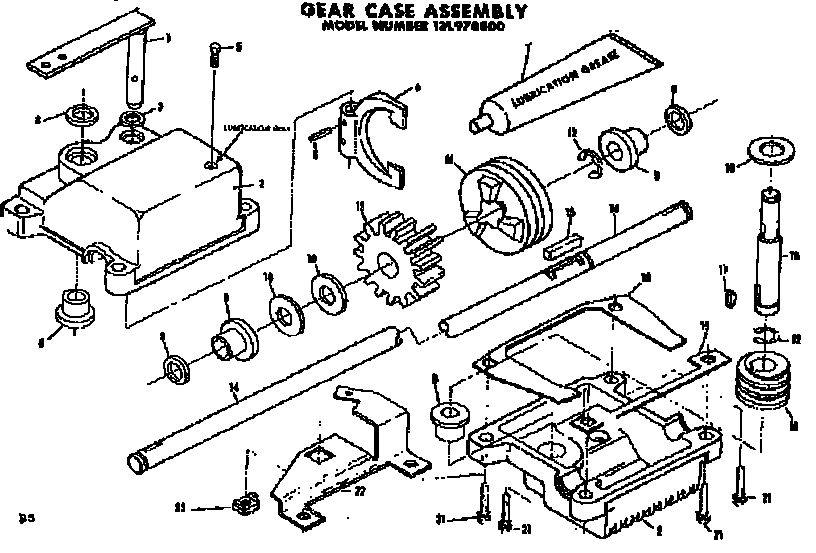

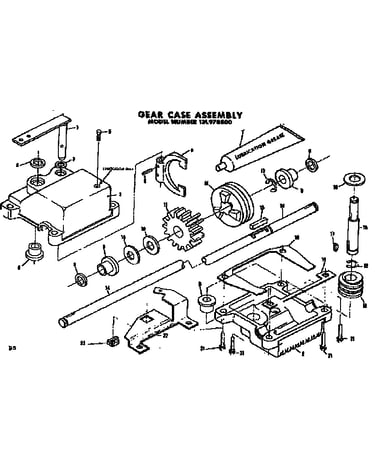

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |

Blade 69334
Blade

Part #69334

Replaced by #406713

?
Manufacturer substitution
This part replaces 69334. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

In Stock
Wheel Tire 72424
#44

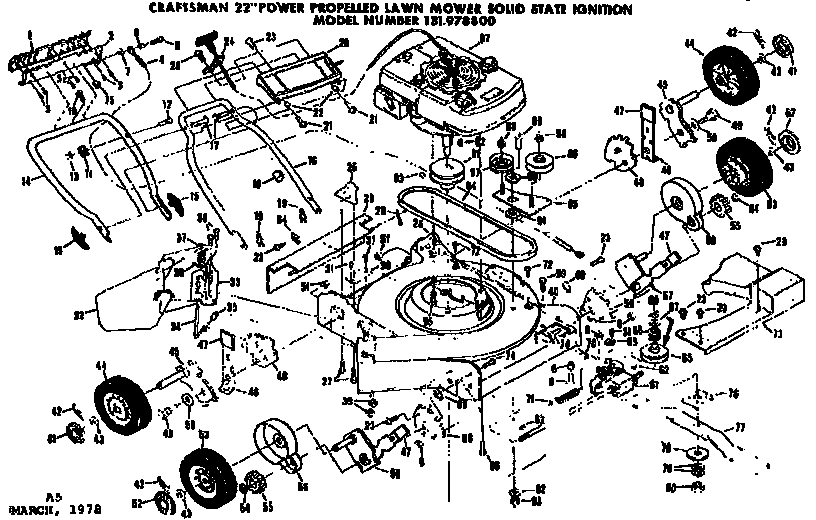

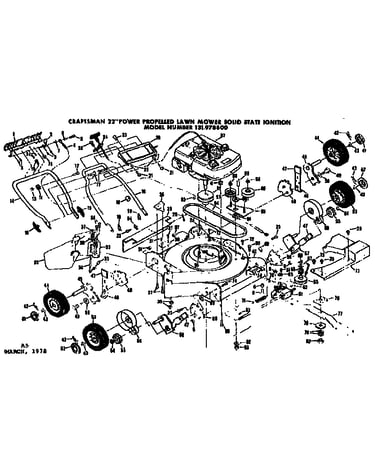

Mower deck diagram

Wheel tire

Part #72424

The manufacturer no longer makes this part, and there's no substitute part

Bolt 58714
#17

Mower deck diagram

Bolt

Part #58714

Replaced by #532183724

?
Manufacturer substitution
This part replaces 58714. Substitute parts can look different from the original.
This item is not returnable
$7.29
12% OFF Phone Price : $8.29
In Stock
Lock Nut 74218
#13

Mower deck diagram

Lock nut

Part #74218

The manufacturer no longer makes this part, and there's no substitute part

Screw 76399
#8

Mower deck diagram

Screw

Part #76399

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 69180
#9

Mower deck diagram

Lock nut

Part #69180

The manufacturer no longer makes this part, and there's no substitute part

Stop Nut 54509
#75

Mower deck diagram

Stop nut

Part #54509

The manufacturer no longer makes this part, and there's no substitute part

Washer 52160
#43

Mower deck diagram

Washer

Part #52160

Replaced by #532052160

?
Manufacturer substitution
This part replaces 52160. Substitute parts can look different from the original.
This item is not returnable
$3.99
20% OFF Phone Price : $4.99
In Stock
Nut 68478
#93

Mower deck diagram

Nut

Part #68478

The manufacturer no longer makes this part, and there's no substitute part

Handle Knob 58715
#15

Mower deck diagram

Handle knob

Part #58715

Replaced by #532183724

?
Manufacturer substitution
This part replaces 58715. Substitute parts can look different from the original.
This item is not returnable
$7.29
12% OFF Phone Price : $8.29
In Stock
