Model # VP2000BT Official Vanguard propane gas heater

Here are the diagrams and repair parts for Official Vanguard VP2000BT propane gas heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
3/8 Ml Cnnct 098264-01
#21

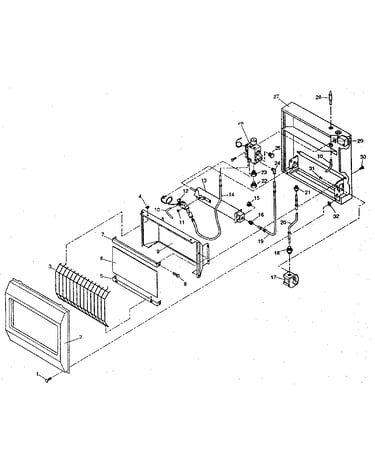

Main heater assembly diagram

3/8 ml cnnct

Part #098264-01

The manufacturer no longer makes this part, and there's no substitute part

Cabinet 098531-01
#27B

Main heater assembly diagram

Cabinet

Part #098531-01

The manufacturer no longer makes this part, and there's no substitute part

Guard Grill 098197-01
#3A

Main heater assembly diagram

Guard grill

Part #098197-01

The manufacturer no longer makes this part, and there's no substitute part

Injector 098251-03
#15B

Main heater assembly diagram

Injector

Part #098251-03

The manufacturer no longer makes this part, and there's no substitute part

Panel 098742-02
#2B

Main heater assembly diagram

Panel

Part #098742-02

The manufacturer no longer makes this part, and there's no substitute part

Retainer 098532-02BR
#7B

Main heater assembly diagram

Retainer

Part #098532-02BR

The manufacturer no longer makes this part, and there's no substitute part

Grill Guard 098197-02
#3B

Main heater assembly diagram

Grill guard

Part #098197-02

The manufacturer no longer makes this part, and there's no substitute part

Glass Panel 098260-01
#6A

Main heater assembly diagram

Glass panel

Part #098260-01

The manufacturer no longer makes this part, and there's no substitute part

3/8 Ml Elbow 098265-01
#24

Main heater assembly diagram

3/8 ml elbow

Part #098265-01

The manufacturer no longer makes this part, and there's no substitute part

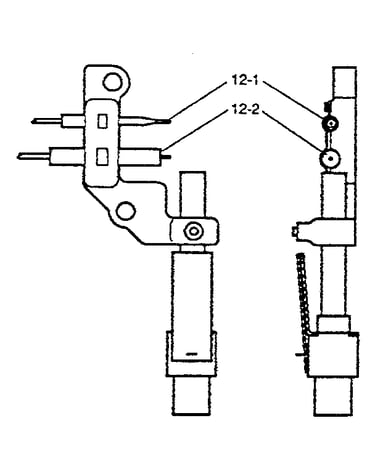

Electrode 098515-01
Electrode

Part #098515-01

The manufacturer no longer makes this part, and there's no substitute part
