Model # 3202768300 Official Craftsman router

Here are the diagrams and repair parts for Official Craftsman 3202768300 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Router Collet Assembly 2823121000
#38

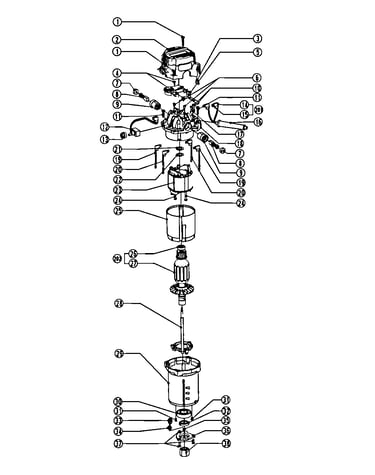

Motor assy diagram

Router collet assembly

Part #2823121000

The manufacturer no longer makes this part, and there's no substitute part

Router Plunger Mounting Base 2823112000
#92

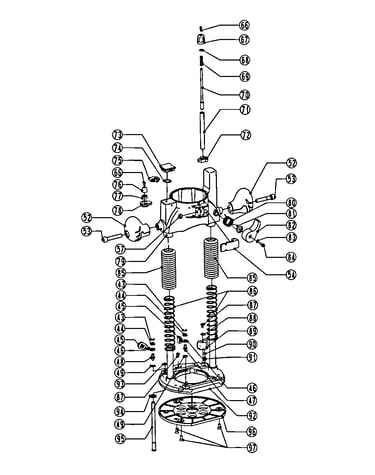

Plunge base diagram

Router plunger mounting base

Part #2823112000

The manufacturer no longer makes this part, and there's no substitute part

Screw 5610076000
#31

Motor assy diagram

Screw

Part #5610076000

The manufacturer no longer makes this part, and there's no substitute part

Housing 3421186000
#29

Motor assy diagram

Housing

Part #3421186000

The manufacturer no longer makes this part, and there's no substitute part

Router Chip Shield 3121637000
#51

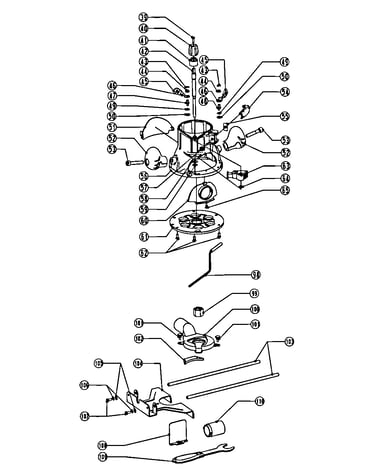

Fixed base diagram

Router chip shield

Part #3121637000

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 3126054000
Sleeve

Part #3126054000

The manufacturer no longer makes this part, and there's no substitute part

Router Base Vacuum Port 3123294000
#60

Fixed base diagram

Router base vacuum port

Part #3123294000

The manufacturer no longer makes this part, and there's no substitute part

E-ring 5660177000
#59

Fixed base diagram

E-ring

Part #5660177000

The manufacturer no longer makes this part, and there's no substitute part

Baffle Fan 3125687000
#25

Motor assy diagram

Baffle fan

Part #3125687000

The manufacturer no longer makes this part, and there's no substitute part

Cap 3121511800
#3

Motor assy diagram

Cap

Part #3121511800

The manufacturer no longer makes this part, and there's no substitute part
