Frigidaire
Wall Oven/Microwave Combo

Model # GLEB27M9FBD Official Frigidaire wall oven/microwave combo

Here are the diagrams and repair parts for Official Frigidaire GLEB27M9FBD wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

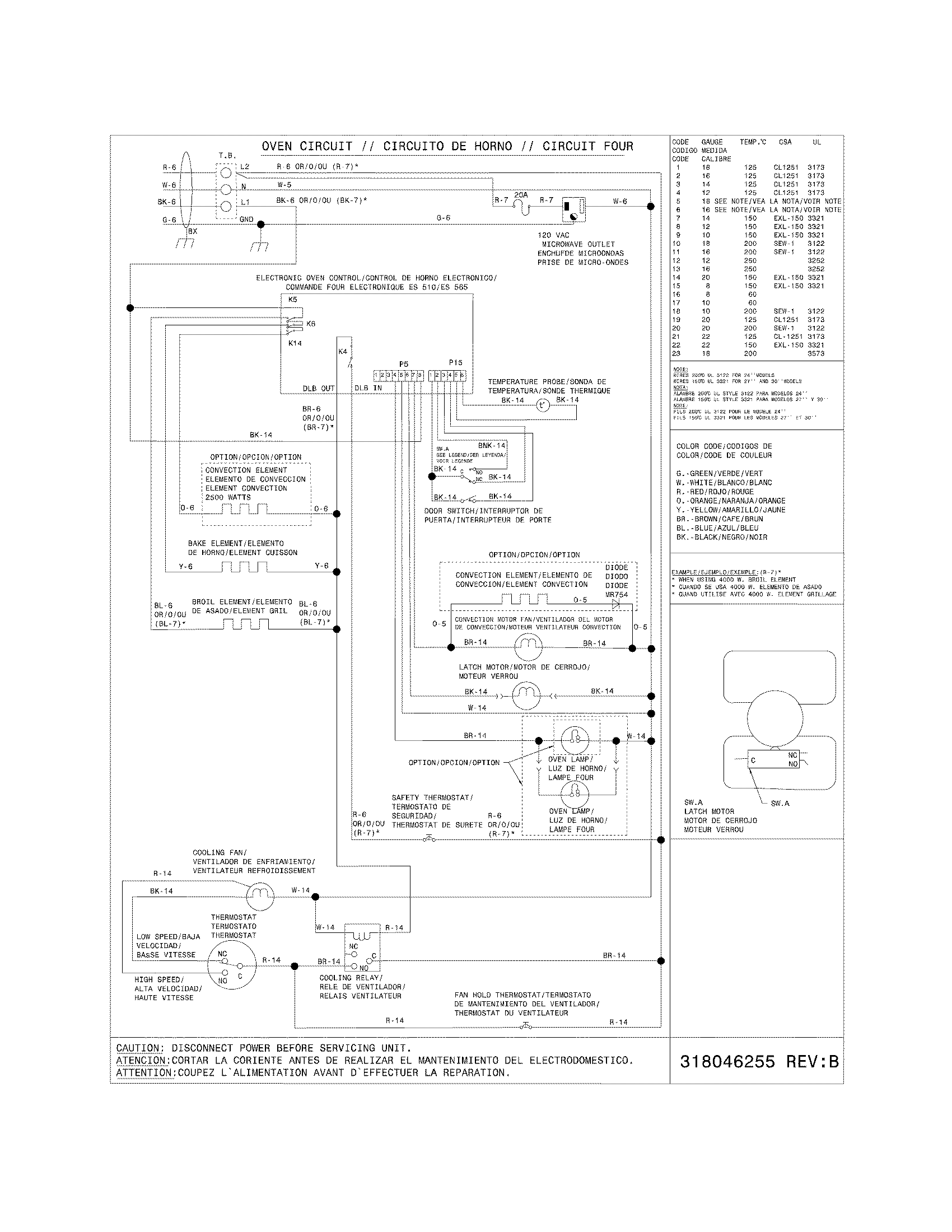

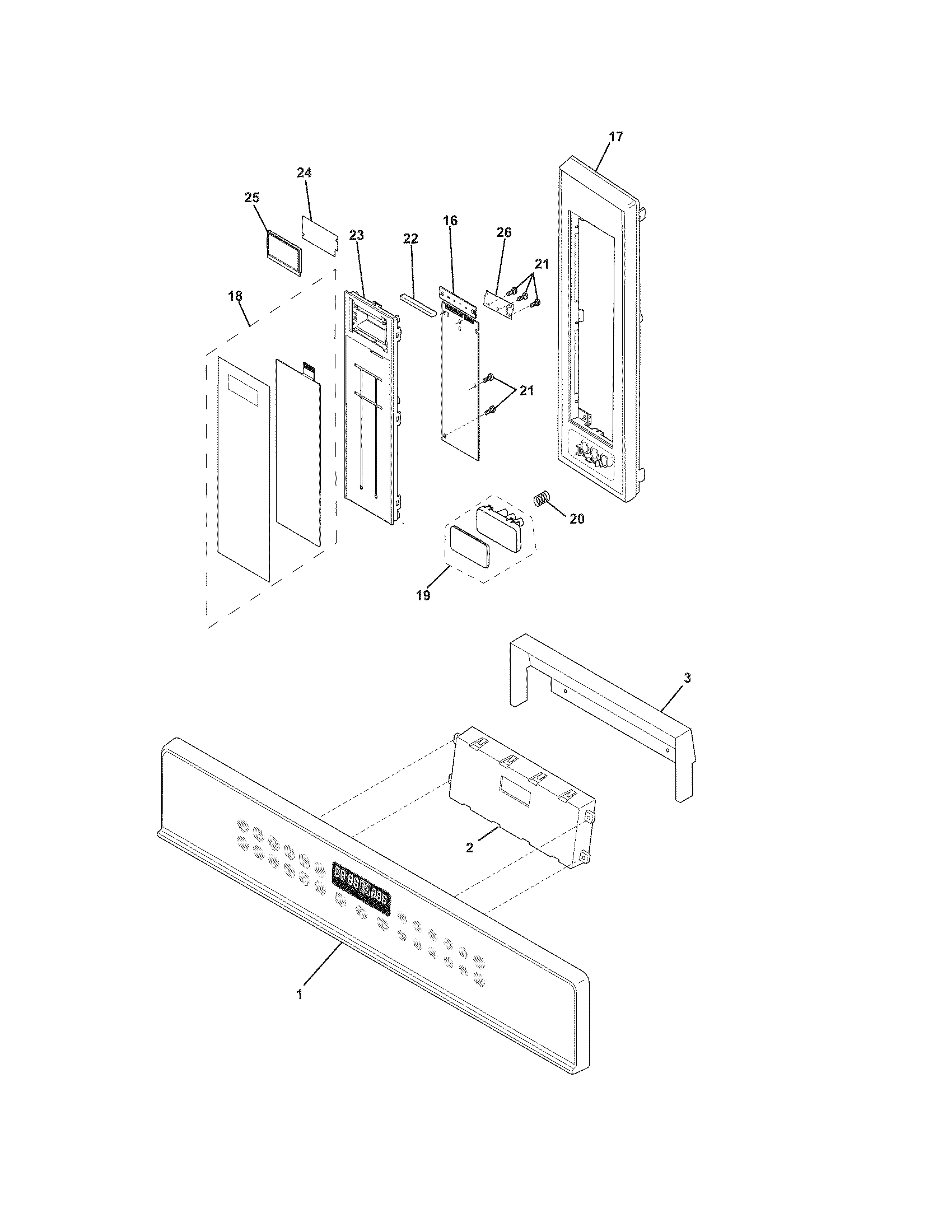

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 181 parts  |
Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002) 316217002
#37

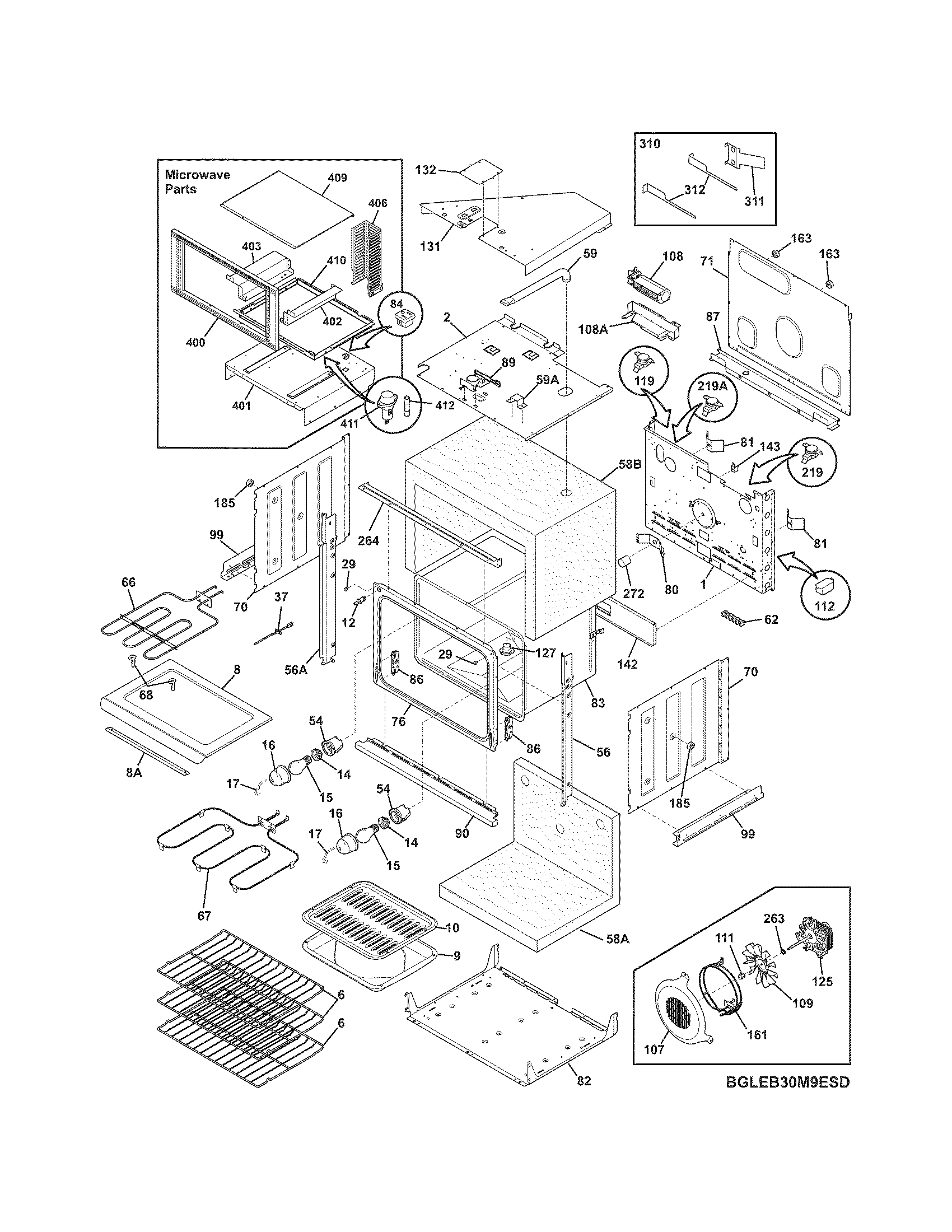

Lower oven diagram

Range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002)

Part #316217002

BEST SELLER
$45.69 |
10% OFF Phone Price : $50.69
In Stock
Range Oven Light Bulb 5303013071
#15

Lower oven diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.31 |
12% OFF Phone Price : $17.31
In Stock
Terminal Block 316056000
#62

Lower oven diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Wall Oven Microwave Magnetron 5304440781
#8

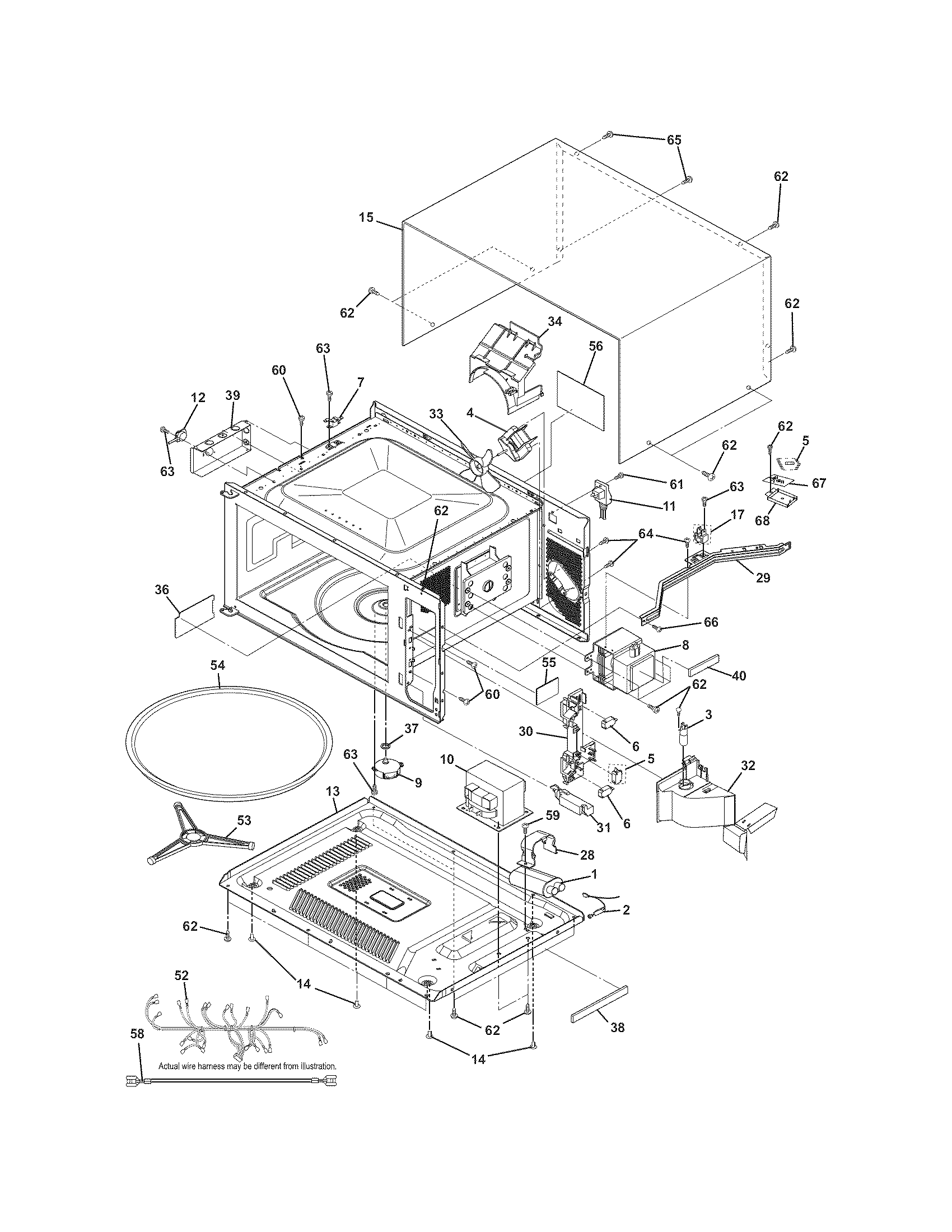

Upper oven diagram

Wall oven microwave magnetron

Part #5304440781

Replaced by #5304521745

?
Manufacturer substitution
This part replaces 5304440781. Substitute parts can look different from the original.
BEST SELLER
$163.69 |
6% OFF Phone Price : $173.69
In Stock
Wall Oven Door Inner Glass (replaces 7318212200) 318212200
#8

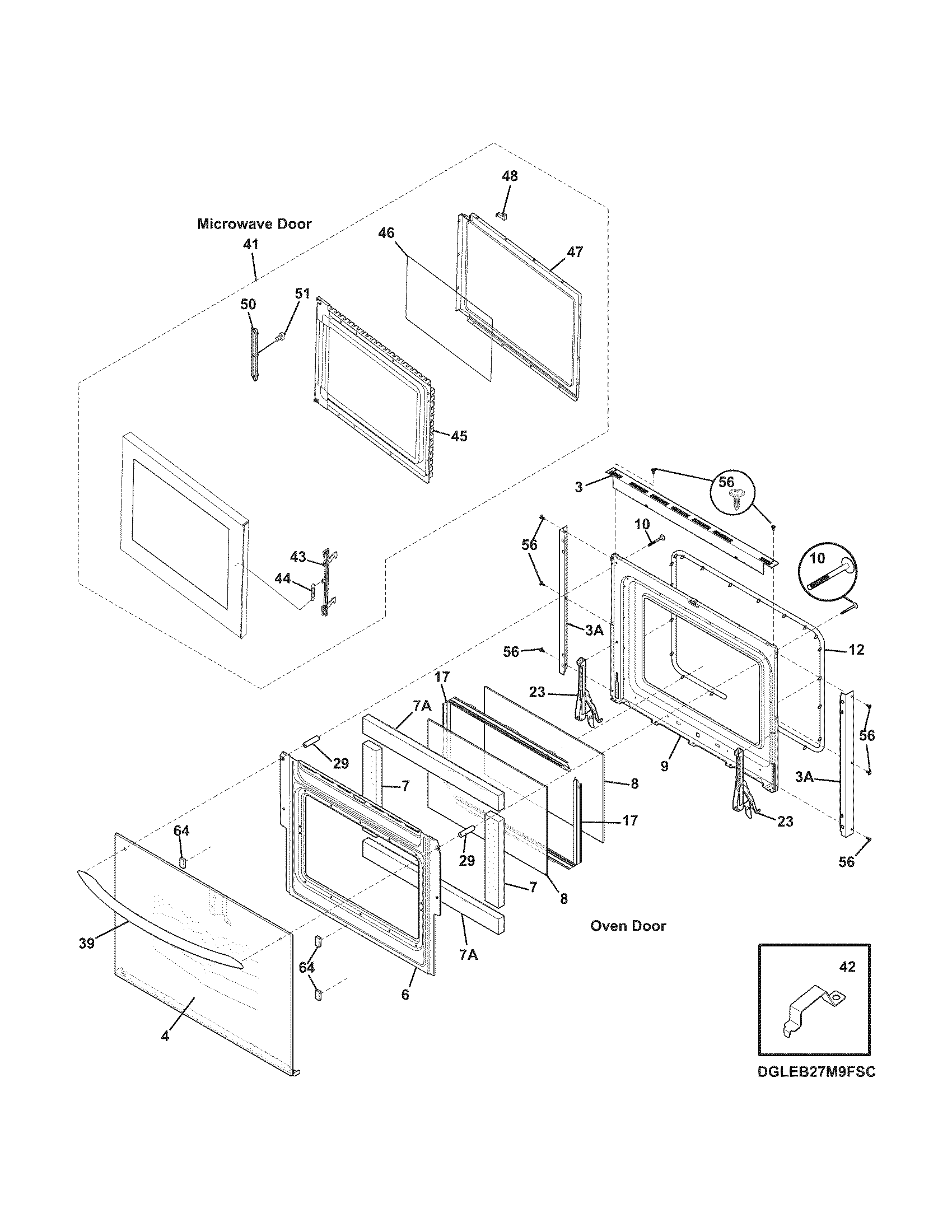

Doors diagram

Wall oven door inner glass (replaces 7318212200)

Part #318212200

BEST SELLER
$74.50 |
6% OFF Phone Price : $79.50
In Stock
Washer 316136500
#263

Lower oven diagram

Washer

Part #316136500

Replaced by #316008401

?
Manufacturer substitution
This part replaces 316136500. Substitute parts can look different from the original.
BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
Fan Blade 318398300
#109

Lower oven diagram

Fan blade

Part #318398300

Replaced by #318398302

?
Manufacturer substitution
This part replaces 318398300. Substitute parts can look different from the original.
BEST SELLER
$23.89 |
17% OFF Phone Price : $28.89
In Stock
Range High-limit Thermostat 318003614
#219

Lower oven diagram

Range high-limit thermostat

Part #318003614

BEST SELLER
$72.91 |
9% OFF Was : $79.69
Back Order
Microwave Door Interlock Switch 5304440026
#6

Upper oven diagram

Microwave door interlock switch

Part #5304440026

BEST SELLER
$39.53 |
11% OFF Phone Price : $44.53
In Stock
Holder 5304442354
#411

Lower oven diagram

Holder

Part #5304442354

Replaced by #318647300

?
Manufacturer substitution
This part replaces 5304442354. Substitute parts can look different from the original.
$112.88
