Model # KPCM050NP0 Official KitchenAid coffee maker

Here are the diagrams and repair parts for Official KitchenAid KPCM050NP0 coffee maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 86 parts  |
Mount
#7

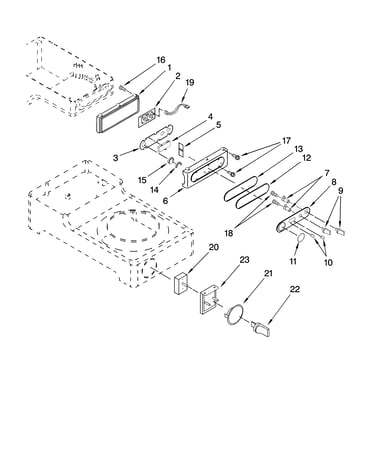

Upper and lower control parts diagram

Mount

Part #8211578

This item is not returnable
$3.29
In Stock
Parts List
#1B

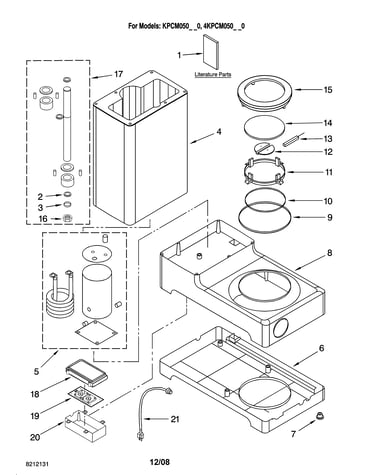

Base and housing parts diagram

Parts list

Part #8212131

This item is not returnable
$7.49 |
12% OFF Phone Price : $8.49
In Stock
BASE AND FOOT ASSEMBLY (REFER TO COLOR VARIATION PARTS PAGE)
Base and foot assembly (refer to color variation parts page)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Guide
#3

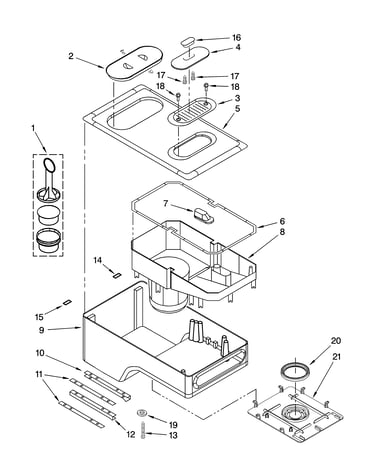

Water reservoir parts diagram

Guide

Part #8211520

The manufacturer no longer makes this part, and there's no substitute part

Cover
#2A

Water reservoir parts diagram

Cover

Part #8212154

The manufacturer no longer makes this part, and there's no substitute part

Pushbutton
#10

Upper and lower control parts diagram

Pushbutton

Part #8211580

The manufacturer no longer makes this part, and there's no substitute part

Cover
#5A

Water reservoir parts diagram

Cover

Part #8212155

The manufacturer no longer makes this part, and there's no substitute part

Seal
#12

Upper and lower control parts diagram

Seal

Part #8211754

The manufacturer no longer makes this part, and there's no substitute part

Plate
#12

Base and housing parts diagram

Plate

Part #8211518

The manufacturer no longer makes this part, and there's no substitute part

Knob
#9

Upper and lower control parts diagram

Knob

Part #8211579

The manufacturer no longer makes this part, and there's no substitute part
