Model # TYPE 642-15B Official Tecumseh 4.5-hp outboard motor

Here are the diagrams and repair parts for Official Tecumseh TYPE-642-15B 4.5-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

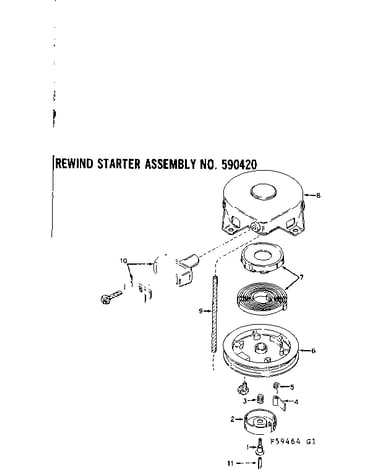

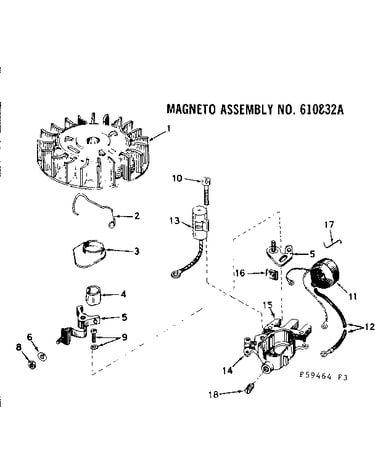

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 242 parts  |
Gasket 631028
#25

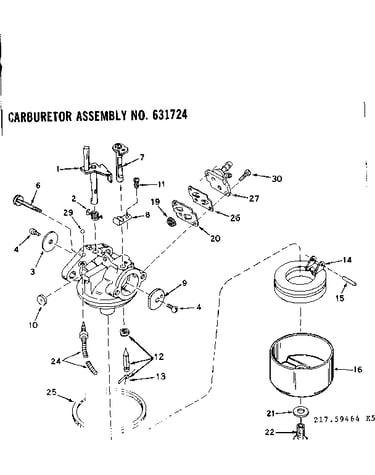

Carburetor assembly diagram

Gasket

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

Seal 510105
#26

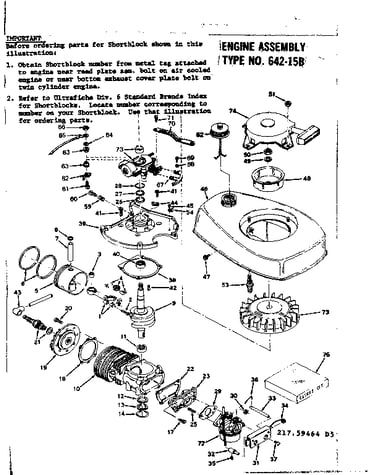

Engine assembly diagram

Seal

Part #510105

The manufacturer no longer makes this part, and there's no substitute part

Retainer 510106
#27

Engine assembly diagram

Retainer

Part #510106

The manufacturer no longer makes this part, and there's no substitute part

Gasket 510270
#22

Engine assembly diagram

Gasket

Part #510270

The manufacturer no longer makes this part, and there's no substitute part

Spring 510109
#28

Engine assembly diagram

Spring

Part #510109

The manufacturer no longer makes this part, and there's no substitute part

Clip 631022
#13

Carburetor assembly diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

Bushing 96032
#23

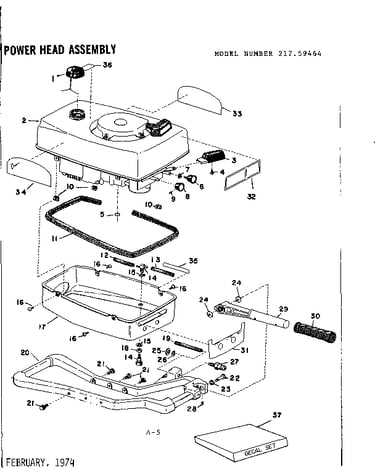

Power head assembly diagram

Bushing

Part #96032

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Gasket 96226
#10

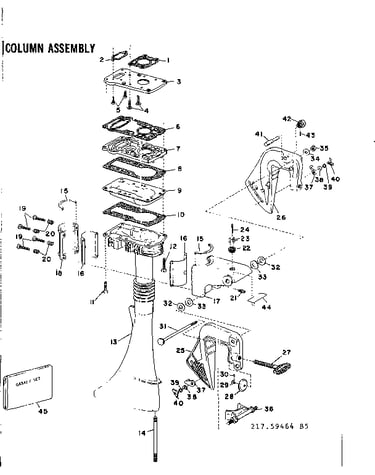

Column assembly diagram

Boat motor gasket

Part #96226

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Oil Seal 96009
#17

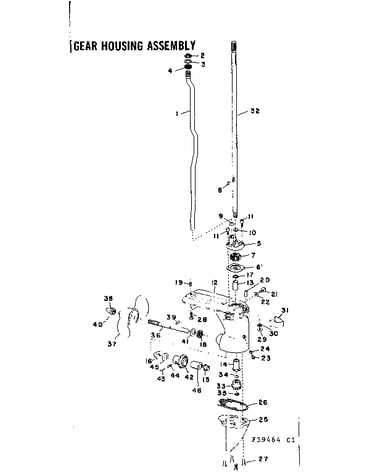

Gear housing assembly diagram

Boat motor oil seal

Part #96009

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Nut 2213
#10

Power head assembly diagram

Boat motor nut

Part #2213

The manufacturer no longer makes this part, and there's no substitute part
