Model # 47312 Official Craftsman pump

Here are the diagrams and repair parts for Official Craftsman 47312 pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Chain 26773
#2

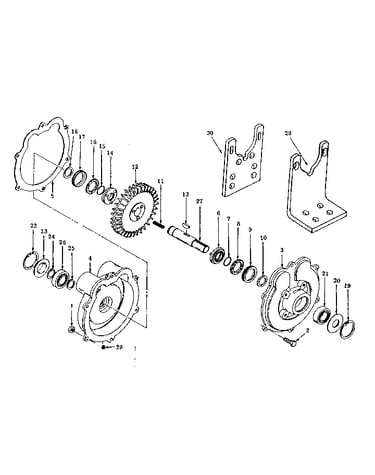

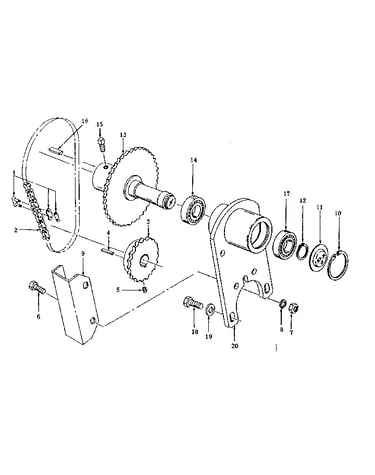

Delavan turbo 90 diagram

Chain

Part #26773

The manufacturer no longer makes this part, and there's no substitute part

Setscrew, Socket Hd 26828
#5

Delavan turbo 90 diagram

Setscrew, socket hd

Part #26828

The manufacturer no longer makes this part, and there's no substitute part

Pump Assy - Turbo 90 26556-1
#31

Delavan turbo 90 diagram

Pump assy - turbo 90

Part #26556-1

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bracket, Formed 26989
#30

Delavan turbo 90 diagram

Mounting bracket, formed

Part #26989

The manufacturer no longer makes this part, and there's no substitute part

Seat Ring 26541
Seat ring

Part #26541

The manufacturer no longer makes this part, and there's no substitute part

Impeller Hub 26543
#12B

Delavan turbo 90 diagram

Impeller hub

Part #26543

The manufacturer no longer makes this part, and there's no substitute part

Ceramic Seat 26540
Ceramic seat

Part #26540

The manufacturer no longer makes this part, and there's no substitute part

Front Plate 26230
#4

Delavan turbo 90 diagram

Front plate

Part #26230

The manufacturer no longer makes this part, and there's no substitute part

Back Plate 26231
#3

Delavan turbo 90 diagram

Back plate

Part #26231

The manufacturer no longer makes this part, and there's no substitute part

Sprocket & Shaft 26788
#13

Delavan turbo 90 diagram

Sprocket & shaft

Part #26788

The manufacturer no longer makes this part, and there's no substitute part
