Craftsman
Power Drill

Model # 973114300 Official Craftsman drill

Here are the diagrams and repair parts for Official Craftsman 973114300 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

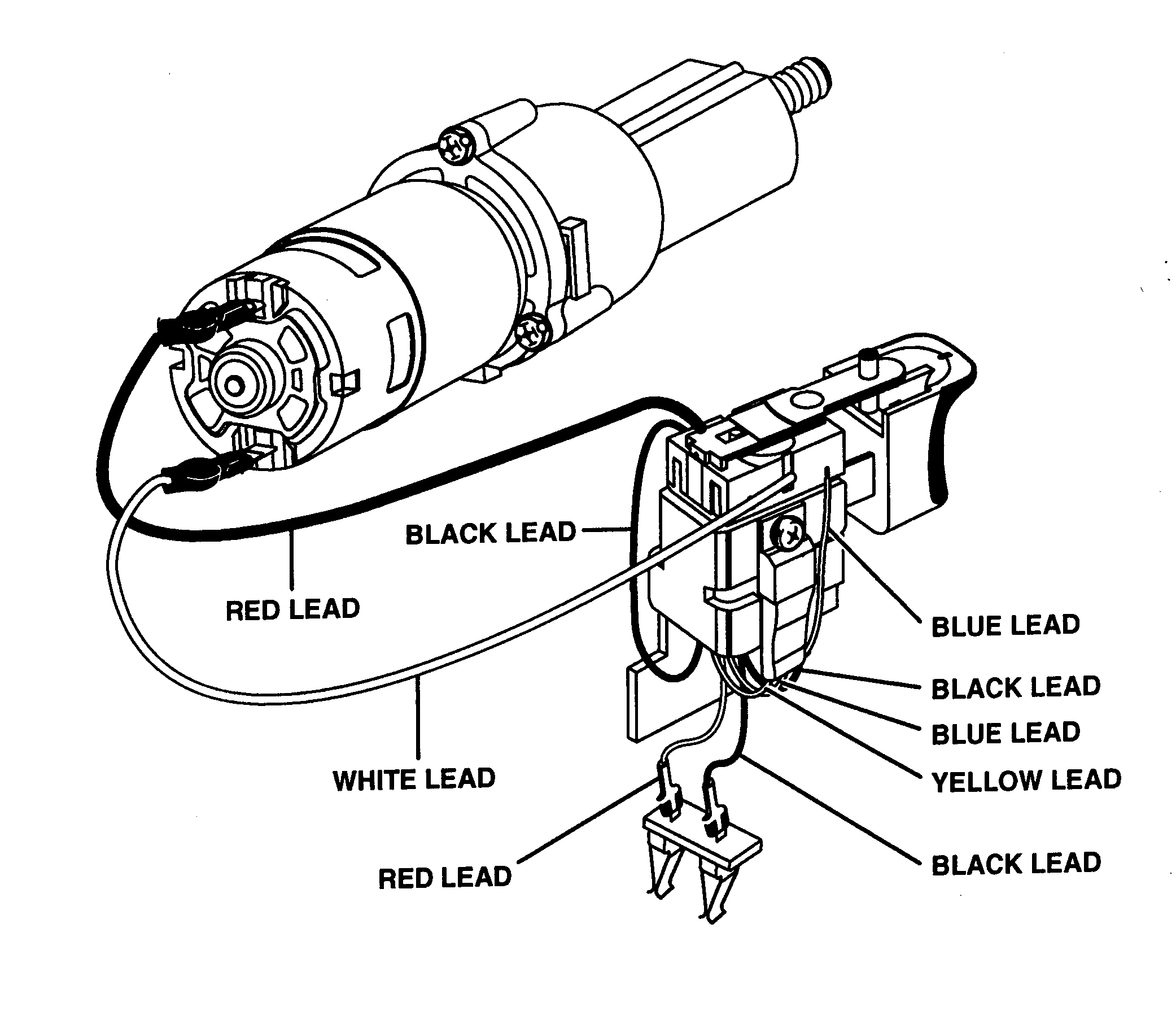

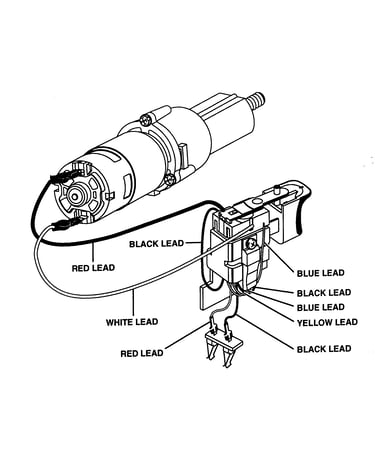

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Holder 5434601
#7

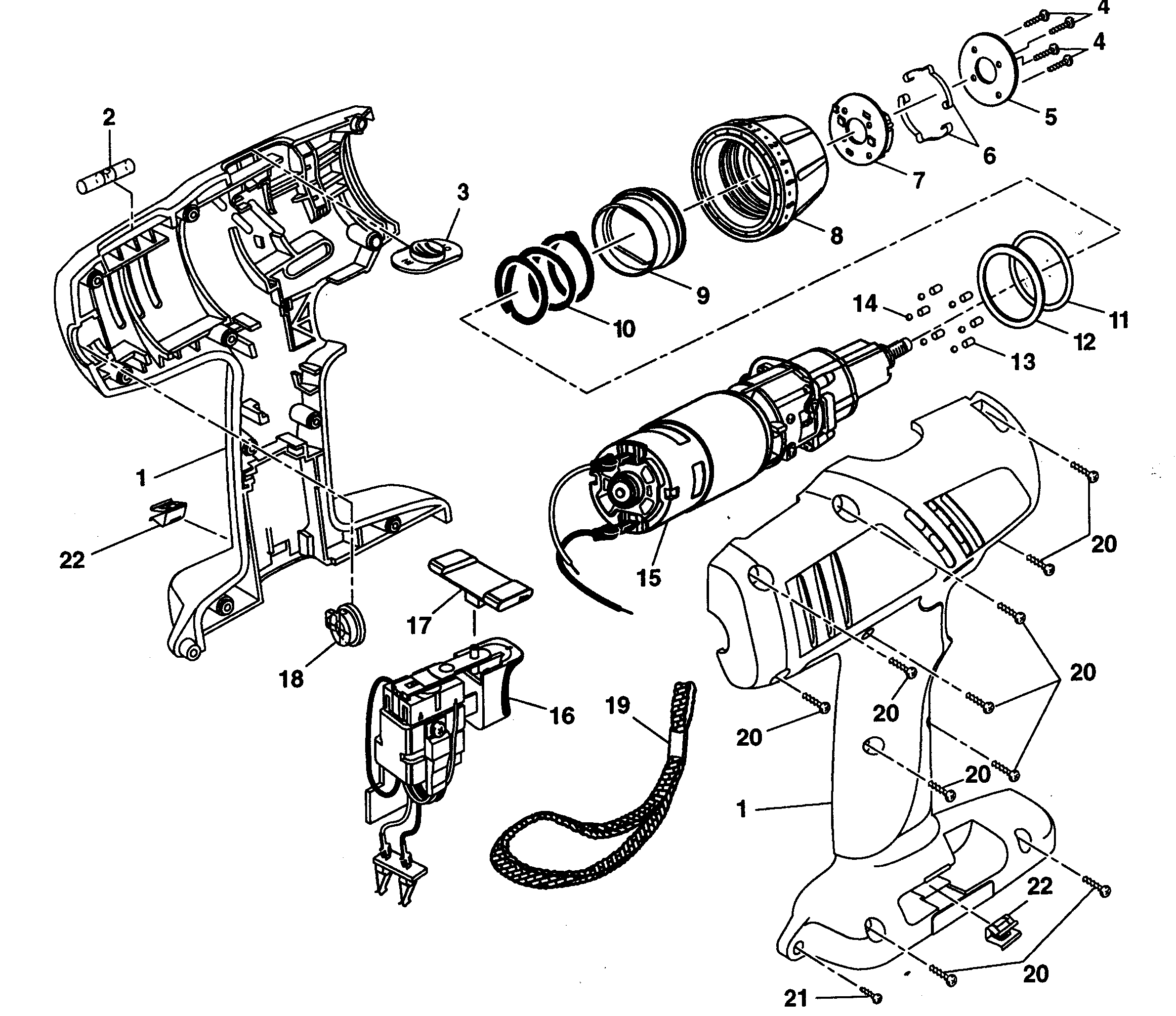

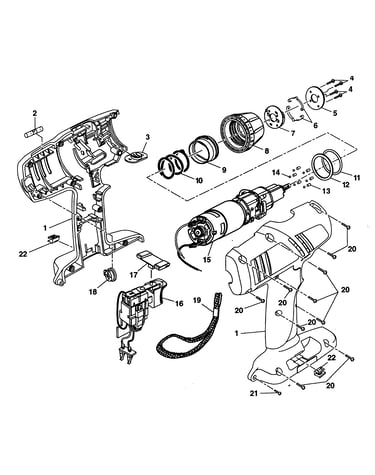

Motor assy diagram

Holder

Part #5434601

The manufacturer no longer makes this part, and there's no substitute part

18v Battery 1323502
#3

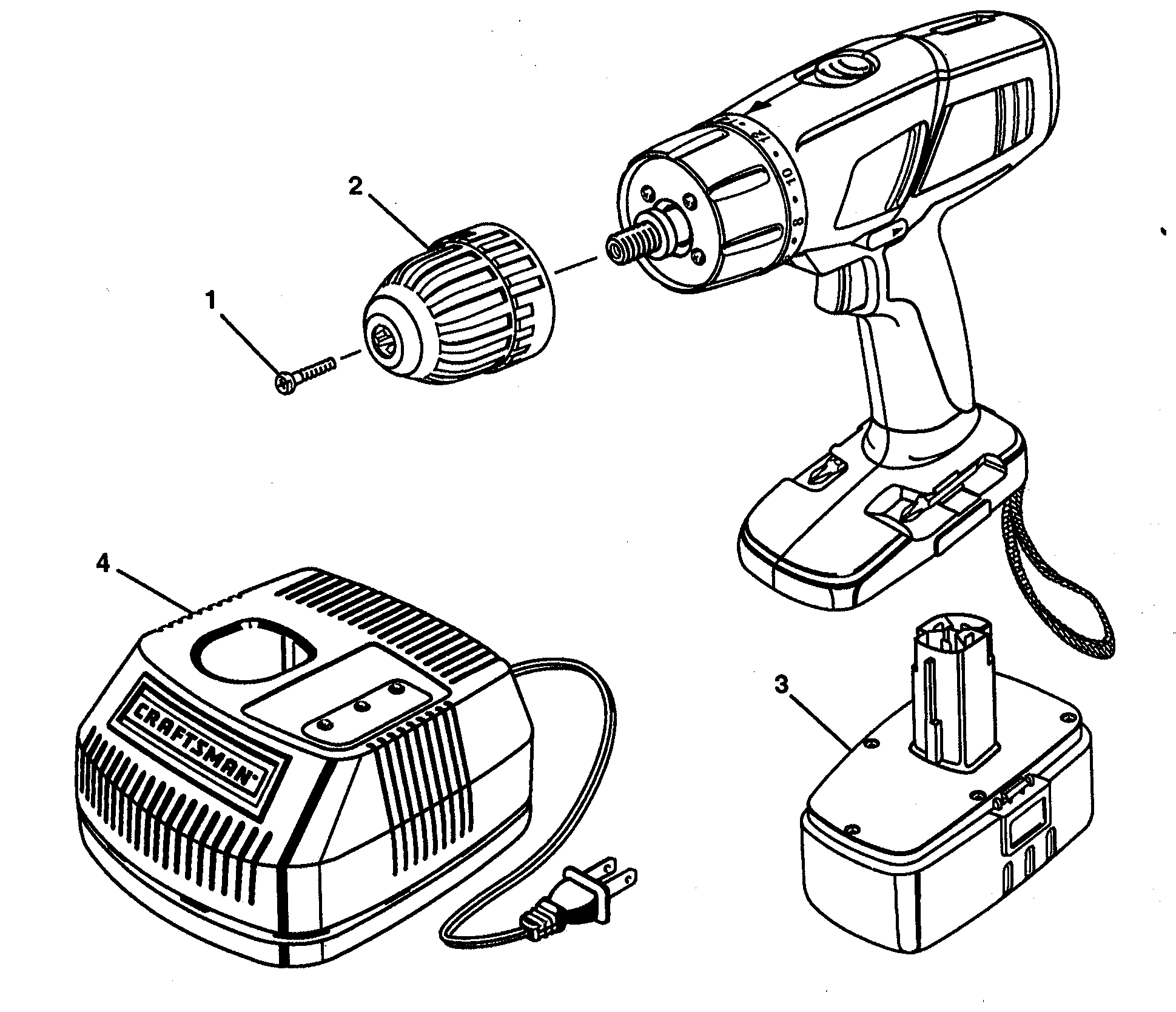

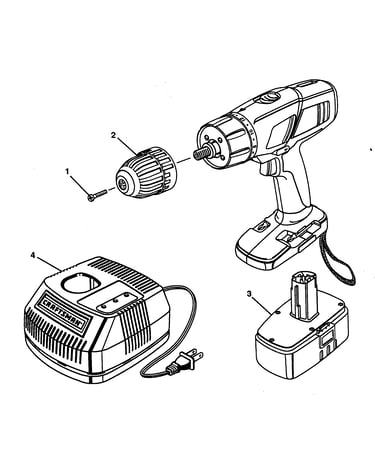

Cabinet parts diagram

18v battery

Part #1323502

The manufacturer no longer makes this part, and there's no substitute part

Plate 6359801
#5

Motor assy diagram

Plate

Part #6359801

The manufacturer no longer makes this part, and there's no substitute part

Chuck 6903330
#2

Cabinet parts diagram

Chuck

Part #6903330

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Steel Ball 6721901
#14

Motor assy diagram

Power tool steel ball

Part #6721901

The manufacturer no longer makes this part, and there's no substitute part

Drill Level 3000909
#2

Motor assy diagram

Drill level

Part #3000909

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 5437201
#9

Motor assy diagram

Sleeve

Part #5437201

The manufacturer no longer makes this part, and there's no substitute part

Charger 1425301
#4

Cabinet parts diagram

Charger

Part #1425301

The manufacturer no longer makes this part, and there's no substitute part

Housing 984234-001
#1

Motor assy diagram

Housing

Part #984234-001

The manufacturer no longer makes this part, and there's no substitute part

Button 3734006
#17

Motor assy diagram

Button

Part #3734006

The manufacturer no longer makes this part, and there's no substitute part
