GE
Countertop Microwave

Model # JE1140WC01 Official GE microwave

Here are the diagrams and repair parts for Official GE JE1140WC01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Special Screw WB01X10108
#7020

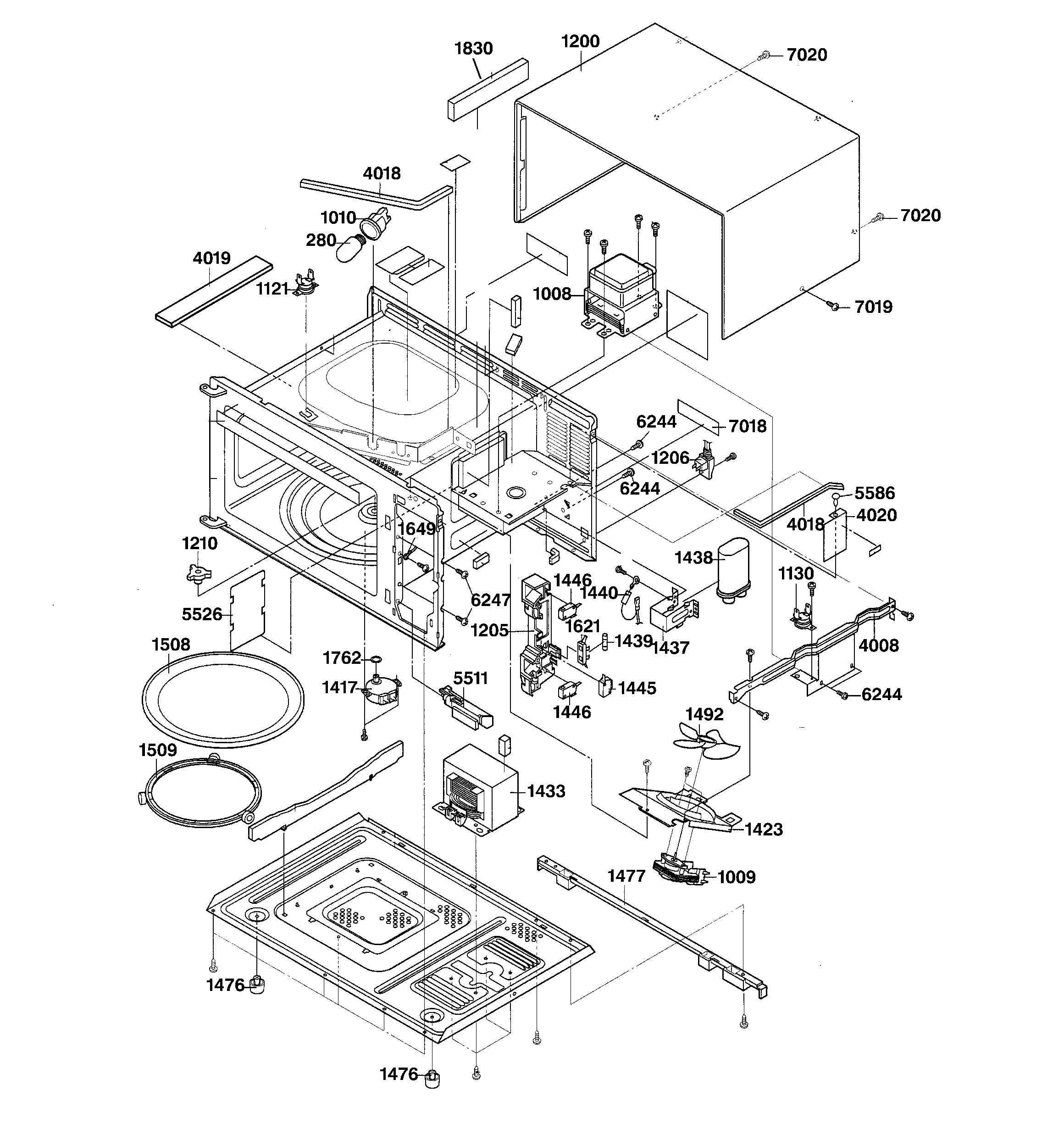

Unit parts diagram

Special screw

Part #WB01X10108

Replaced by #WB1X10108

?
Manufacturer substitution
This part replaces WB01X10108. Substitute parts can look different from the original.
This item is not returnable
$2.29
In Stock
Flame Sensor WB24X10015
#1121

Unit parts diagram

Flame sensor

Part #WB24X10015

The manufacturer no longer makes this part, and there's no substitute part

Chassis Support WB06X10237
#4008

Unit parts diagram

Chassis support

Part #WB06X10237

The manufacturer no longer makes this part, and there's no substitute part

Door WB55X10375
#1802

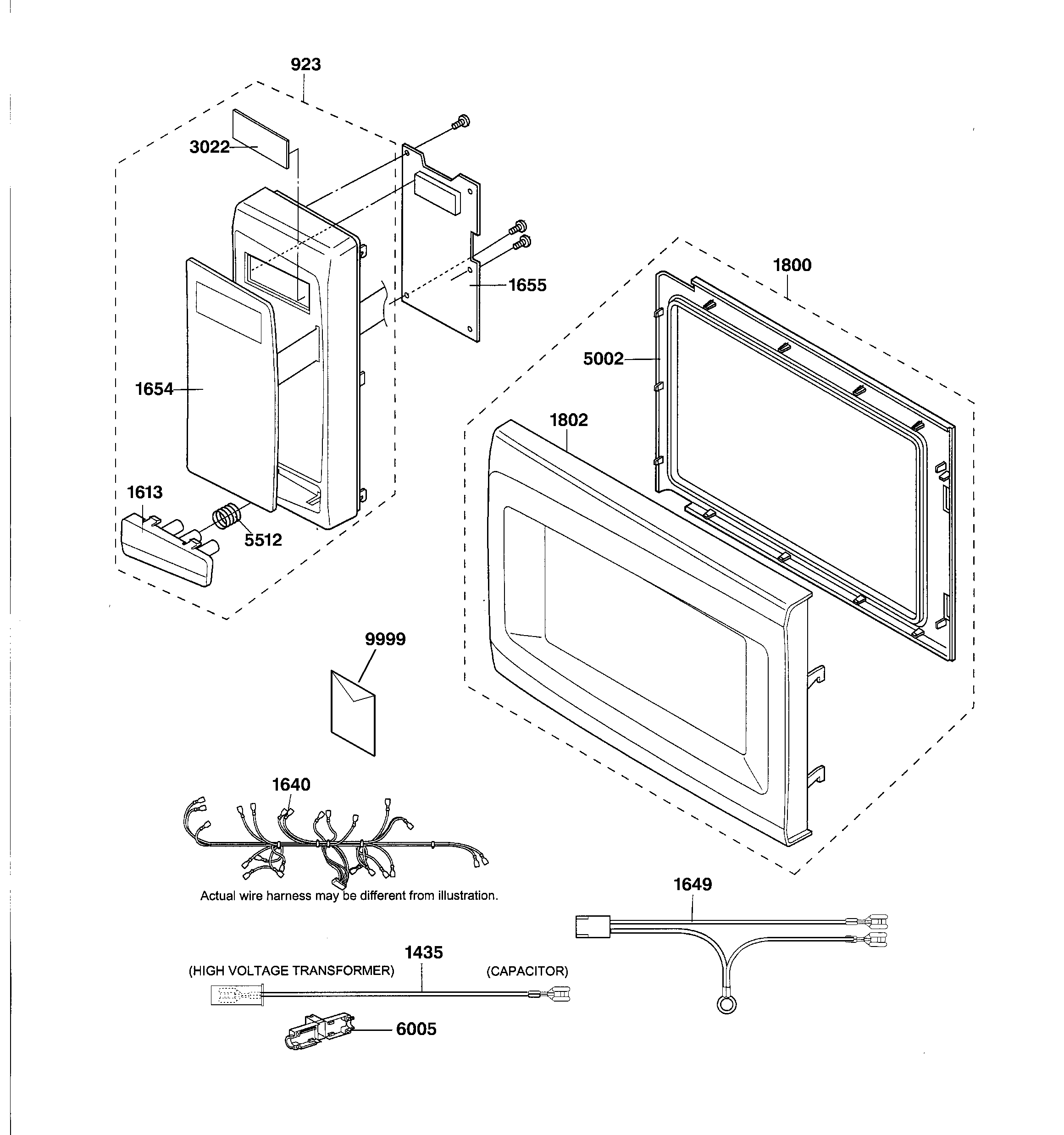

Control panel, door & wiring diagram

Door

Part #WB55X10375

The manufacturer no longer makes this part, and there's no substitute part

Microwave Socket WB08X10006
#1010

Unit parts diagram

Microwave socket

Part #WB08X10006

The manufacturer no longer makes this part, and there's no substitute part

Control Panel WB27X10411
#923

Control panel, door & wiring diagram

Control panel

Part #WB27X10411

The manufacturer no longer makes this part, and there's no substitute part

Screw WB01X1479
#6247

Unit parts diagram

Screw

Part #WB01X1479

The manufacturer no longer makes this part, and there's no substitute part

Flame Sensor WB27X1046
#1130

Unit parts diagram

Flame sensor

Part #WB27X1046

The manufacturer no longer makes this part, and there's no substitute part

Fuse 20a WB27X1065
#1439

Unit parts diagram

Fuse 20a

Part #WB27X1065

The manufacturer no longer makes this part, and there's no substitute part

Choke Cover WB55X10369
#5002

Control panel, door & wiring diagram

Choke cover

Part #WB55X10369

The manufacturer no longer makes this part, and there's no substitute part
