Model # DSC-W690/S Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-W690-S digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Screw M1.4 441276921
#244

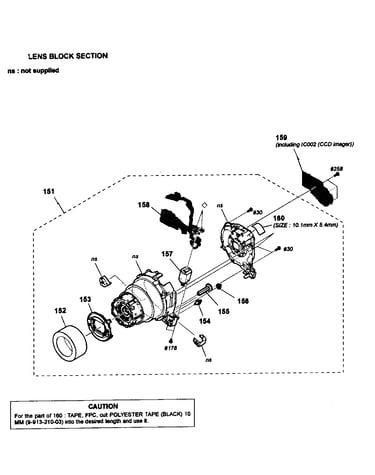

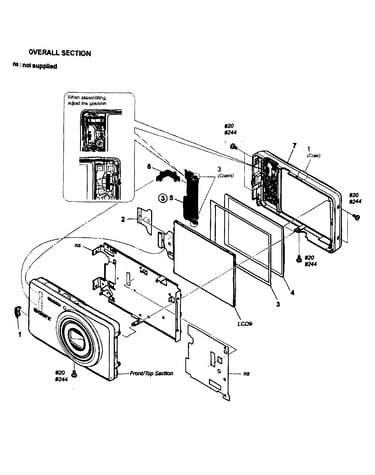

Rear assy diagram

Screw m1.4

Part #441276921

This item is not returnable
$5.65
In Stock
Digital Camera Battery Charger 148752321
#NI

Rear assy diagram

Digital camera battery charger

Part #148752321

$93.11
In Stock
Gear Wh Lu A1861259A
#154

Lens assy diagram

Gear wh lu

Part #A1861259A

This item is not returnable
$4.76
In Stock
Cushion 442275101
#3

Rear assy diagram

Cushion

Part #442275101

$10.51
In Stock
Cd835 Pcb A1867258A
#159

Lens assy diagram

Cd835 pcb

Part #A1867258A

$119.13
In Stock
Microphone 417770801
#54

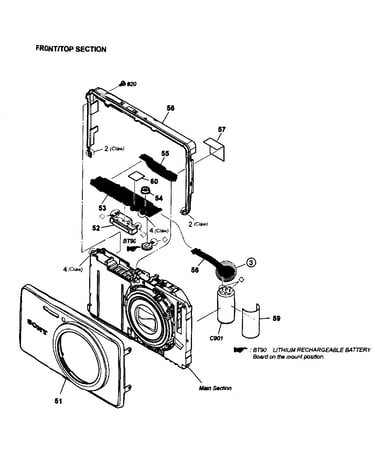

Front assy diagram

Microphone

Part #417770801

This item is not returnable
$4.80
In Stock
Sheet, Af Light 441905801
#60

Front assy diagram

Sheet, af light

Part #441905801

This item is not returnable
$4.83
In Stock
Rl131 Pcb A1867236A
#53

Front assy diagram

Rl131 pcb

Part #A1867236A

$62.91
In Stock
Holder Assembly X25838701
#101

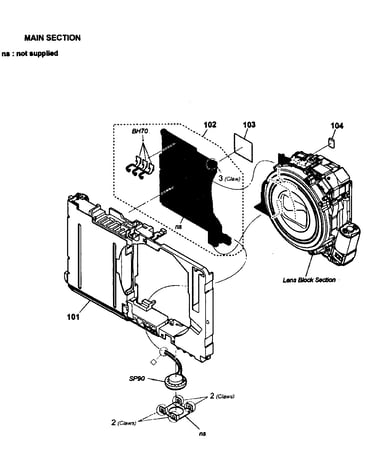

Main assy diagram

Holder assembly

Part #X25838701

$123.74
In Stock
Mc206 Pcb 188554011
#58

Front assy diagram

Mc206 pcb

Part #188554011

$23.27
In Stock
