Craftsman
Electric Leaf Blower

Model # 944511710 Official Craftsman electric blower

Here are the diagrams and repair parts for Official Craftsman 944511710 electric blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |

Vacuum Bag 530095599
#15

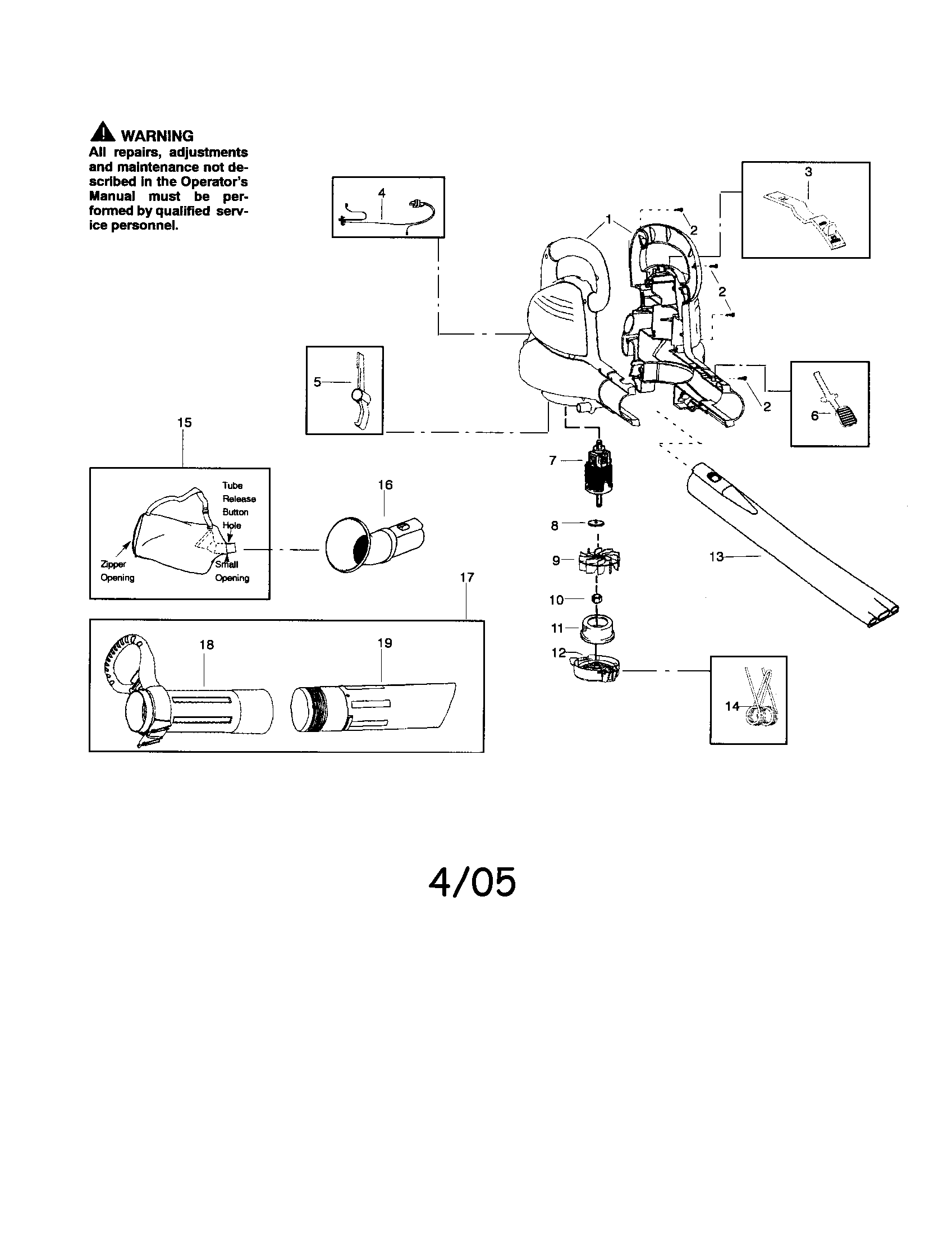

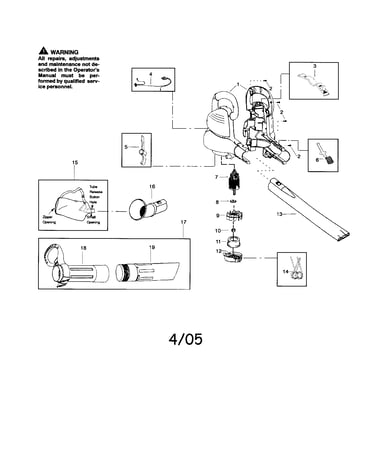

Blower assembly diagram

Vacuum bag

Part #530095599

Replaced by #530095564

?
Manufacturer substitution
This part replaces 530095599. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$34.22
13% OFF Phone Price : $39.22
In Stock
Leaf Blower Inlet Restrictor 530403791
#11

Blower assembly diagram

Leaf blower inlet restrictor

Part #530403791

The manufacturer no longer makes this part, and there's no substitute part

Leaf Blower Vacuum Bag Adapter 530403769
#16

Blower assembly diagram

Leaf blower vacuum bag adapter

Part #530403769

The manufacturer no longer makes this part, and there's no substitute part

Tube 530403989
#17

Blower assembly diagram

Tube

Part #530403989

The manufacturer no longer makes this part, and there's no substitute part

Leaf Blower Washer 530403834
#8

Blower assembly diagram

Leaf blower washer

Part #530403834

The manufacturer no longer makes this part, and there's no substitute part

Leaf Blower Vacuum Tube And Handle, Upper 530403842
#18

Blower assembly diagram

Leaf blower vacuum tube and handle, upper

Part #530403842

The manufacturer no longer makes this part, and there's no substitute part

Decal Housing Left 530403933

#NI03

All parts diagram

Decal housing left

Part #530403933

The manufacturer no longer makes this part, and there's no substitute part

Latch Button 530403775
#6

Blower assembly diagram

Latch button

Part #530403775

The manufacturer no longer makes this part, and there's no substitute part

Leaf Blower Fan Assembly 530403771
#9

Blower assembly diagram

Leaf blower fan assembly

Part #530403771

The manufacturer no longer makes this part, and there's no substitute part

Leaf Blower Motor 530403770
#7

Blower assembly diagram

Leaf blower motor

Part #530403770

The manufacturer no longer makes this part, and there's no substitute part
