Model # 50PG20-UAAUSRLHR Official LG plasma television

Here are the diagrams and repair parts for Official LG 50PG20-UAAUSRLHR plasma television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |

Television Power Cord EAD36401701
#NI

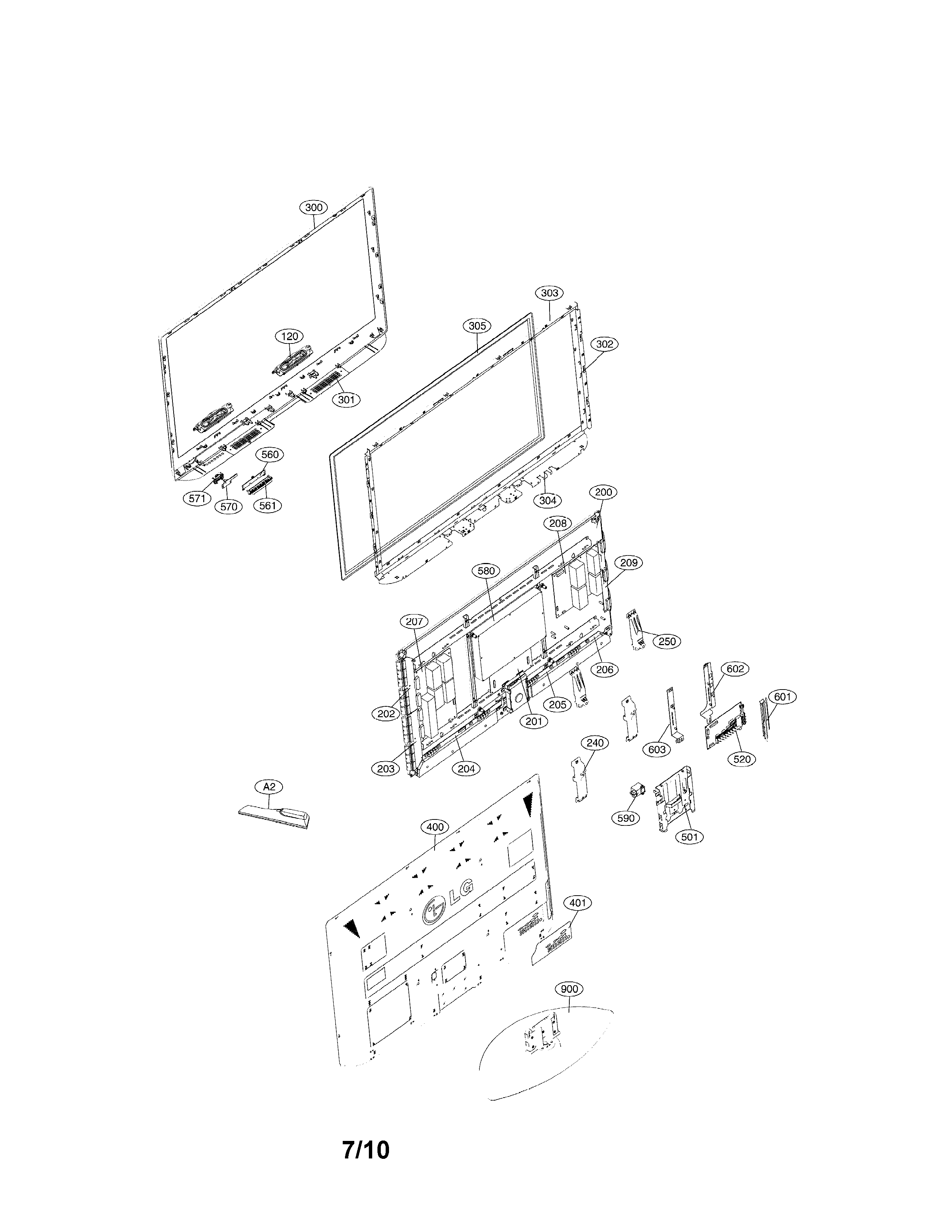

Tv pdp 50 diagram

Television power cord

Part #EAD36401701

In Stock
Button MBG41119902
#561

Tv pdp 50 diagram

Button

Part #MBG41119902

This item is not returnable
In Stock
Filter MDJ47125310
#305

Tv pdp 50 diagram

Filter

Part #MDJ47125310

The manufacturer no longer makes this part, and there's no substitute part

Ful Rng Spkr EAB42609902
#120

Tv pdp 50 diagram

Ful rng spkr

Part #EAB42609902

In Stock
Cover Assembly ACQ35758914
#400

Tv pdp 50 diagram

Cover assembly

Part #ACQ35758914

In Stock
Harness, Sin EAD42635002
#NI

Tv pdp 50 diagram

Harness, sin

Part #EAD42635002

In Stock
Pcb Assembly EBR43552901
#204

Tv pdp 50 diagram

Pcb assembly

Part #EBR43552901

In Stock
Plate MGJ41163807
#602

Tv pdp 50 diagram

Plate

Part #MGJ41163807

In Stock
Support AJJ35805205
#303

Tv pdp 50 diagram

Support

Part #AJJ35805205

In Stock
Support AJJ35805405
#302

Tv pdp 50 diagram

Support

Part #AJJ35805405

In Stock
