Model # NNS767WAS Official Panasonic microwave

Here are the diagrams and repair parts for Official Panasonic NNS767WAS microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 183 parts  |
Socket B61529390AP
#33

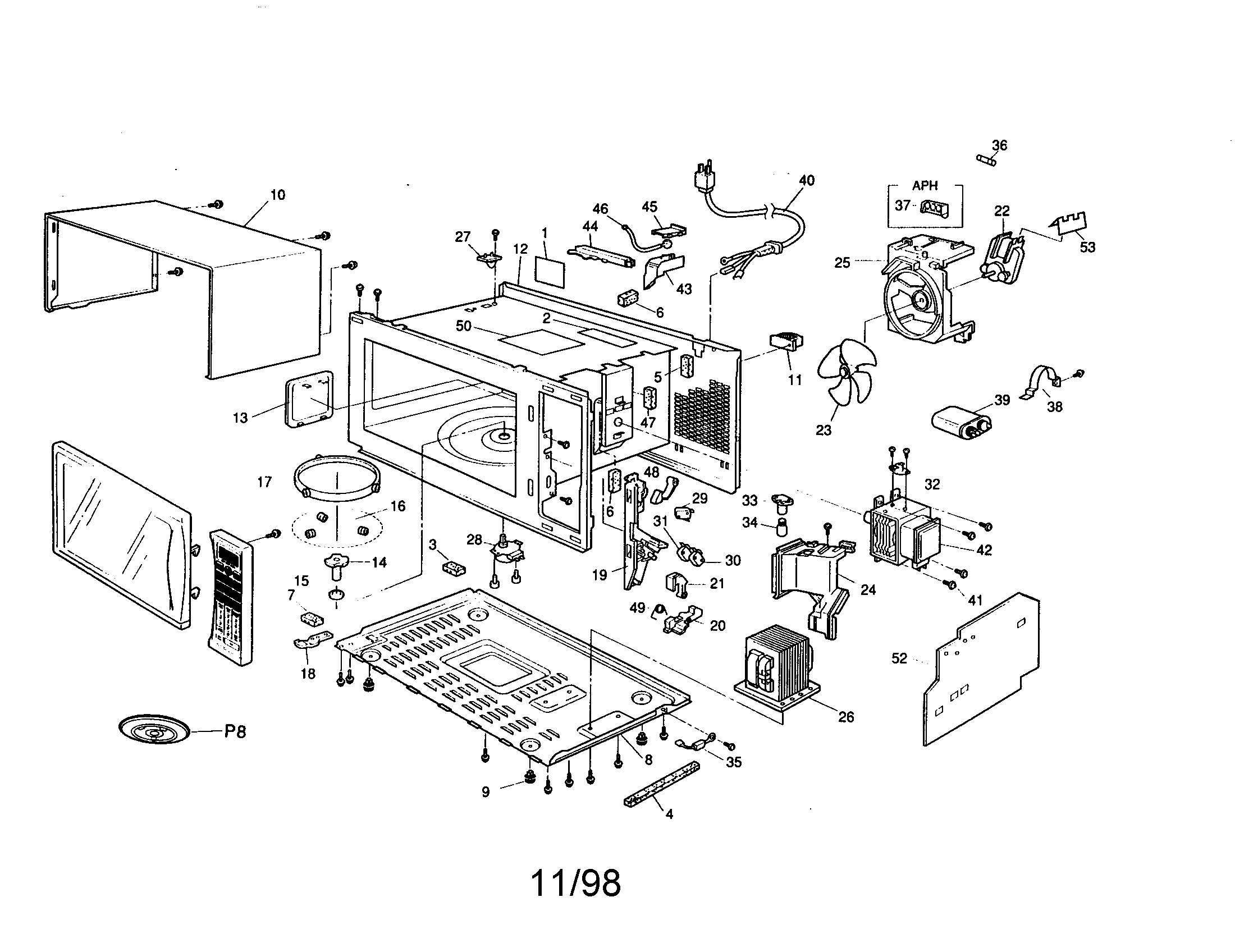

Page 1 diagram

Socket

Part #B61529390AP

Replaced by #F612E5Y30AP

?
Manufacturer substitution
This part replaces B61529390AP. Substitute parts can look different from the original.
This item is not returnable
$10.49 |
16% OFF Phone Price : $12.49
Back Order
Microwave Turntable Roller B290D9330AP
#17A

Page 1 diagram

Microwave turntable roller

Part #B290D9330AP

Replaced by #F290D9330AP

?
Manufacturer substitution
This part replaces B290D9330AP. Substitute parts can look different from the original.
$15.79 |
11% OFF Phone Price : $17.79
In Stock
Spring B30214000AP
#D4

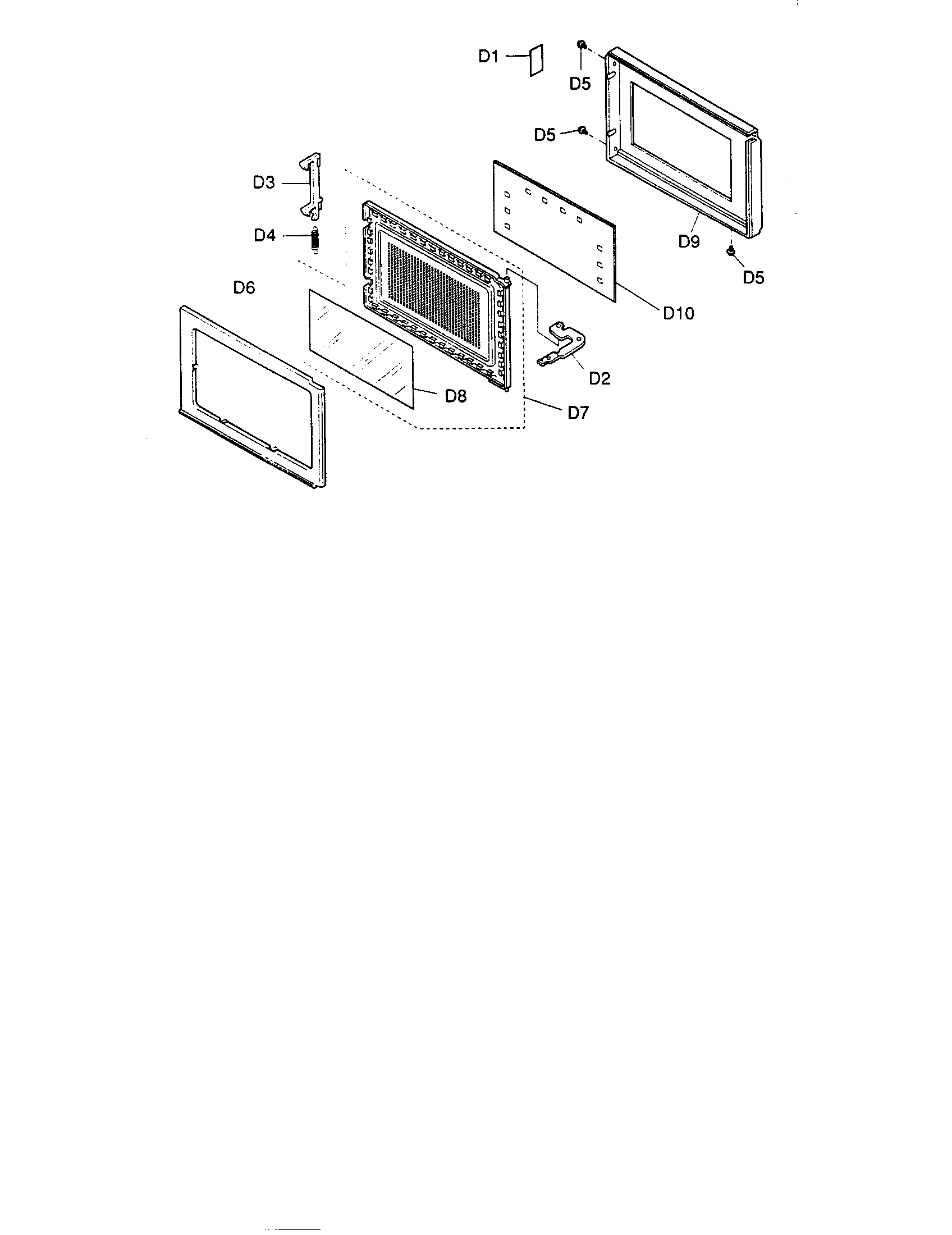

Door assembly diagram

Spring

Part #B30214000AP

Replaced by #F30216P40AG

?
Manufacturer substitution
This part replaces B30214000AP. Substitute parts can look different from the original.
This item is not returnable
$11.29 |
15% OFF Phone Price : $13.29
In Stock
Panasonic Ring B290D5950AP
#17

Page 1 diagram

Panasonic ring

Part #B290D5950AP

$19.80
In Stock
Panasonic Connector AEEMMF00703W

#NI

All parts diagram

Panasonic connector

Part #AEEMMF00703W

This item is not returnable
$2.99
In Stock
Panasonic Wire B03537050AP

#NI

All parts diagram

Panasonic wire

Part #B03537050AP

$13.49
In Stock
Panasonic Power Cord B900C7630AQ
#40

Page 1 diagram

Panasonic power cord

Part #B900C7630AQ

$35.80
In Stock
Panasonic Spacer J3136-1480
#48

Page 1 diagram

Panasonic spacer

Part #J3136-1480

This item is not returnable
$3.49
In Stock
Panasonic Escutcheon B80348660AP
#E4

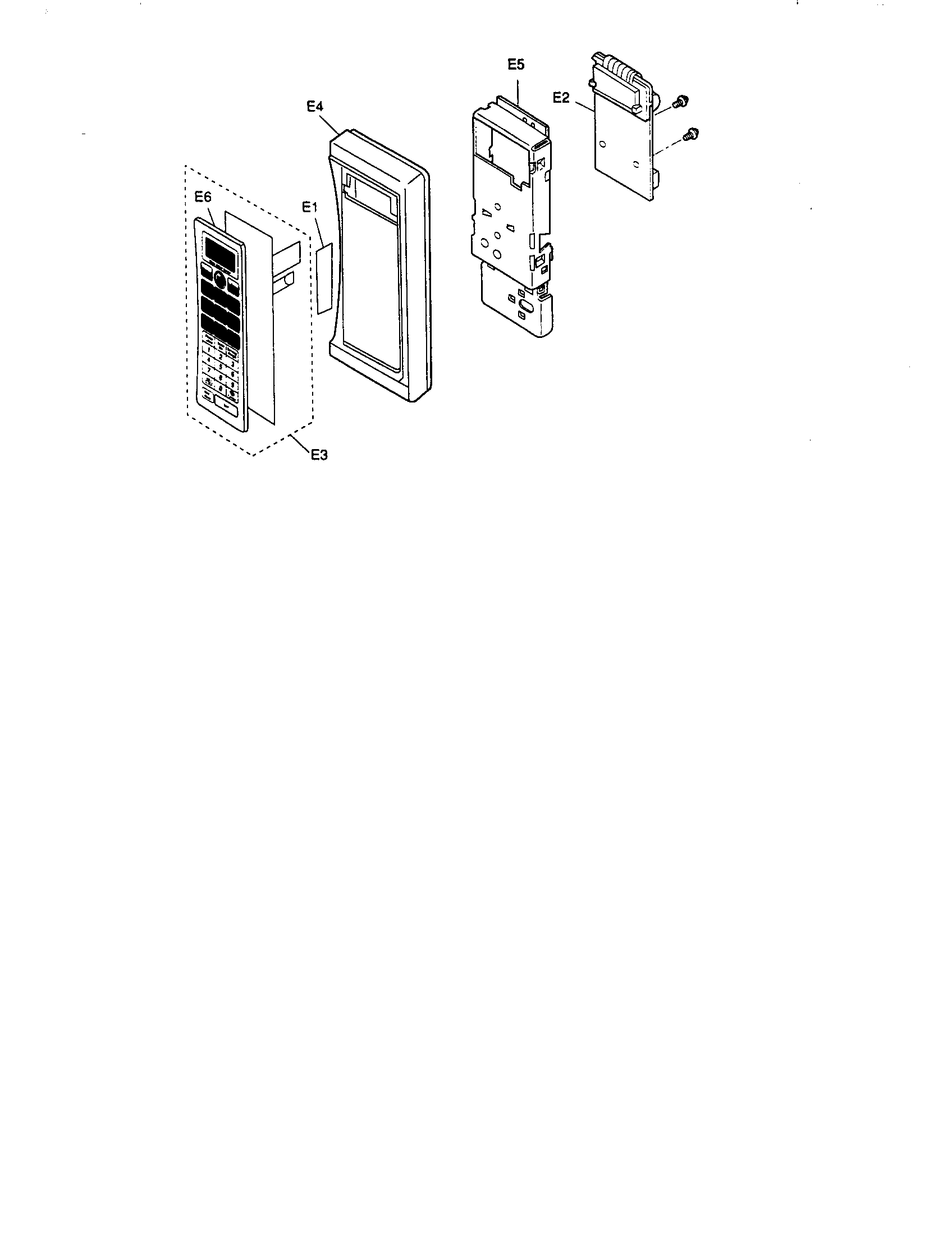

Escutcheon base assembly diagram

Panasonic escutcheon

Part #B80348660AP

$18.51
In Stock
Panasonic Air Guide B40259390AP
#24

Page 1 diagram

Panasonic air guide

Part #B40259390AP

$10.99
In Stock
