Built-In Microwave

Model #SCB1000MBB001 GE microwave

Here are the diagrams and repair parts for GE SCB1000MBB001 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 117 parts

    Microwave Display Board

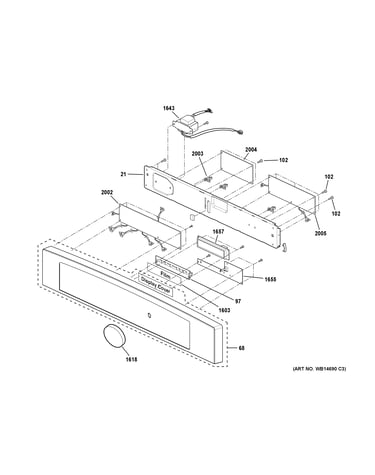

    Control parts Diagram

    Microwave display board

    Part #WB27X10856

    In Stock

    Oven Rack

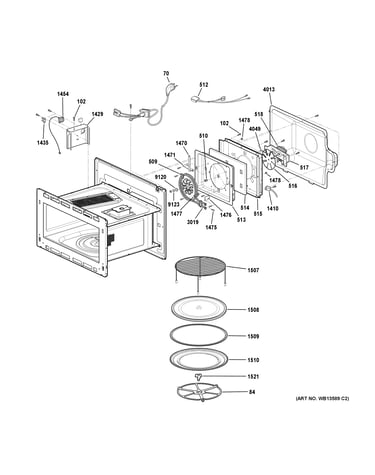

    Interior parts (1) Diagram

    Oven rack

    Part #WB49X10213

    In Stock

    Microwave Metal Turntable Tray


    Interior parts (1) Diagram


    In Stock

    Microwave Speed Cook Ceramic Element

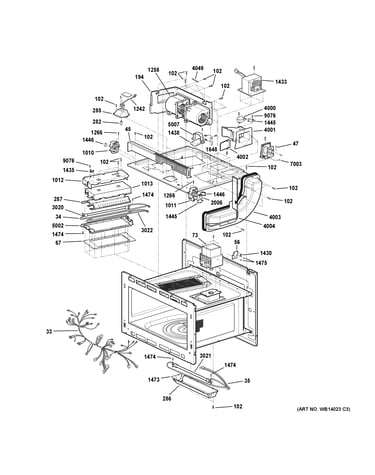

    Interior parts (2) Diagram


    In Stock

    Microwave Thermal Cut-Off


    Interior parts (1) Diagram

    Microwave thermal cut-off

    Part #WB21X10149

    In Stock

    Microwave Turntable Motor

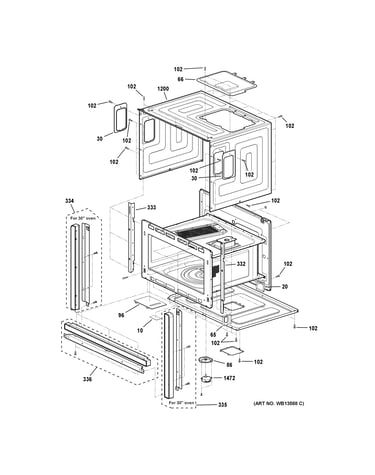

    Oven cavity parts Diagram

    Microwave turntable motor

    Part #WB26X10193

    In Stock



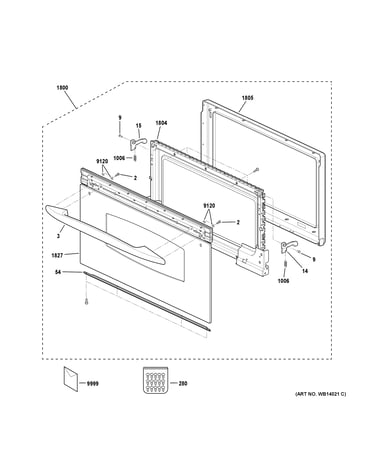

    Door parts Diagram


    Part #WB36X10338

    In Stock

    Microwave Humidity Sensor


    Interior parts (1) Diagram

    Microwave humidity sensor

    Part #WB27X10857

    In Stock

    Microwave Power Control Board


    Control parts Diagram


    In Stock

    Lead Screw


    Interior parts (2) Diagram

    Lead screw

    Part #WB02X10726
    This item is not returnable

    In Stock
