Model # 11624185 Official Kenmore powermate parts

Here are the diagrams and repair parts for Official Kenmore 11624185 powermate parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Washer 722909
#34

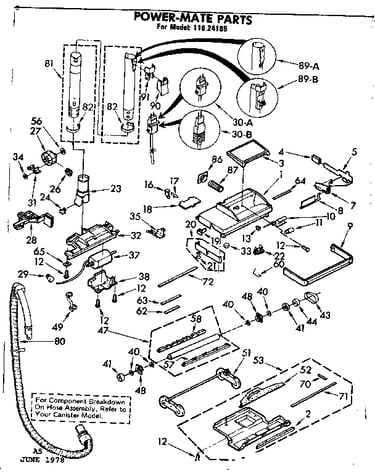

Power mate diagram

Washer

Part #722909

The manufacturer no longer makes this part, and there's no substitute part

Strip 676090
#2

Power mate diagram

Strip

Part #676090

The manufacturer no longer makes this part, and there's no substitute part

Hose 741179
#87

Power mate diagram

Hose

Part #741179

The manufacturer no longer makes this part, and there's no substitute part

Belt 5281
#43

Power mate diagram

Belt

Part #5281

The manufacturer no longer makes this part, and there's no substitute part

Lock 725938
#90

Power mate diagram

Lock

Part #725938

The manufacturer no longer makes this part, and there's no substitute part

Pad 722954
#16

Power mate diagram

Pad

Part #722954

The manufacturer no longer makes this part, and there's no substitute part

Channel 725222
#28

Power mate diagram

Channel

Part #725222

The manufacturer no longer makes this part, and there's no substitute part

Lever 722948
#17

Power mate diagram

Lever

Part #722948

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 741220
#1

Power mate diagram

Nozzle

Part #741220

The manufacturer no longer makes this part, and there's no substitute part

Cord 725955
#30A

Power mate diagram

Cord

Part #725955

The manufacturer no longer makes this part, and there's no substitute part
