Craftsman
Power Sander

Model # 113226430 Official Craftsman disc sander

Here are the diagrams and repair parts for Official Craftsman 113226430 disc sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Socket Hex Screw 820239
#58

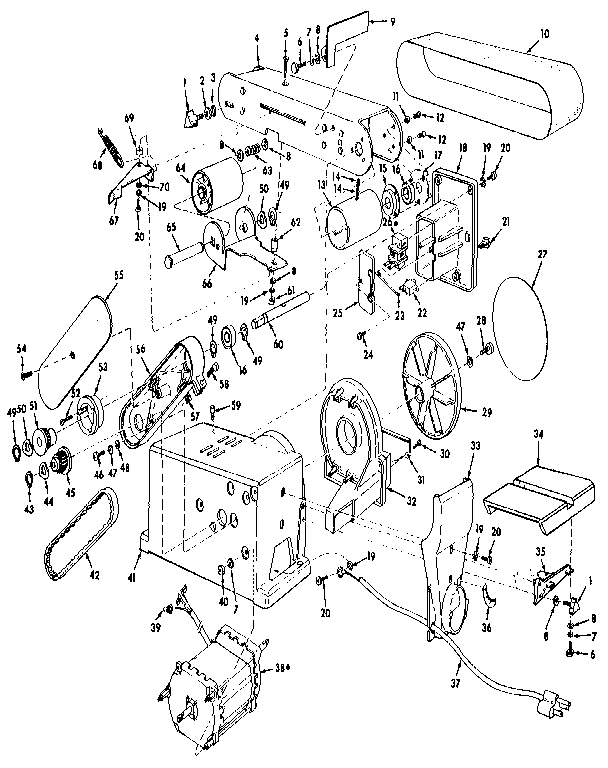

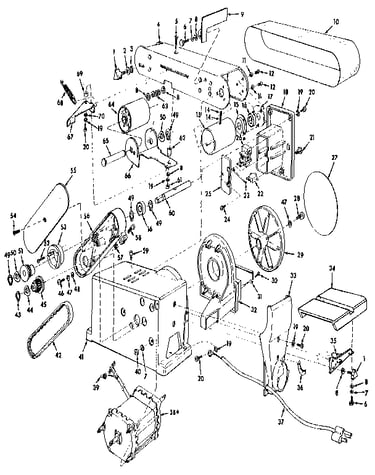

Unit diagram

Socket hex screw

Part #820239

The manufacturer no longer makes this part, and there's no substitute part

Sander Hex Screw, 6-mm 820249
#6

Unit diagram

Sander hex screw, 6-mm

Part #820249

The manufacturer no longer makes this part, and there's no substitute part

Drive Pulley 819486
#51

Unit diagram

Drive pulley

Part #819486

The manufacturer no longer makes this part, and there's no substitute part

Square Nut 820258-4
#57

Unit diagram

Square nut

Part #820258-4

The manufacturer no longer makes this part, and there's no substitute part

Sander Drive Belt 814002-1
#42

Unit diagram

Sander drive belt

Part #814002-1

The manufacturer no longer makes this part, and there's no substitute part

Pan Head Screw, M6-1 X 25 820244-1
#46

Unit diagram

Pan head screw, m6-1 x 25

Part #820244-1

The manufacturer no longer makes this part, and there's no substitute part

Flat Cross Screw, M5-0.8 X 10 (silver) 820235-2
#54

Unit diagram

Flat cross screw, m5-0.8 x 10 (silver)

Part #820235-2

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 820510-4
#44

Unit diagram

Spring washer

Part #820510-4

The manufacturer no longer makes this part, and there's no substitute part

Sander Washer, 6.5 X 17.8 X 1.6-in 820238
#8

Unit diagram

Sander washer, 6.5 x 17.8 x 1.6-in

Part #820238

The manufacturer no longer makes this part, and there's no substitute part

Scrw Fl Crss 820235
#5

Unit diagram

Scrw fl crss

Part #820235

The manufacturer no longer makes this part, and there's no substitute part
