Model # DSC-S2100S Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-S2100S digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |

Connector 182283721
#53

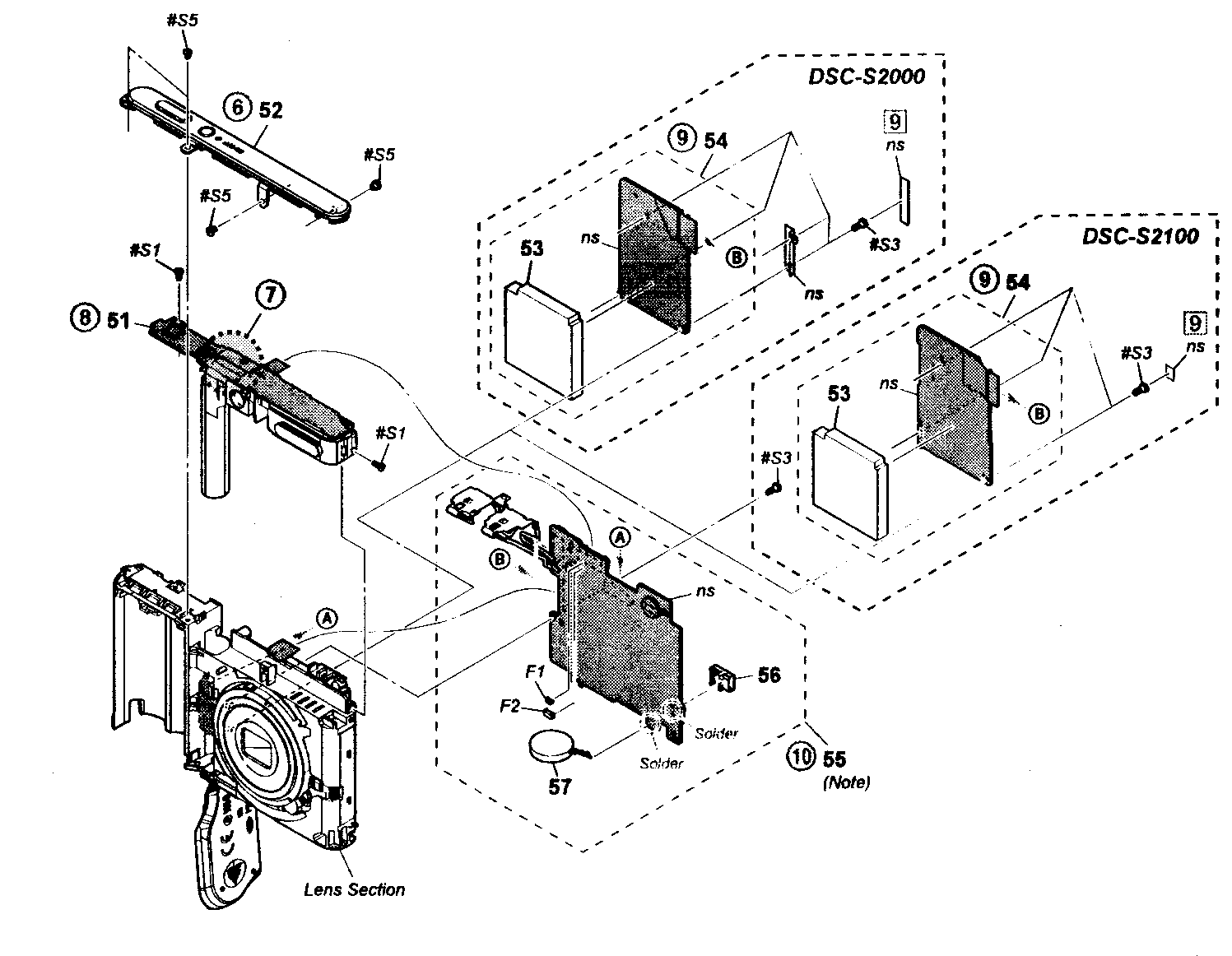

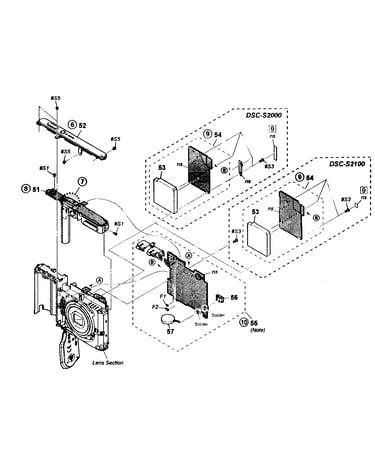

Main frame diagram

Connector

Part #182283721

Replaced by #182283741

?
Manufacturer substitution
This part replaces 182283721. Substitute parts can look different from the original.
In Stock
Lens Block A1759676A
#102

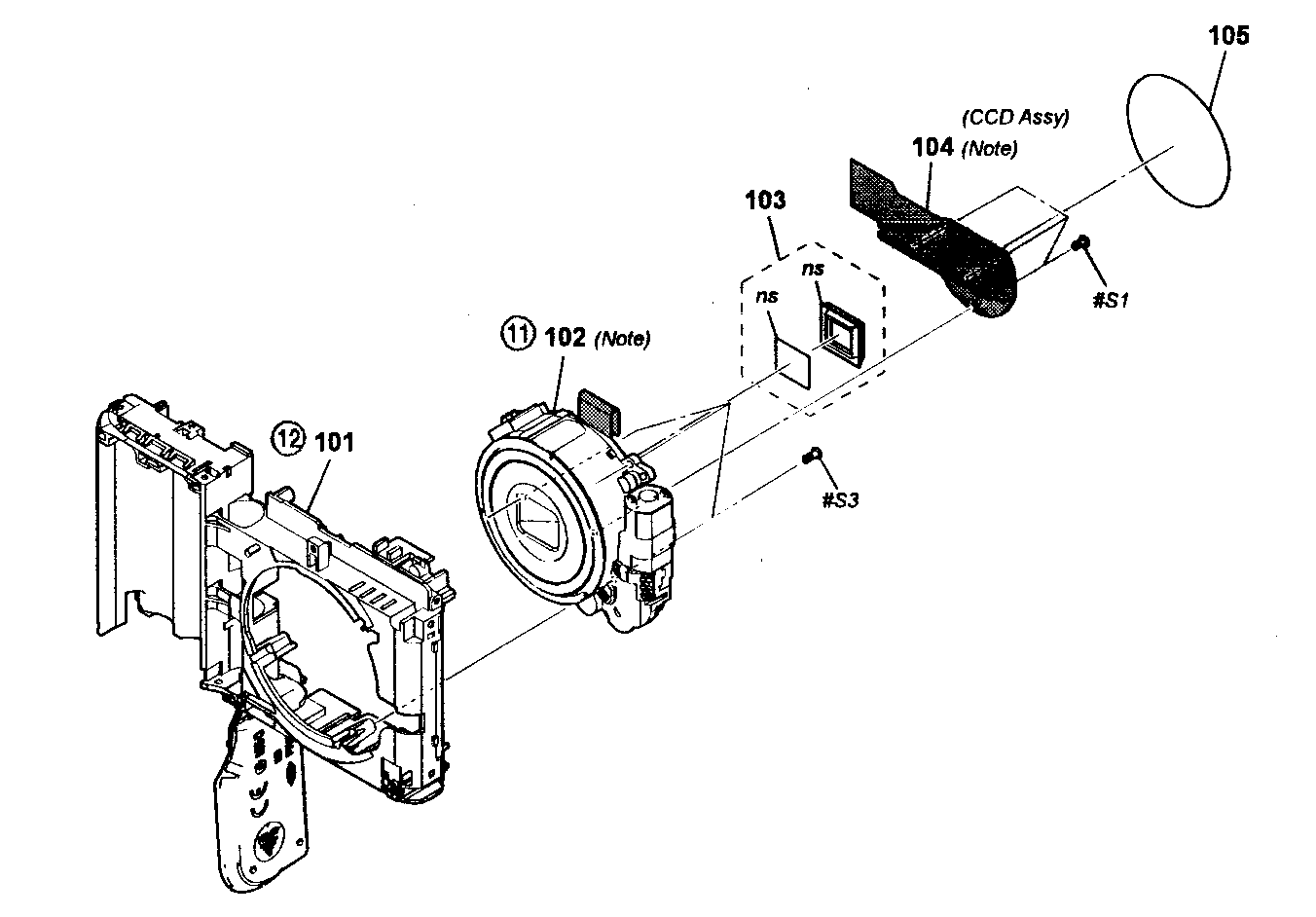

Lens assy diagram

Lens block

Part #A1759676A

In Stock
Block Assembly A1759672A
#51

Main frame diagram

Block assembly

Part #A1759672A

In Stock
Fuse,1a30v 157636311
#F1

Main frame diagram

Fuse,1a30v

Part #157636311

In Stock
Buzzer 185837211
#57

Main frame diagram

Buzzer

Part #185837211

In Stock
Filter Assembly 415171201
#103

Lens assy diagram

Filter assembly

Part #415171201

In Stock
Connector 182033311
#56

Main frame diagram

Connector

Part #182033311

In Stock
Lcd Module 181110611
#4

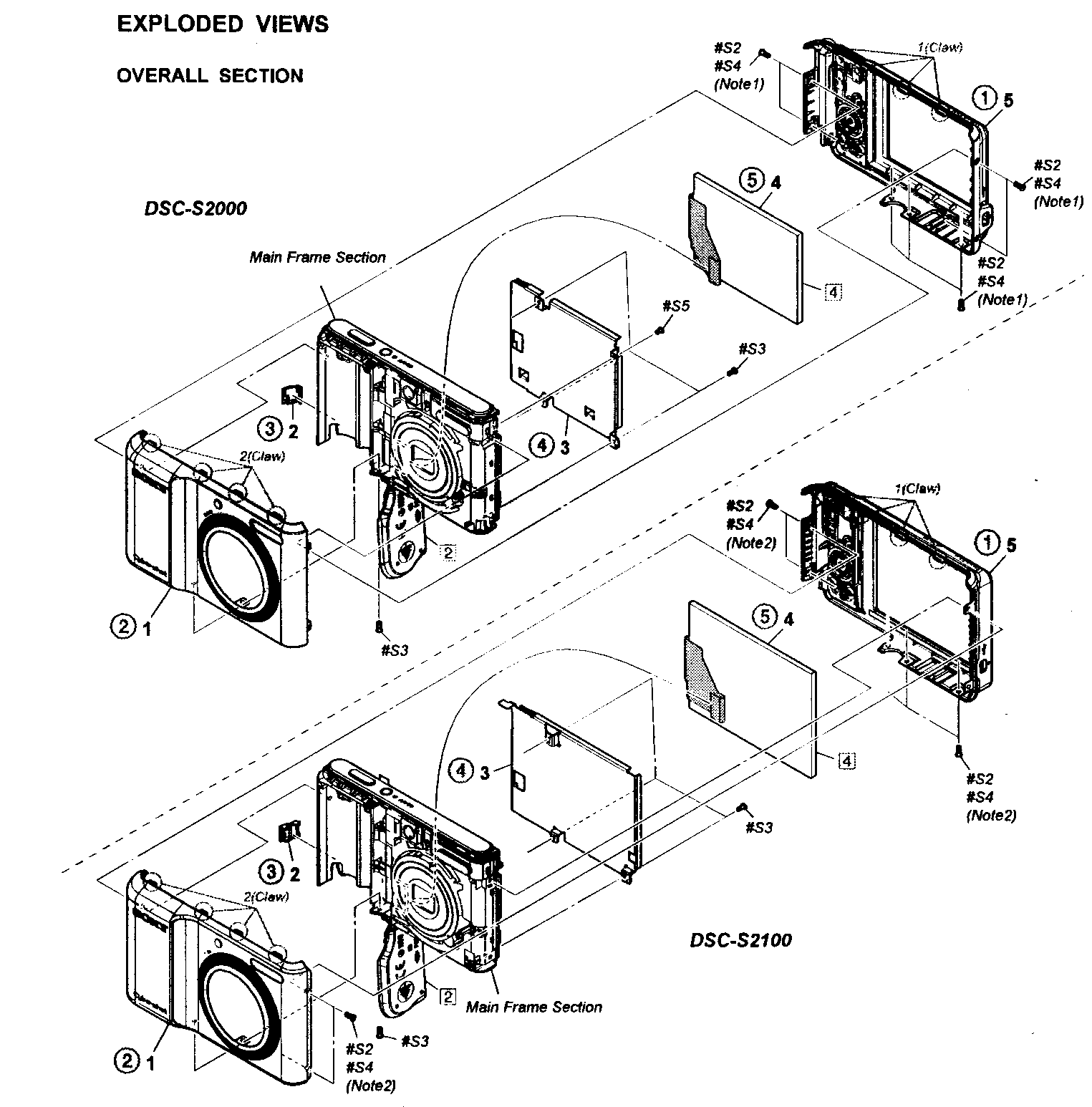

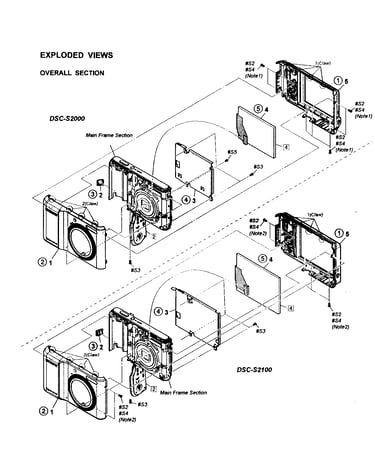

Overall assy diagram

Lcd module

Part #181110611

In Stock
Screw,tp 311300101
#S5

Overall assy diagram

Screw,tp

Part #311300101

This item is not returnable
In Stock
Cover Assembly X25463921
#52

Main frame diagram

Cover assembly

Part #X25463921

In Stock
