Model #143147022 Craftsman 4-cycle engine

Here are the diagrams and repair parts for Craftsman 143147022 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 190 parts

    Gasket Set

    #166

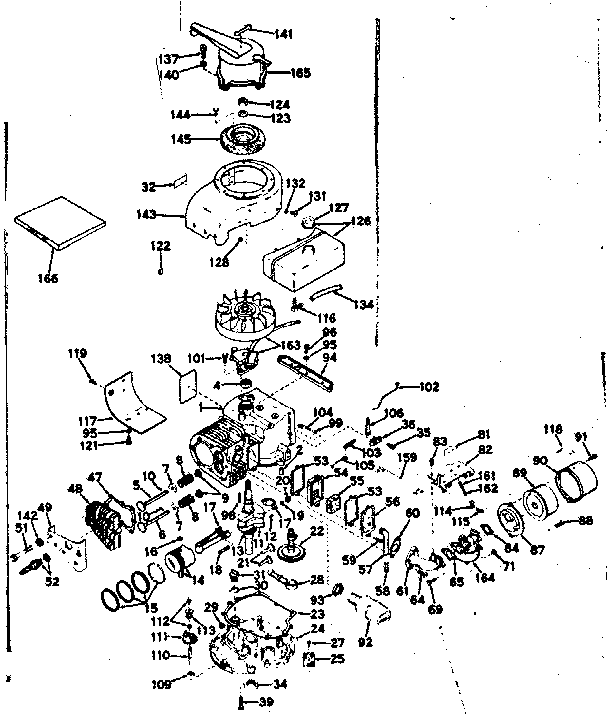

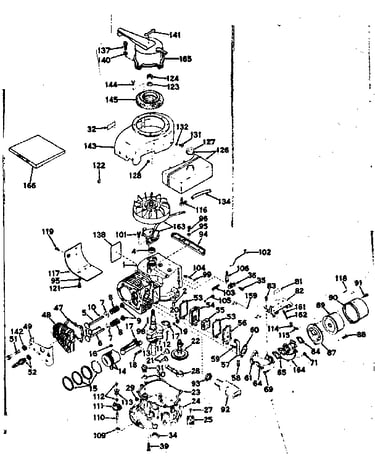

    Basic engine Diagram

    Gasket set

    Part #31372

    The manufacturer no longer makes this part, and there's no substitute part

    Gasket

    #47

    Basic engine Diagram

    Gasket

    Part #28938A

    The manufacturer no longer makes this part, and there's no substitute part

    Spacer

    #109

    Basic engine Diagram

    Spacer

    Part #31707

    The manufacturer no longer makes this part, and there's no substitute part

    /gvnr Clamp

    #36

    Basic engine Diagram

    /gvnr clamp

    Part #31335

    The manufacturer no longer makes this part, and there's no substitute part

    Element

    #89

    Basic engine Diagram

    Element

    Part #31700

    The manufacturer no longer makes this part, and there's no substitute part

    Pin

    #10

    Basic engine Diagram

    Pin

    Part #20810

    The manufacturer no longer makes this part, and there's no substitute part

    Fitting

    #116

    Basic engine Diagram

    Fitting

    Part #28584

    The manufacturer no longer makes this part, and there's no substitute part

    Gear

    #13

    Basic engine Diagram

    Gear

    Part #27884

    The manufacturer no longer makes this part, and there's no substitute part

    Needle

    #7

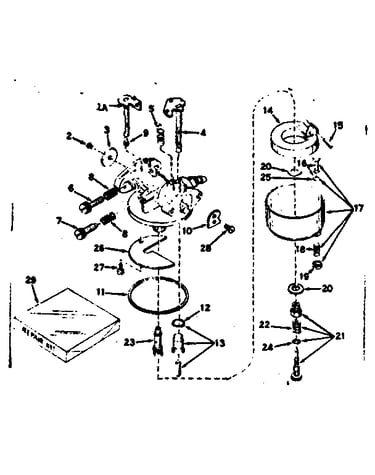

    Carburetor Diagram

    Needle

    Part #27112

    The manufacturer no longer makes this part, and there's no substitute part

    Plug

    #31

    Basic engine Diagram

    Plug

    Part #27625

    The manufacturer no longer makes this part, and there's no substitute part
