Model # 536918001 Official Craftsman 20" snow blower

Here are the diagrams and repair parts for Official Craftsman 536918001 20" snow blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

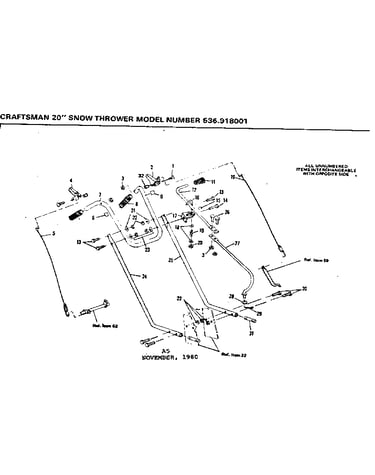

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |

Cotter Pin 121223
#32

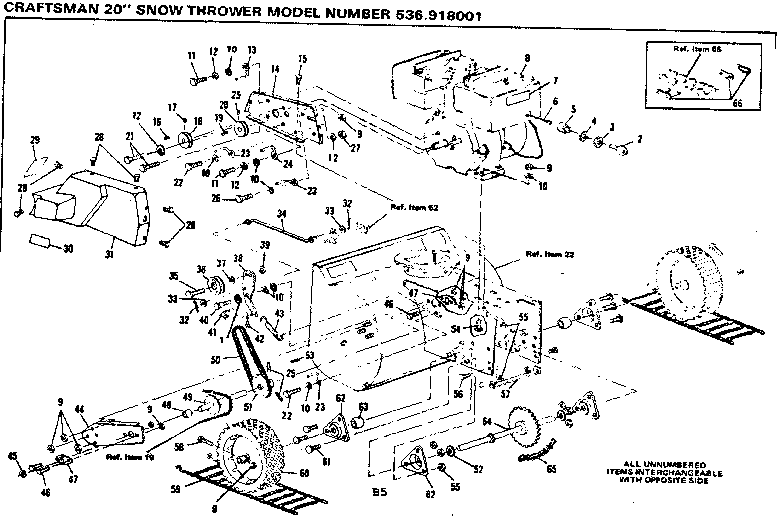

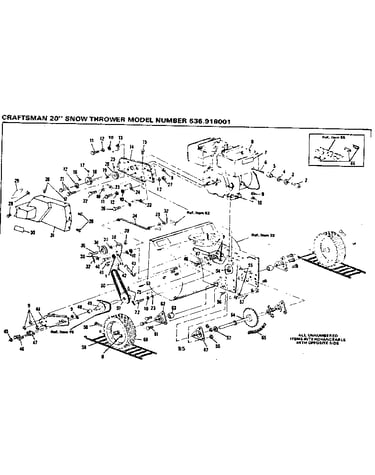

Wheel assembly diagram

Cotter pin

Part #121223

Replaced by #121223MA

?
Manufacturer substitution
This part replaces 121223. Substitute parts can look different from the original.
This item is not returnable
In Stock
Hex Head Screw 120834
Hex head screw

Part #120834

Replaced by #180073MA

?
Manufacturer substitution
This part replaces 120834. Substitute parts can look different from the original.
This item is not returnable
In Stock
Roll Pin 454565
#46

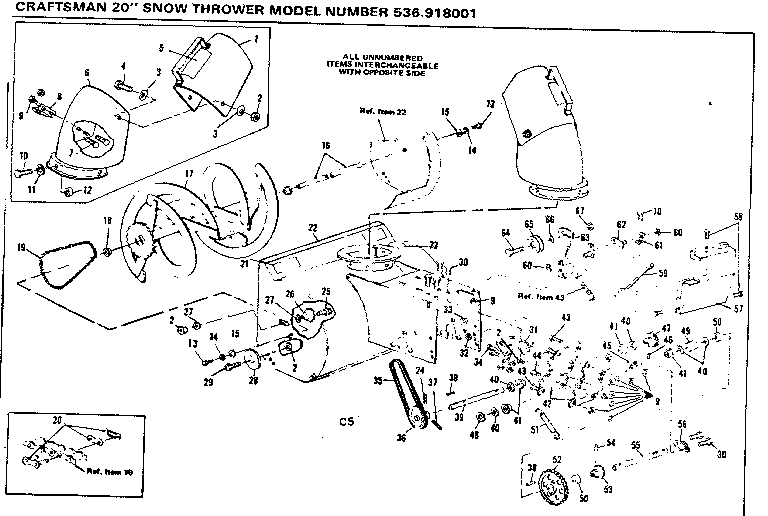

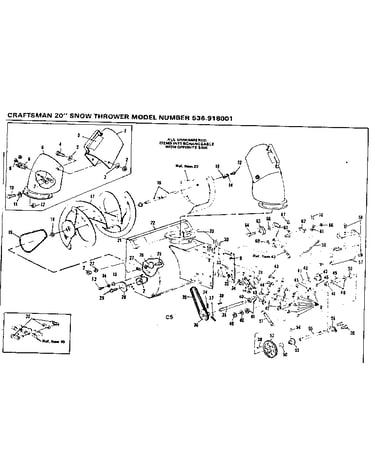

Chute and impeller diagram

Roll pin

Part #454565

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 9413447
Lock nut

Part #9413447

The manufacturer no longer makes this part, and there's no substitute part

Locknut 18 271184
#32

Chute and impeller diagram

Locknut 18

Part #271184

The manufacturer no longer makes this part, and there's no substitute part

Switch 46376
#5

Wheel assembly diagram

Switch

Part #46376

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 9424215
Lock nut

Part #9424215

Replaced by #703251

?
Manufacturer substitution
This part replaces 9424215. Substitute parts can look different from the original.
$8.07
11% OFF Phone Price : $9.07
In Stock
Flat Washer 996407
Flat washer

Part #996407

The manufacturer no longer makes this part, and there's no substitute part

Ignition Key 36285
#2

Wheel assembly diagram

Ignition key

Part #36285

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 180020
#43

Chute and impeller diagram

Cap screw

Part #180020

The manufacturer no longer makes this part, and there's no substitute part
