Model # STR-DA3400ES Official Sony receiver

Here are the diagrams and repair parts for Official Sony STR-DA3400ES receiver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

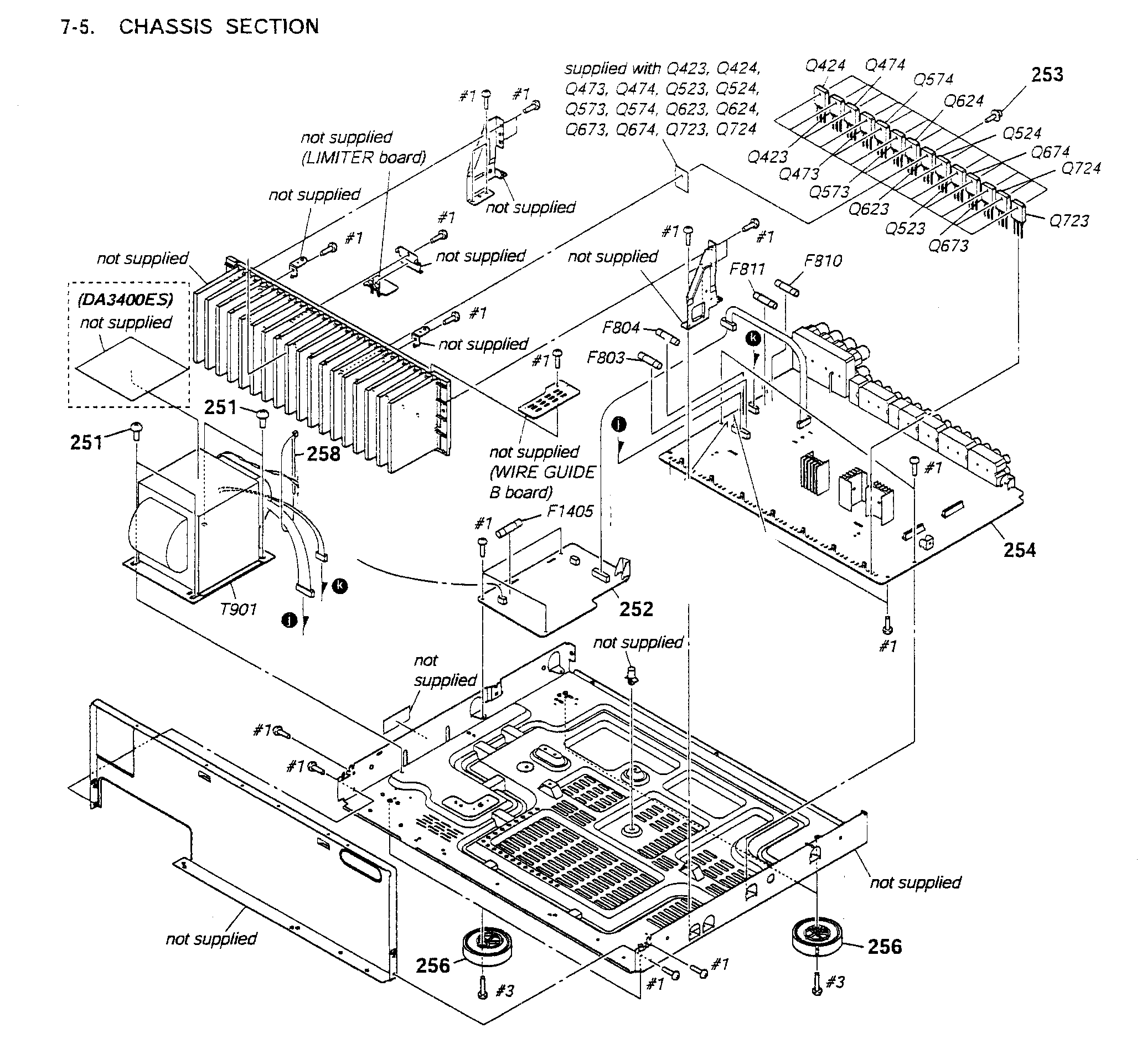

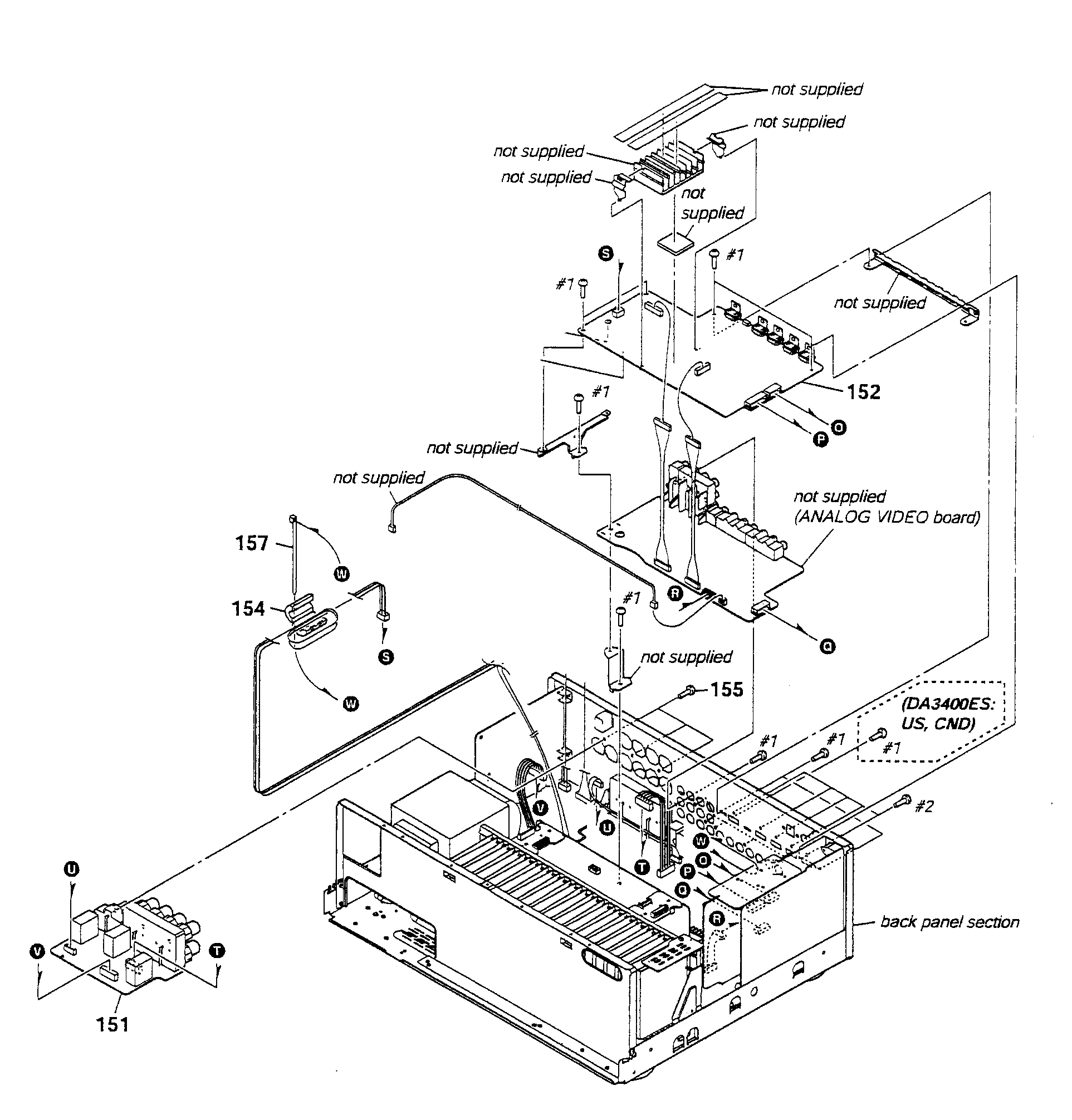

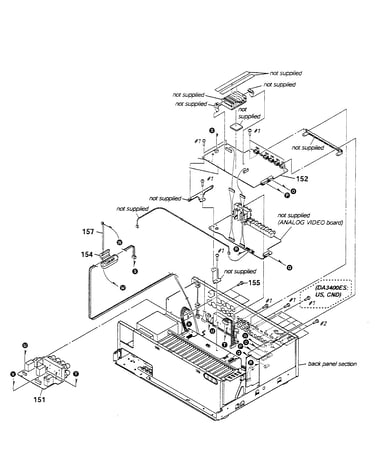

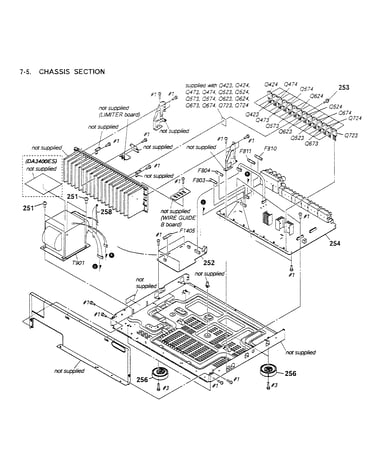

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 172 parts  |
Ic La7213 875982205
#NI

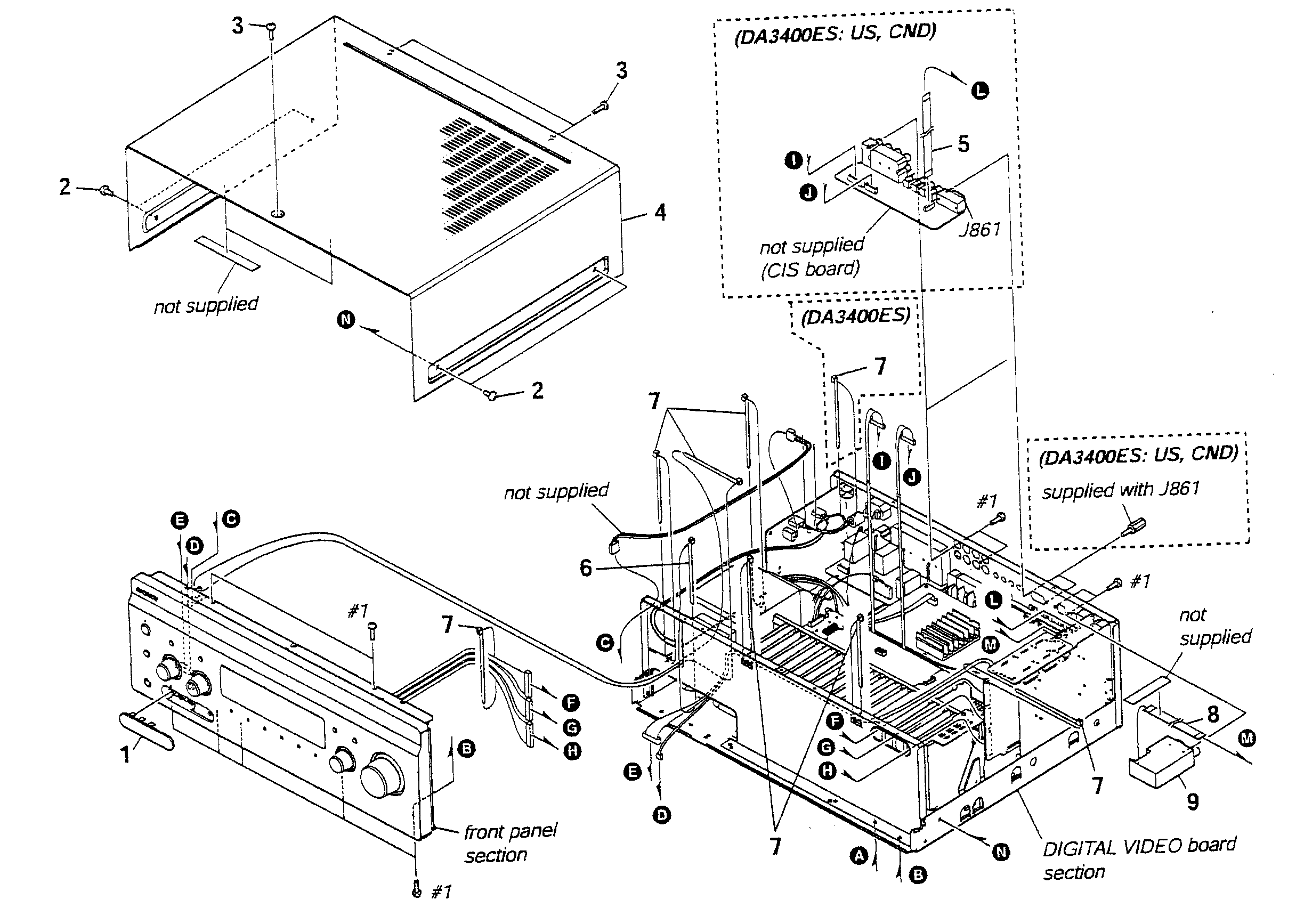

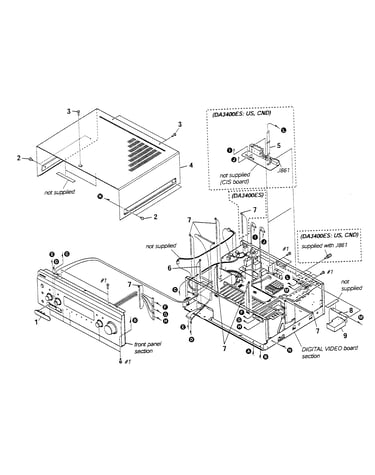

Case assy diagram

Ic la7213

Part #875982205

This item is not returnable
$5.65
In Stock
Band(taiton) 365565311
#6

Case assy diagram

Band(taiton)

Part #365565311

This item is not returnable
$2.16
In Stock
Screw 494701001
#210

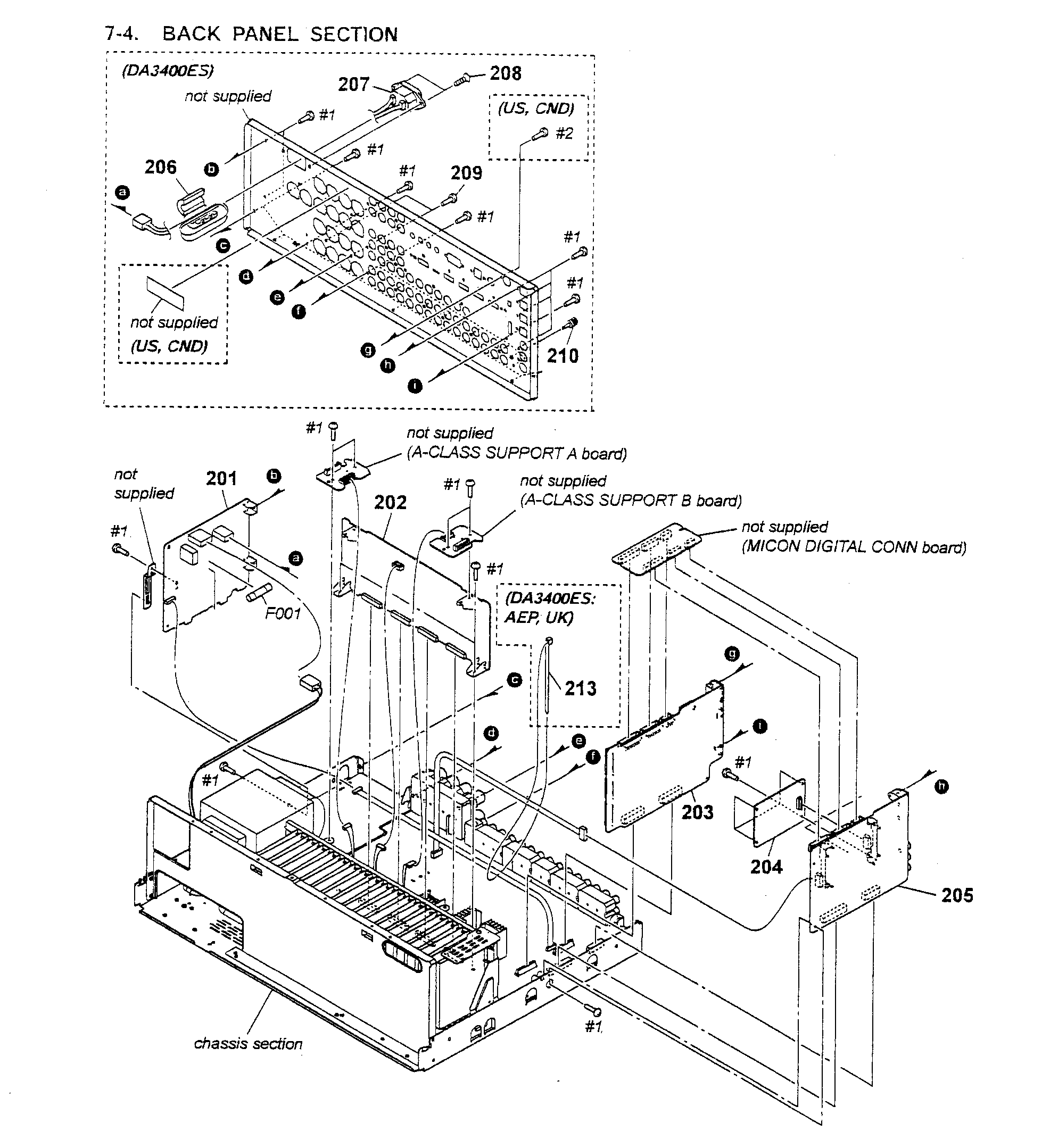

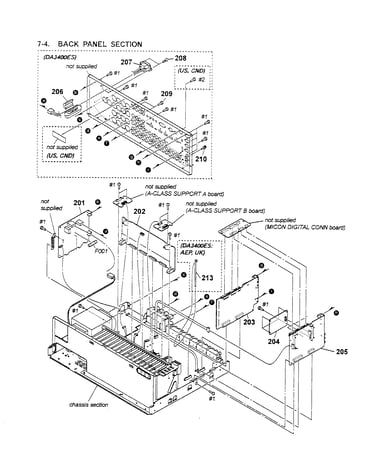

Back panel diagram

Screw

Part #494701001

This item is not returnable
$5.49
In Stock
Integrated Circuit 875952410
#NI

Case assy diagram

Integrated circuit

Part #875952410

Replaced by #875952410

?
Manufacturer substitution
This part replaces 875952410. Substitute parts can look different from the original.
$24.49
In Stock
Integrated Circuit 680822901
#NI

Case assy diagram

Integrated circuit

Part #680822901

Replaced by #680822901

?
Manufacturer substitution
This part replaces 680822901. Substitute parts can look different from the original.
$43.37
In Stock
Integrated Circuit 670551401
#NI

Case assy diagram

Integrated circuit

Part #670551401

Replaced by #670551401

?
Manufacturer substitution
This part replaces 670551401. Substitute parts can look different from the original.
$48.59
In Stock
Dsp Mt Pcb A1442420A
#58

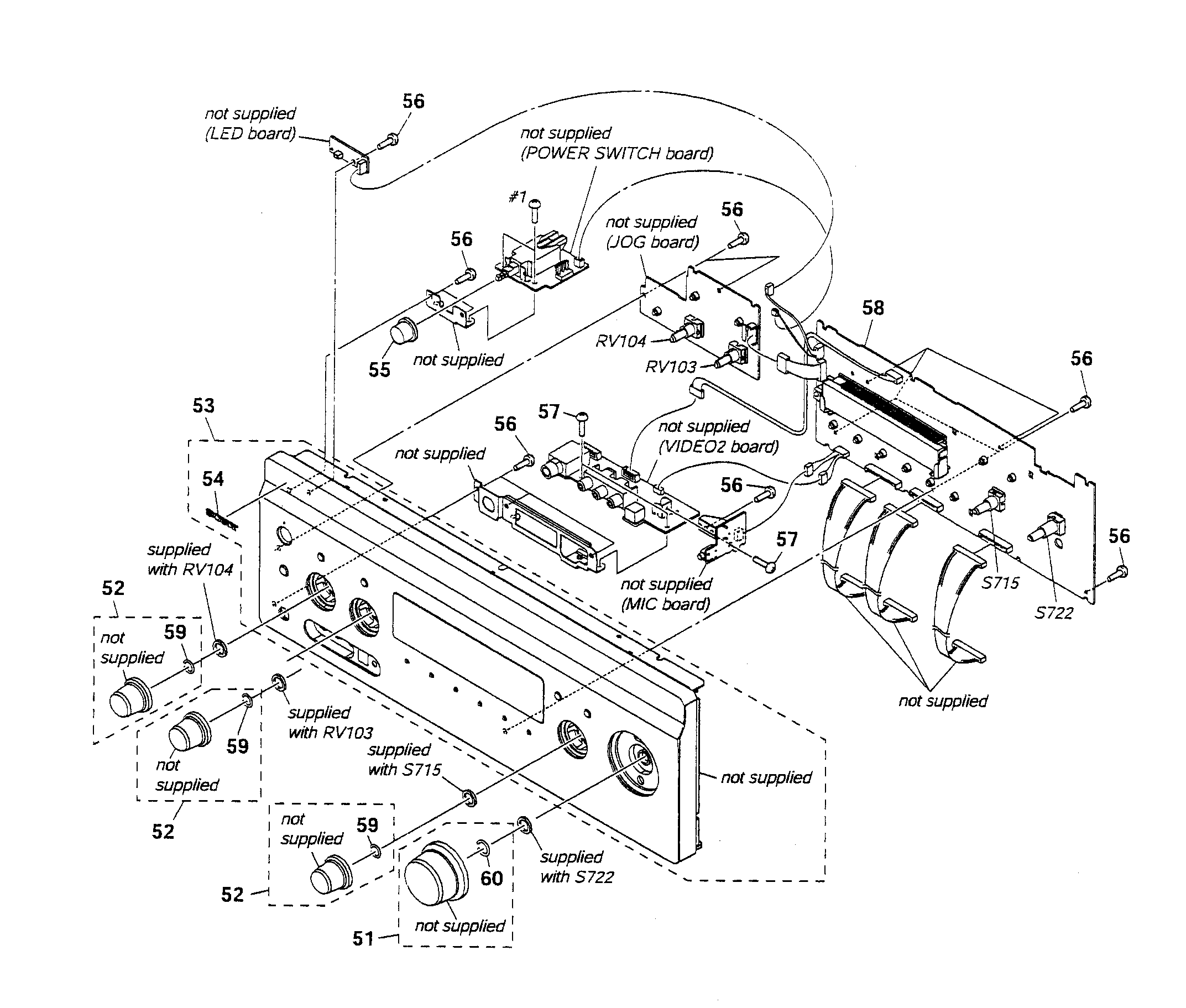

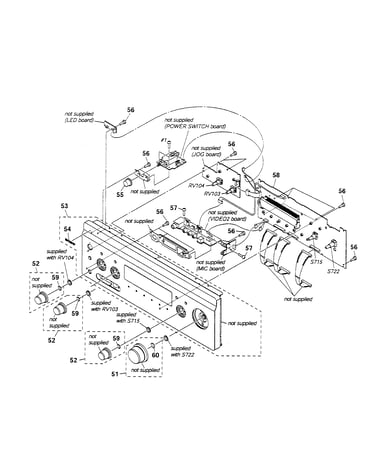

Front panel diagram

Dsp mt pcb

Part #A1442420A

Replaced by #A1442420A

?
Manufacturer substitution
This part replaces A1442420A. Substitute parts can look different from the original.
$112.20
In Stock
Integrated Circuit 875328208
#NI

Case assy diagram

Integrated circuit

Part #875328208

Replaced by #875328208

?
Manufacturer substitution
This part replaces 875328208. Substitute parts can look different from the original.
$56.70
In Stock
Integrated Circuit 670891301
#NI

Case assy diagram

Integrated circuit

Part #670891301

Replaced by #670891301

?
Manufacturer substitution
This part replaces 670891301. Substitute parts can look different from the original.
$12.67
In Stock
Connector 179318423
#NI

Case assy diagram

Connector

Part #179318423

The manufacturer no longer makes this part, and there's no substitute part
