Homelite
Hedge Trimmer

Model # HT-17 Official Homelite hedge trimmer

Here are the diagrams and repair parts for Official Homelite HT-17 hedge trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Gasket 98805
#8

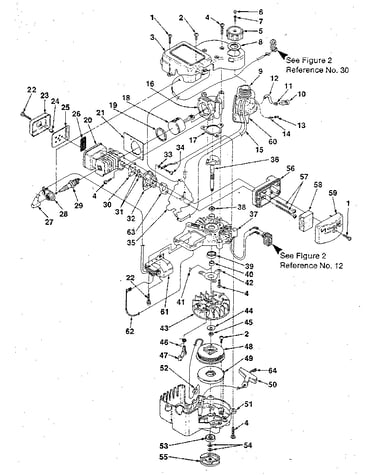

Figure 1 diagram

Gasket

Part #98805

The manufacturer no longer makes this part, and there's no substitute part

Blade Seal 00935
#25

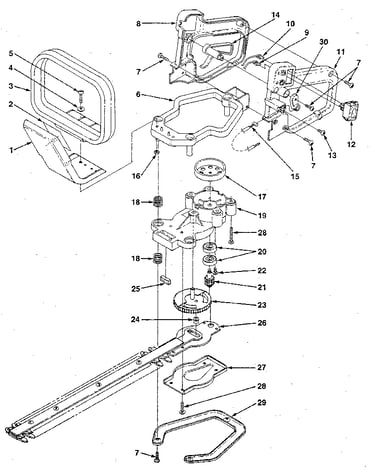

Figure 2 diagram

Blade seal

Part #00935

The manufacturer no longer makes this part, and there's no substitute part

Bushing 00955
#24

Figure 2 diagram

Bushing

Part #00955

The manufacturer no longer makes this part, and there's no substitute part

Nut 81208
Nut

Part #81208

The manufacturer no longer makes this part, and there's no substitute part

Tubing 94772-14
#12

Figure 1 diagram

Tubing

Part #94772-14

The manufacturer no longer makes this part, and there's no substitute part

Handle 00936
#3

Figure 2 diagram

Handle

Part #00936

The manufacturer no longer makes this part, and there's no substitute part

Terminal A-33055
#27

Figure 1 diagram

Terminal

Part #A-33055

The manufacturer no longer makes this part, and there's no substitute part

Heat Gasket 00932
#30

Figure 1 diagram

Heat gasket

Part #00932

The manufacturer no longer makes this part, and there's no substitute part

Crankcase Gasket 00946
#17

Figure 1 diagram

Crankcase gasket

Part #00946

The manufacturer no longer makes this part, and there's no substitute part

Module 94711-B
#61

Figure 1 diagram

Module

Part #94711-B

The manufacturer no longer makes this part, and there's no substitute part
