Kenmore
Countertop Microwave

Model #5648824581 Kenmore microwave

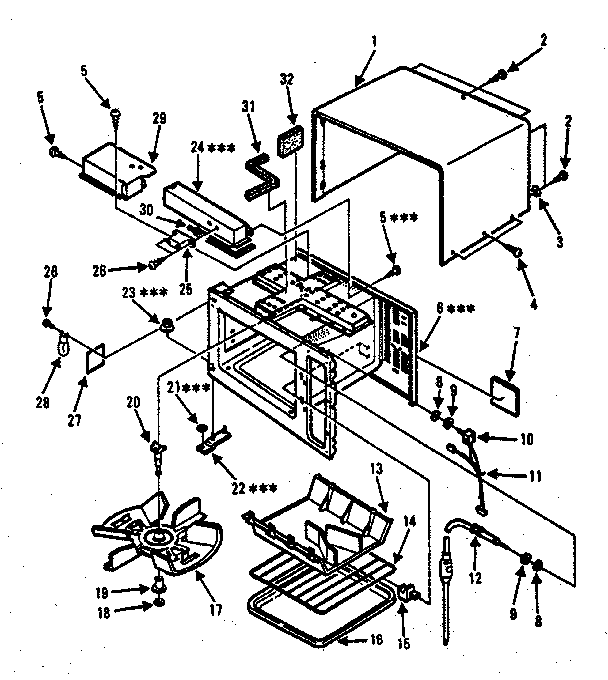

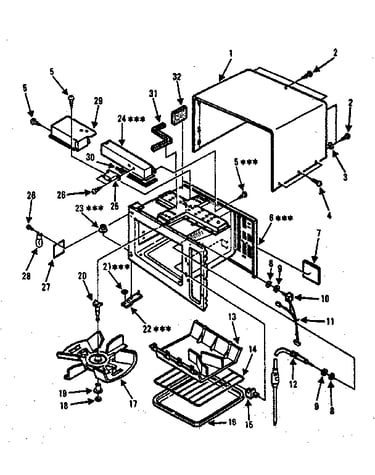

Here are the diagrams and repair parts for Kenmore 5648824581 microwave, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 172 parts

Microwave Fuse, 15-amp

#20

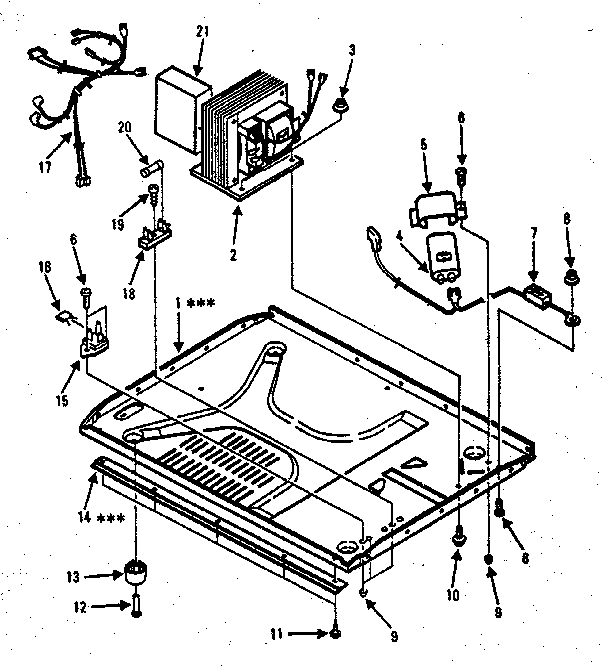

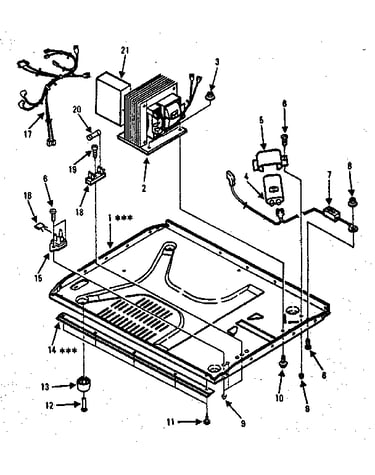

Microwave parts Diagram

Microwave fuse, 15-amp

Part #11255
This item is not returnable
$4.33

In Stock

Microwave Fuse Holder

#18

Microwave parts Diagram

$8.49

In Stock

Microwave Magnetron Thermostat

#7

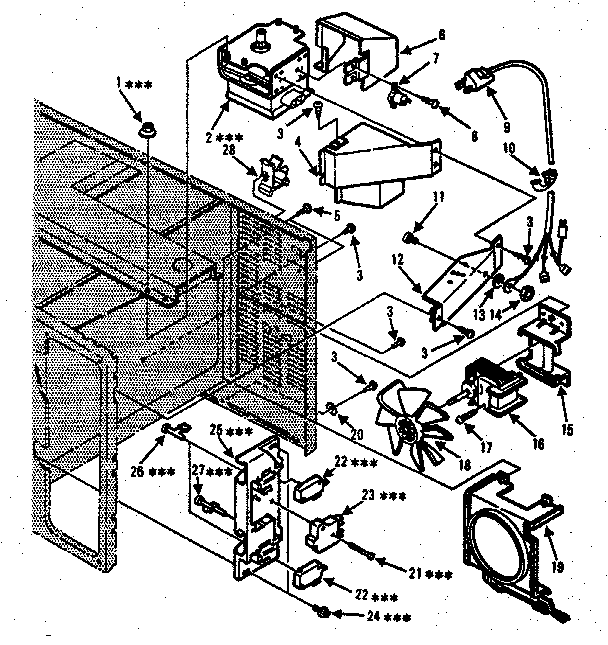

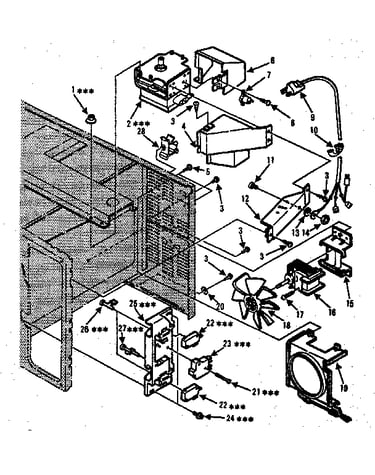

Switches and microwave parts Diagram

Microwave magnetron thermostat

Part #14531

The manufacturer no longer makes this part, and there's no substitute part

Resistor

#8E

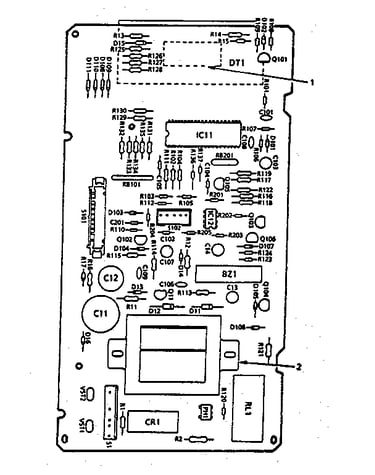

Power and control circuit board Diagram

Resistor

Part #12135

The manufacturer no longer makes this part, and there's no substitute part

Diode

#5I

Power and control circuit board Diagram

Diode

Part #13512

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Screw

#17

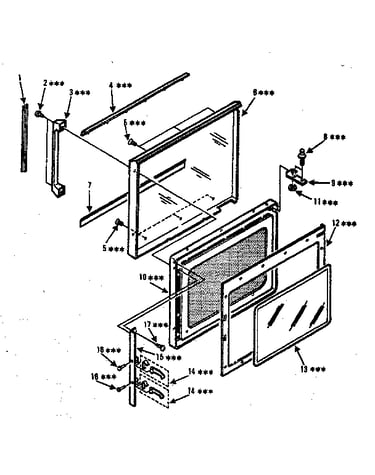

Door parts Diagram

Hex head screw

Part #10434

The manufacturer no longer makes this part, and there's no substitute part

Circuit Board

#9

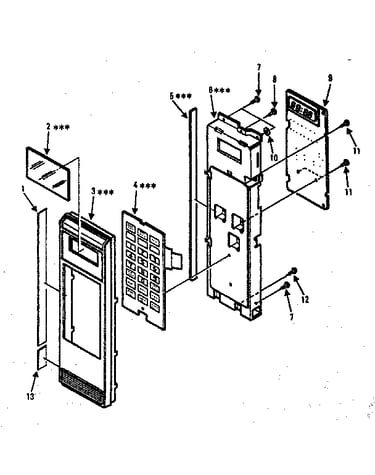

Control panel parts Diagram

Circuit board

Part #14461

The manufacturer no longer makes this part, and there's no substitute part

Micro-Switch

#22

Switches and microwave parts Diagram

Micro-switch

Part #11243

The manufacturer no longer makes this part, and there's no substitute part

Capacitor

#6G

Power and control circuit board Diagram

Capacitor

Part #12133

The manufacturer no longer makes this part, and there's no substitute part

Capacitor

#4

Microwave parts Diagram

Capacitor

Part #400238

The manufacturer no longer makes this part, and there's no substitute part
