Kenmore 79049612318 electric oven/microwave combo Parts

Here are the diagrams and repair parts for Kenmore 79049612318 electric oven/microwave combo, as well as links to manuals and error code tables, if available.

Kenmore 79049612318 electric oven/microwave combo
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 79049612318 Electric Oven/Microwave Combo

  • Frigidaire Range Oven Door Inner Glass for Kenmore 79049612318 - Part 5304503232

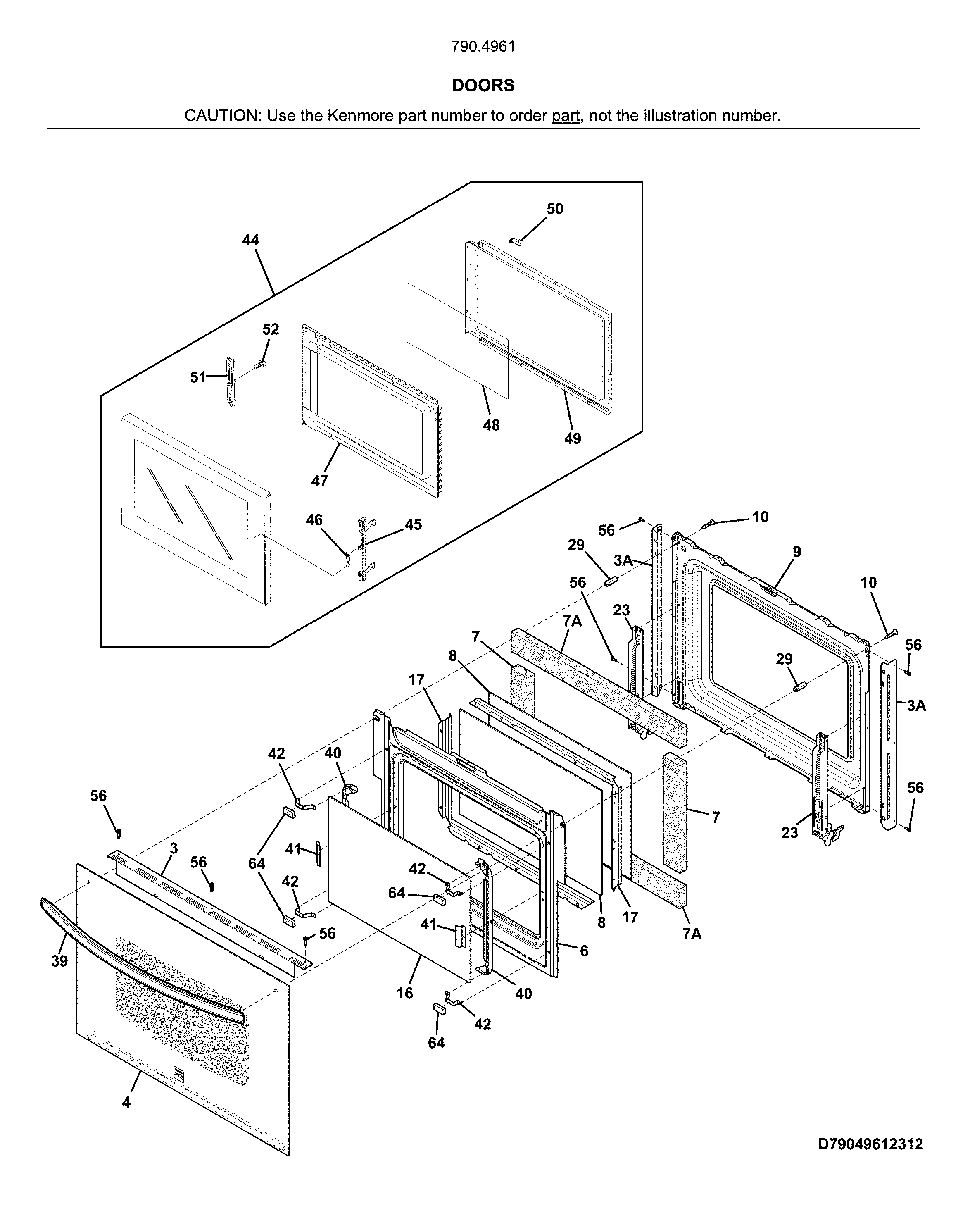

    Doors diagram

    Range Oven Door Inner Glass

    Part #316117503

    Replaced by #5304503232

    Info Icon
    Manufacturer substitution
    This part replaces 316117503. Substitute parts can look different from the original.
    In Stock
    $67.96
    8% OFF Phone Price : $73.96Info Icon
    Minus Item
    Qty
    Plus Item
  • Frigidaire Range Bake Element for Kenmore 79049612318 - Part 318601604

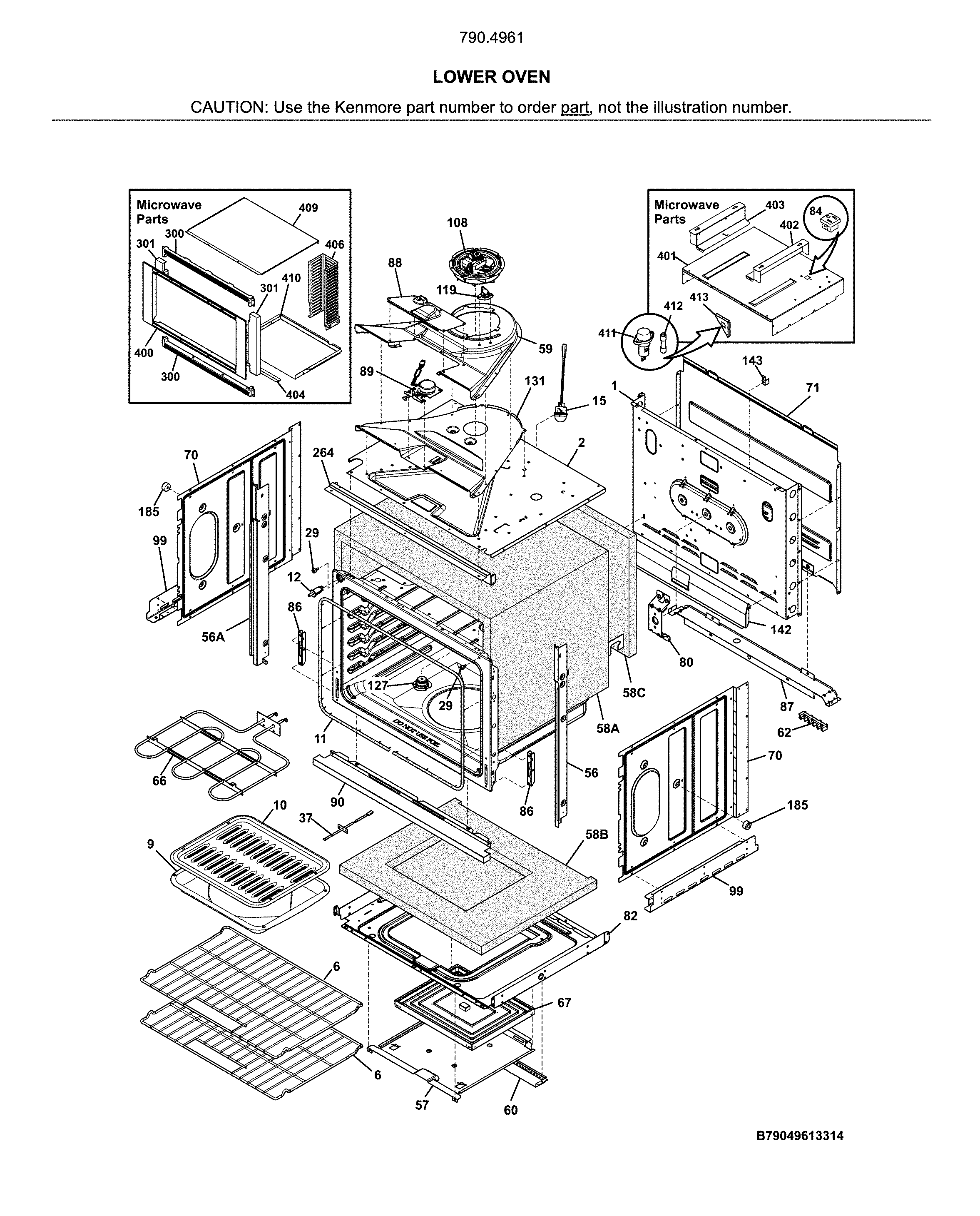

    Lower oven diagram

    Wall Oven Bake Element

    Part #808650402

    Replaced by #318601604

    Info Icon
    Manufacturer substitution
    This part replaces 808650402. Substitute parts can look different from the original.
    In Stock
    $181.57
    6% OFF Phone Price : $193.57Info Icon
    Minus Item
    Qty
    Plus Item
  • Kelvinator Range Terminal Block for Kenmore 79049612318 - Part 5304409888

    Lower oven diagram

    Terminal Block

    Part #316056000

    Replaced by #5304409888

    Info Icon
    Manufacturer substitution
    This part replaces 316056000. Substitute parts can look different from the original.
    In Stock
    $25.30
    19% OFF Phone Price : $31.30Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Release Lever for Kenmore 79049612318 - Part 5304485407

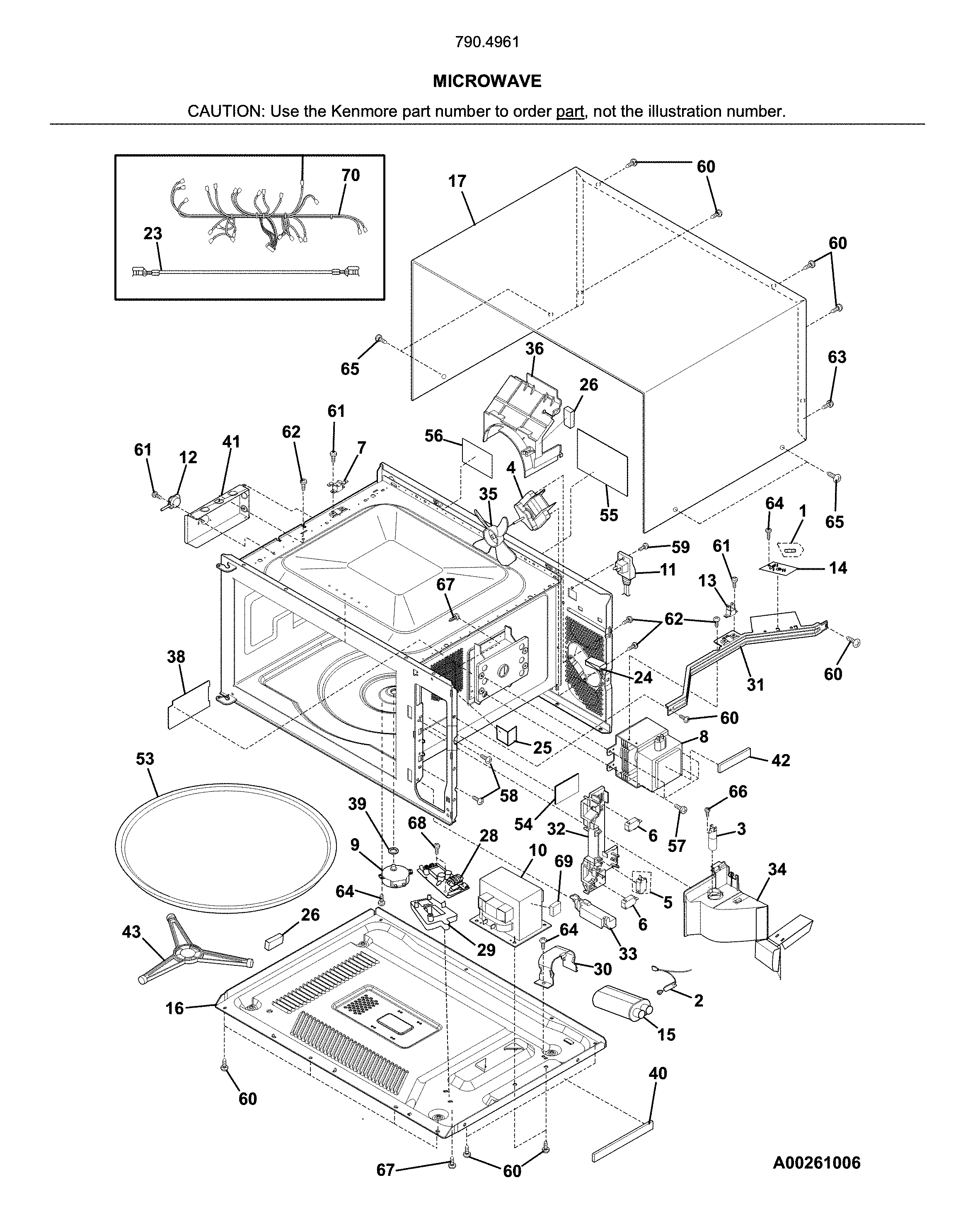

    Microwave diagram

    Lever

    Part #5304464899

    Replaced by #5304485407

    Info Icon
    Manufacturer substitution
    This part replaces 5304464899. Substitute parts can look different from the original.
    In Stock
    $54.57
    10% OFF Phone Price : $60.57Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Washer for Kenmore 79049612318 - Part 316008401

    Microwave diagram

    Range Washer

    Part #316008401
    In Stock
    $14.45
    12% OFF Phone Price : $16.45Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Control Panel Cooling Fan for Kenmore 79049612318 - Part 318575612

    Lower oven diagram

    Range Control Panel Cooling Fan

    Part #318575612
    In Stock
    $174.67
    6% OFF Phone Price : $186.67Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Element for Kenmore 79049612318 - Part 5304521498

    Lower oven diagram

    Range Broil Element

    Part #139008900

    Replaced by #5304521498

    Info Icon
    Manufacturer substitution
    This part replaces 139008900. Substitute parts can look different from the original.
    In Stock
    $68.97
    8% OFF Phone Price : $74.97Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Door Outer Glass for Kenmore 79049612318 - Part 316446401

    Doors diagram

    Range Oven Door Outer Glass

    Part #316446400

    Replaced by #316446401

    Info Icon
    Manufacturer substitution
    This part replaces 316446400. Substitute parts can look different from the original.
    In Stock
    $67.99
    24% OFF Was : $89.35Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Microwave Fuse And Holder for Kenmore 79049612318 - Part 318647300

    Lower oven diagram

    Holder

    Part #318576200

    Replaced by #318647300

    Info Icon
    Manufacturer substitution
    This part replaces 318576200. Substitute parts can look different from the original.
    In Stock
    $139.25
    8% OFF Phone Price : $151.25Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Microwave Fuse And Holder for Kenmore 79049612318 - Part 318647300

    Lower oven diagram

    Fuse

    Part #318576100

    Replaced by #318647300

    Info Icon
    Manufacturer substitution
    This part replaces 318576100. Substitute parts can look different from the original.
    In Stock
    $139.25
    8% OFF Phone Price : $151.25Info Icon
    Minus Item
    Qty
    Plus Item

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Range Trim 318276351

Range Trim

Part #318276351
In Stock
$115.74
Minus Item
Qty
Plus Item
Range Trim 318276350

Range Trim

Part #318276350
In Stock
$115.74
Minus Item
Qty
Plus Item
