Whirlpool WTW8500DR3 washer

Whirlpool WTW8500DR3 washer Parts

Here are the diagrams and repair parts for Whirlpool WTW8500DR3 washer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for WTW8500DR3 Washer

  • Whirlpool Washer Clutch Kit for Whirlpool WTW8500DR3 - Part W10734521

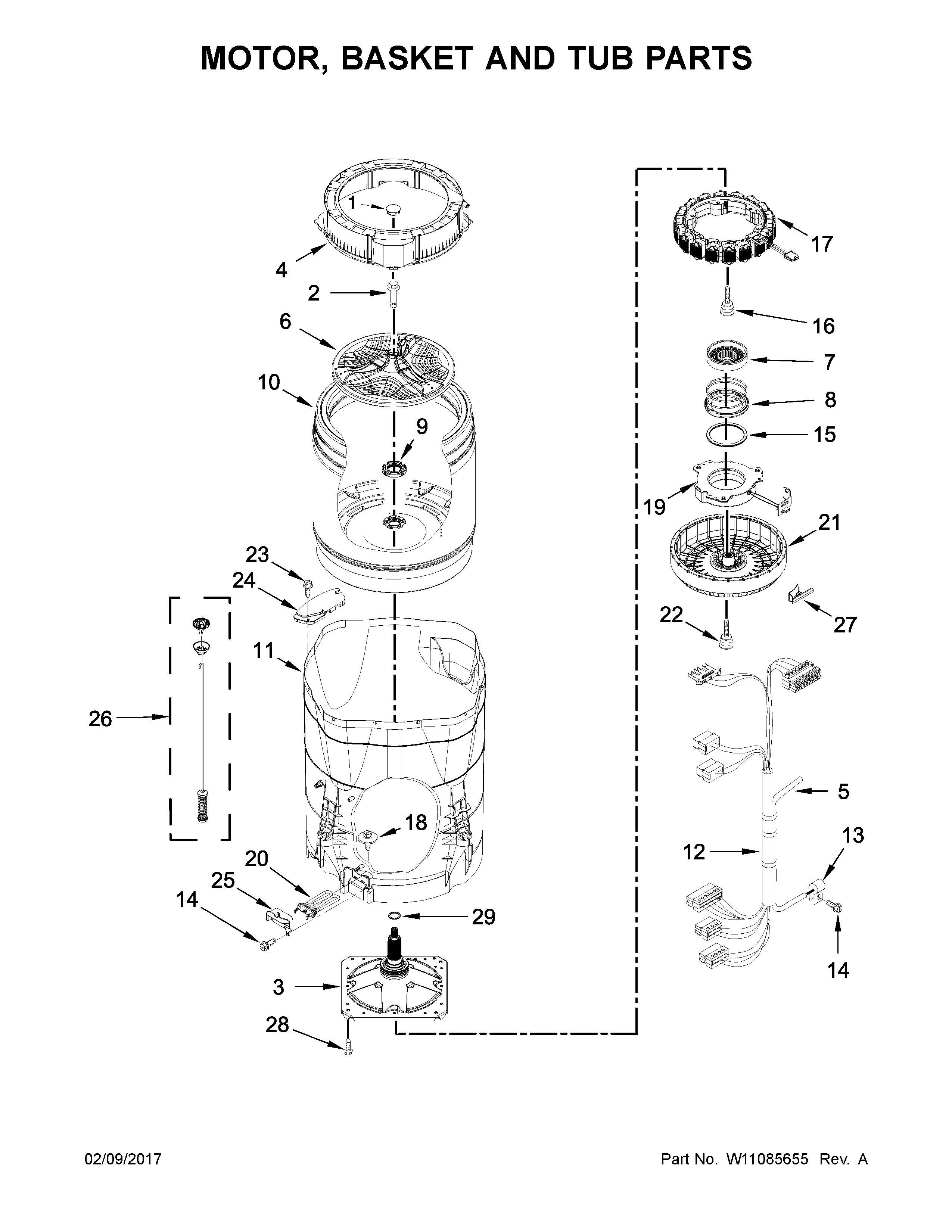

    Motor, basket and tub parts diagram

    30mm Spiral

    Part #W10275082

    Replaced by #W10734521

    Info Icon
    Manufacturer substitution
    This part replaces W10275082. Substitute parts can look different from the original.
    In Stock
    $42.53
    12% OFF Phone Price : $48.53Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Washer Clutch Kit for Whirlpool WTW8500DR3 - Part W10734521

    Motor, basket and tub parts diagram

    Spring Support

    Part #W10006494

    Replaced by #W10734521

    Info Icon
    Manufacturer substitution
    This part replaces W10006494. Substitute parts can look different from the original.
    In Stock
    $42.53
    12% OFF Phone Price : $48.53Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Washer Clutch Kit for Whirlpool WTW8500DR3 - Part W10734521

    Motor, basket and tub parts diagram

    Slider

    Part #W10447975

    Replaced by #W10734521

    Info Icon
    Manufacturer substitution
    This part replaces W10447975. Substitute parts can look different from the original.
    In Stock
    $42.53
    12% OFF Phone Price : $48.53Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Washer Water Inlet Valve for Whirlpool WTW8500DR3 - Part W11165546

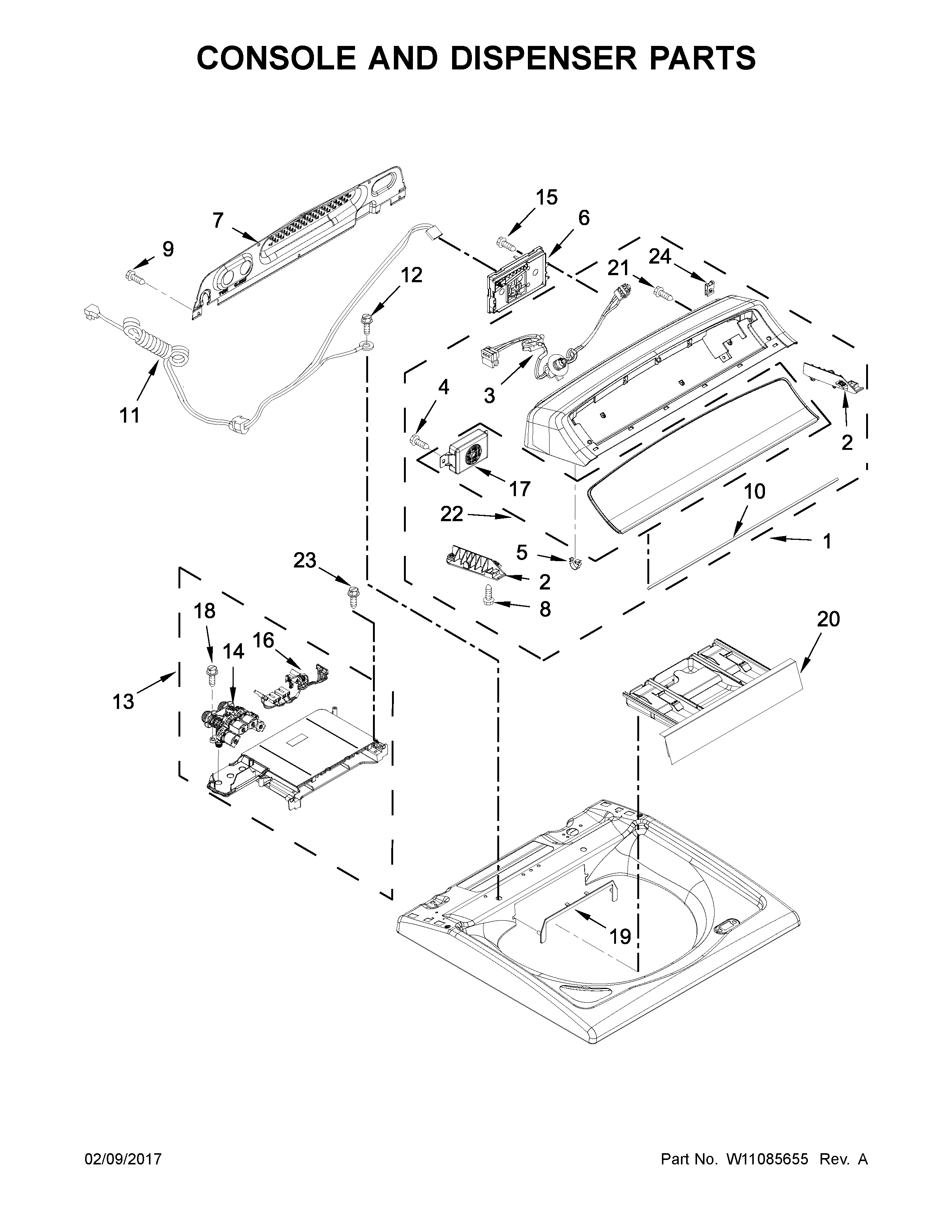

    Console and dispenser parts diagram

    Washer Water Inlet Valve

    Part #W10758828

    Replaced by #W11165546

    Info Icon
    Manufacturer substitution
    This part replaces W10758828. Substitute parts can look different from the original.
    In Stock
    $64.63
    8% OFF Phone Price : $70.63Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Washer Gear Case for Whirlpool WTW8500DR3 - Part W11393685

    Motor, basket and tub parts diagram

    Drive Assembly

    Part #W10868473

    Replaced by #W11393685

    Info Icon
    Manufacturer substitution
    This part replaces W10868473. Substitute parts can look different from the original.
    In Stock
    $189.57
    6% OFF Phone Price : $201.57Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Washer Lid Lock Assembly for Whirlpool WTW8500DR3 - Part W10810403

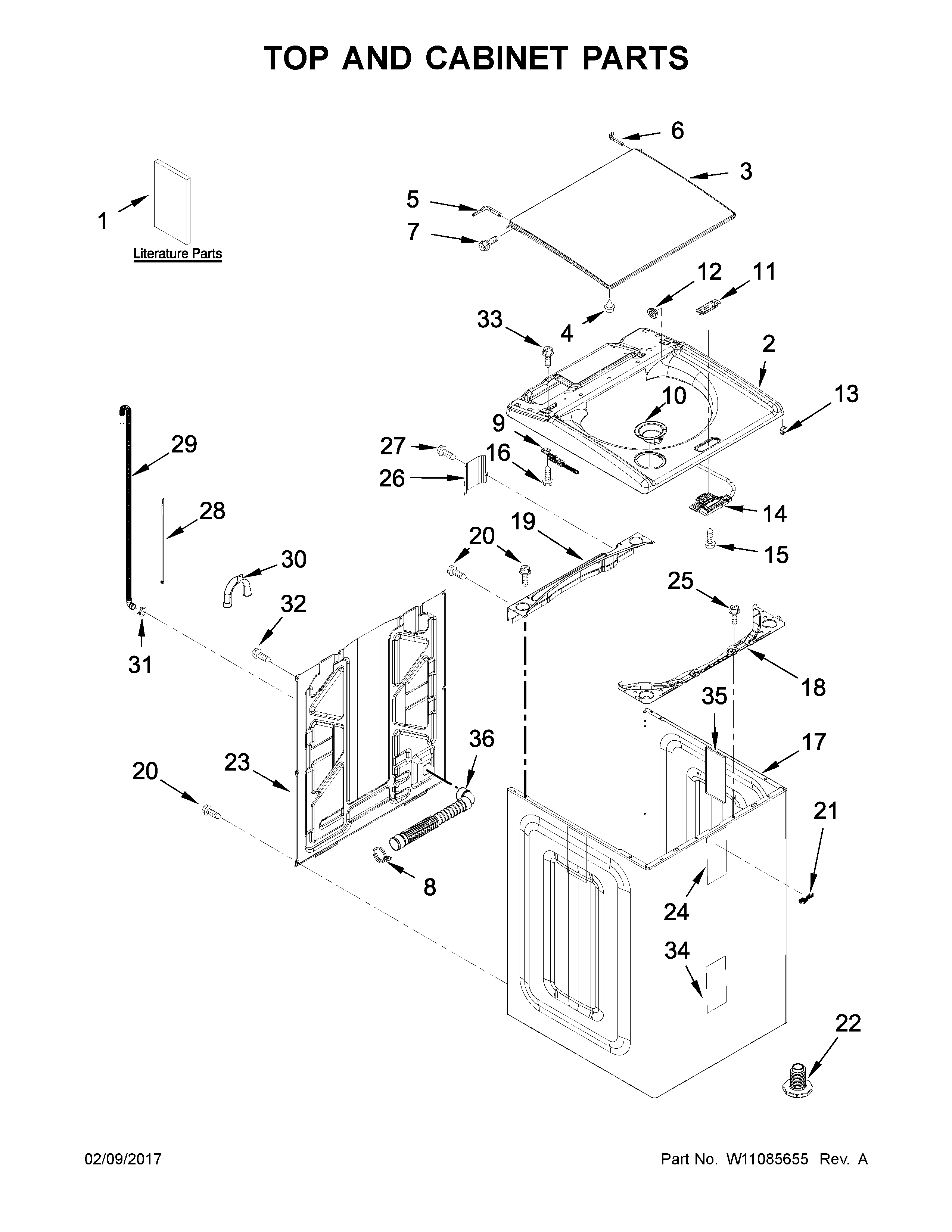

    Top and cabinet parts diagram

    Washer Lid Lock Assembly

    Part #W10787878

    Replaced by #W10810403

    Info Icon
    Manufacturer substitution
    This part replaces W10787878. Substitute parts can look different from the original.
    In Stock
    $90.61
    6% OFF Phone Price : $96.61Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Washer Clutch for Whirlpool WTW8500DR3 - Part W10754448

    Motor, basket and tub parts diagram

    Clutch Coil

    Part #W10447973

    Replaced by #W10754448

    Info Icon
    Manufacturer substitution
    This part replaces W10447973. Substitute parts can look different from the original.
    In Stock
    $102.26
    11% OFF Phone Price : $114.26Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Washplate Screw for Whirlpool WTW8500DR3 - Part W10752187

    Motor, basket and tub parts diagram

    Washer Washplate Screw

    Part #W10625252

    Replaced by #W10752187

    Info Icon
    Manufacturer substitution
    This part replaces W10625252. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.18
    19% OFF Phone Price : $5.18Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Washer Drain Pump for Whirlpool WTW8500DR3 - Part W10876600

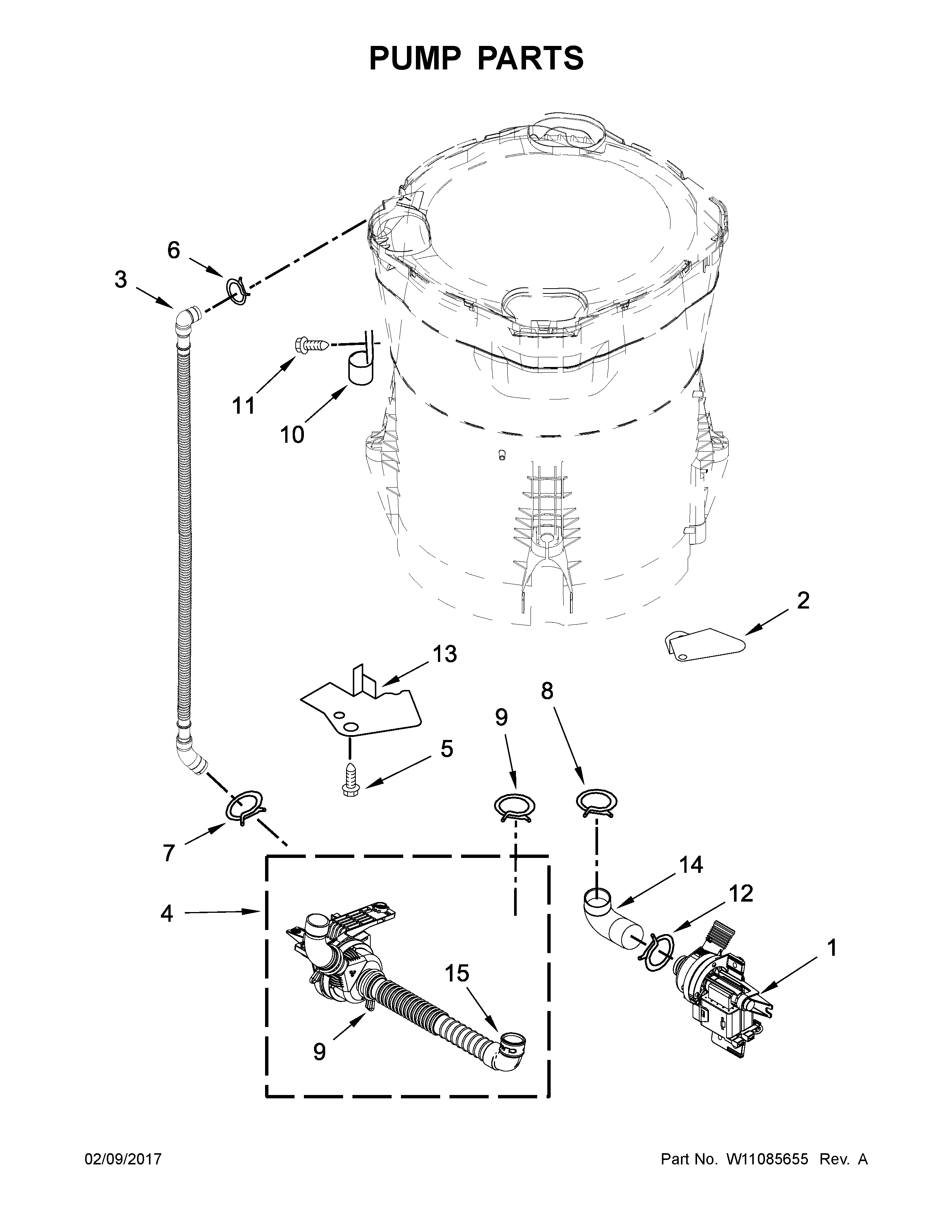

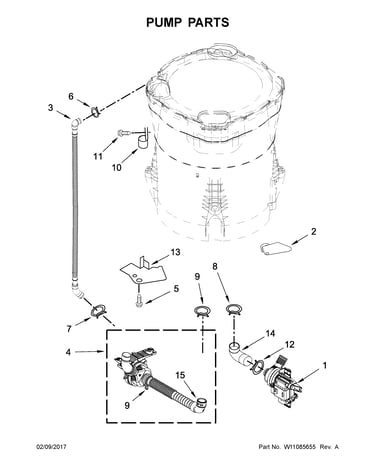

    Pump parts diagram

    Washer Drain Pump

    Part #W10727777

    Replaced by #W10876600

    Info Icon
    Manufacturer substitution
    This part replaces W10727777. Substitute parts can look different from the original.
    In Stock
    $97.72
    11% OFF Phone Price : $109.72Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Washer Suspension Rod Kit for Whirlpool WTW8500DR3 - Part W11130356

    Motor, basket and tub parts diagram

    Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls)

    Part #W10901058

    Replaced by #W11130356

    Info Icon
    Manufacturer substitution
    This part replaces W10901058. Substitute parts can look different from the original.
    In Stock
    $100.31
    11% OFF Phone Price : $112.31Info Icon
    Minus Item
    Qty
    Plus Item
