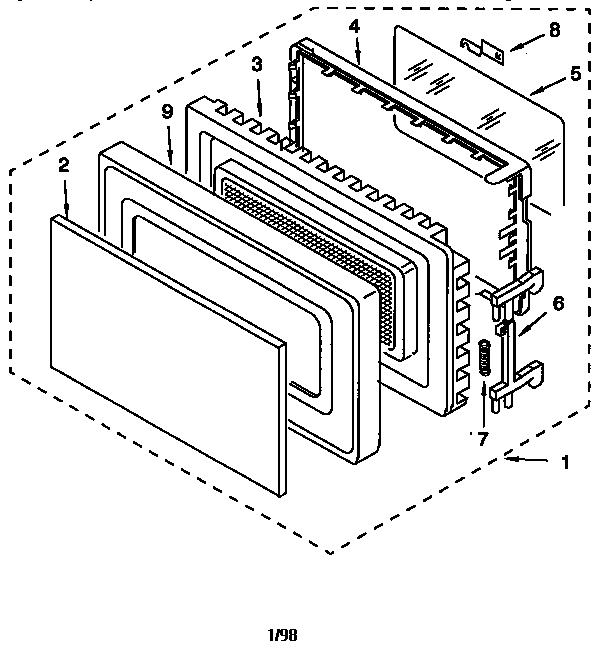

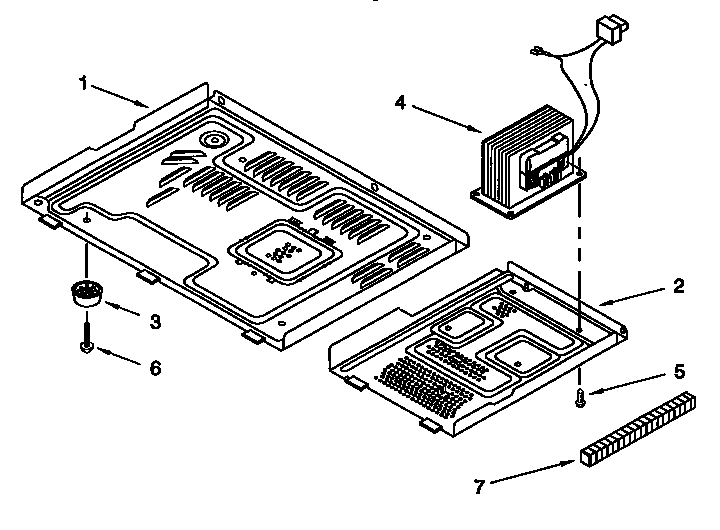

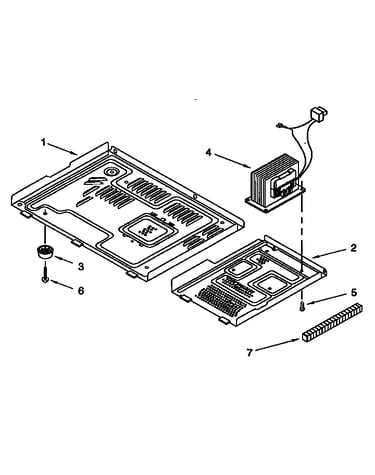

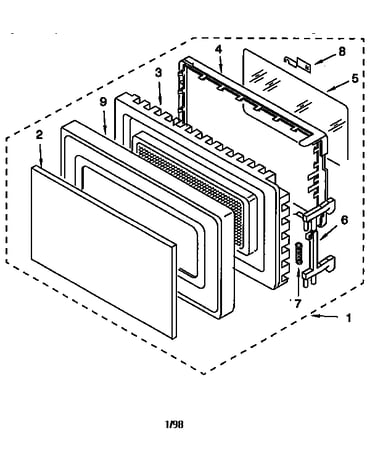

Model #MT1071SGB0 Whirlpool compact microwave

Here are the diagrams and repair parts for Whirlpool MT1071SGB0 compact microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 71 parts

    Support

    #8

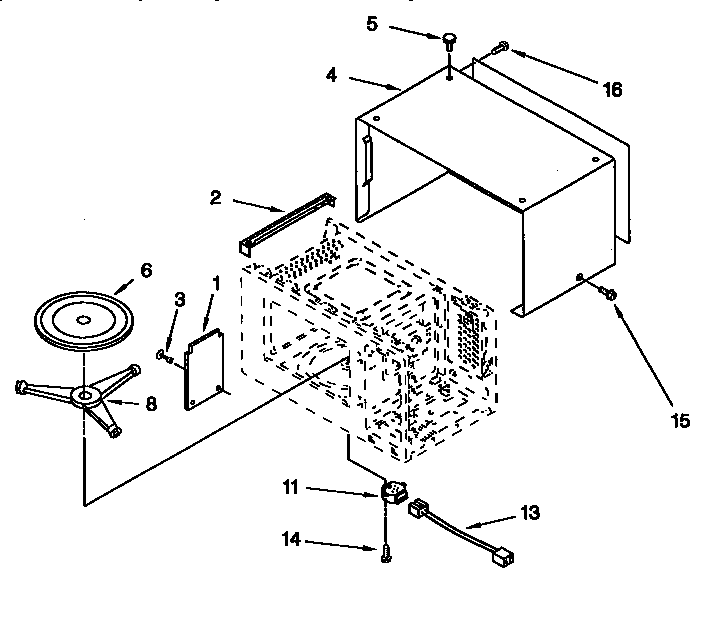

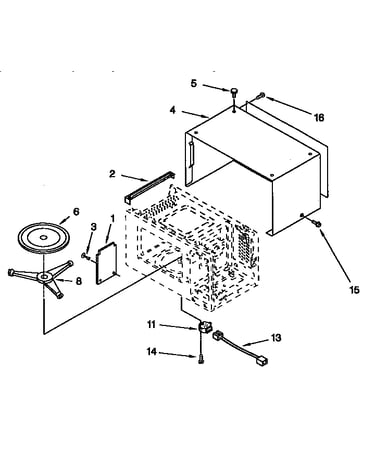

    Oven cavity Diagram

    Support

    Part #4359723
    $49.29

    In Stock

    Microwave High-Voltage Diode

    #8

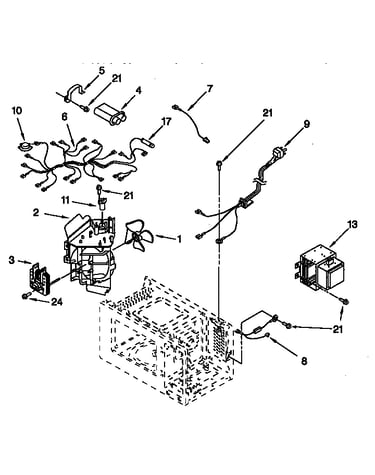

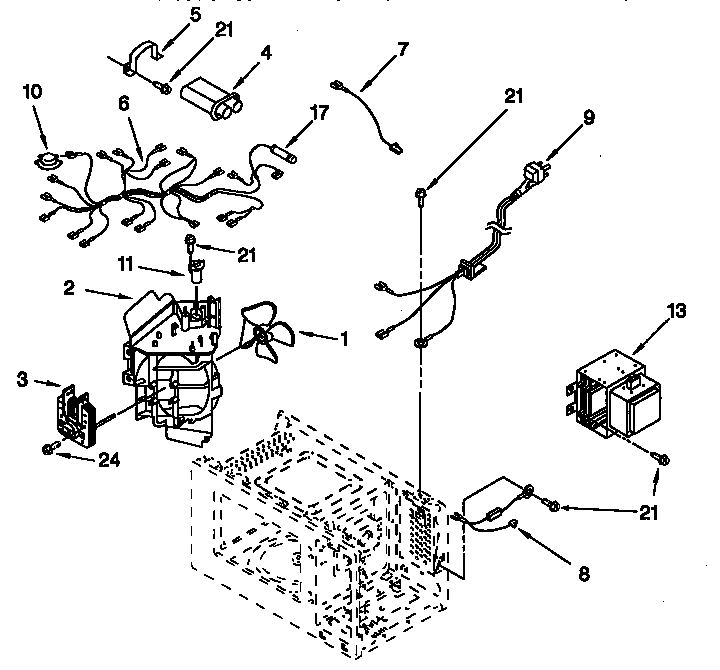

    Oven interior Diagram

    Microwave high-voltage diode

    Part #WP8205489
    ?
    Manufacturer substitution
    This part replaces 4359502. Substitute parts can look different from the original.
    This part replaces 4359502
    $22.99 |
    18% OFF MSRP:$28.00

    In Stock

    Screw

    #21

    Oven interior Diagram

    Screw

    Part #4344826
    ?
    Manufacturer substitution
    This part replaces 4358489. Substitute parts can look different from the original.
    This part replaces 4358489
    $12.49

    In Stock

    Microwave Screw

    #14

    Oven cavity Diagram

    Microwave screw

    Part #WP4158079
    ?
    Manufacturer substitution
    This part replaces 4358188. Substitute parts can look different from the original.
    This part replaces 4358188
    This item is not returnable
    $2.19

    In Stock

    Microwave Door Primary Interlock Switch

    #5

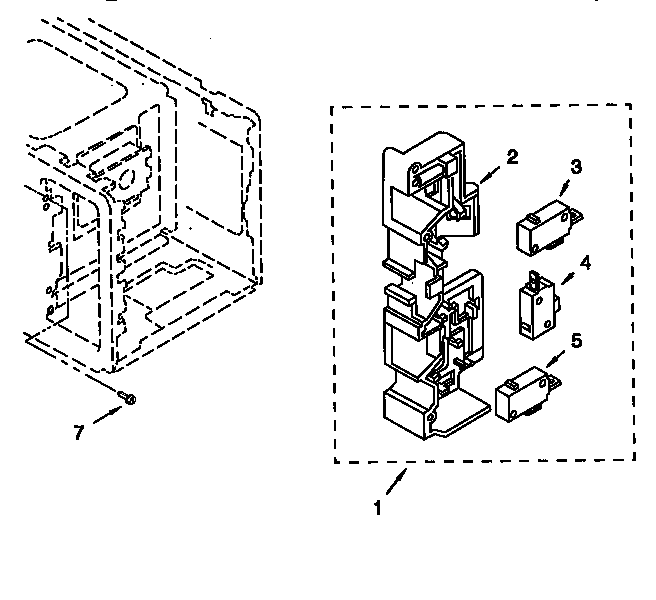

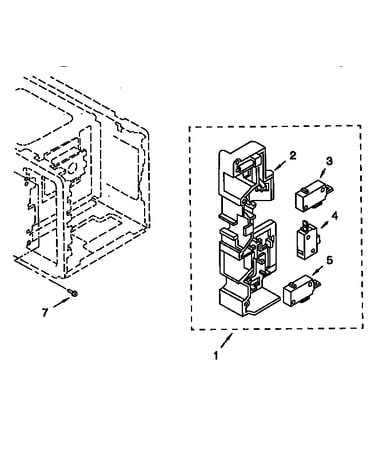

    Latch board Diagram

    Microwave door primary interlock switch

    Part #4392027
    ?
    Manufacturer substitution
    This part replaces 4158769. Substitute parts can look different from the original.
    This part replaces 4158769
    $52.99 |
    25% OFF MSRP:$71.00

    Back Order

    Microwave Screw

    #10

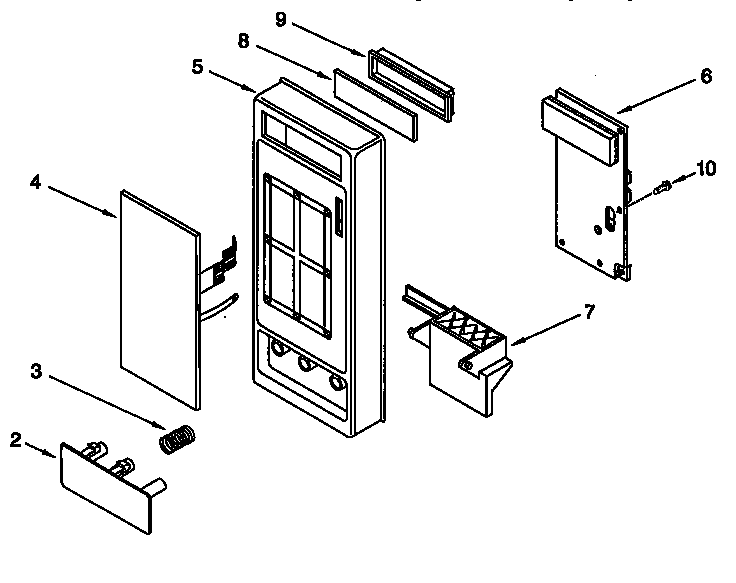

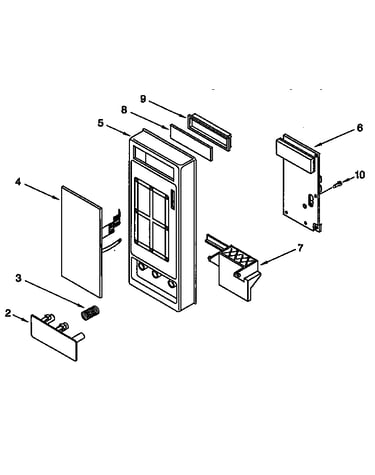

    Control panel Diagram

    Microwave screw

    Part #WP4158079
    ?
    Manufacturer substitution
    This part replaces 4358883. Substitute parts can look different from the original.
    This part replaces 4358883
    This item is not returnable
    $2.19

    In Stock

    Spring

    #3

    Control panel Diagram

    Spring

    Part #WP4158178
    ?
    Manufacturer substitution
    This part replaces 4158178. Substitute parts can look different from the original.
    This part replaces 4158178
    This item is not returnable
    $6.09

    In Stock

    Tray

    #6

    Oven cavity Diagram

    Tray

    Part #WP8205098
    ?
    Manufacturer substitution
    This part replaces 4359722. Substitute parts can look different from the original.
    This part replaces 4359722
    $57.89

    In Stock

    Microwave Screw

    #16

    Oven cavity Diagram

    Microwave screw

    Part #W11380570
    ?
    Manufacturer substitution
    This part replaces 4358192. Substitute parts can look different from the original.
    This part replaces 4358192
    $8.19

    In Stock

    Microwave Door Primary Interlock Switch

    #4

    Latch board Diagram

    Microwave door primary interlock switch

    Part #4392027
    ?
    Manufacturer substitution
    This part replaces 4158941. Substitute parts can look different from the original.
    This part replaces 4158941
    $52.99 |
    25% OFF MSRP:$71.00

    Back Order
