Craftsman
Water Pump

Model # 3902521 Official Craftsman pump

Here are the diagrams and repair parts for Official Craftsman 3902521 pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Pump Housing O-ring (replaces U9-200) U9-399
#6

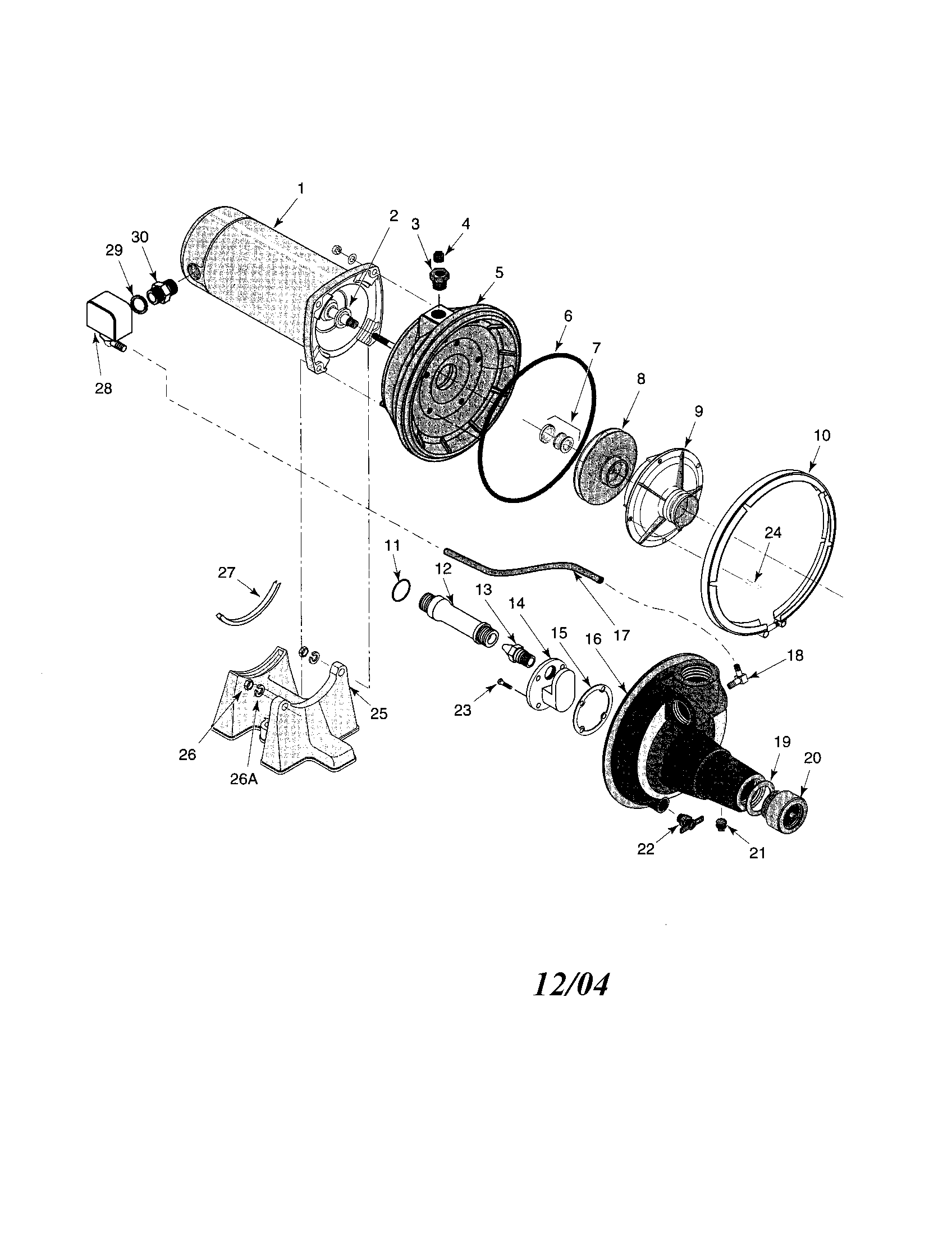

Pump only diagram

Pump housing o-ring (replaces u9-200)

Part #U9-399

This item is not returnable
$23.49 |
18% OFF Phone Price : $28.49
In Stock
Hose Clamp U19-55SS
#5

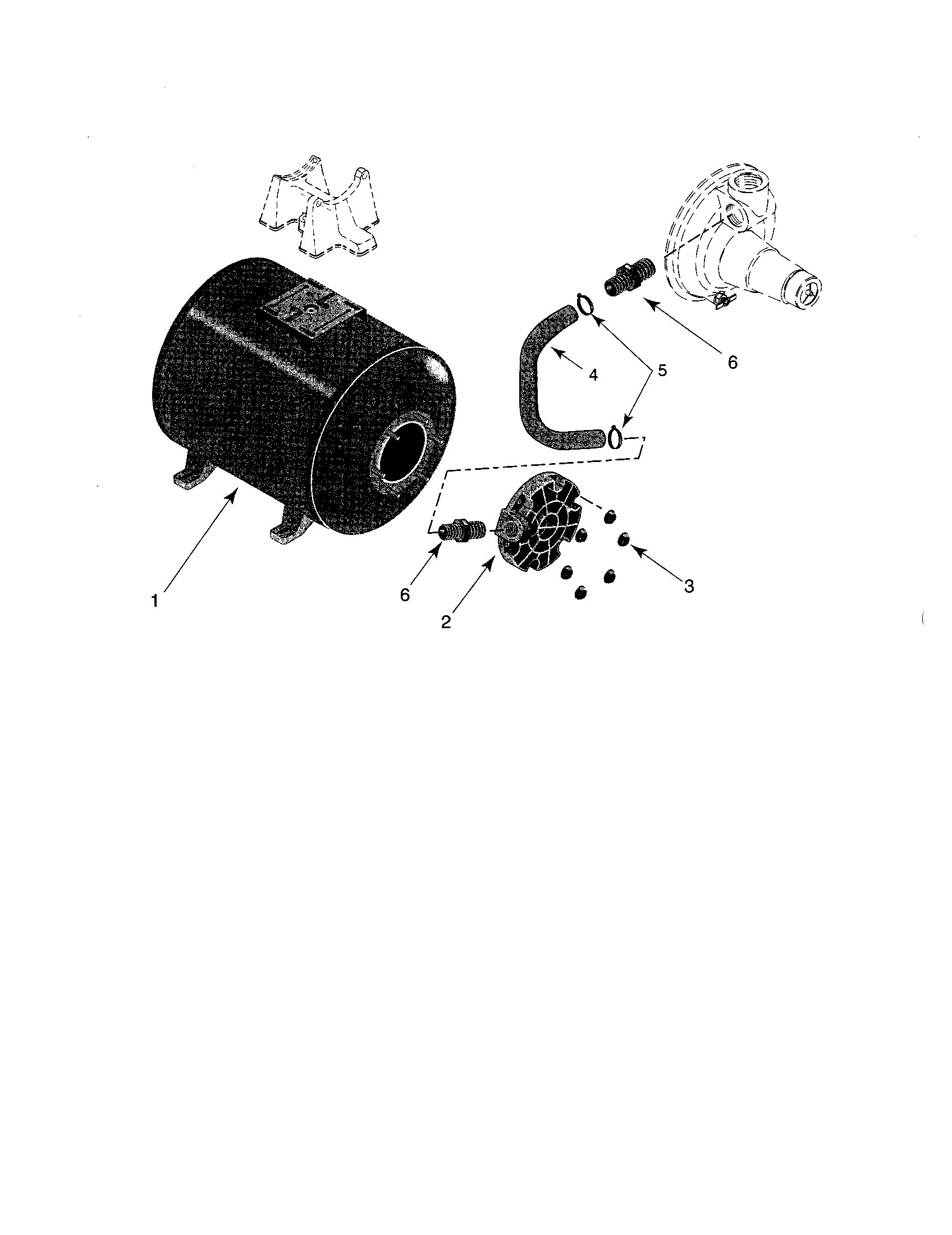

Tank only diagram

Hose clamp

Part #U19-55SS

The manufacturer no longer makes this part, and there's no substitute part

Pump Body Gasket J20-18
#15

Pump only diagram

Pump body gasket

Part #J20-18

Replaced by #J20-18C

?
Manufacturer substitution
This part replaces J20-18. Substitute parts can look different from the original.
This item is not returnable
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Captive Air Tank Inlet Flange (replaces U131-422p) U31-446P
#2

Tank only diagram

Captive air tank inlet flange (replaces u131-422p)

Part #U31-446P

$43.09 |
10% OFF Phone Price : $48.09
In Stock
0-ring U9-226
#19

Pump only diagram

0-ring

Part #U9-226

$10.71
In Stock
Pump Impeller Housing Clamp C19-54SS
#10

Pump only diagram

Pump impeller housing clamp

Part #C19-54SS

$231.69 |
$10.00 OFF Phone Price : $241.69
In Stock
Pump Pressure Switch Tube U37-673P
#17

Pump only diagram

Pump pressure switch tube

Part #U37-673P

This item is not returnable
$19.16 |
10% OFF Was : $21.29
In Stock
Pump Check Valve (replaces N12-12p) N166-5P
#20

Pump only diagram

Pump check valve (replaces n12-12p)

Part #N166-5P

$123.89 |
7% OFF Phone Price : $133.89
In Stock
Pump Impeller J105-40PE
#8

Pump only diagram

Pump impeller

Part #J105-40PE

$139.59 |
7% OFF Phone Price : $149.59
In Stock
Pump Rear Body L176-47P
#5

Pump only diagram

Pump rear body

Part #L176-47P

$276.09 |
$10.00 OFF Phone Price : $286.09
In Stock
