LG
Plasma Television

Model # 50PM4700UBAUSLLJR Official LG television

Here are the diagrams and repair parts for Official LG 50PM4700UBAUSLLJR television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Remote AKB73615313
#A2

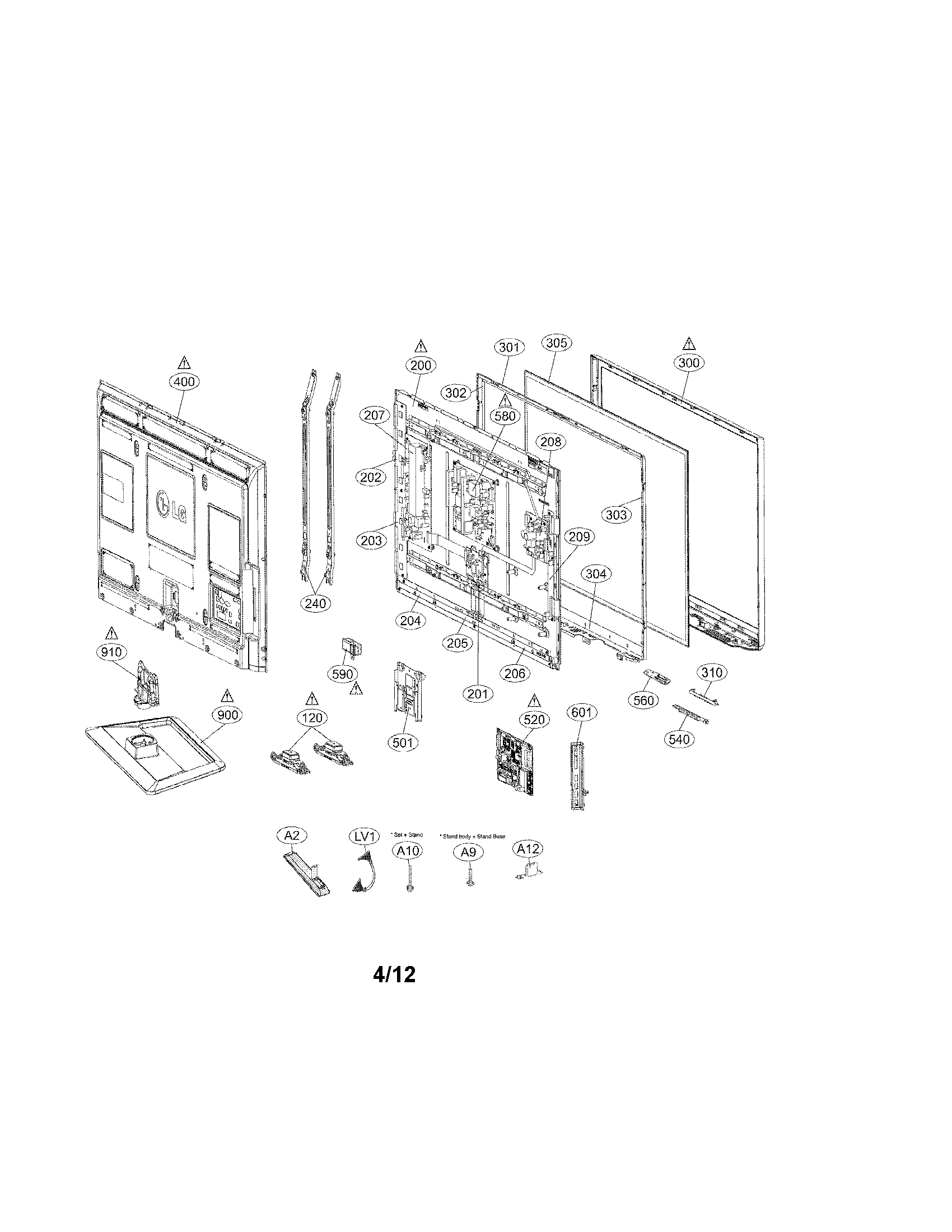

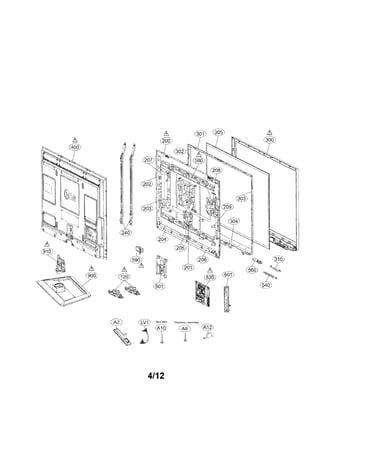

Exploded view parts diagram

Remote

Part #AKB73615313

Replaced by #AKB74115501

?
Manufacturer substitution
This part replaces AKB73615313. Substitute parts can look different from the original.
$35.31
In Stock
Bracket MAZ63286102
#A12

Exploded view parts diagram

Bracket

Part #MAZ63286102

This item is not returnable
$4.80
In Stock
Support Assembly AJJ73558405
#301

Exploded view parts diagram

Support assembly

Part #AJJ73558405

$13.86
In Stock
Support Assembly AJJ73558505
#304

Exploded view parts diagram

Support assembly

Part #AJJ73558505

$13.86
In Stock
Pcb Assembly EBR73748601
#202

Exploded view parts diagram

Pcb assembly

Part #EBR73748601

$86.20
In Stock
Television Printed Circuit Board EBR73748101
#208

Exploded view parts diagram

Television printed circuit board

Part #EBR73748101

$117.90
In Stock
Pdp Module EAJ61908504
#200

Exploded view parts diagram

Pdp module

Part #EAJ61908504

$430.95
In Stock
Cover MCK62976101
Cover

Part #MCK62976101

This item is not returnable
$2.83
In Stock
Television Screw FAB30016603
#A9

Exploded view parts diagram

Television screw

Part #FAB30016603

This item is not returnable
$2.83
In Stock
Pcb Assembly EBR74141501
#204

Exploded view parts diagram

Pcb assembly

Part #EBR74141501

$117.90
In Stock

Parts & More
