Skil
Circular Saw

Model #5750 TYPE 1 Skil power saw

Here are the diagrams and repair parts for Skil 5750-TYPE-1 power saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 65 parts

    Terminal

    #62

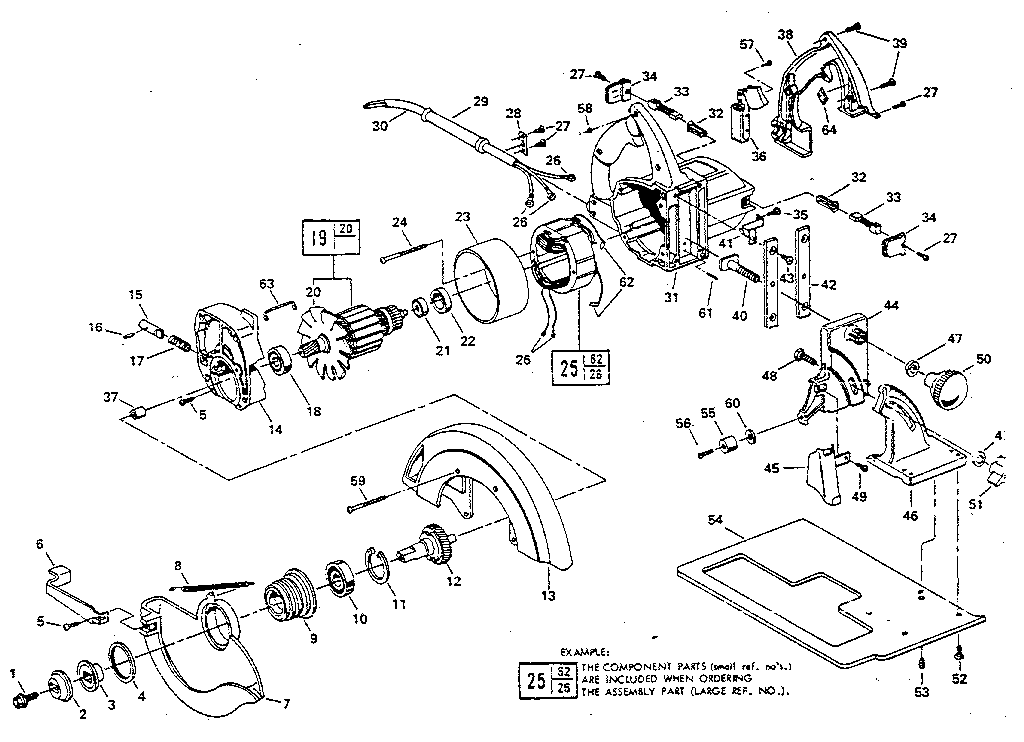

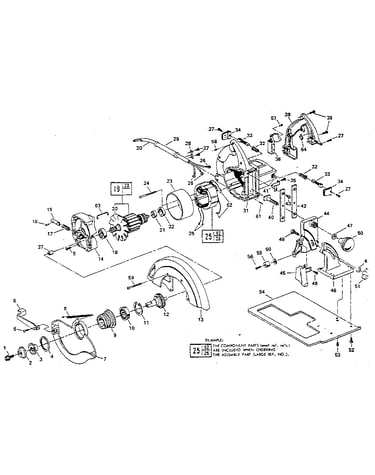

    Unit parts Diagram

    Terminal

    Part #326019

    The manufacturer no longer makes this part, and there's no substitute part

    Armature

    #19

    Unit parts Diagram

    Armature

    Part #326040

    The manufacturer no longer makes this part, and there's no substitute part

    Bearing

    #37

    Unit parts Diagram

    Bearing

    Part #11012

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #43

    Unit parts Diagram

    Screw

    Part #326028

    The manufacturer no longer makes this part, and there's no substitute part

    Washer

    #47

    Unit parts Diagram

    Washer

    Part #326090

    The manufacturer no longer makes this part, and there's no substitute part

    Upper Guard

    #13

    Unit parts Diagram

    Upper guard

    Part #326065

    The manufacturer no longer makes this part, and there's no substitute part

    Baffle

    #23

    Unit parts Diagram

    Baffle

    Part #328484

    The manufacturer no longer makes this part, and there's no substitute part

    Dust Seat

    #64

    Unit parts Diagram

    Dust seat

    Part #347480

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #56

    Unit parts Diagram

    Screw

    Part #348083

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #39

    Unit parts Diagram

    Screw

    Part #348084

    The manufacturer no longer makes this part, and there's no substitute part
